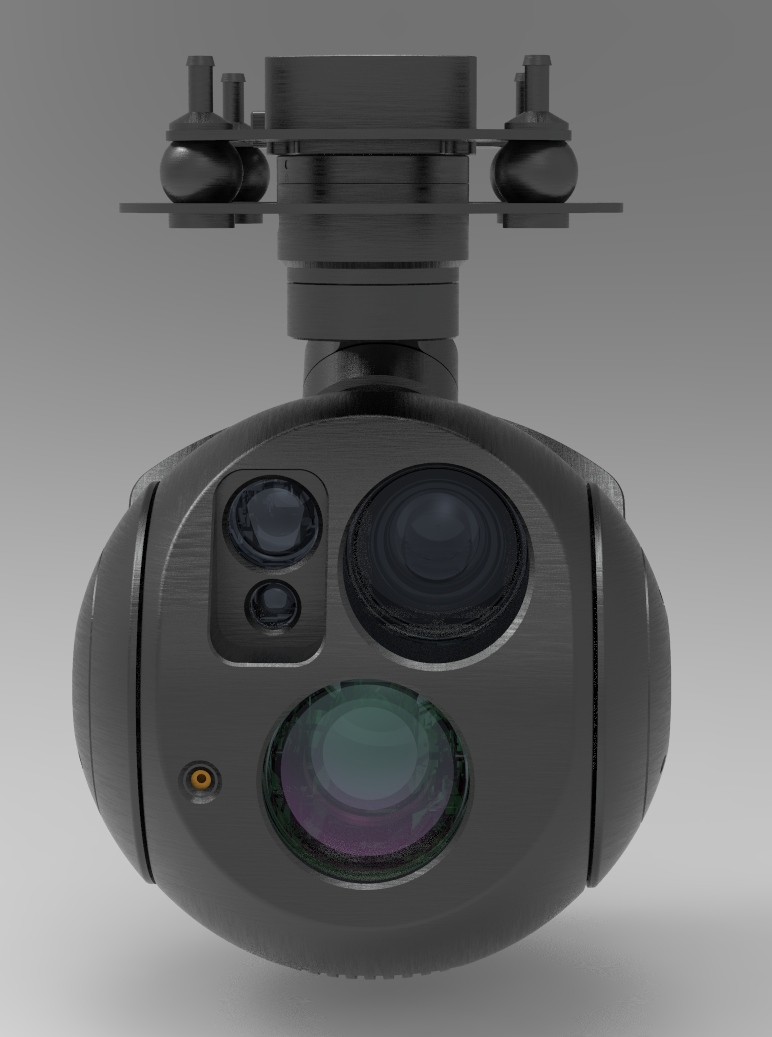

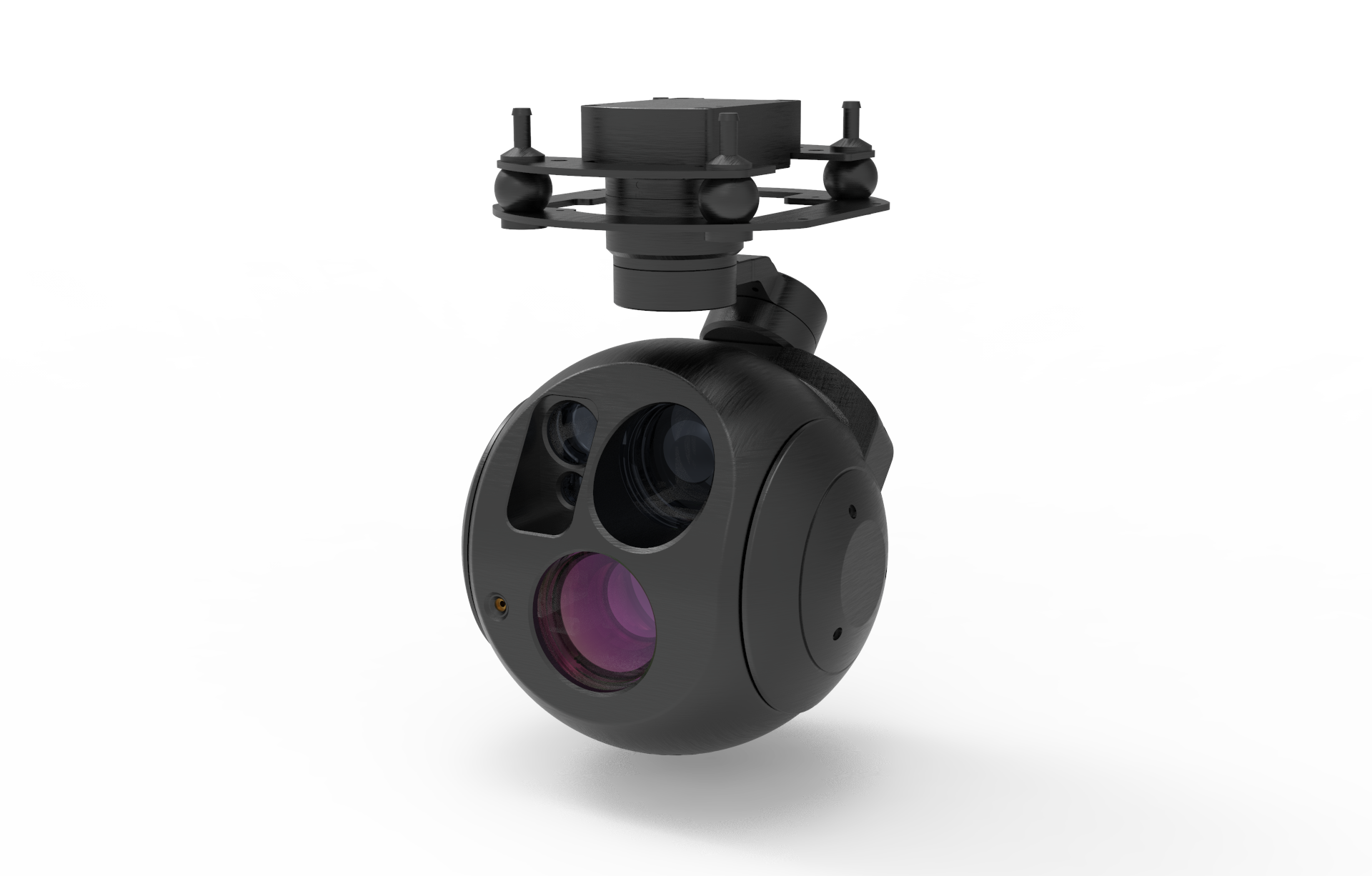

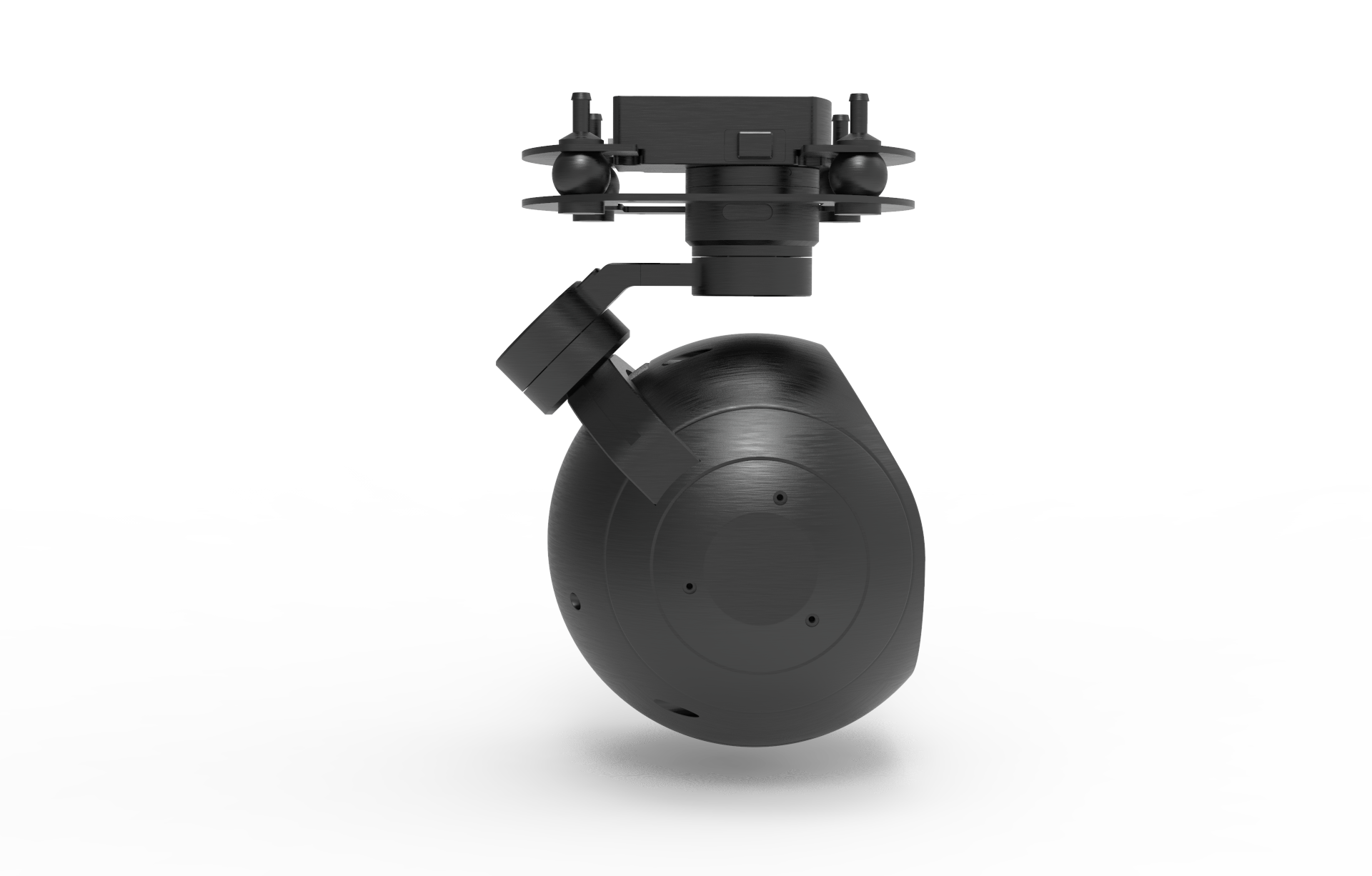

FDZ40DT is a 40x optical zoom lens camera, using a 1/2.8 CMOS sensor, 4 million effective pixels, using a 35mm 640*480 thermal imaging lens, supporting high-definition photography, video, people and vehicles, recognition, target tracking functions.

FDZ40DT can easily complete the integration and docking with open source flight control products. Through simple wiring and setting, the video overlay of the coordinates, altitude and other information of the open source flight controller can be realized, and the image display of the gimbal camera can be realized in the QGC. At the same time, it is also constantly improving and supporting various mainstream commercial flight control protocols. FDZ40DT supports SBUS, serial port, CAN, TCP control, and open control protocol, which is convenient for developers and users to integrate and use.

Specifications:

Weight： 1.1kg

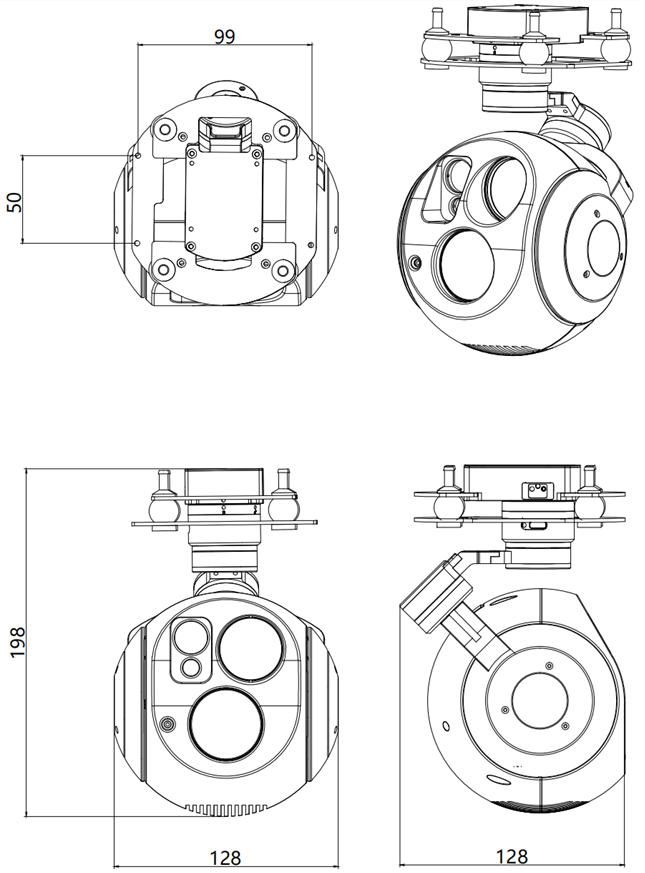

Size： 135*130*210mm
Input voltage： 4S～12S 15V-60V
Output voltage： 5V（S.Bus）
Work current： 15V/900mah
Operation Temp.： -20℃ ～ +60℃
Output IP：（1080p/720p 30/60fps）
Storage TF card: (Max.128G, class 10, FAT32orex-FAT)
PC. Storage form： JPG（1920*1080）
Video storage form： MP4（1080P 30frames/s）
Control way： UART/S.BUS/TCP/CAN
Gimbal
range Pitch：-60°～150°，roll：±70°，yaw：±360°*N
Control range pitch：-45°～90°，yaw：±360°*N
Vibration angle P/R：±0.01°，Y：±0.01
One-click centering
One click down support
Camera
sensor： Sony1/2.8inch“Exmor R”CMOS
picture: HD1080P（1920*1080）
Pixel: 400m
zoom: 40x，F=4.9～195mm

Digital zoom: 4x（160x Hybrid zoom）default off
Minimum supported: focal distance 10mm (proximal) to 1200mm (distal). The default is: 300mm
SNR: 50dB
Night vision: Corlor 0.001lux@F1.5 balckand white 0.0005Lux@F1.5
Exposure control: Auto, Manual, Priority Mode (Shutter Priority and Aperture Priority), Brightness, EV Compensation, Slow AE
White balance: Auto, ATW, Indoor, Outdoor, One-touch WB, Manual WB, Outdoor Auto,
Sodium vapor lamp (fixed/automatic/outdoor automatic)
shutter speed: 1/1s~1/10000s，22steps
Backlight compensation: support
Aperture control: 16 steps
Defogging: support
Operating system data: support
EO/IR
Deviation pixel update rate: 30HZ
output delay of the off-pixel pixel:s <30ms
Minimum support focal point support ratio: 5%
SNR
Min. pixels:  16*16
Max. pixels: 256*256

Tracking speed: <32pixel/frame
Pixel memory time is supported: 100frame
Laser rangefinder
range: 3000m
Work current: 80mah（max.）
beam: 905nm pulsed lasers
divergence angle: 3 mrad
Laser pulse frequency: 1HZ
power: ＜1 mW（eye safety）
Ranging mode: pulse
Location resolution latitude and longitude of the target
Laser pointer
power: 50mw
color: green
Indicates distance： 1000m
Trigger on： support
EO camera AI recognition performance
Target type： Car and human
Simultaneous detection quantity： ≥50 targets
Minimum support ratio
Min. target size： 5×5pixel
Vehicle detection rate： ≥85%
error： ≤10%
Thermal

focal length： 35mm
Horizontal field of view： 12.5°
Vertical field of view： 10°
Work model： Uncooled VOx long-wave (8μm~14μm) thermal imager
Detector pixels： 640*512
Pixel size： 12μm
False color type： There are 8 kinds of white hot, rainbow, lava, iron red,
