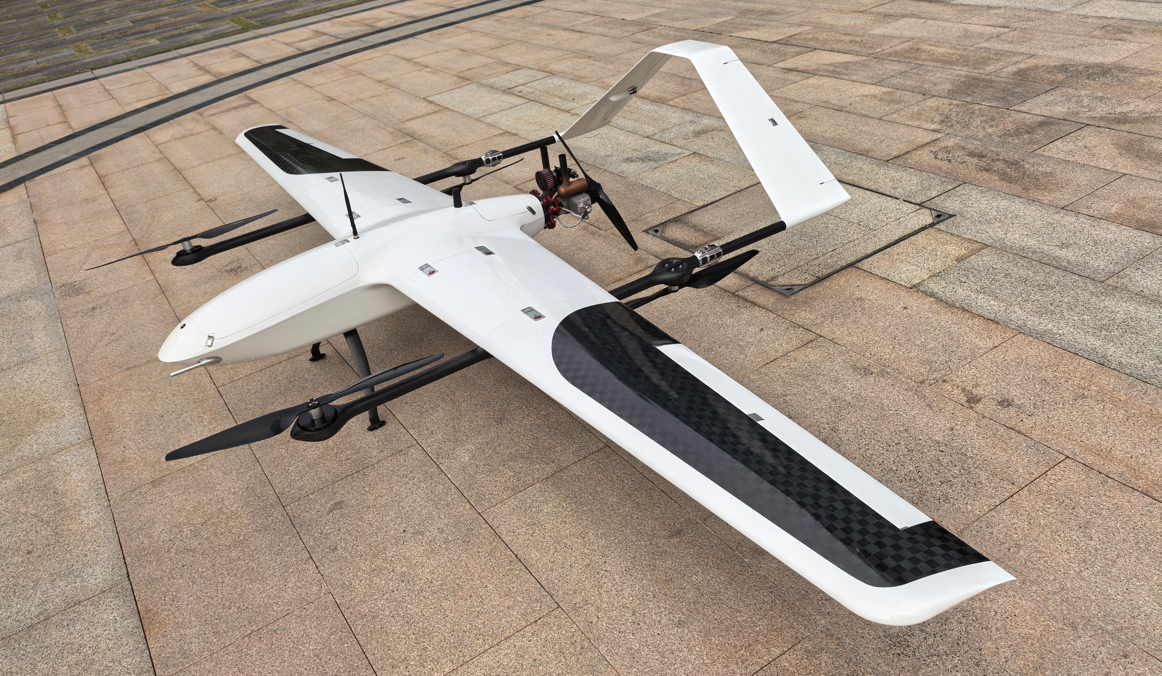

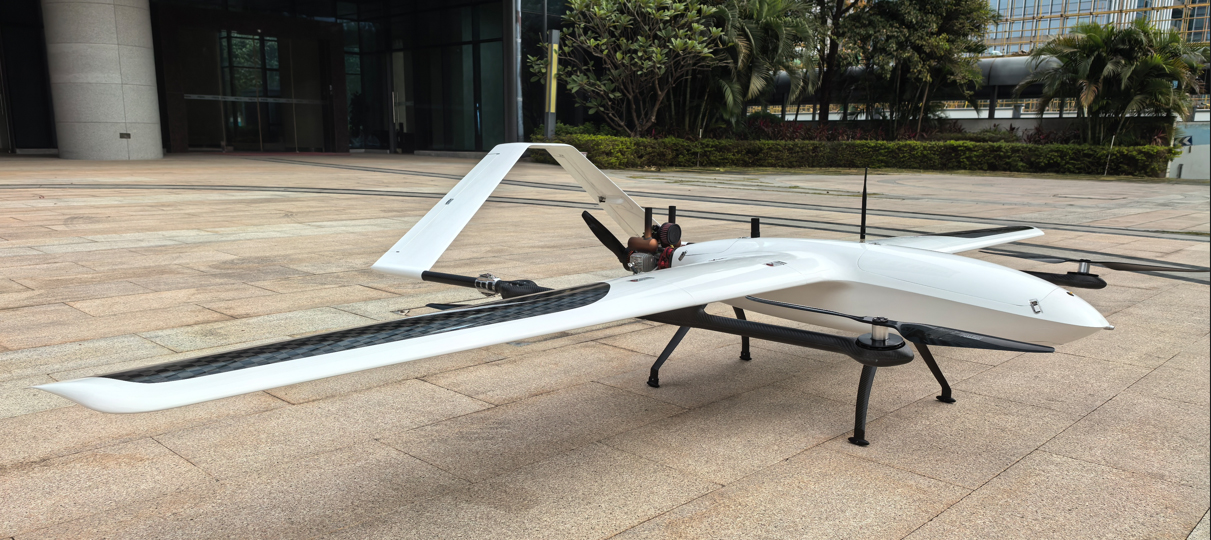

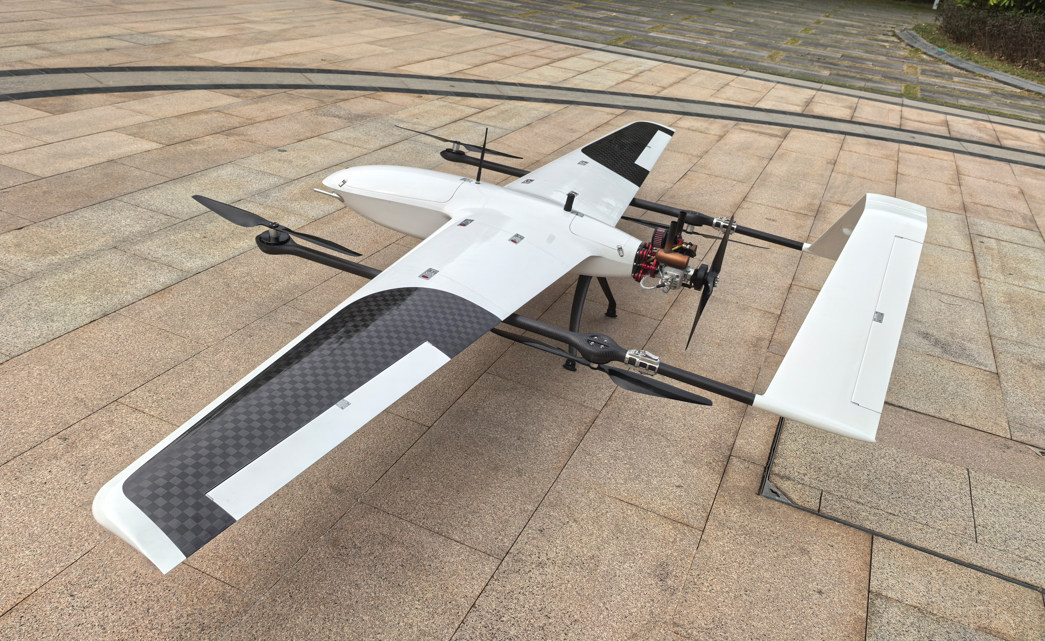

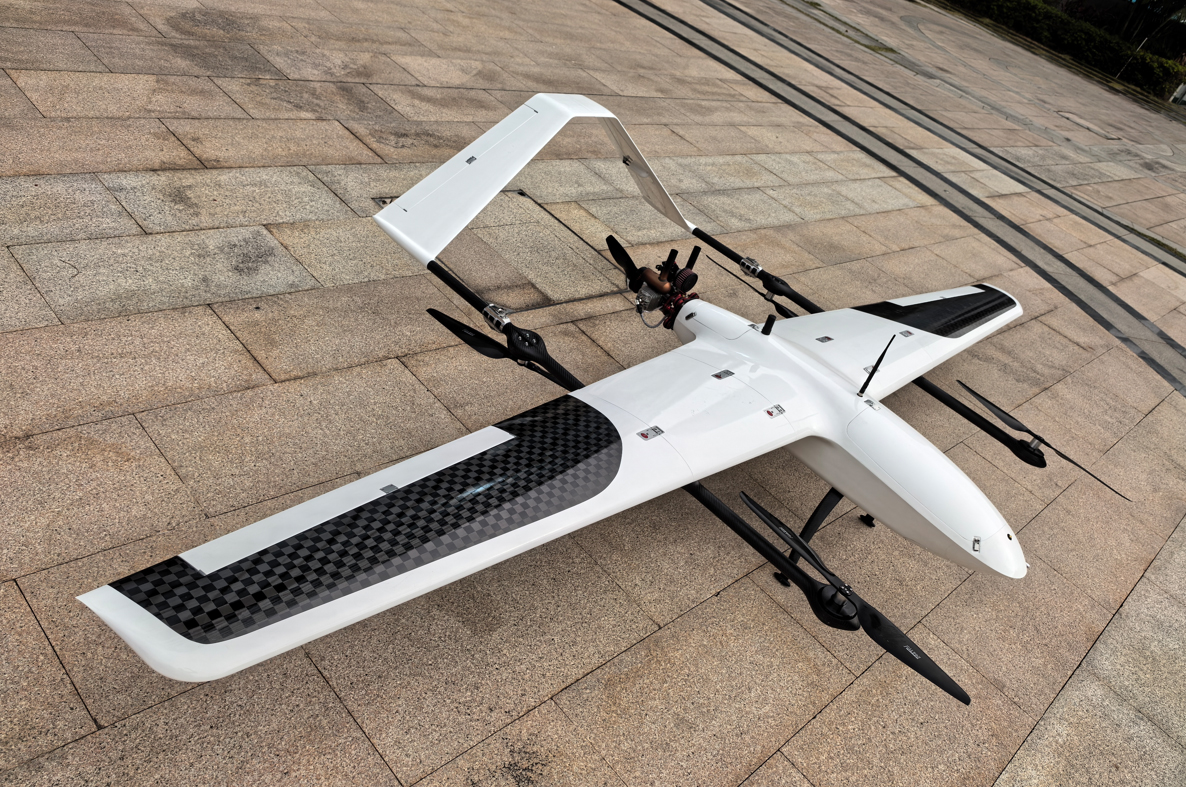

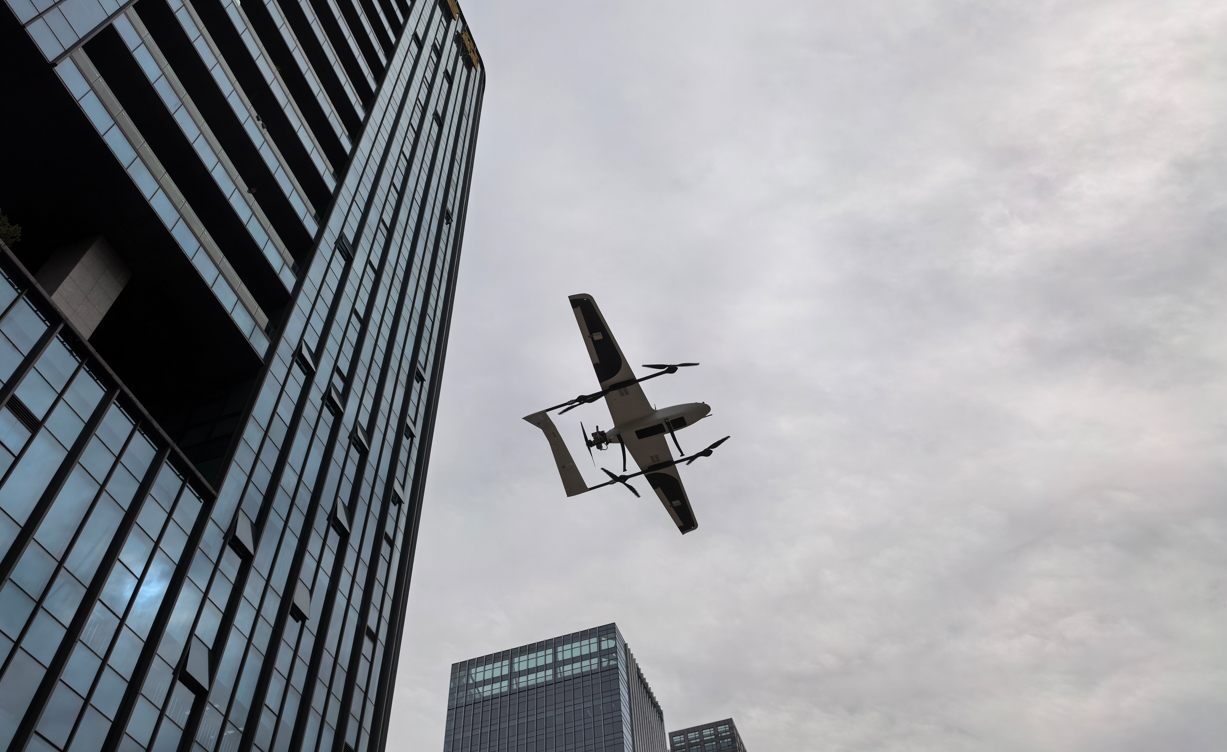

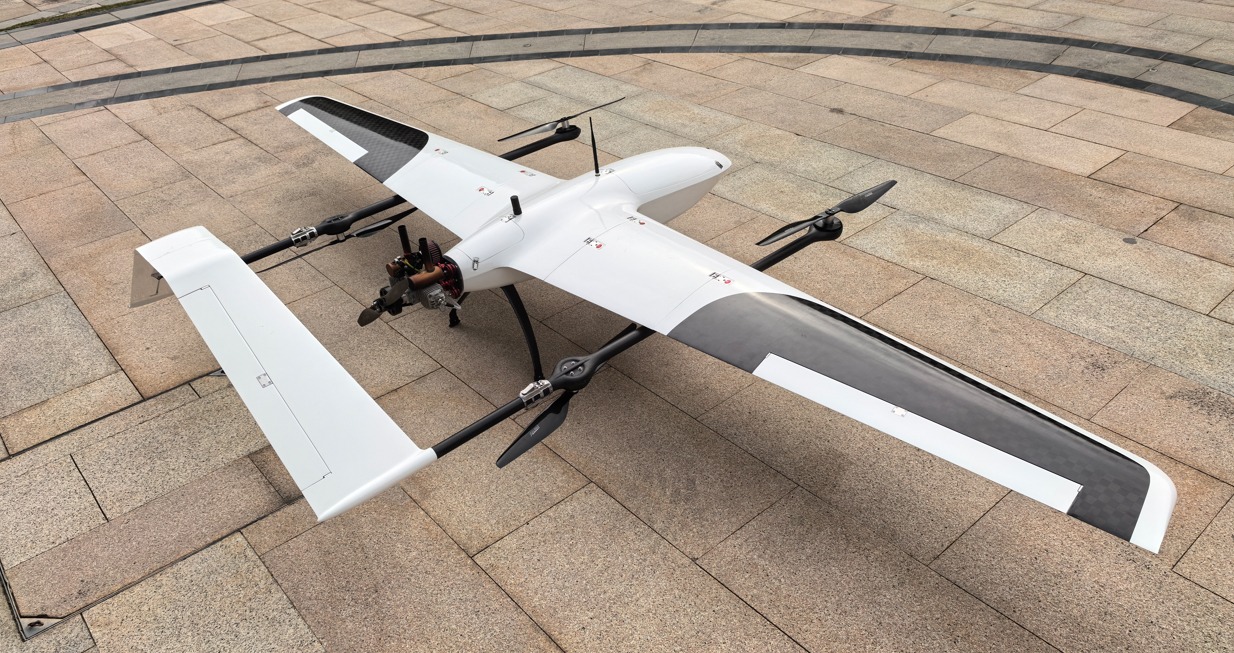

FDG410H Hybrid long endurance UAV can flight 10hours with 5kg payload. it's upgrated from FDG410 electirc drone, wingspan 4m, drone weight 25kg, max takeoff weight 40kg, only need one people assembly with 5 mins can flight without tool, there are navigation lights on the left and right wing, so you can flight even at night. it's good for surveying and mapping, border patrol, forest fire prevention etc.
Specifications
Drone type: Hybrid
VTOL drone
Size(wingspan*length*heigh): 4000*2060*768mm
Drone weight: 25kg without fuel
Max. takeoff weight: 40kg
Engine: B2G70
Fuel consumption: 1.1L/H
Max. payload: 10kg(without fuel)
Max flight time:
10h/5kg
Max. climb speed(fixed-wing): 4 m/s
Max. descent speed(fixed-wing): 5 m/s
Suggest cruise speed: 85 km/h
Max cruise speed: 130 km/h
Max. flight altitude: 3500 m
ceiling limited: 5000 m
Wind resistance level: 6
Operation Temp.: -20~60℃
IP: 54
VTOL battery: 12S 8000MAH*2
Engine battery:6s
10000mah*1
Packing Size: L 1560 *W630 *H817cm
