FDG24 electric VTOL drone paylaod 1.6kg 3.5hours for mapping

Product description: FDG24 electric VTOL drone adopts the layout of fixed wing combined with four rotors， which solves the problem of vertical take-off and landing of fixed-wing UAV in a simple and reliable way， taking i
INQUIRY

FDG24 electric VTOL drone paylaod 1.6kg 3.5hours for mapping

FDG24 electric VTOL drone adopts the layout of fixed wing combined with four rotors， which solves the problem of
vertical take-off and landing of fixed-wing UAV in a simple and reliable way， taking into account the advantages of long flight time， high speed and long distance and the vertical take-off and landing function of fixed-wing UAV.The characteristic of FDG24 electric VTOL drone platform does not need landing runway， and adopts the conventional layout with overall safety and reliability and the advantages of small weight and heavyload greatly expands the application scope of the uav and is an ideal choice for industrial UAV.

Specification

Length：1519mm

Height：356mm
Wingspan：2398mm
Airframe material：Aviation carbon fiber composites
Payload：1.6kg
Take-off mass：10kg
Level speed：18-35m/s
Cruising speed：25m/s
Flight time：3.5h@1.6kg
Max range：240km
Altitude：5000m
Temperature：-20°C-45°C
wWind resistance：ttake-off level 5/ cruising level 6
Packing：1580*400*440mm

Protection degree：IPX4

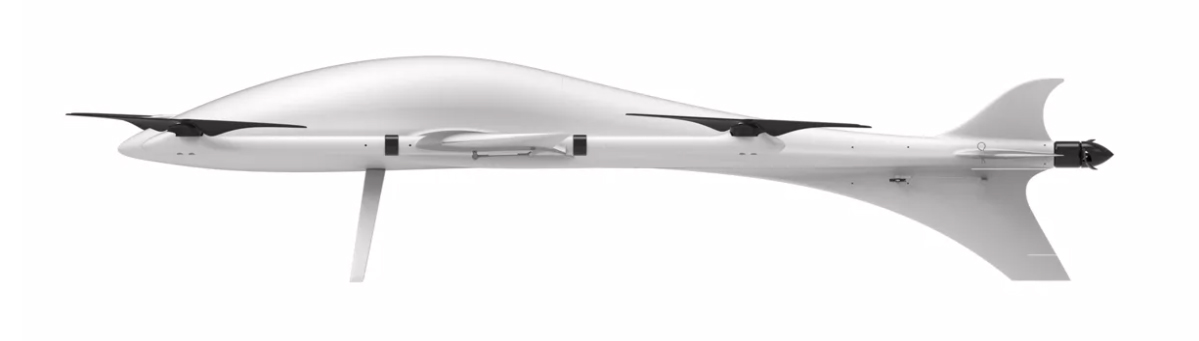

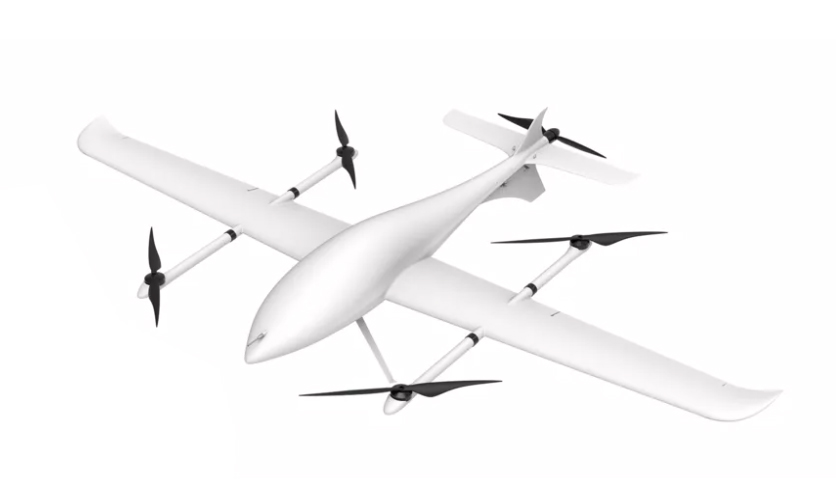

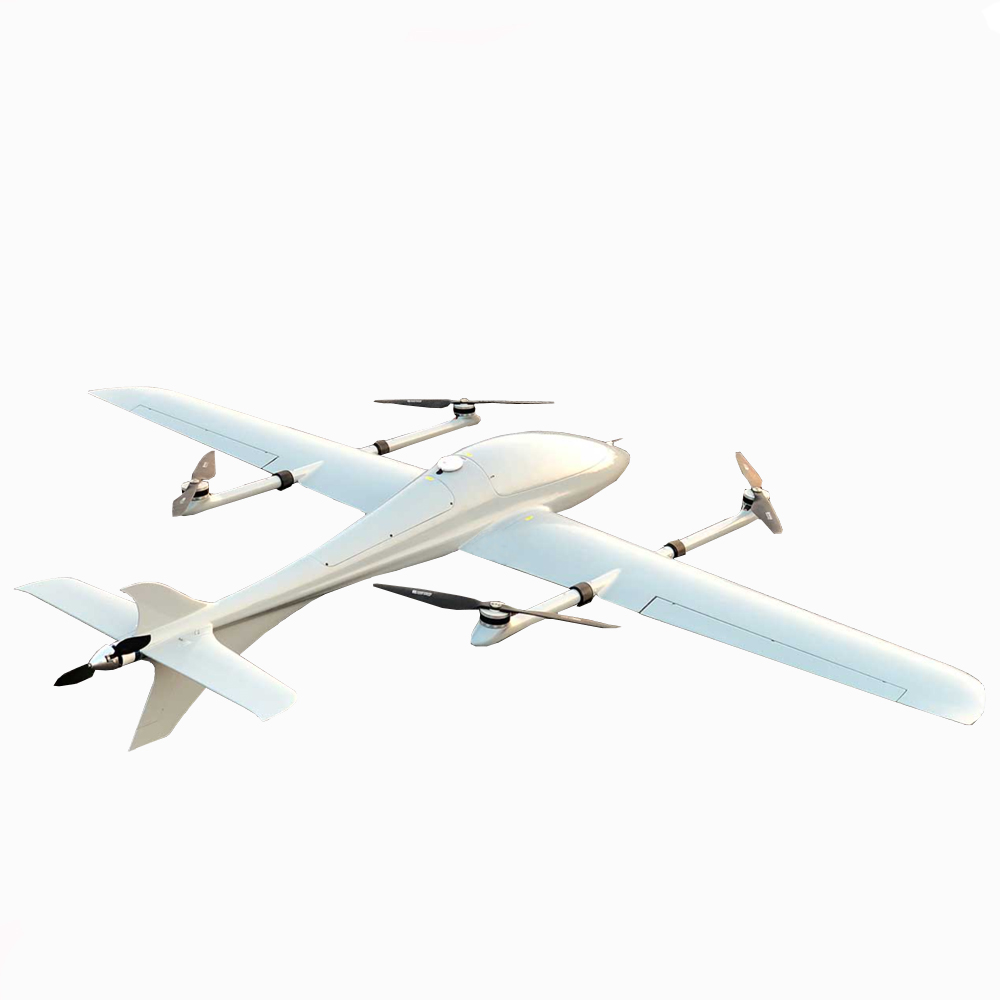

FDG24 electric VTOL drone
