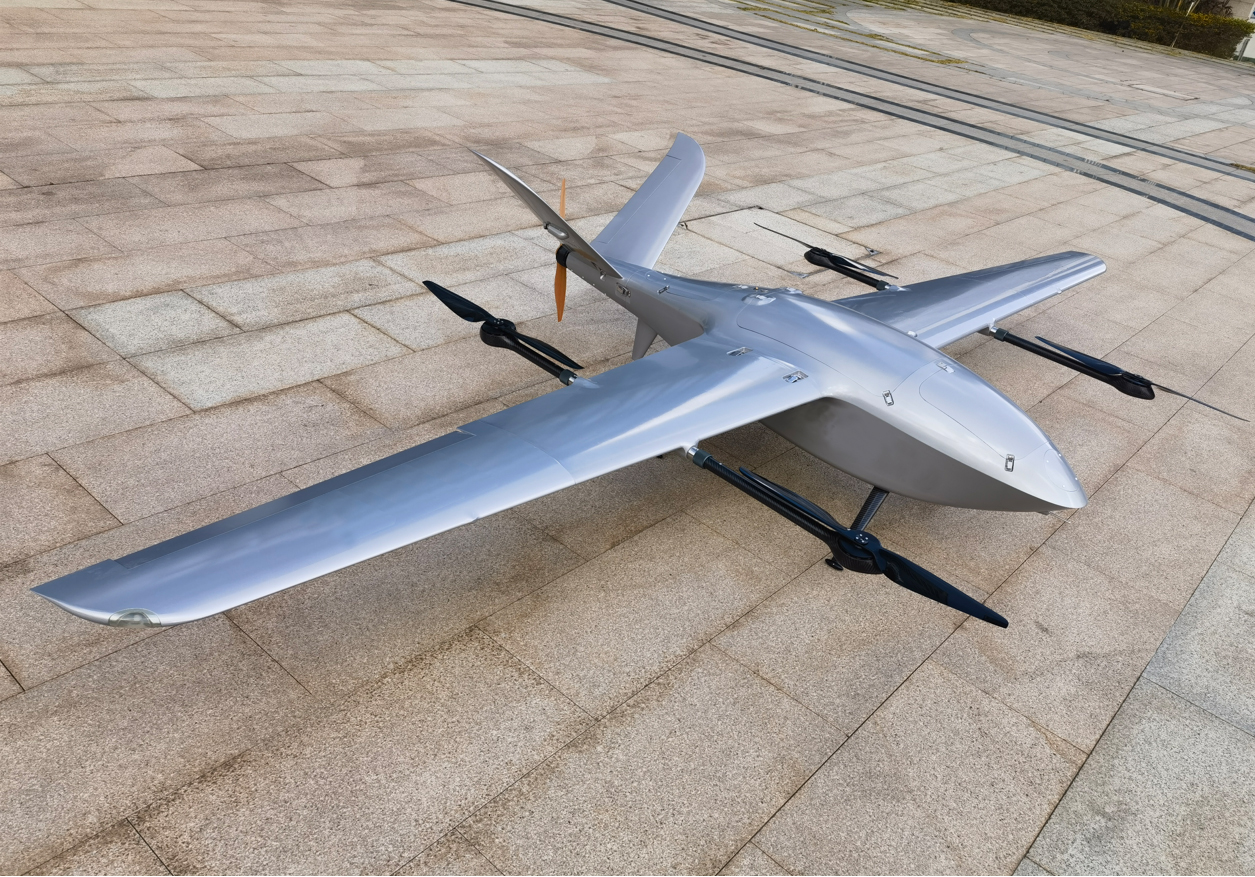

FDG4200 payload 10kg flight 90 mins logistics transport drone
FlyDragon FDG4200 payload 10kg flight 90 mins logistics transport drone is specially designed for logistics transportation, it's logistics cabin is designed in the middle of the fuselage, Maximum payload 10kg, life time is 90mins@10kg payload, 2h@5kg payload, it's good for delivery medicines, food, water, plasma, etc
Specifications
Wingspan: 4.2m
Maximum take-off weight: 40kg
Maximum load weight: 10 kg
Maximum ascent speed (vertical position): 3 m/s
Maximum descent speed (vertical position): 2 m/s
Maximum speed of climb (fixed-wing state): 4 m/s
Maximum descent speed (fixed-wing state): 5 m/s
Typical cruising speed: 85 km/h
Maximum cruise speed: 130 km/h
Maximum take-off altitude: 4000 m
Ceiling: 6000 meters
Maximum Wind Resistance Rating: Level 6 / Vertical Level 5
Severe weather resistance: Light rain/snow/fog
Normal operating temperature range: -10~60°C
Hovering stability: 1-2 m vertical±; Horizontal± 1-2 meters
Max endurance: 10KG≥90mins, 5KG≥120mins
Loading method: can be picked up on the ground, or thrown in the air

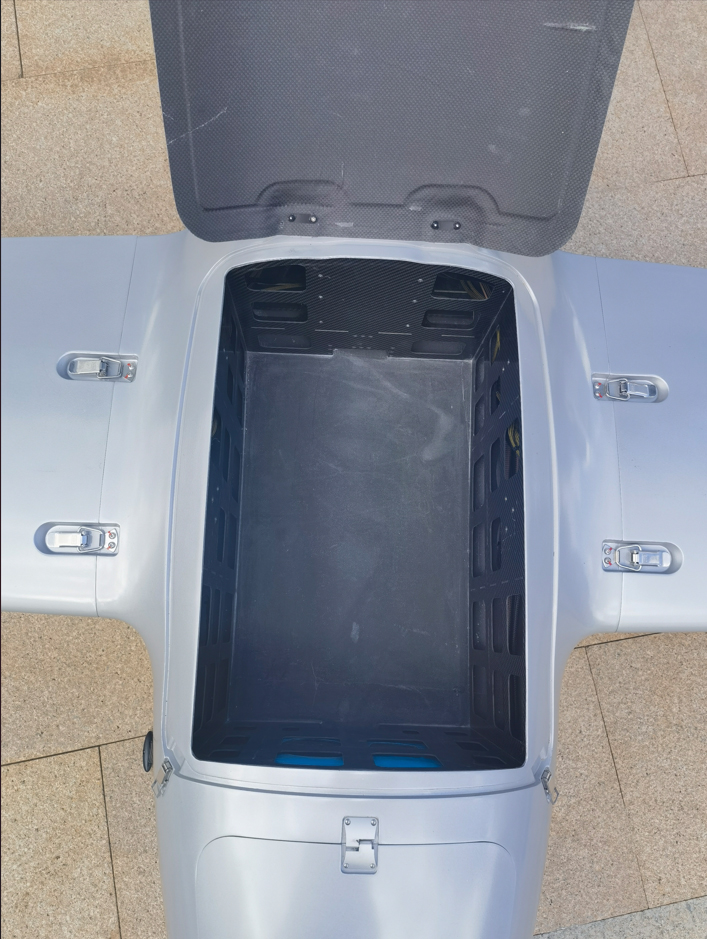

Built-in compartment size: 500*305*260mm
IP Rating: IP45
Battery: 12S 27000mah*3 (load 5kg)
12S 27000mah*2 (load 10kg)
Shipping box size: 1650*920*750mm
