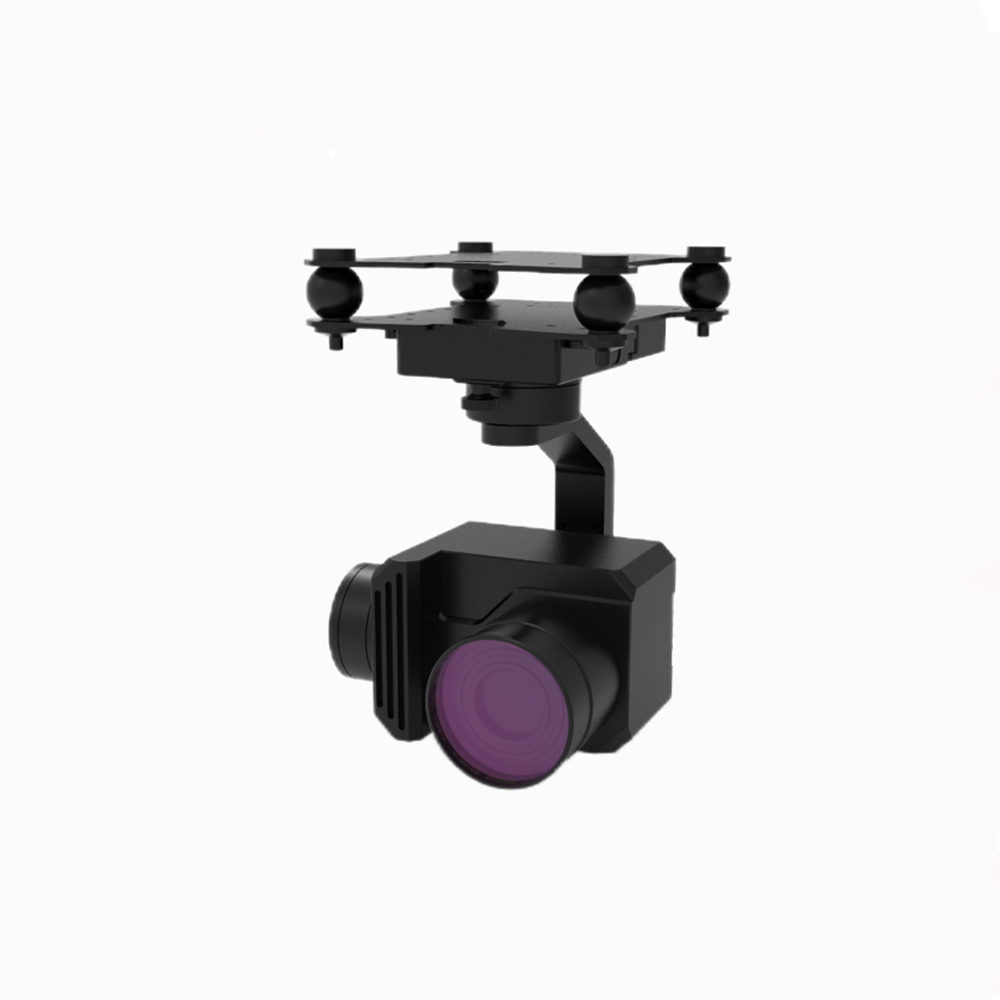

The FDG26H gimbal camera is equipped with: 25mm fixed focal length lens APS-C format, effective pixels 2600w. EXIF attribute information can be written. Support shutter control, hot shoe feedback. Ethernet port display, control. It is especially suitable for surveying and mapping and fine inspection applications
Specifications
camera
CMOS： APS-C 23.5*15.7mm
Total number of pixels: 26 million pixels pixel pitch 3.76u
Effective pixels: 1080p 1920*1080
Effective pixels for photography: 26 million
Lens: F-number f=25mm equivalent focal length 37.5mm
Video format: MP4
Number of pixels: 4k:3840x2160/30pFHD:1080/60p(HD:720/30p)
Shutter: Quick-release mechanical global shutter between lenses
Number of pixels: 3:2 6252*4168
Photo in JPEG format
Interval between photos: 0.6s min
Gimbal
Stabilization accuracy: ±0.01°
Control Angle: Heading 360° continuous Pitch 70° to -100°
Video output interface: network port RTSP 1080P real-time transmission
Control interface: TCP/UART/S.Bus/CAN/shutter
Quick Release: Yes
Weight: Pod 445g shock absorber plate 130g

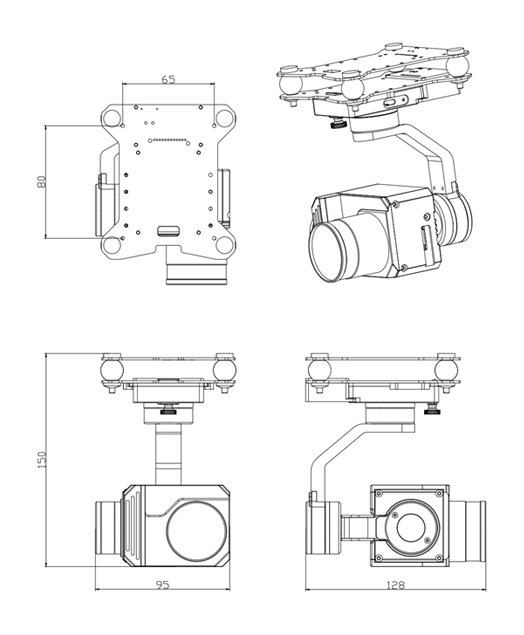

Size: length 128mm * width 95mm * height 150mm
Power consumption: <6W
