Drone Gimbal Camera

FDG640C 640*480 thermal camera

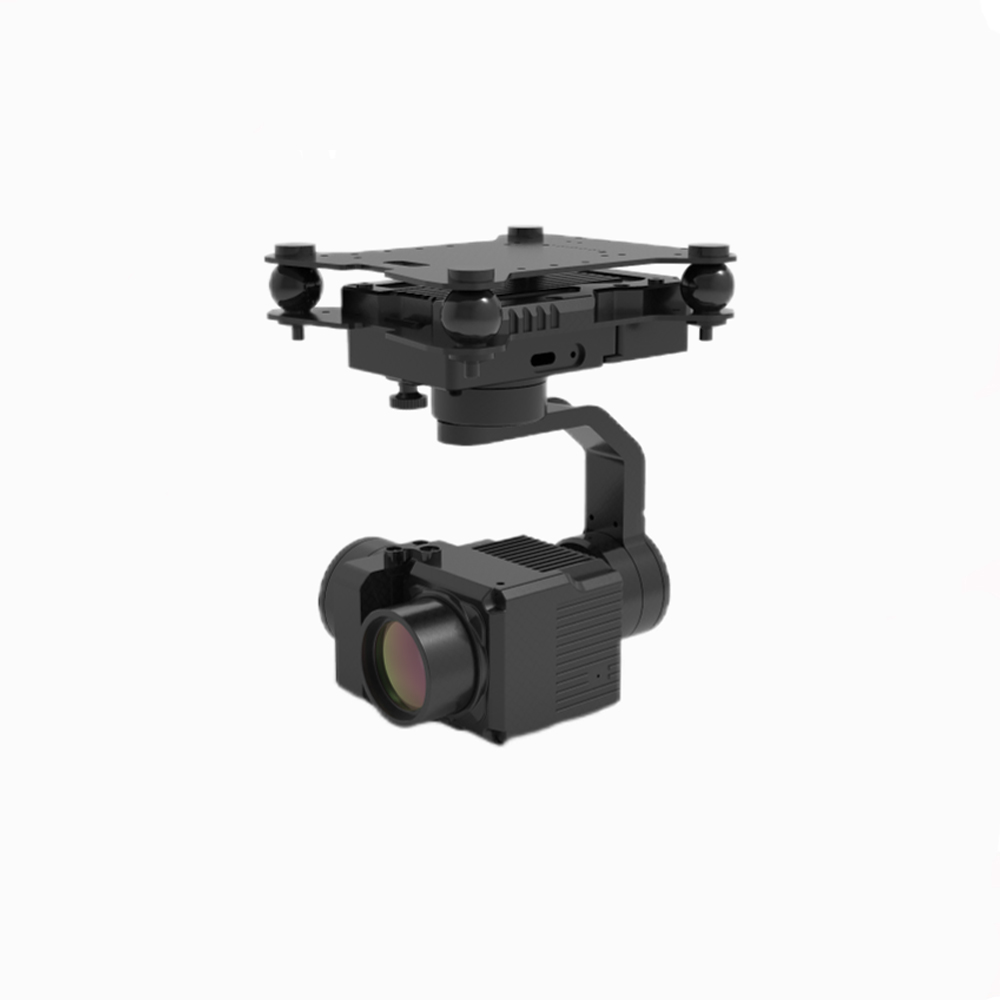

Product description: FDG640C thermal imaging gimbal camera adopts a 640*480 resolution thermal imaging core module and an 18mm lens. It is equipped with a high-precision three-axis gimbal and has a global temperature meas
INQUIRY

FDG640C thermal imaging gimbal camera adopts a 640*480 resolution thermal imaging core module and an 18mm lens. It is equipped with a high-precision three-axis gimbal and has a global temperature measurement function. It supports the writing of EXIF attribute information, meets the technical standards of power inspection, and can be widely used in inspection, survey, monitoring and other fields.

Specification

Operating voltage: 14V-60V
Power: ≤7W
Weight: A640C 480g PTU130g

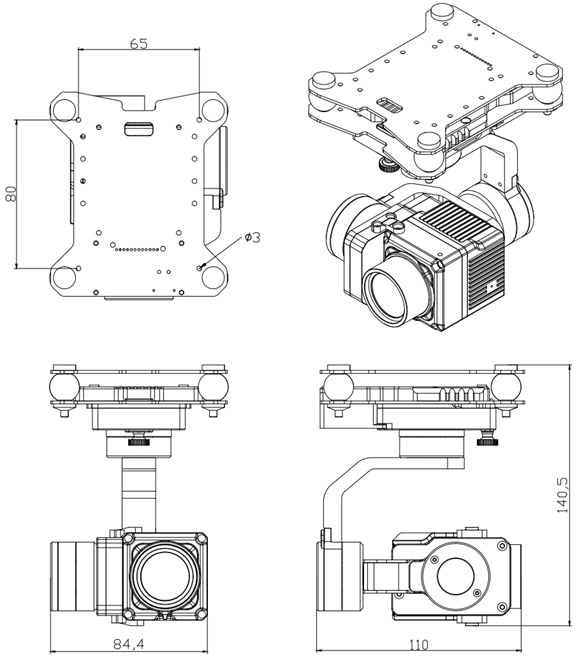

Size: (LxWx) 115*84*115mm
Control Interface: TCP UDP TTL CAN S.bus (G26H support shutter, hot shoe)
Operating temperature: -10°~60°
Storage temperature: -20°~70°

Gimbal
Angular jitter: ±0.01°
Installation: Detachable
Gimbal Travel: Pitch: -60°~150°, Roll: ±70°, Yaw: ±360°*N
Working mode: Heading Following, Heading Locking, One Key Down

Camera

Sensor: 640*480/384*288

Lens: 18mm
Image storage format: JPEG
Video storage format: H264
Working Mode: Recording; Photograph;
OSD Information Overlay: Yes
Exif Information Write: Yes
Onboard Storage: Built-in 64G solid-state storage
