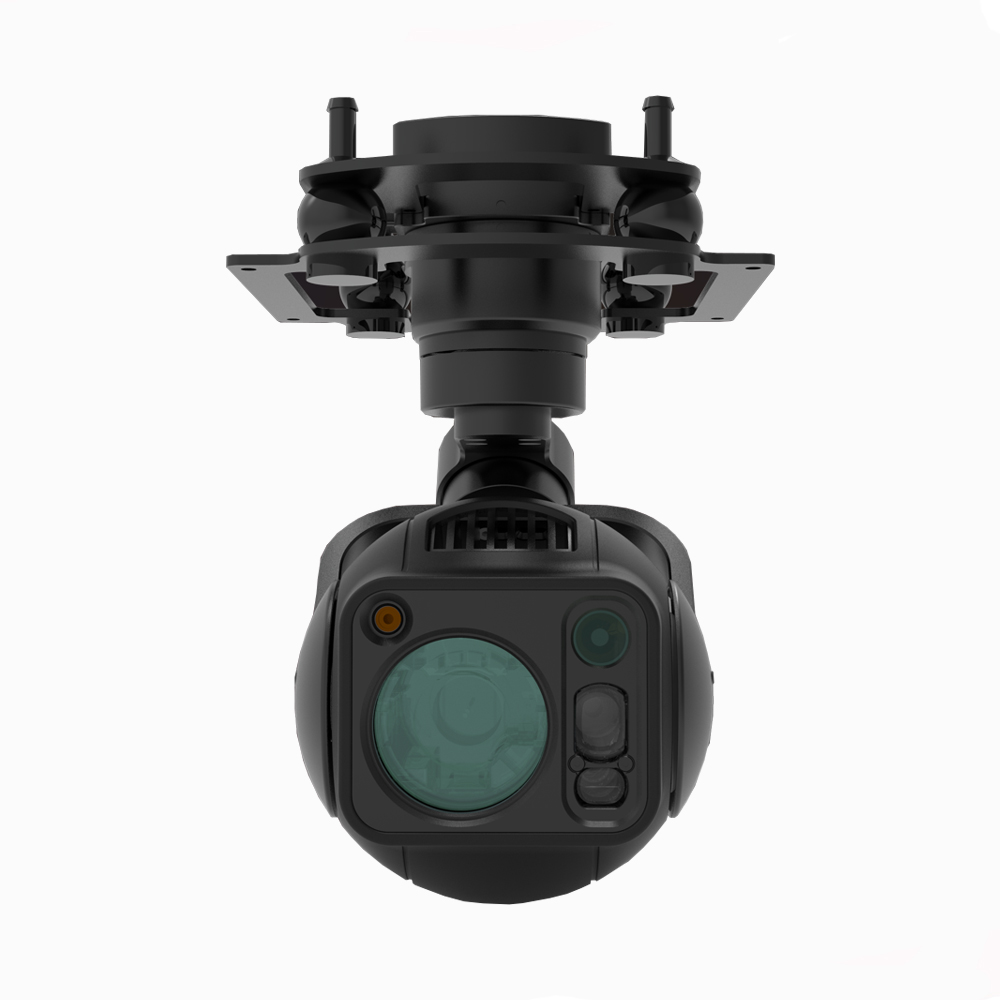

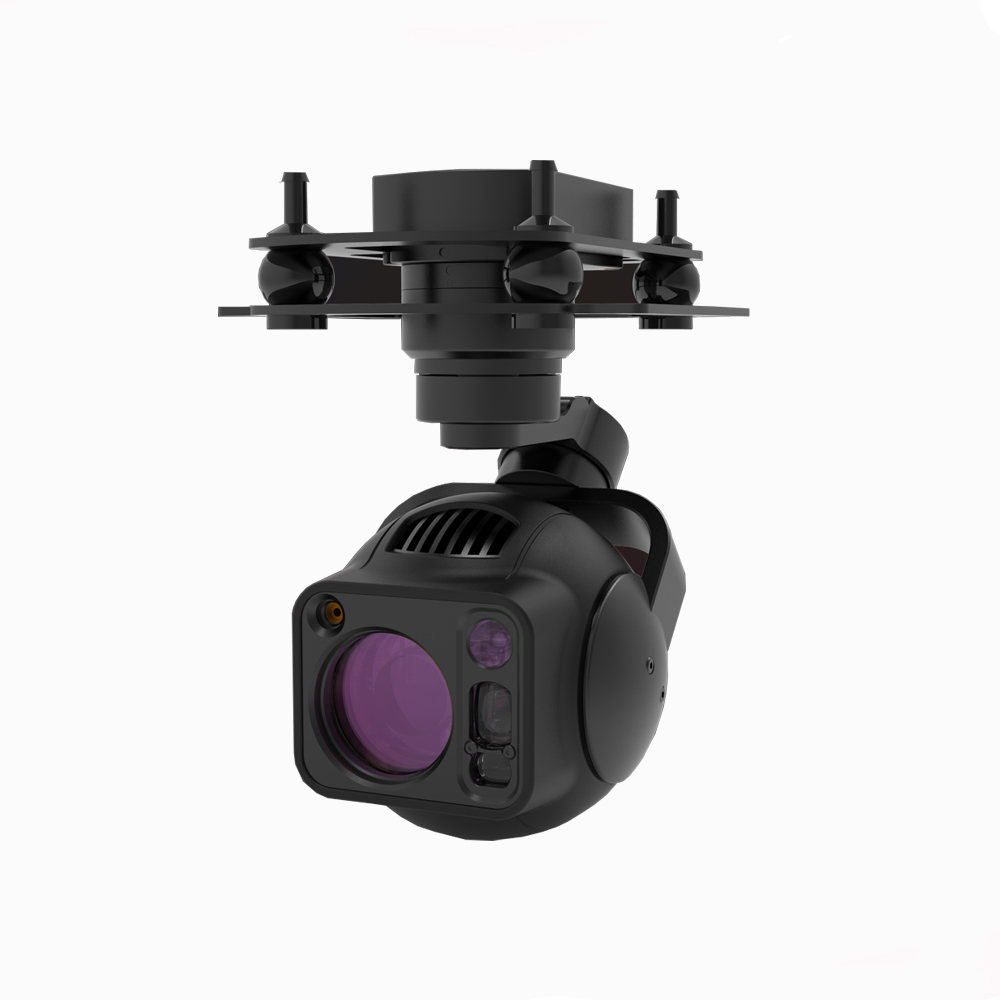

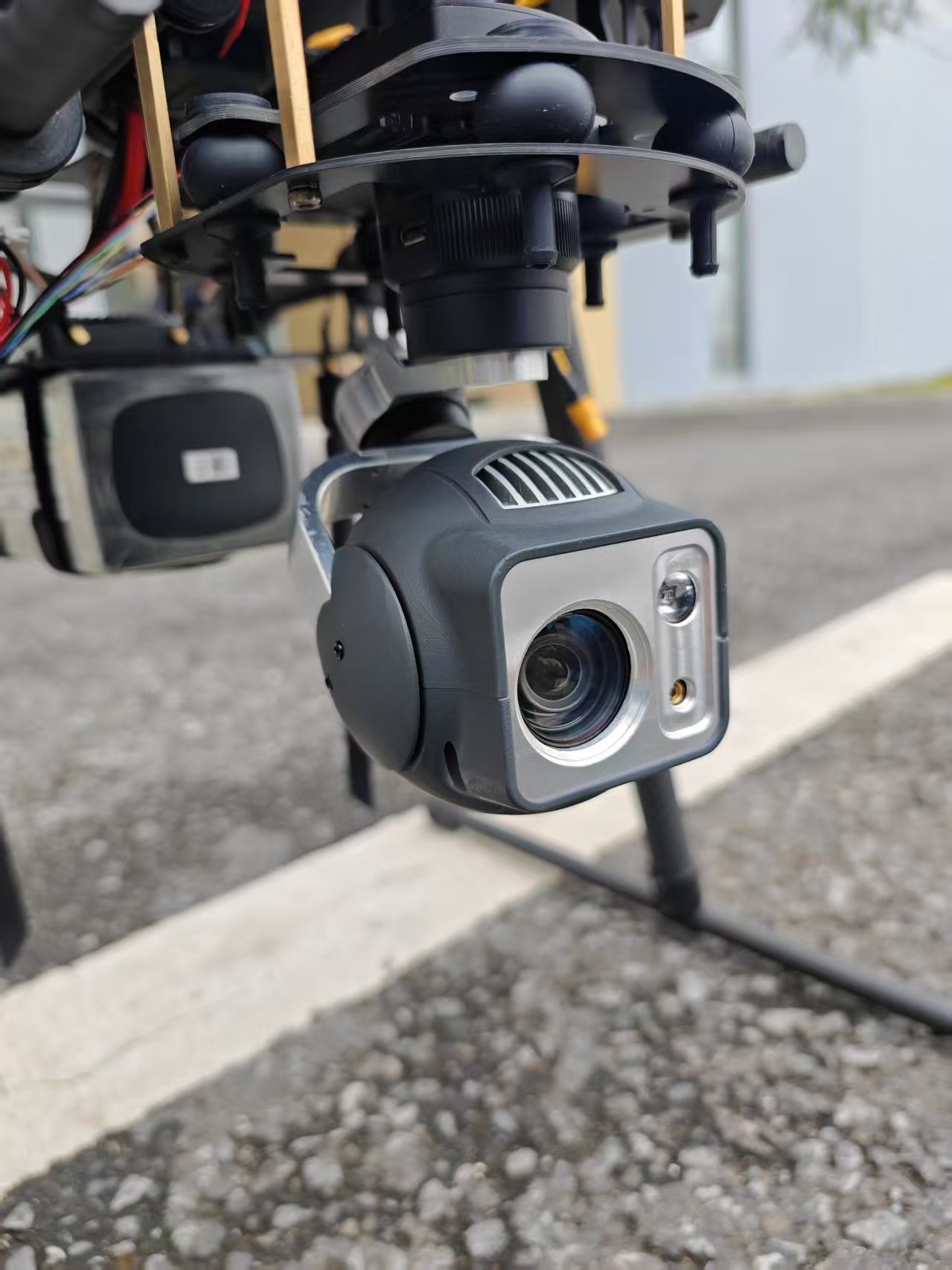

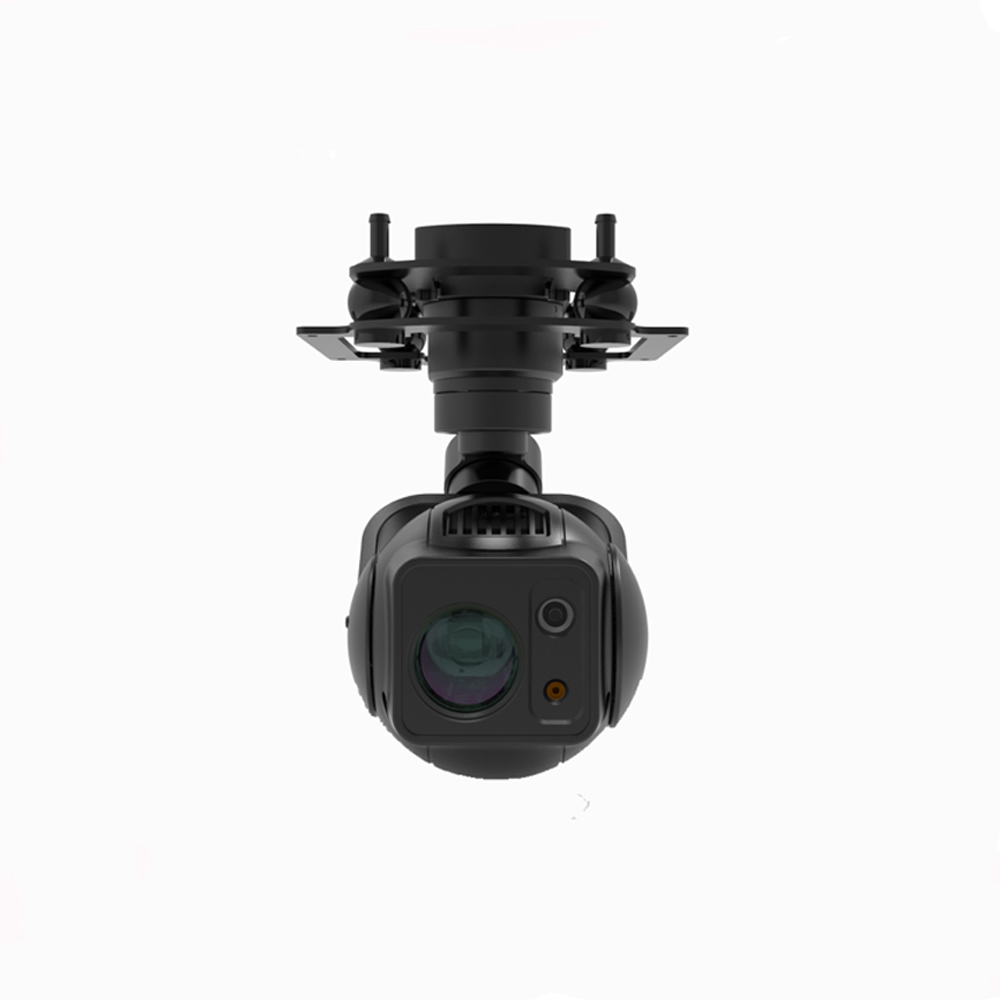

FDZ10pro gimbal camera is a high-performance drone-mounted networked camera with 10x optical zoom capability and 4K HD shooting capability. The camera adopts a 1/2.8 CMOS sensor with 8.30 million effective pixels and supports laser indication, night vision fill light, target tracking, human-vehicle recognition and 1000-meters rangefinding and target localization.The FDZ10pro is also equipped with a high-precision three-axis gimbal, which can achieve 360° continuous rotation . In addition, the FDZ10pro supports a variety of control methods and working modes, which is suitable for UAV application scenarios that require night work，high-definition image quality and intelligent recognition functions.
FDZ10pro comes with.
Visible light: 10x optical zoom lens; 1/2.8 CMOS sensor, effective pixels 8.46 million, support 4K photo, video.
Support laser indication, night vision fill light
Support target tracking, human-vehicle recognition
Supports 1200m ranging, target positioning
A network-type camera equipped with a high-precision 3-axis gimbal.
|
typology |
network-based |
|
material (that sth is made of) |
Aircraft aluminum alloy, nylon |
|
sizes |

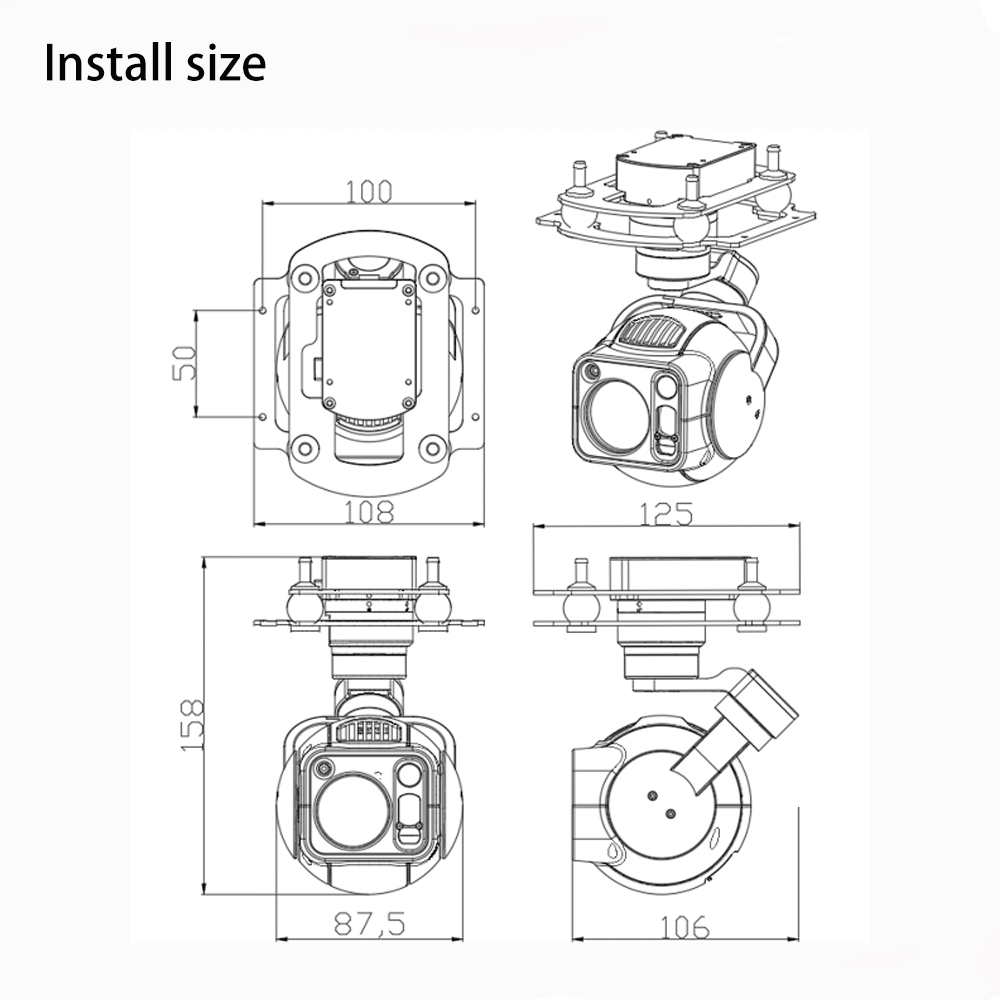

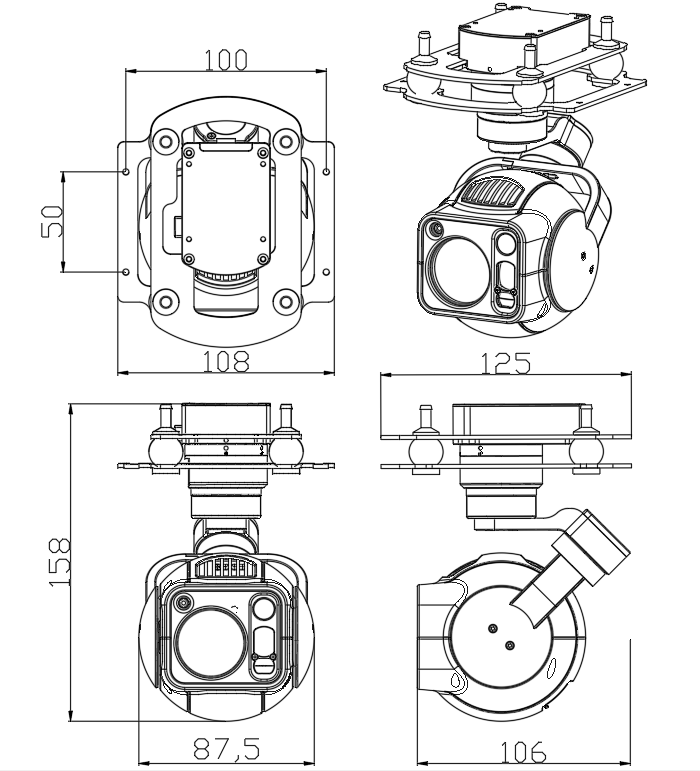

104 (L) x 88 (W) x 158 (H) mm |
|
weights |
Camera <450g Shock Absorption 120g |
|
power supply |
4S-12S 14-60v |
|
operating temperature |
-20℃～ 60℃ |
|
Control angle (pitch) |
-90°～ +45° |
|
Control angle (direction) |
360° continuous rotation |
|
Angular jitter |
±0.01° |
|
control signal |
S-Bus, UART TTL, Network Port |
|
stockpile |
Micro SD card |
|
output interface |
Network Port, UART Port TTL, S-BUS, Power Supply |
|
operating mode |
Direction lock; heading follow; one button down; target tracking |
|
camcorder |
|
|
monitoring range |
4.8～ 48mm |
|
Horizontal field of view |
60.2°～ 6.6° |
|
zoom power |
10x optical zoom 40x hybrid zoom |
|
Focusing speed |
<1S |
|
Video Output Format |
1080p, 25 fps |
|
Video Storage Format |
4K, 30 fps 3840*2160 |
|
transducers |
1/2.8 CMOS 846w pixels |
|
Minimum Illumination |
Color: 0.005Lux/F1.5 Black and White: 0.0005Lux/F1.5 |
|
Laser Lighting Module |
|
|
wavelength |
850+10nm |
|
laser power |
0.85W |
|
Beam angle |
7.5° |
|
spot diameter |
14m @ 100m |
|
Lighting effective distance |
≤230m |
|
Human Eye Safety Level |
Class 3B (IEC 60825-1:2014) |
|
laser indication |
|
|
power (output) |
50mw |
|
color |
green |
|
Indication Distance |
1000m (non-sunny, direct sunlight environment) |
|
Trigger On |
support |
|
laser range finder |
|
|
realm |
5～1000 meters (the specific range is related to the use environment) |
|
Operating Current |
80 mA (max) |
|
light beam |
905nm Pulsed Laser |
|
angle of divergence |
3 mrad |
|
Laser pulse frequency |
1Hz, 5Hz |
|
power (output) |
<1 mW (supports eye safety) |
|
Identification of people and vehicle
|
isupport |
|
GPS Location Analysis |
Latitude and longitude of the target |
