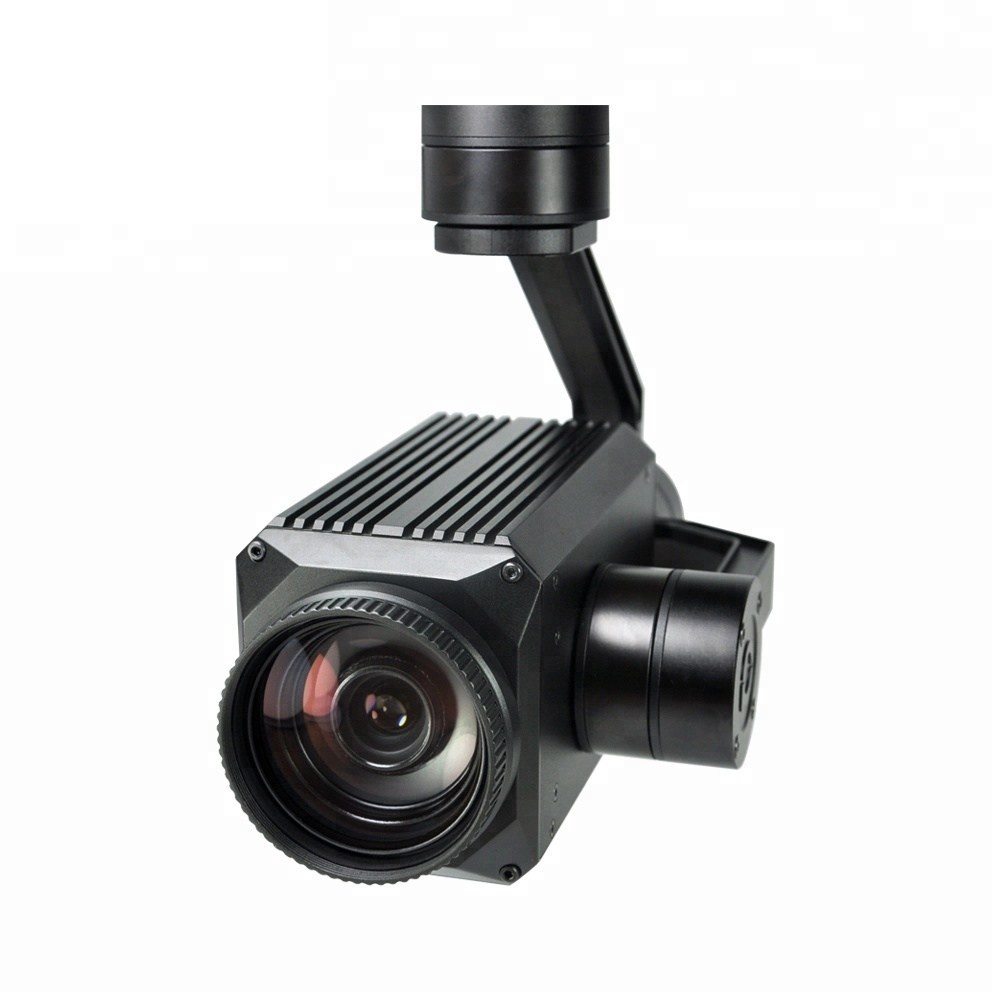

FDC3 36x Object Tracking Drone Camera features a 36x optical zoom lens. It powered by 1/1.9″ CMOS module, with 0.005lux(@)F1.5 starlight level min illumination, 2.38 mega effective pixels, fast auto-focus speed, 1080p HD image quality, combined with 36x advanced optical zoom technology, designed for UAV aerial photography. At the same time, FDC3 can achieve target tracking. All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then Ready to fly.The gimbal can be controlled in three directions: YAW, ROLL and PITCH, We use FOC solution can greatly compensate the vibration of UAV. The image is very stable even at 36 times optical zoom.
|
Working voltage
|
12v
|
Pitch/Tilt
|
±90°
|
|
Output
|
Micro HDMI(HD 1080P 60fps)
|
Roll
|
±85°
|
|
Local storage
|
SD card up to 128G
|
Yaw/Pan
|
±170°
|
|
Power consumption
|
≤6.6w
|
Warranty
|
1 years
|
|
Item Name
|
Starlight gimbals camera
|
Image sensor
|
1/1.9″CMOS
|
|
Control method
|
PWM/TTL/S.BUS
|
MOQ
|
1 Piece
|
|
Model Number
|
Viewpro Z36T
|
N.W.
|
945G
|
|
Input voltage
|
4S~6S
|
Package meas
|
360*300*250mm
|
* Highly competitive cost
* DJI’s strategic partner
* Leading in the field for UAV payload of advanced technology.
* Certified by CE/ROHS authoritative institution.
