Drone Gimbal Camera

  • FDC2 30x HD Drone Camera

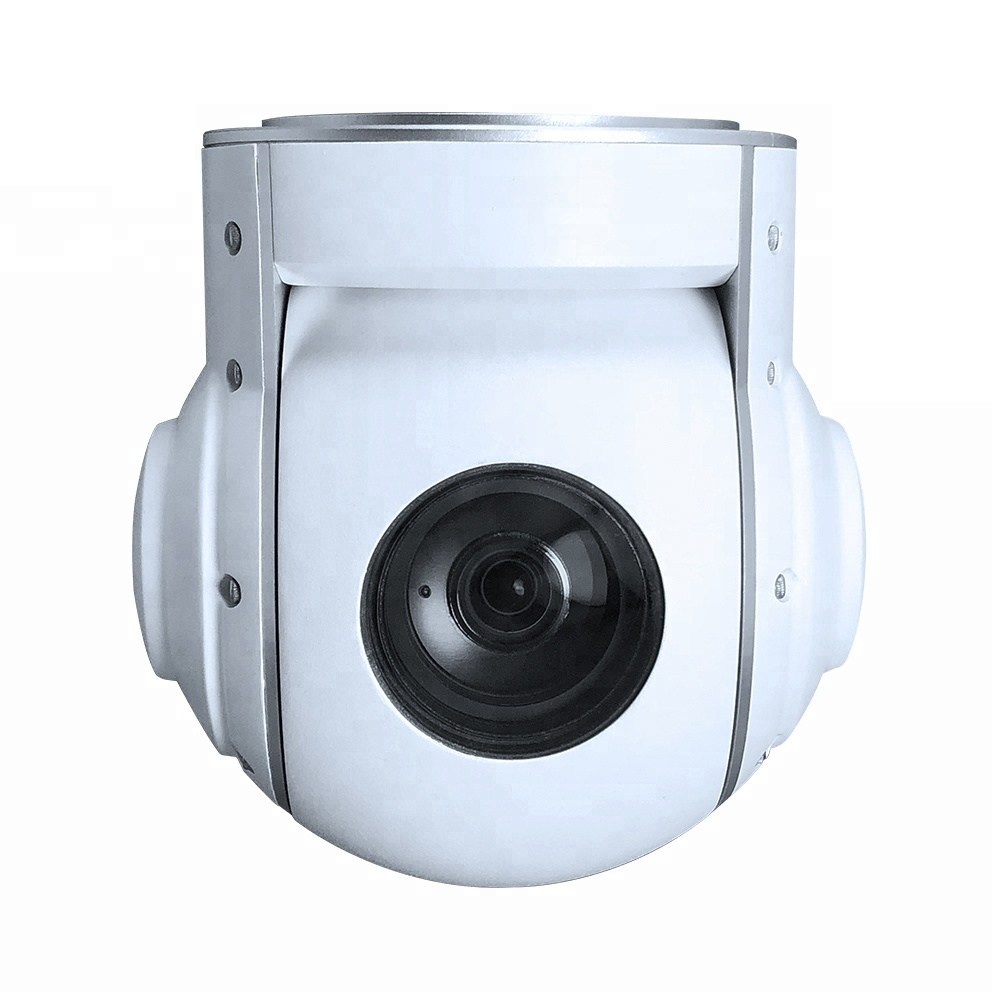

FDC2 30x HD Drone Camera

FDC2 30x HD Drone Camera

  • Product description: FDC2 30x HD Drone Camera is a magical device 2-axis Brushless Camera Gimbal. It contains many of the same technologies which are in the drone itself. its features high stability, small size, light w
  • INQUIRY


FDC2 30x HD Drone Camera  is a magical device 2-axis Brushless Camera Gimbal. It contains many of the same technologies which are in the drone itself.  its features high stability, small size, light weight and low power consumption suitable forfor UAV, helicopter, fixed wing plane and rotary wing aircraft, ect. Can be applied in various fields like military reconnaissance, public security surveillance, traffic monitoring, fire fighting, wildlife spotting, disaster management and rescue etc.


eillance, traffic monitoring, fire fighting, wildlife spotting, disaster management and rescue etc.

Gimbal spec
Pitch/Tilt ±90°
Roll No support
Yaw/Pan ±150°
Vibration angle Picth/Roll: ±0.02°, Yaw:±0.03°
Camera spec
Imager Sensor 1/2.8-type Exmor R CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 63.7°(wide end) ~ 2.3°(tele end)
Shutter speed 1/1s to 1/10,000s, 22 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
SNR 4
Object size range 16*16 pixel ~ 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
