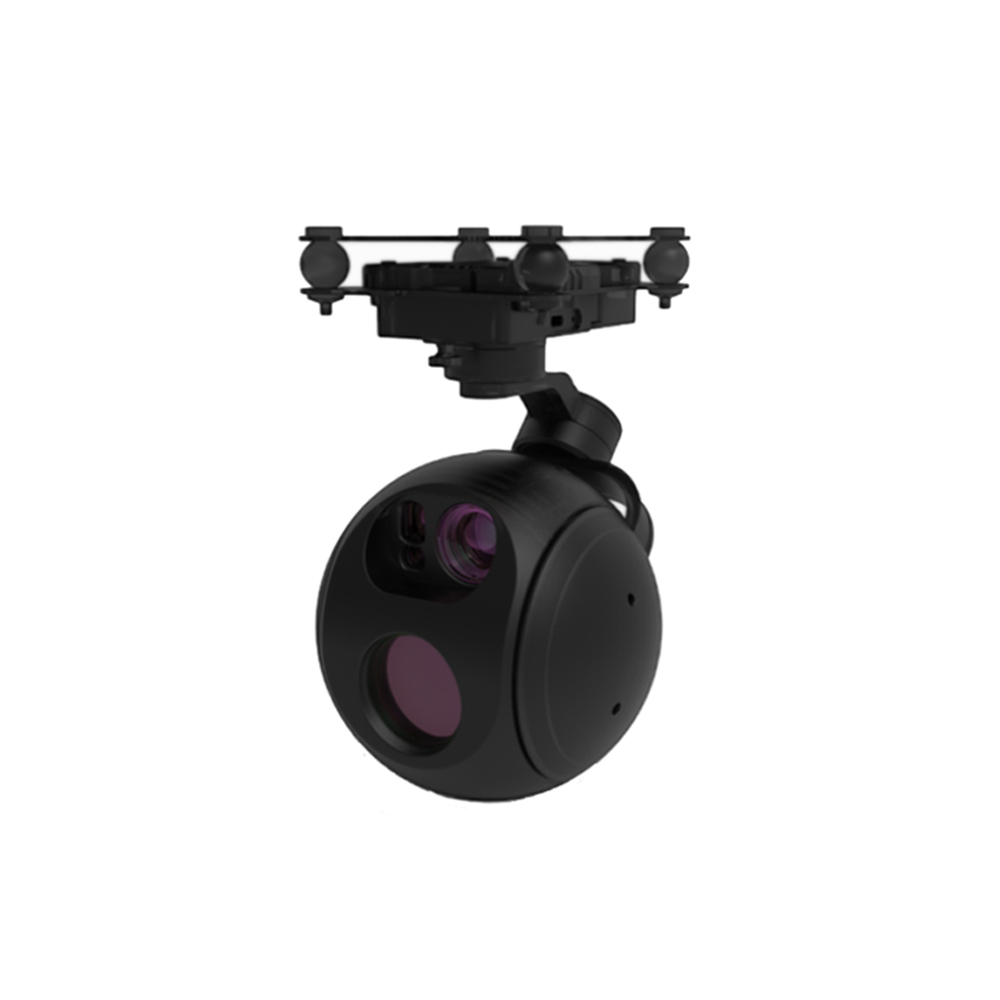

The FDZ30T gimbal camera is equipped with: 30x optical zoom lens; using 1/2.8 CMOS sensor with 2.13 million effective pixels, supporting 1080P high-definition photography and video recording. Equipped with 25mm lens, 640*480 resolution thermal imaging. Supports 1500m ranging and target positioning Supports human and vehicle recognition and target tracking functions.
|
Weight |
910g |
||
|

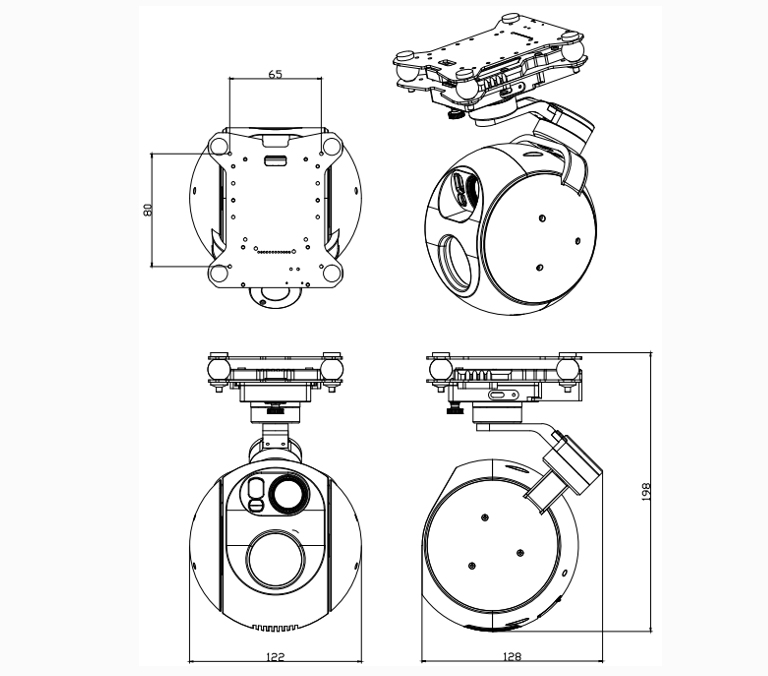

SSize |
L128*W122*H198mmm |
||
|
input Voltage |
4S～12S 15V-60V |
||
|
output voltage |
5V（connect to S.Bus） |
||
|
Current range |
15V 800～1200mA |
||
|
operation |
15V 900mA |
||
|
Operation Temp. |
-20℃ ～ +60℃ |
||
|
output |
IP（1080p/720p 30/60fps） |
||
|
storage |
TF card（max128G，class 10，FAT32or ex-FA） |
||
|
Photo storage |
JPG（1920*1080） |
||
|
Video storage |
MP4（1080P/s 30帧） |
||
|
Control method |
UART/S.BUS/TCP/CAN |
||
|
Gimbal |
|||
|
range |
pitch：-60°～150°，Roll：±70°，Yaw：±360°*N |
||
|
Control range |
pitch：-45°～90°，Yaw：±360°*N |
||
|
Vibration angle |
pitch/roll：±0.01°，Yaw：±0.01 |
||
|
One click to center One click down |
support |
||
|
Camera |
|||
sensor |
sony1/2.8inch“Exmor R”CMOS |
||
|
picture |
HD1080P（1920*1080） |
||
|
Effective Pixels |
2.13m |
||
|
zoom |
30X，F=4.3～129mm |
||
|
digital zoom |
16x（480x hybrid zoom）Off by default |
||
|
Min focal length |
10mm（proximal）~1200mm (remote）。default 300mm |
||
|
Horizontal viewing angle |
1080p model：63.7°（width）～2.3°（remote） |
||
|
signal-to-noise ratio |
50dB |
||
|
minimum illumination |
Color 0.01lux@F1.6 |
||
|
exposure control |
Auto, manual, priority mode (shutter priority and aperture priority), brightness, EV compensation, slow AE |
||
|
White balance |
Auto |
||
|
Shutter speed |
1/1s~1/10000s，22steps |
||
|
BLC. |
support |
||
|
Aperture control |
16 |
||
|
fdefogging |
support |
||
|
Thermal |
|||
|
focal length |
19mm |
||
|
Horizontal field of view |
22.9° |
||
|
vertical field of view |
18.4° |
||
|
Support angle viewing angle |
29.0° |
||
|
Work model |
Uncooled VOx long wave (8μm～14μm) thermal imager |
||
|
detector pixels |
640*512 |
||
|
Pixel size |
12μm |
||
|
False color type |
white heat/rainbow/lava/iron red |
||
|
synchronised time |
support |
||
|
EO/IR camera target tracking |
|||
|
Deviation pixel update rate |
30HZ |
||
|
Deviation pixel output delay |
<30nm |
||
|
Minimum support focus support ratio |
5% |
||
|
signal-to-noise ratio |
|||
|
Mini. supported focus size |
16*16 pixel |
||
|
Max. supported focus size |
256*256 pixel |
||
target speed |
<32 pixel/frame |
||
|
Support memory time |
100 frame |
||
|
Lancer rangefider |
|||
|
range |
5～1500m |
||
|
Operation current |
80mA（max） |
||
|
beam |
905nm脉冲激光器 |
||
|
divergence angle |
3 mrad |
||
|
laser pulse frequency |
1HZ |
||
|
power |
＜1 mW（Support eye safety） |
||
|
Ranging mode |
pulse |
||
|
Location analysis |
Latitude and longitude of target |
||
|
EO camera AI recognition performance |
|||
|
target type |
cars and people |
||
|
Simultaneous detection quantity |
≥10 targets |
||
|
minimum support ratio |
|||
|
Min. tarhet size |
5×5pixel |
||
|
vehicle detection rate |
≥85% |
||
|
False alarm rate |
≤10% |
||
