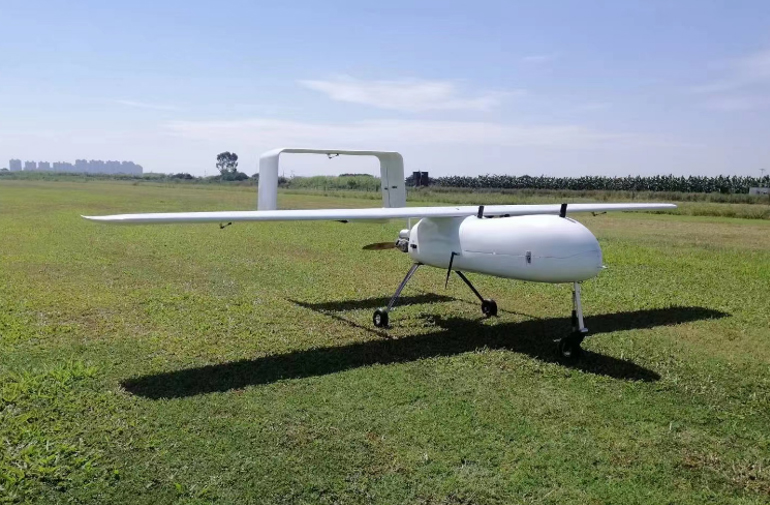

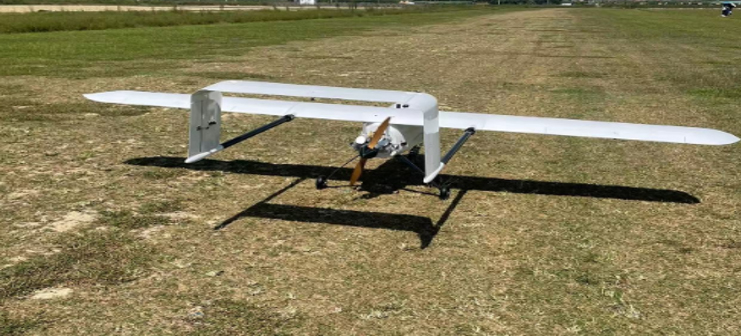

FD4180 is a high-performance fixed-wing UAV with high reliability, convenient maneuverability and good aerodynamic performance. The FD4180 features a dual tailarm layout, a tail-thrust propulsion system, and a high-lift airfoil with a large lift-to-drag ratio. Good flight performance was achieved. The fuselage has a large payload compartment for various mission equipment. The maximum payload can reach 15kg, which can carry lidar, etc.

Specifications

Length: 2400mm;;

Suggest Take-off weight 40kg

Flight speed up to 180 km / h.

cruising speed; 120 km/hr

 Load weight: 10kg

Flight time: 4 hours(40kg takeoff weight)

Landing distance: 100 meters;

mode of take-off; Catapult; Skiing. Landing; Glide.
