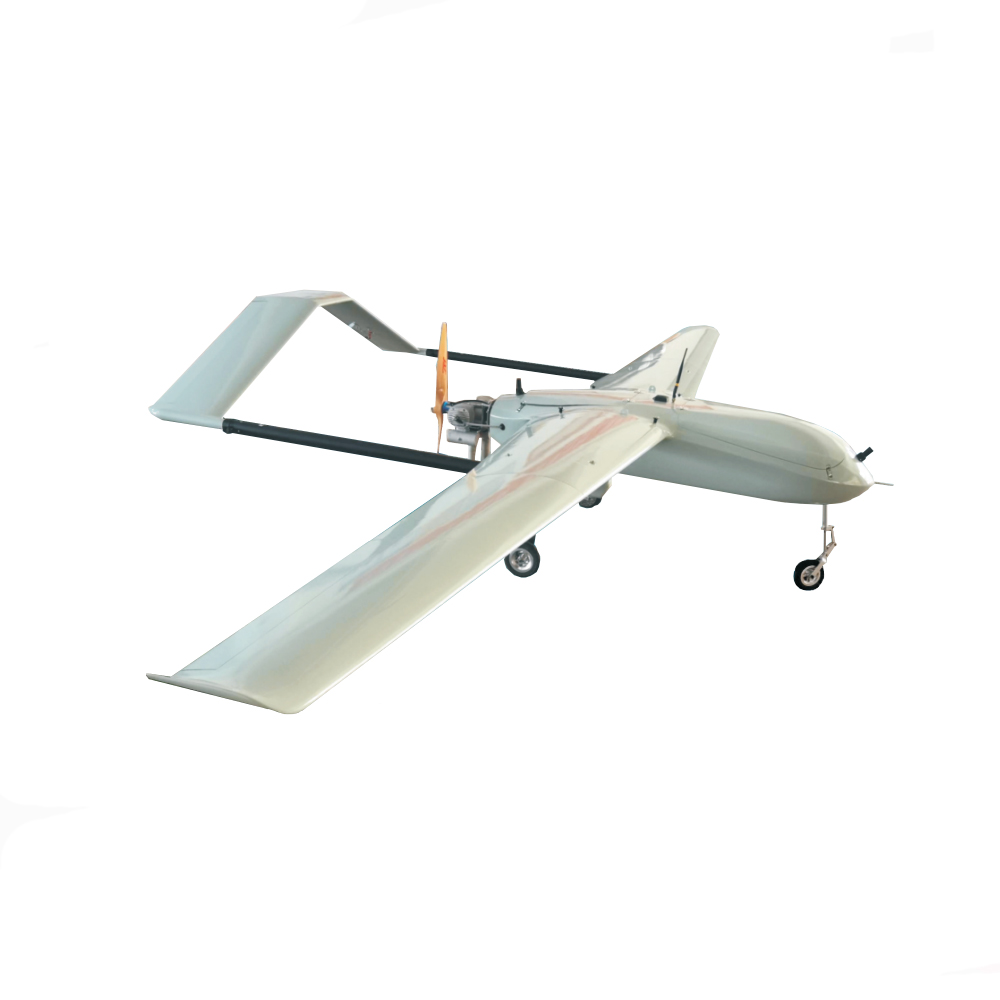

FDZH-100 fixed-wing UAV 10 hours endurance time

Product description: FDZH-100 fixed-wing UAV wingspan is 4.8 meters, fuselage length of 2.58 meters, fuselage weight of 30kg, maximum take-off weight 80kg, use 170cc engine, design cruising speed of 100-120km/h, fuel tan
INQUIRY

FDZH-100 fixed-wing UAV wingspan is 4.8 meters, fuselage length of 2.58 meters, fuselage weight of 30kg, maximum take-off weight 80kg, use 170cc engine, design cruising speed of 100-120km/h, fuel tank 25L, endurance: max. 16 hours without payload, can be used for aerial photography, surveying and mapping

Specifications

Fuselage length: 2.58m
Wingspan: 4.8m
Maximum take-off weight: ≤80kg
Maximum payload: 50kg (with oil)
Empty weight: ≤30 kg (including flight controller, GP178 carburetor engine)
Flight radius: 100-600km (depending on fuel load)
Maximum speed: 150km/h
Cruising speed: 100-120km/h
Maximum fuel capacity: 25L

Stall speed: 25m/s

takeoff distance:200-233m
Ceiling: 6000m (elevation)
Maximum Wind Resistance: 12m/s (Level 6 Wind)
Environment: -10°C+45°C; Prevent light rain
Take-off and landing mode: taxi and take-off
