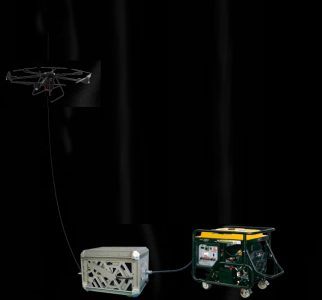

FDXL-400 18KW tethered power supply for UAV

FDXL-400 18KW tethered power supply airborne power supply provides stable voltage output, the drone battery has no power loss and being charged, simple operation, the whole process of drone take-off and landing does not need to operate the tethered box adaptive pull automatic take-up and pay-off, support flight altitude: 100/200/300m (mooring 110/220/330m, reserved safety length) support take-off weight: 60~90kg, flight duration: ≥48h.

Specifications

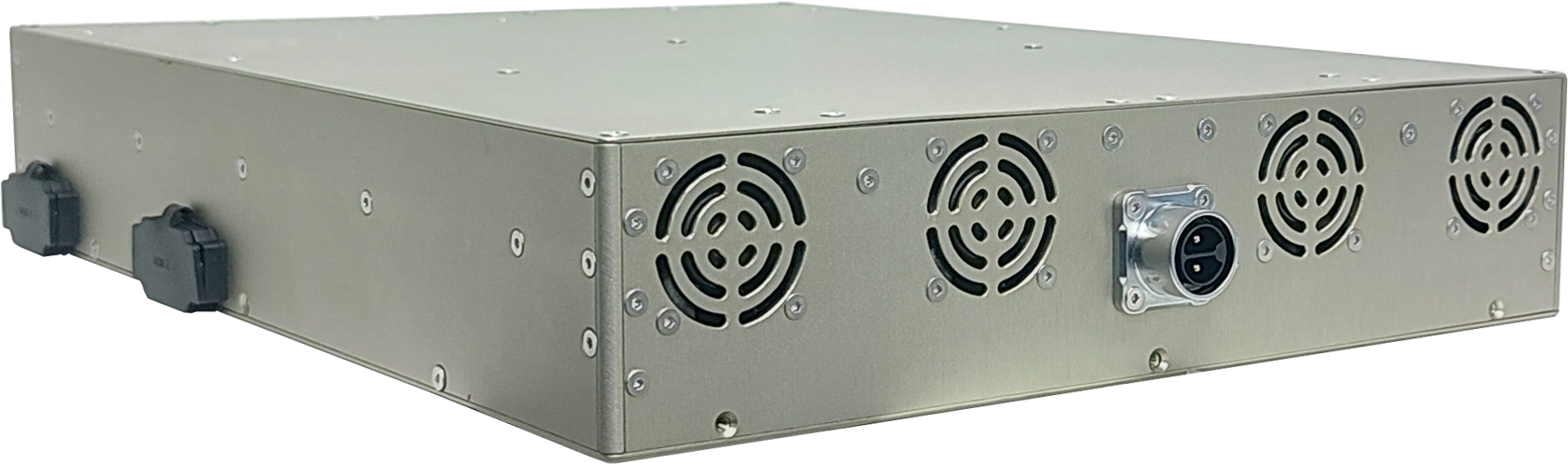

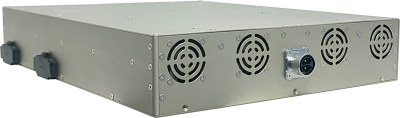

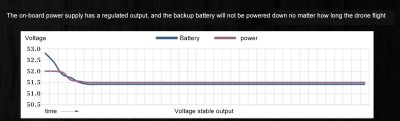

Airborne power supply for the air unit

Input voltage: 580~810Vdc wide range input

Output voltage: 50Vdc±1% or 58Vdc±1%, constant regulated output, support voltage customization

Output power: rated long-time output ≥ 18000W, short-time peak output ≥ 22000W

Communication function: CAN communication is optional, reporting voltage, current, temperature data and working status information

Installation: Reserved internal thread mounting hole, screwed fixed

Heat dissipation mode: The external fan actively dissipates heat, and the air duct is reserved for forced air cooling

Size: 400×304×69±0.5mm, without connectors

Weight: 8±0.2kg, without external connectors and cables

Degree of protection: IP54

Tethered cables

Material: alloy lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high-modulus tensile tensile aircraft-grade fiber braid

Tensile strength: ≥ 300kg, resistant to repeated retraction and release times≥ 1000

Dielectric strength: ≥3500Vdc, 1min, no breakdown

Cable length: standard length 100m, optional customization, support up to 365m

Outer diameter: 6.3±0.1mm

Weight: 44±1g/m

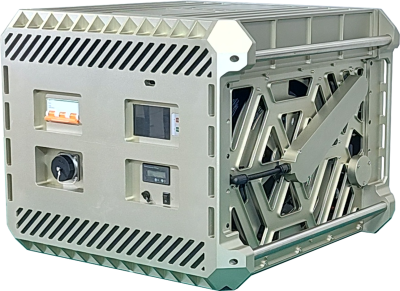

Ground tethered box

Input voltage: 190~240Vac wide range input, single phase 220Vac, frequency 50/60Hz

Output voltage: 600~800Vdc adjustable, factory default 800Vdc

Output power: rated long-time output ≥ 25000W, short-time peak output ≥ 30000W

Take-up speed: 0~3m/s, adjustable gear

Take-up pull: 0~20N, adjustable gear

Optical fiber communication: Optional photoelectric composite tethered cable to provide optical fiber communication link

Data communication: wired communication function, support remote display and control, support client data viewing and download

Data display: output voltage, output current, output power, pay-off length, running time, equipment temperature, total power consumption, fault record data and status

Setting and adjustment: setting and adjusting parameters such as take-up and pay-off force and speed, date and time, voltage, safety meters, alarm temperature, etc., support Chinese and English switching

Alarm and reminder: When the fault occurs, the screen displays the fault content, and the buzzer reminds you loudly

Automatic take-up and pay-off: synchronous retraction and release with the take-off and landing of the drone, adaptive adjustment of tension, and backup of power take-up and pay-off, display and control when there is no external power supply

Portable transportation: mobile wheeled pallet truck is optional, and the split buckle is fixed, which is convenient for short-distance carrying and transportation

Dimensions: 600 × 570 × 460±0.5 mm without feet and external accessories

Weight: 54±0.5kg, dual power redundant backup; 42±0.5kg, single power supply

Degree of protection: IPx4

Language: Chinese, English, Korean, Russian

Support drone take off weight: 60~90kg
