FDM-70 6kw Tethered power supply for UAV

FDM-70 6kw Tethered power supply for UAV airborne power supply provides stable voltage output, the drone battery has no power loss and being charged, simple operation, the whole process of drone take-off and landing does not need to operate the tethered box adaptive pull automatic take-up and pay-off, support flight altitude: 100/200 (mooring 110/220, reserved safety length) support take-off weight: 20~30kg, flight duration: ≥48h

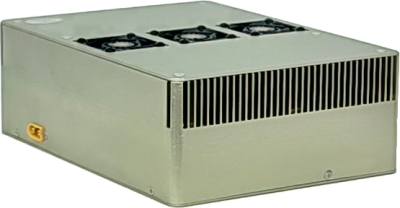

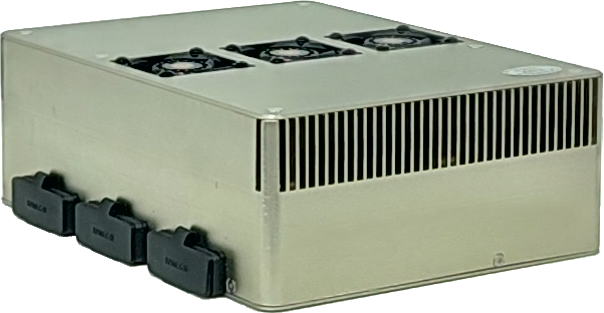

Airborne power supply for the air unit

Input voltage: 580~810Vdc wide range input

Output voltage: 50Vdc±1% or 58Vdc±1%, constant regulated output, support voltage customization

Output power: rated long-time output ≥ 6000W, short-time peak output ≥ 7000W

Communication function: CAN communication is optional, reporting voltage, current, temperature data and working status information

Installation: Reserved installation accessories, screwed fixed

Heat dissipation mode: The external fan actively dissipates heat, and the air duct is reserved for forced air cooling

Size: 200×150×68±0.5mm, without connectors

Weight: 2.2±0.1kg, without external connectors and cables

Degree of protection: IP54

Tethered cables

Material: alloy lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high-modulus tensile tensile aircraft-grade fiber braid

Tensile strength: ≥ 150kg, resistant to repeated retraction and release times≥ 1000

Dielectric strength: ≥3500Vdc, 1min, no breakdown

Cable length: standard length 100m, optional customization, support up to 255m

Outer diameter: 3.5±0.1mm

Weight: 21±1g/m

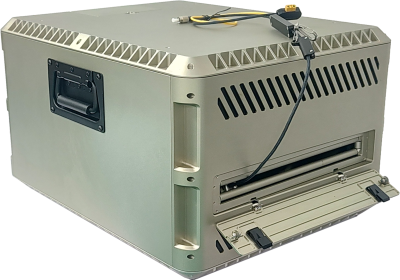

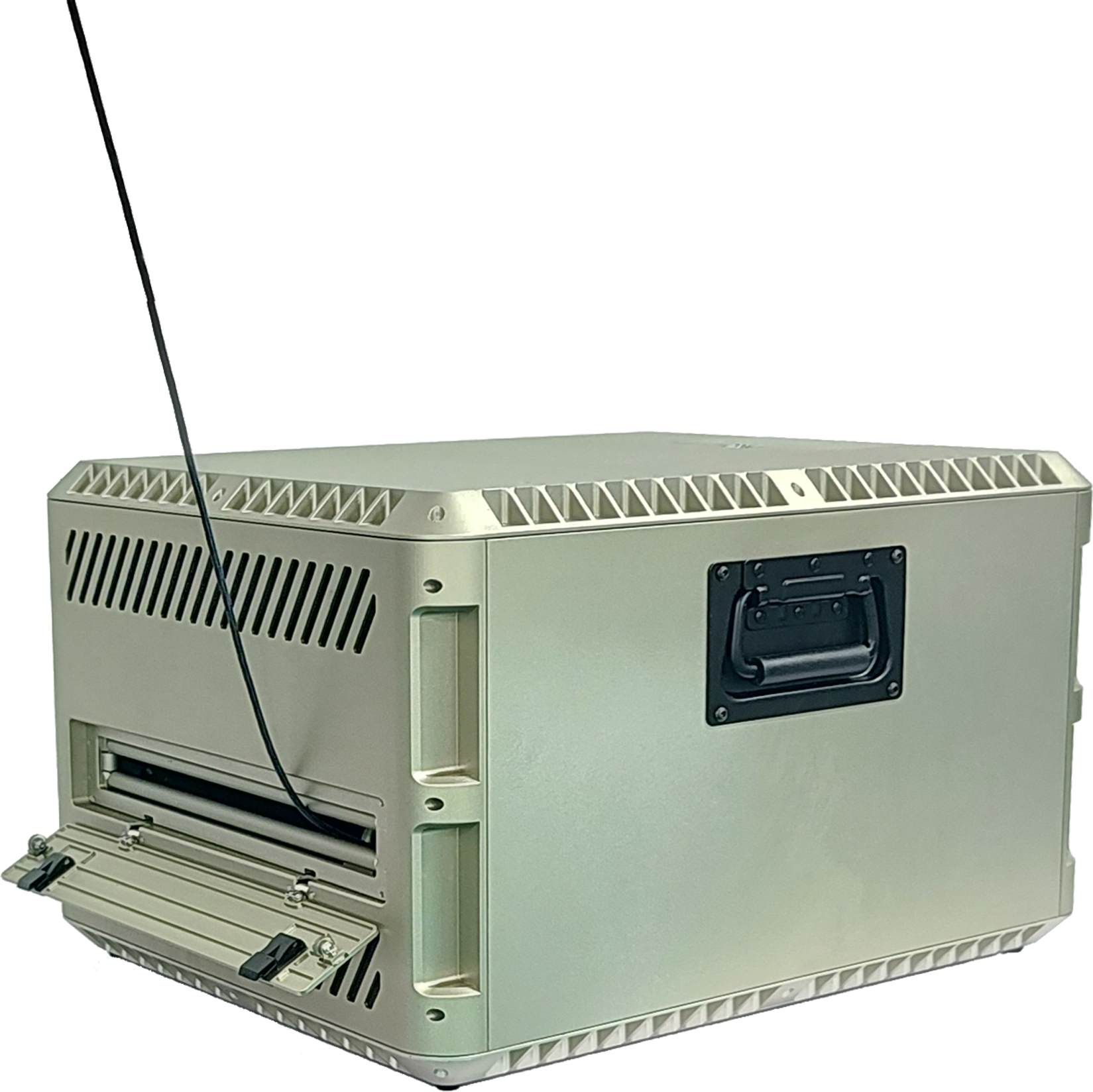

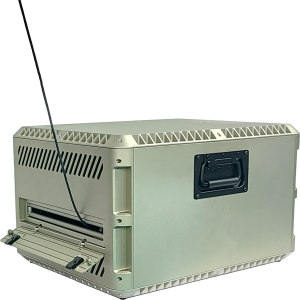

Ground tethered box

Input voltage: 190~240Vac wide range input, single phase 220Vac, frequency 50/60Hz

Output voltage: 600~800Vdc adjustable, factory default 800Vdc

Output power: rated long-time output ≥ 7000W, short-time peak output ≥ 8000W

Take-up speed: 0~2m/s, adjustable gear

Take-up pull: 0~15N, adjustable gear

Optical fiber communication: Optional photoelectric composite tethered cable to provide optical fiber communication link

Data communication: wired communication function, support remote display and control, support client data viewing and download

Data display: output voltage, output current, output power, pay-off length, running time, equipment temperature, total power consumption, fault record data and status

Setting and adjustment: setting and adjusting parameters such as take-up and pay-off force and speed, date and time, voltage, safety meters, alarm temperature, etc., support Chinese and English switching

Alarm and reminder: When the fault occurs, the screen displays the fault content, and the buzzer reminds you loudly

Automatic take-up and pay-off: synchronous retraction and release with the take-off and landing of the drone, adaptive adjustment of tension, and backup of power take-up and pay-off, display and control when there is no external power supply

Portable transportation: mobile wheeled pallet truck is optional, and the split buckle is fixed, which is convenient for short-distance carrying and transportation

Dimensions: 450 × 360 × 280±0.5 mm high, without feet and external accessories

Weight: 17±0.5kg, without tethered thread

Degree of protection: IPx4

Language: Chinese, English, Korean, Russian

Support drone take off weight: 20~30kg
