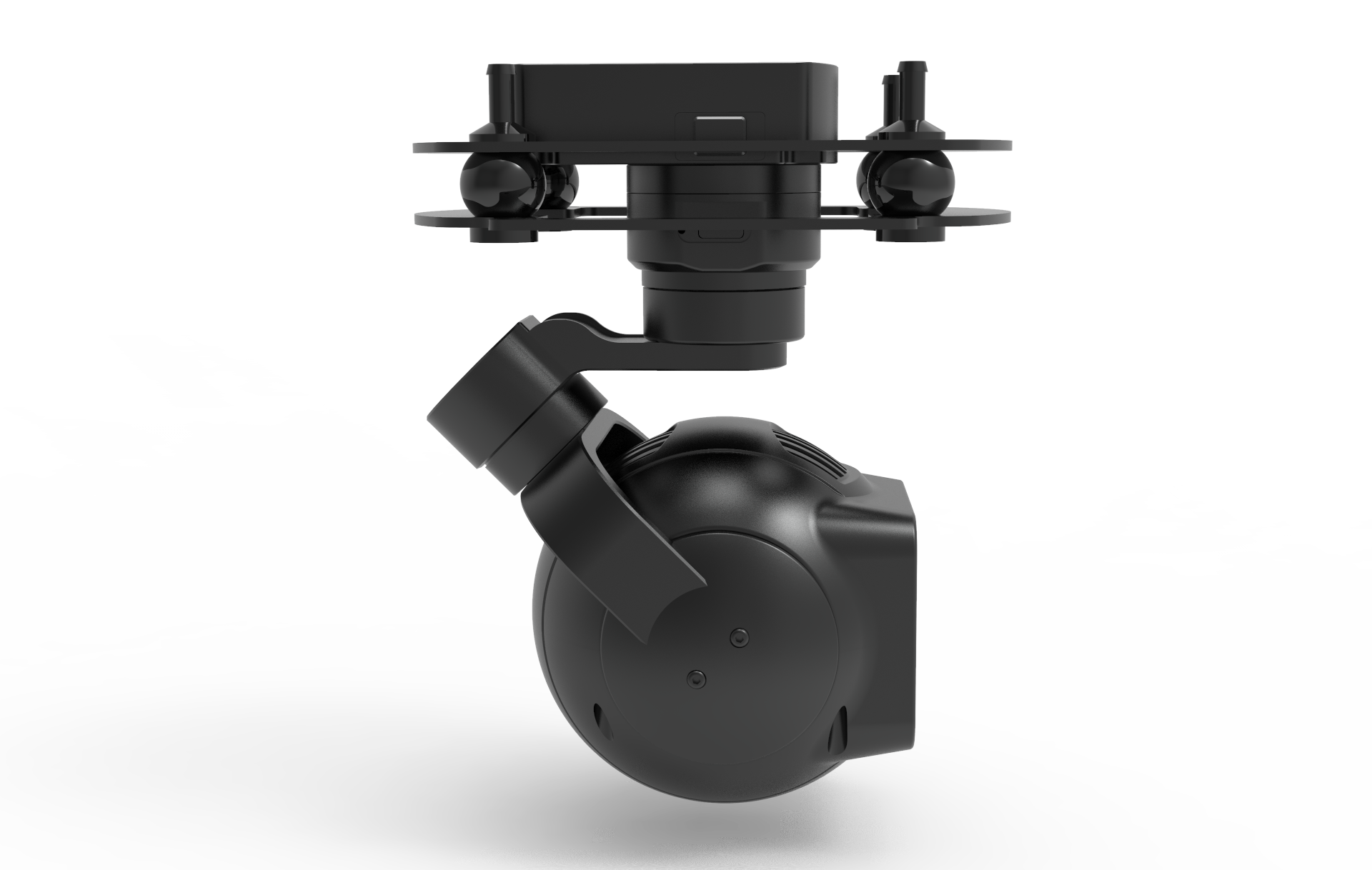

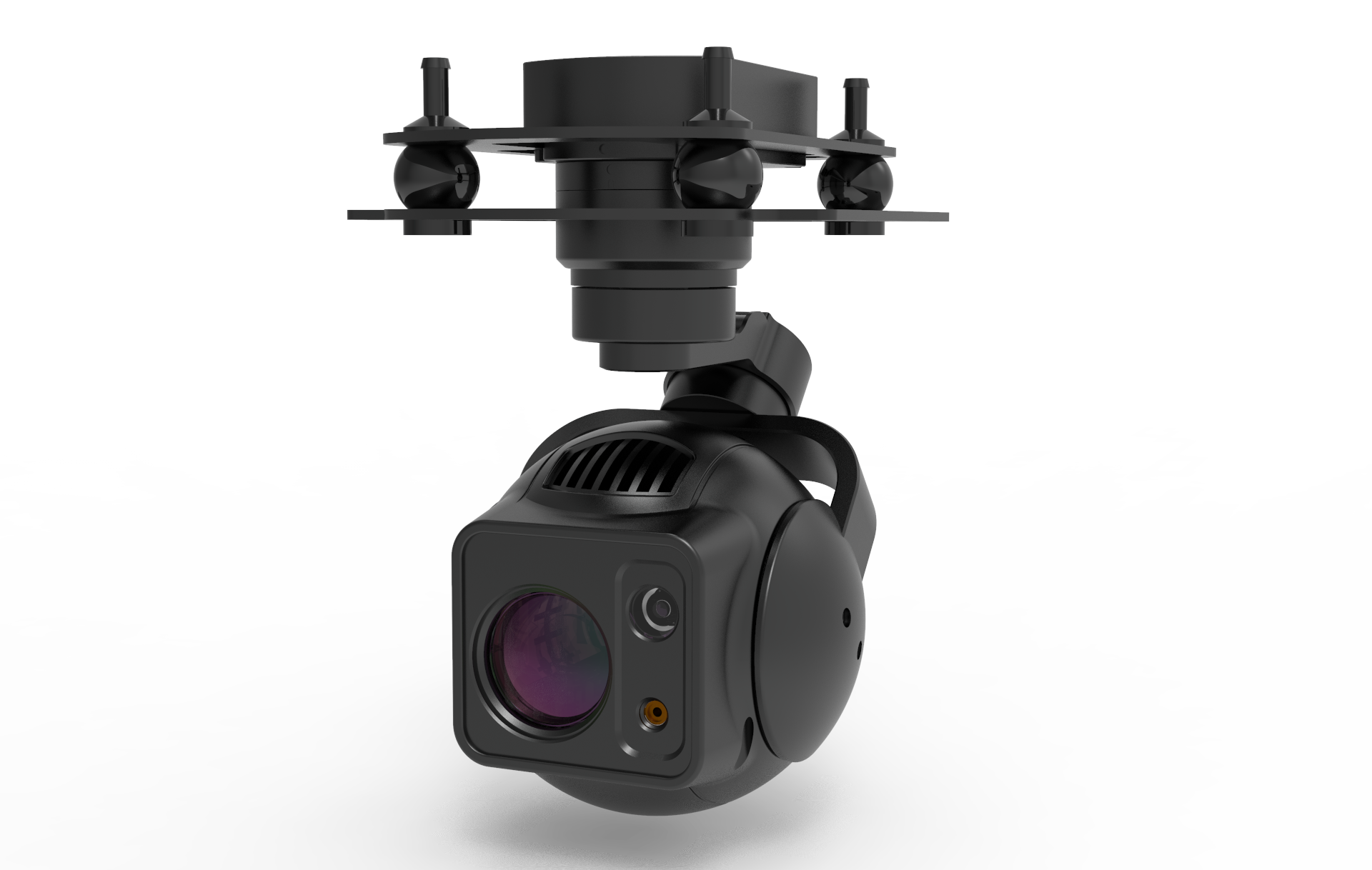

FDZ10 gimbal camera is a high-performance drone-borne network-based camera with 10x optical zoom capability and 4K HD shooting capability. The camera uses a 1/2.8 CMOS sensor with 8.46 million effective pixels and is capable of operating from -20°C to 60°C. The Z10 also supports laser indication and night vision fill light functions, and is equipped with a high-precision three-axis gimbal that can achieve 360° continuous rotation. In addition, the gimbal camera also supports a variety of control modes and working modes, which is suitable for drone application scenarios that require high-definition image quality and flexible shooting angles.

Parameter introduction

FDZ10 can support the mainstream UAV flight control software on the market for image display and PTZ control, such as Microgram, Boying, Jizhi, Ruibo Flight Control Ground Station, etc.; At the same time, it also supports video playback software with RTSP video streaming function, such as Yunzhuo FPV software, QGC, VLC, etc.
Z10 is a gimbal camera with optional MAVlink2 communication protocol, which can be easily integrated and docked with open source flight control products. Through simple wiring and setting, the video overlay of the coordinates, altitude and other information of the open source flight controller can be realized, and the image display of the gimbal camera can be realized in the QGC. At the same time, it is also constantly improving and supporting various mainstream commercial flight control protocols.
Z10 supports S-BUS, TTL SERIAL port, TCP control. And open control protocol, convenient for developers and users to integrate and use.

Specification

typology

network-based

material (that sth is made of)

Aircraft aluminum alloy, nylon

sizes

106 (L) x 87.5 (W) x 158 (H) mm

weights

Z10 Head Camera <450g Shock Absorption 120g

power supply

4S-12S 14-60v

operating temperature

-20℃ 60℃

Control angle (pitch)

-90° +45°

Control angle (direction)

360° continuous rotation

Angular jitter

±0.01°

control signal

S-Bus, UART TTL, Network Port

stockpile

Micro SD card

output interface

Network Port, UART Port TTL, S-BUS, Power Supply

operating mode

Direction lock; heading follow; one button down; target tracking

camcorder

monitoring range

4.8 48mm

Horizontal field of view

60.2° 6.6°

zoom power

10x optical zoom 3x digital zoom 30x hybrid zoom

Focusing speed

<1S

Video Output Format

1080p, 25 fps

Video Storage Format

4K, 30 fps 3840*2160

transducers

1/2.8 CMOS 846w pixels

Minimum Illumination

Color: 0.01Lux/F1.5  Black and White: 0.001Lux/F1.5

Laser Lighting Module

wavelength

850+10nm

laser power

0.85W

Beam angle

7.5°

spot diameter

14m @ 100m

Lighting effective distance

≤230m

Human Eye Safety Level

Class 3B (IEC 60825-1:2014)

laser indication

power (output)

50mw

color

green

Indication Distance

1000m (non-sunny, direct sunlight environment)

Trigger On

support

laser range finder

realm

51200 meters (the specific range is related to the use environment)

Operating Current

80 mA (max)

light beam

905nm Pulsed Laser

angle of divergence

3 mrad

Laser pulse frequency

1Hz, 5Hz

power (output)

<1 mW (supports eye safety)

ranging mode

impulse

Location Analysis

Latitude and longitude of the target

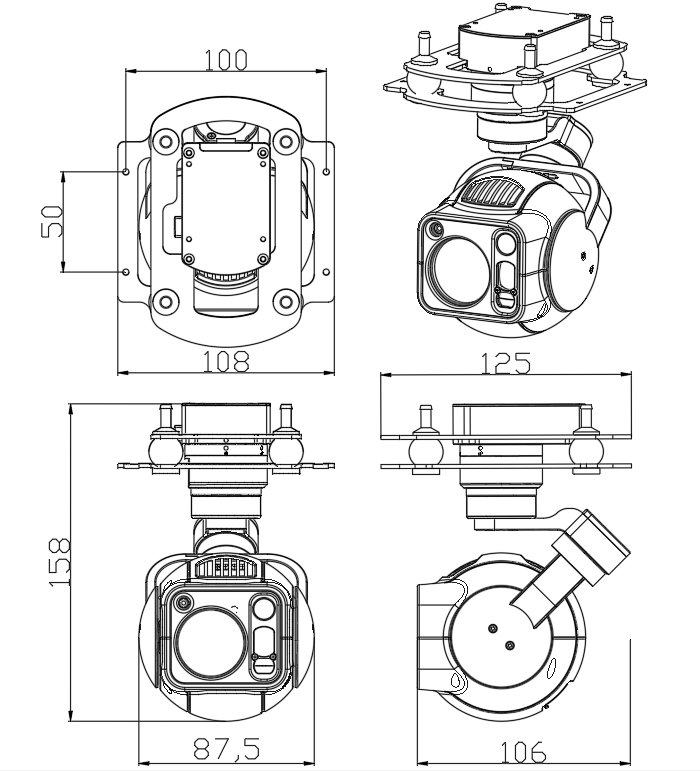

Install size

unite:mm    screw: M3
