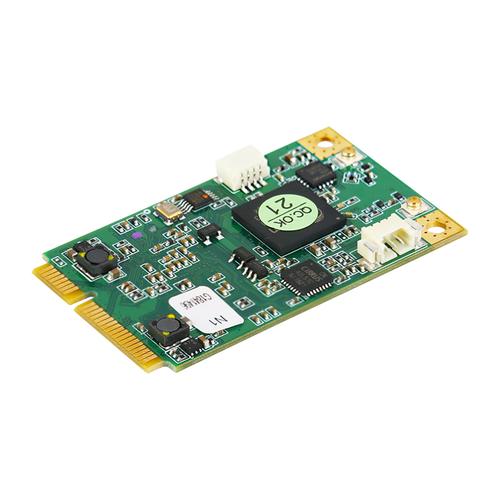

Flydragon SC542N1 MC SDI mini HDMI video capture board for gimbal camera

Model SC542N1 MC SDI
Max. FPS 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
Recording Mode Software Compression, Real-Time Mode
Dimension 30×50.95 ( mm )
Interface MiniCard ( PCIe×1 Gen 2 )
Video Input 1×SDI
Video Output 1×SDI ( Loop-Through )
Display Video Format YV12, NV12, YUY2, RGB24, RGB32
Video RAW Data Resolution 3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps

Recording Video Format H.264 ( Software Compression )
Recording Video Resolution 3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps

Audio Input 1×SDI Embedded Audio, Audio L/R ( Through Wafer Connector )
Audio Output 1×SDI Embedded audio ( Loop-Through )
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
Multiple Cards
SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
