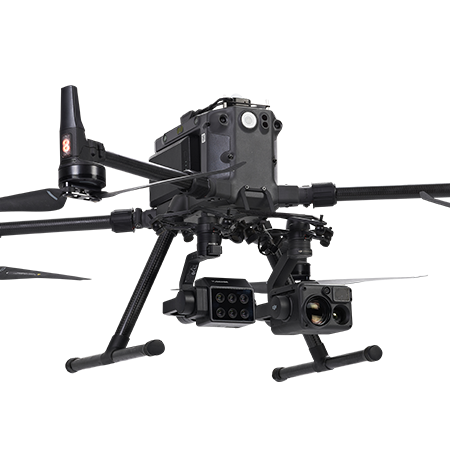

FDM 600 PRO is special for DJI M300 and M350 RTK,  FDM600 PRO has six 1.2M pixel multi-spectral channels, sapphire optical window, large aperture, low distortion, broadband transmission, all-glass lens, aluminum alloy body, large dynamic range intelligent dimming, to meet precision agriculture, forestry monitoring, river and lake ecology, goals Identification and other industry application requirements.

Specifications:

Combination method: 6 multi-spectral channels
Target size: 1/3”
Effective pixels: 1.2Mpx
Shutter Type: Global
Quantization bit: 12bit
Field of view: 49.5°×38.1°
Ground resolution: 8.65cm@h120m
Coverage width: 110m×83m@h120m
Spectral channels: 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 7 50nm@10nm, 840nm@30nm
Optical window: Sapphire optical glass window
Host size: ≤130mm×160mm×150mm (optical axis vertical to the ground)
Host weight: ≤670g
Installation interface: X-Port
Power supply: X-Port
Image format: 16bit original TIFF & 8bit reflectance JPEG (including GPS and ambient light information)
Storage medium: standard 64G, maximum support 128G capacity (transmission speed U3 and above rating) micro SD card
Processing software: Our own software
Parameter setting: DJI Pilot
Shooting trigger: overlap rate trigger, timing trigger
Shooting frequency: 1Hz (related to the actual read and write speed of the storage medium)
Working environment temperature: -10°C~+50°C (relative wind speed ≥1m/s)
Storage ambient temperature: -30℃~+70℃
Ambient humidity: RH(%)≤85%(non-condensing)
Product certification: CE, FCC, RoHS
