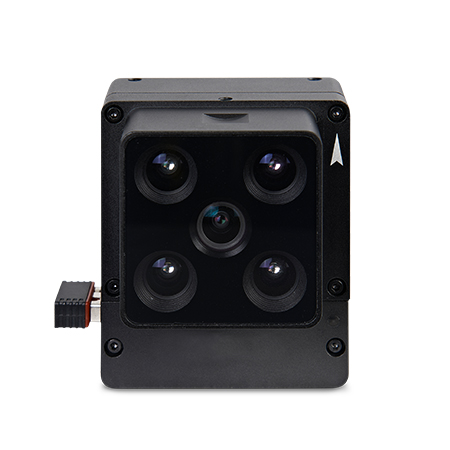

FD400 4-band agricultural version multispectral camera consists of four 1.3M pixel multispectral channels, one 8.0M pixel RGB, optical grade glass window, large aperture, low distortion, broadband transmission, all glass lens, high cost performance, and meets the needs of agricultural remote sensing field Application requirements.

Specifications:

Combination method:  4 multi-spectral channels + 1 RGB channel
Target Size:  multispectral & RGB: 1/4”
Effective Pixels:  multispectral: 1.3Mpx; RGB: 8.0Mpx
Shutter Type:  multispectral: Global; RGB: Rolling
Quantization bits:  multispectral: 12bit; RGB: 8bit
Field of View:  multispectral: 36.7°×31.3°; RGB: 37.5°×28.6°
Ground Resolution:  multispectral: 6.23cm@h120m; RGB: 2.49cm@h120m
Coverage width:  multispectral: 80m×67m@h120m; RGB: 82m×61m@h120m
Spectral channels[1]:  555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB
Optical window:  optical grade glass window
Host size:  ≤55mm×65mm×50mm
Host weight:  ≤175g
Installation interface:  7×M3
Power supply:  12V (please consult Yuchen marketing personnel for other voltage power supply)
Power consumption:  ≤7W@12V
Image format:  multispectral: 16bit original TIFF & 8bit reflectance JPEG; RGB: 8bit JPEG (including GPS, ambient light information)
Storage medium:  standard configuration and maximum support 64G capacity (transmission speed U3 and above rating) micro SD card
Processing software:  ourself software
Parameter setting:  WIFI (WEB interface access)/Ethernet/UART
Shooting trigger:  external trigger, timing trigger, overlap rate trigger, cascade trigger
Shooting frequency:  1Hz (related to the actual read and write speed of the storage medium)
Working environment temperature:  -10°C~+50°C (relative wind speed ≥1m/s)
Storage ambient temperature:  -30℃~+70℃
Ambient humidity:  RH(%)≤85%
Product certification:  CE, FCC, RoHS
