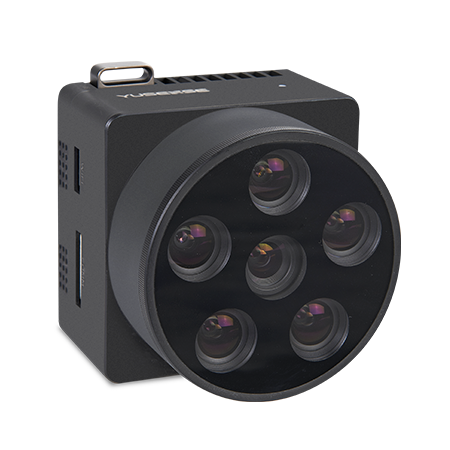

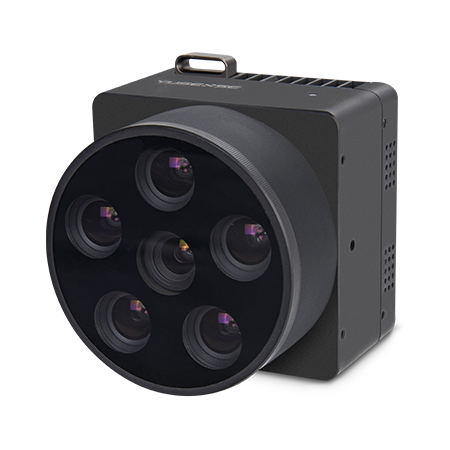

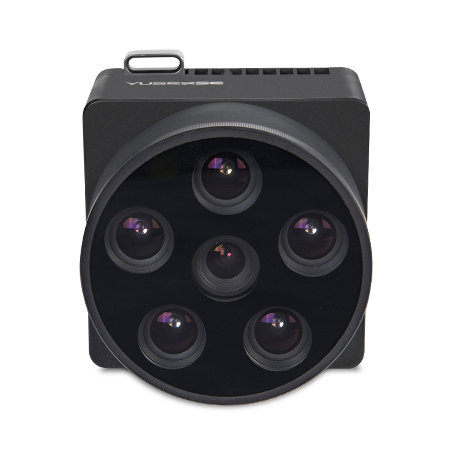

FD600 Multispectral Camera has five 3.2M pixel multispectral channels, one 12.3M pixel RGB, sapphire optical window, large aperture, low distortion, broadband transmission, all-glass lens, aluminum alloy body, video-level detection and result output, meeting Precision agriculture, forestry monitoring, river and lake ecology, target recognition and other industry application requirements.

Specifications:

Combination method:   5 multi-spectral channels + 1 RGB channel
Target size: Multispectral:   1/1.8”; RGB: 1/2.3”
Effective Pixels: Multispectral:   3.2Mpx; RGB: 12.3Mpx
Shutter Type:   Multispectral: Global; RGB: Rolling
Quantization bits:   Multispectral: 12bit; RGB: 8bit
Field of View:   Multispectral: 48.8°×37.5°; RGB: 47.4°×36.4°
Ground Resolution:   Multispectral: 5.28cm@h120m; RGB: 2.60cm@h120m
Coverage width:   Multispectral: 109m×82m@h120m; RGB: 106m×79m@h120m
Spectral channels[1]:   450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB
Optical window:   Sapphire optical glass window
Host size:   ≤80mm×80mm×78mm
Host weight:   ≤415g
Installation interface:    8×M3
Power supply:   12V
Power consumption: ≤16W@12V
Image format:   Multispectral: 16bit original TIFF & 8bit reflectance JPEG; RGB: 8bit JPEG (including GPS, ambient light information)
Video format:   MP4
Storage medium:   Standard 128G, maximum support 2T USB3.1 storage device
Processing software:  Our own software
Parameter setting: WIFI (WEB interface access)/Ethernet/UART
Shooting trigger:   external trigger, timing trigger, overlap rate trigger, cascade trigger
Shooting frequency:   Photo mode: 1Hz (related to the actual read and write speed of the storage medium); Video mode: 20Hz
Working environment temperature:   -10℃~+50℃ (relative wind speed ≥ 1m/s)
Storage ambient temperature:   -30℃~+70℃
Ambient humidity:  RH (%) ≤ 85% (non-condensing)
Product certification: CE, FCC, RoHS
