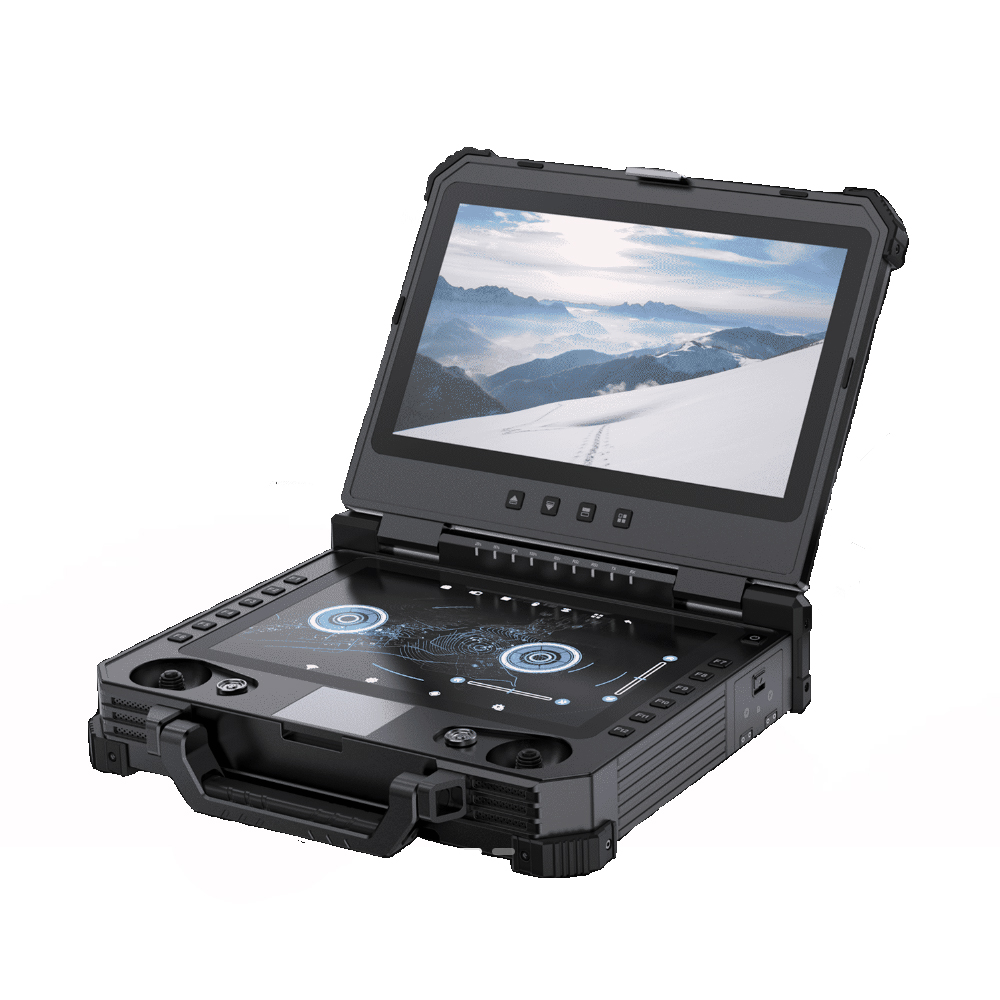

Fly Dragon FD-T40 is a ground station that integrates data transmission, video transmission, and remote control. The FD-T40 UAV ground station adopts a solid aviation aluminum alloy shell, which is waterproof and dustproof. Suitable for use in harsh environments. FD-T40 adopts dual SBUS input and output, serial data transmission. All data is transmitted transparently. The LAN port expandable switch can realize 8-way video stream transmission.
Specifications:
Overall weight: 5980g
Dimension: 355mm(L)*282mm(W)*80mm(H)
Screen size:
13.3inch 1920*1080 1000nit (top screen)
12.1inch 1280*800 1500nit (bottom screen)
Computer Peripherals
CPU: Intel i7 8565U(standard)
Touch pad: 10-finger capacitive touch screen
Operating system: Windows10/Linux
RAM: 8G(standard), 32G max
SSD storage: 128GB SSD(standard), 1T max
Network: WIFI/Bluetooth(standard) 4G(optional)
Interfaces: RS232*4, USB3.0, LAN, HDMI in, VGA out, Hi-fi
Remote Control
Physical channel:
Main joystick*2(industrial joysticks with hall sensors)
Auxiliary rocker*4
Key buttons*12
Simulate keystrokes*7
Human interface: USB HID
Remote control function: dual SBUS independent output, able to control the drone and the payload simultaneously
SBUS port: SBUS IN*1; SBUS OUT*2
Remote control latency: 40ms
Battery Peripherals
Battery capacity: 16.8V/13600mAh(external power source also supported)
Working time: 3hs@full battery capacity
Charging port: DC16.8v
Communication link
V21: 10km grade video&telemetry&RC link
The 3rd party communication link: Supported
