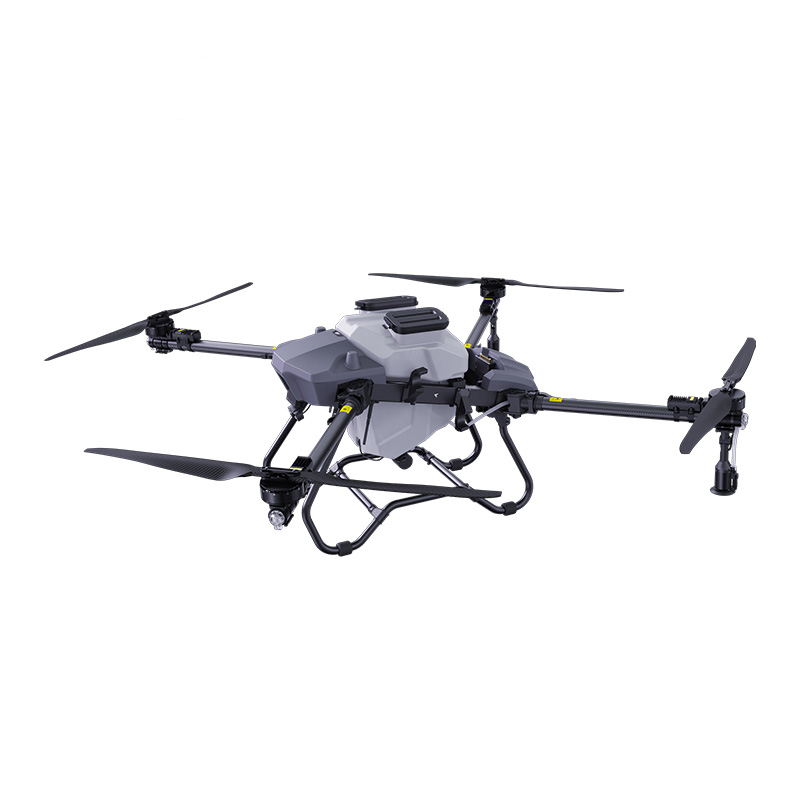

FZ30 30L Payload Agriculture Spraying Drone

heavy payload agriculture drones, 30kg capacity payload. The FZ30 series agriculture drone adopts new truss structure with better strength and durability. Z-shaped folding structure makes it small in folded size, easy to transport. he flight controller system adopts group modular design, convenient to install without cumbersome wiring.With ultrasonic flow-meter, high precision weighing module and other parts,you can get the real-time disply of remaining liquid information. Original creation of water-cooled centrifugal nozzle effectively reduce the working temperature, extend the working life. The waterproof level of the whole drone reaches IP67, the FZ30 can be widely used in various fields.

Main Features:
FZ30 Agriculture drone frame adopts a new truss structure with better strength and durability.

Z-shaped folding structure–Small folding size, more convenient to transport.

The newly upgraded arm locking structure is easy to operate, firm and reliable.

Super large bilateral liquid inlet–Adding pesticides is smoother, and the liquid does not leak.

Snap-in fuselage–Tool-free disassembly.

High front and low tail design, the flight resistance is smaller.

With ultrasonic flow-meter,the sensor and liquid medicine are separated and detected.

High-precision weighing module, real-time display of remaining liquid information.

Early warning of failure information.

Group modular design of flight control system.Convenient installation without cumbersome wiring

Newly Upgraded Spraying System
Equipped with bilateral large diameter impeller pump
With ultrasonic flow-meter,the sensor and liquid medicine are separated and detected.No fear of corrosion, stable and reliable.
Original creation water-cooled centrifugal nozzle, which effectively reduce the working temperature, extend the working life. Delicate droplet particles and large atomization radius.

The waterproof level of the whole drone reaches IP67.
The whole machine is upgraded waterproof from the inside to the outside, the main board of the power supply is potted as a whole, the plug is replaced with a waterproof terminal, and the core module is independently waterproof.

Precise Spreading
Integrated liquid container assembly can change to spreading system quickly. Simple and efficient operation, large feeding port, double the feeding efficiency,
The bow-shaped tripod design can effectively avoid the collision of the broadcasting particles, and the weight of the remaining material can be detected to achieve precise broadcasting.

Same structure, convenient maintenance
The FZ30 and FZ50 adopt the same platform architecture design, more than 95% of the parts are the same, and the spare parts are easier to prepare. Greatly reduce maintenance costs and improve production efficiency.

Package Included:
FZ30 Agriculture drone frame kit x 1
Power system x 4
Water pump x 2
Flow meter x 1
Liquid meter x 1
Centrifugal nozzle x 2
Covert wire board x 1
Board accessories x 1
Flight controller x 1
Receiver module x 1
Camera x 1
Radio x 1
RTK module x 1
Rear obstacle radar x 1
Front obstacle radar x 1
Terrain radar x 1

Note:
1. Only the standard version comes with RTK Module and radars.
2. Battery & charger for the drone is not included. The whole package is not assembled and tuned, customers need to assemble and tune the settings.
