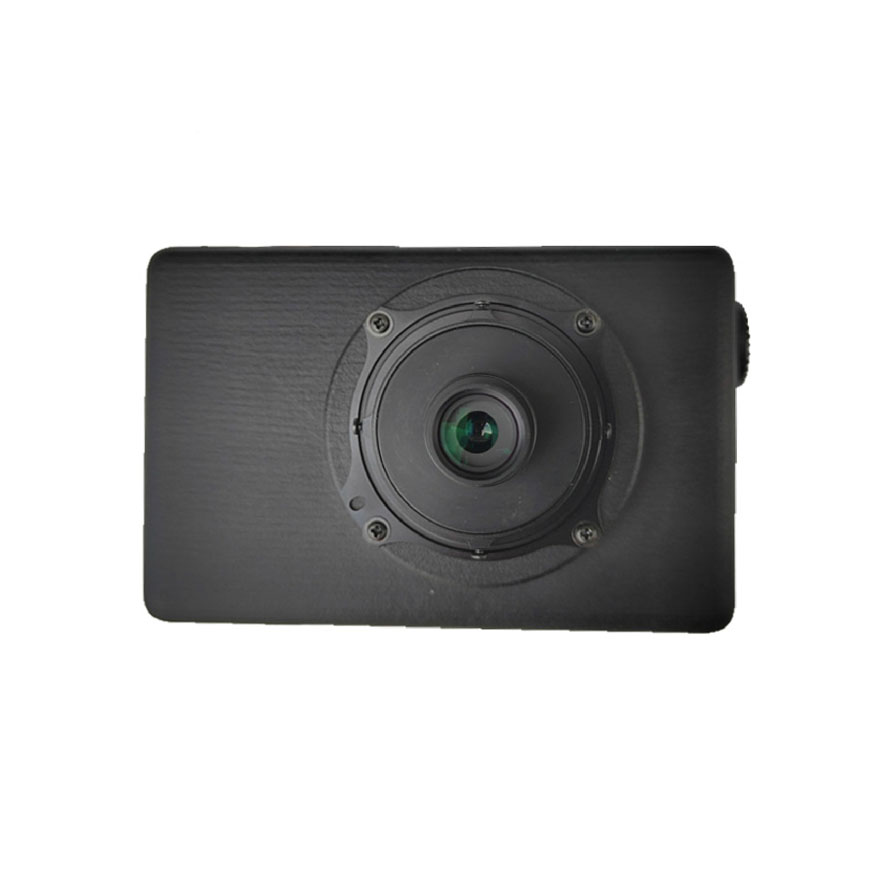

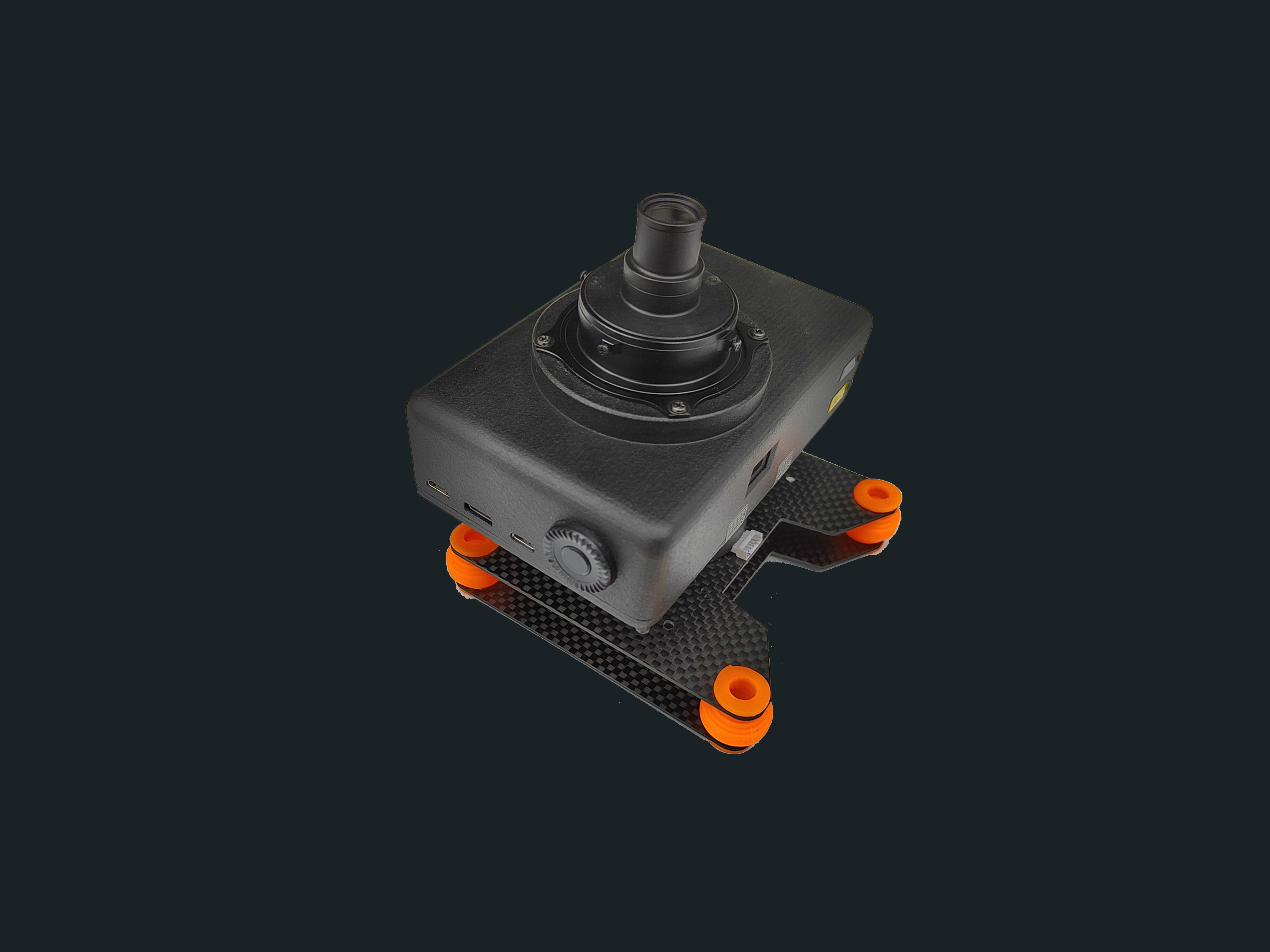

A7R IV is a full frame mapping camera featuring 61 Megapixels and light weight (only 260g without lens), which is designed for high-quality mapping and survey. A7R IV has two versions: 40mm lens and 56mm lens, supports max 128G TF card.

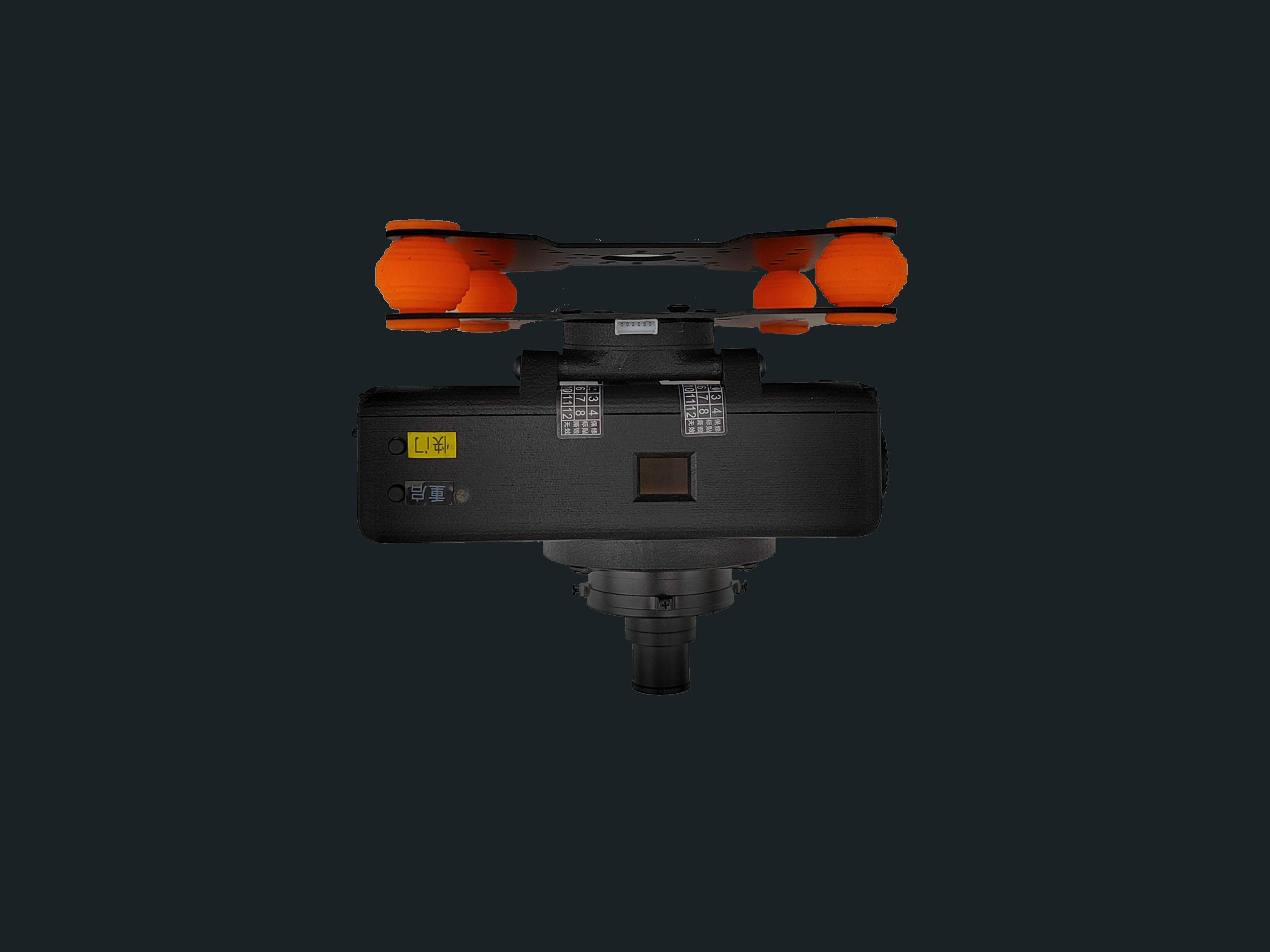

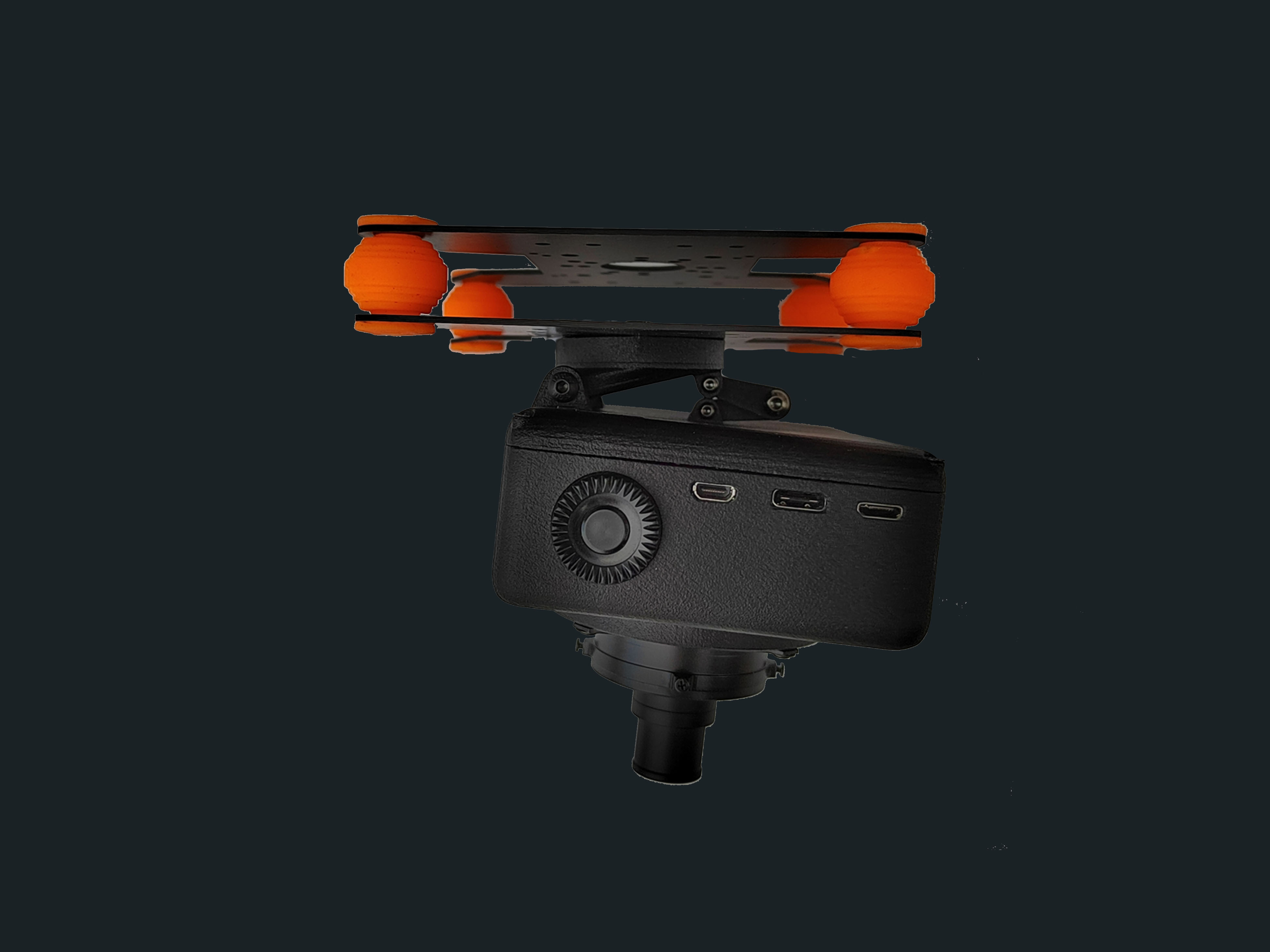

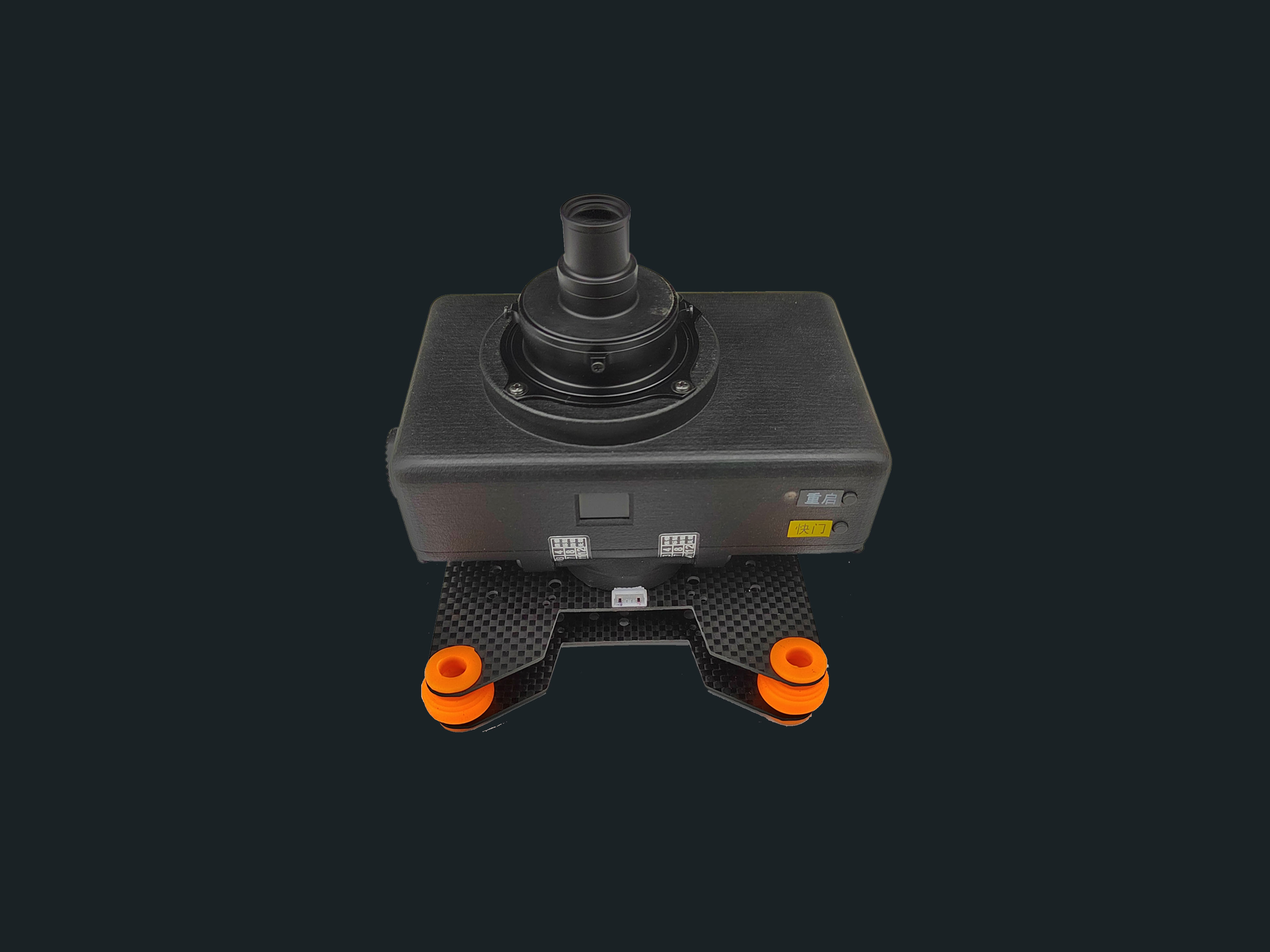

The A7R IV gimbal version is designed for multi-copters. With 2-axis gimbal, the camera lens can be always perpendicular to the ground during the flight, guaranteeing a good effect of orthophoto mapping. A7R IV can be mounted on various multi-copters, VTOLs for mapping and survey, such as FDG815 multi-rotor and FDG30 6 hours endurance VTOL etc.
Single lens pixel: 61 million
Pixel size: 3.7цm
Minimum exposure interval: ≥0.8s
Total pixels: 62.5 million
Sensor: 35.7*23.8
Hot shoe: support
Image resolution: 9600*6400
Shutter speed: 30—1/8000 adjustable

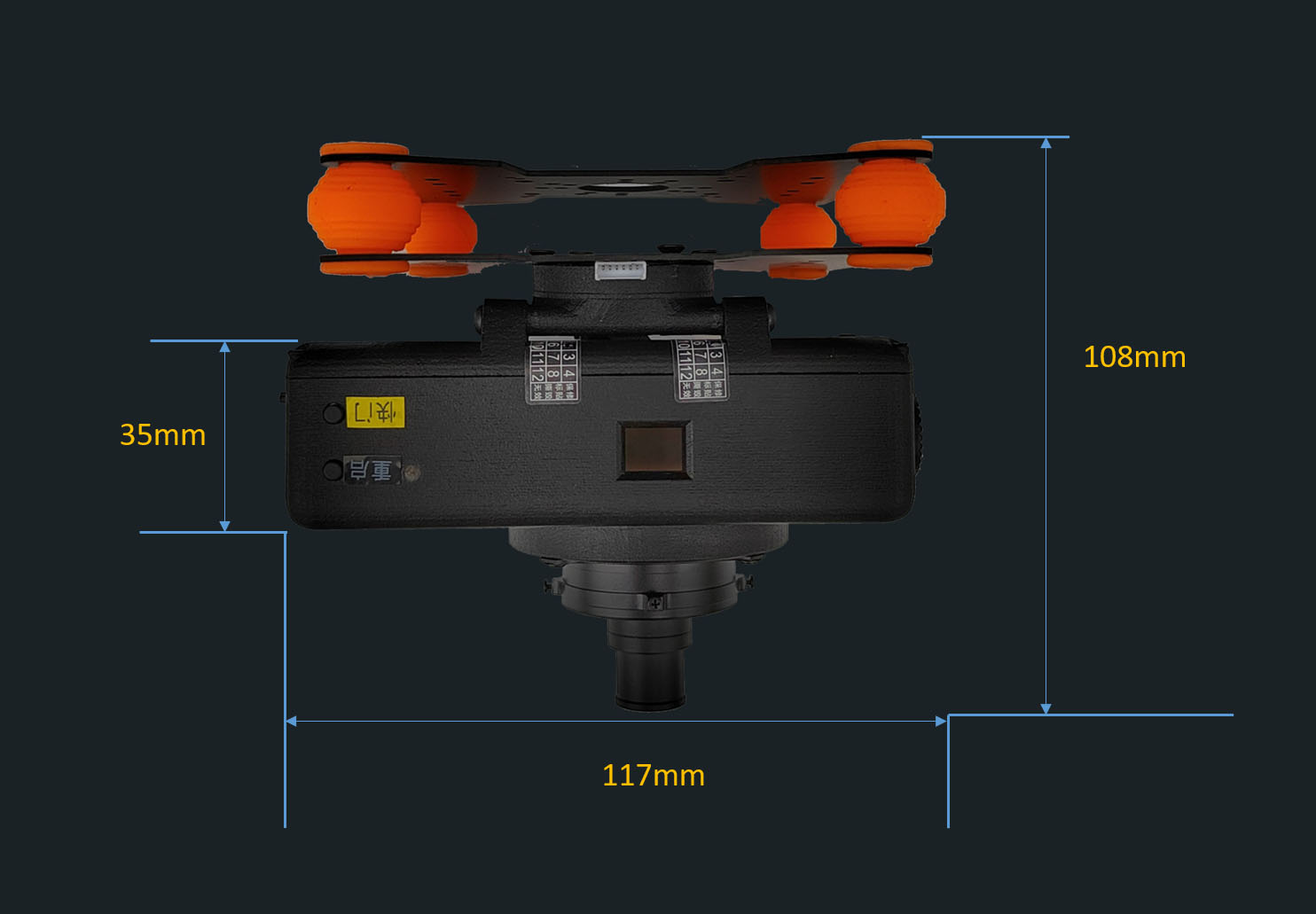

Appearance size: 118mm*77mm*60m (including lens 107mm)
Lens: 56mm/40mm optional
Power supply: 9-60V
Weight: including lens≤230g
Parameter setting: APP or USB
Data reading: USB3.0 or SD card

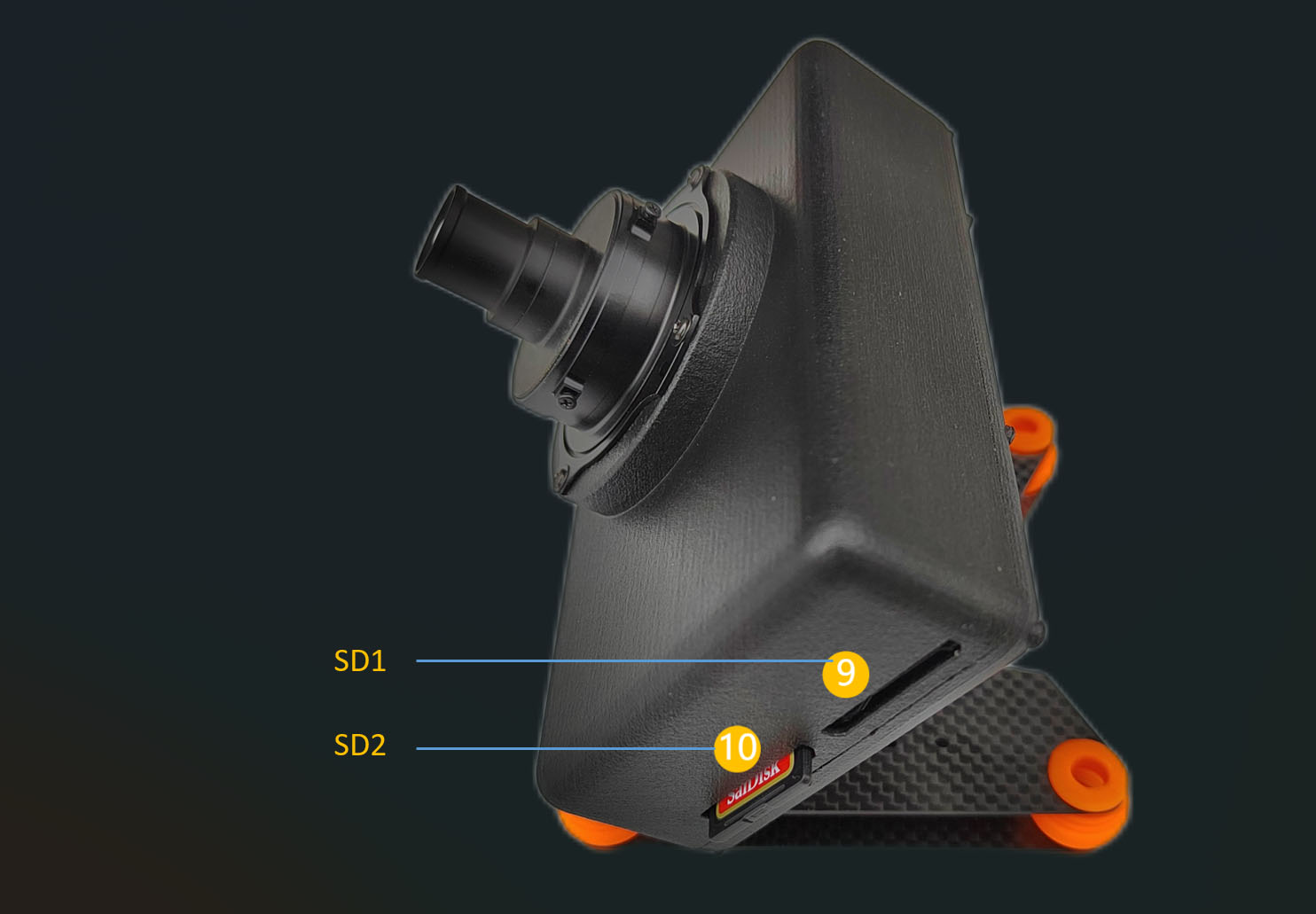

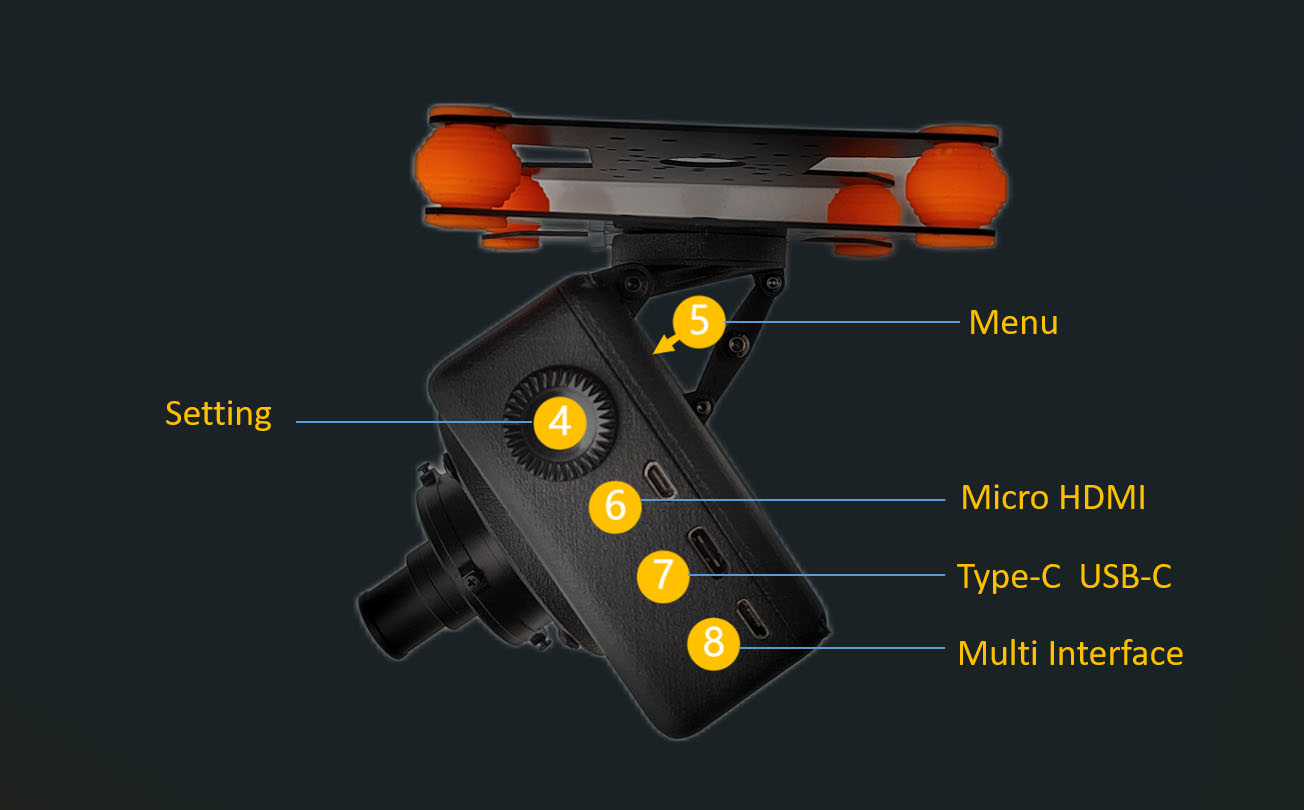

External interface: SD card slot X2, HDMI, USB3.0, USB2.0, hot shoe
Shutter trigger mode: high/low level (default) or PWM signal trigger
