Heavy load VTOL with 55KG load capacity VTOL UAV

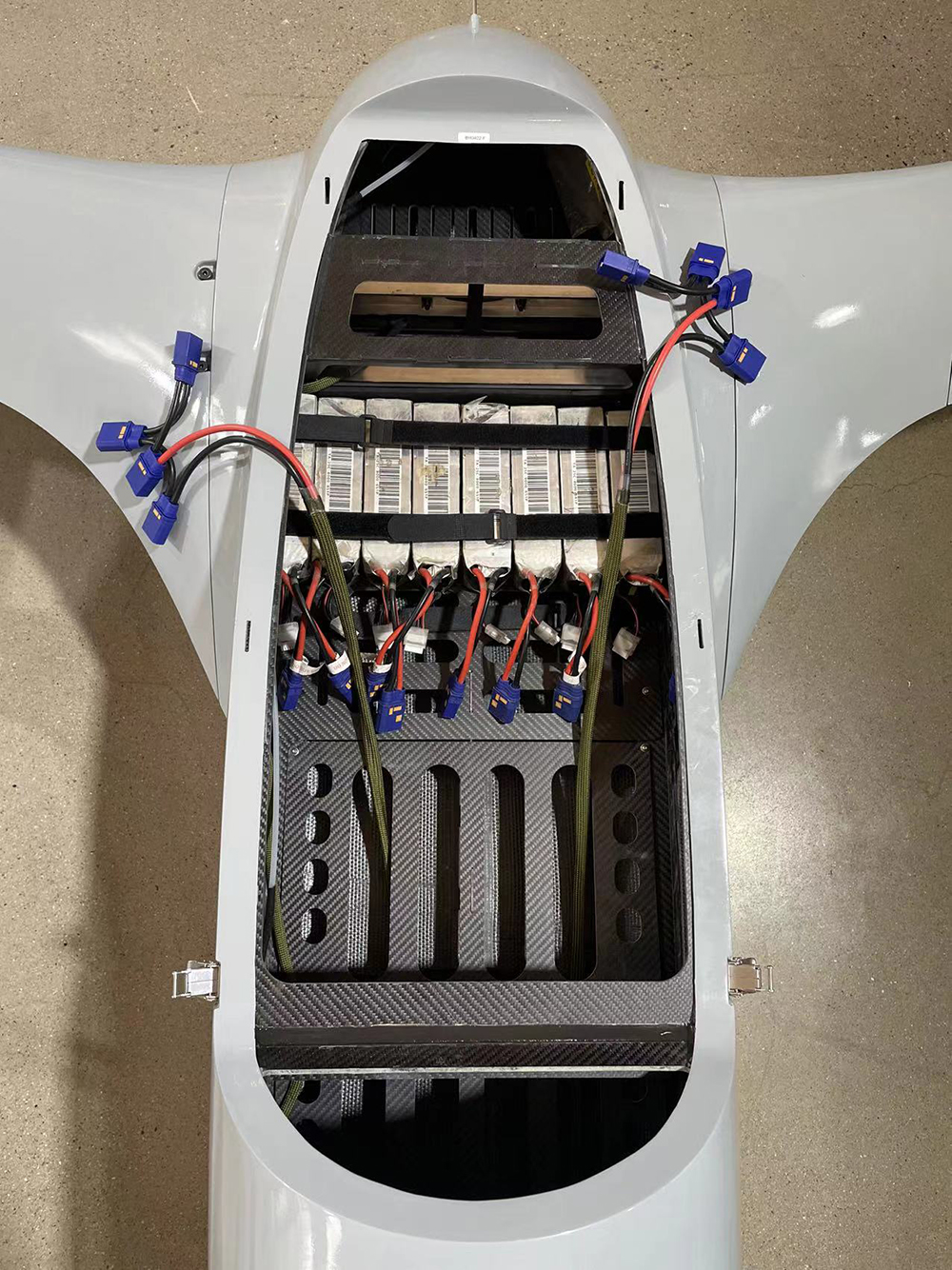

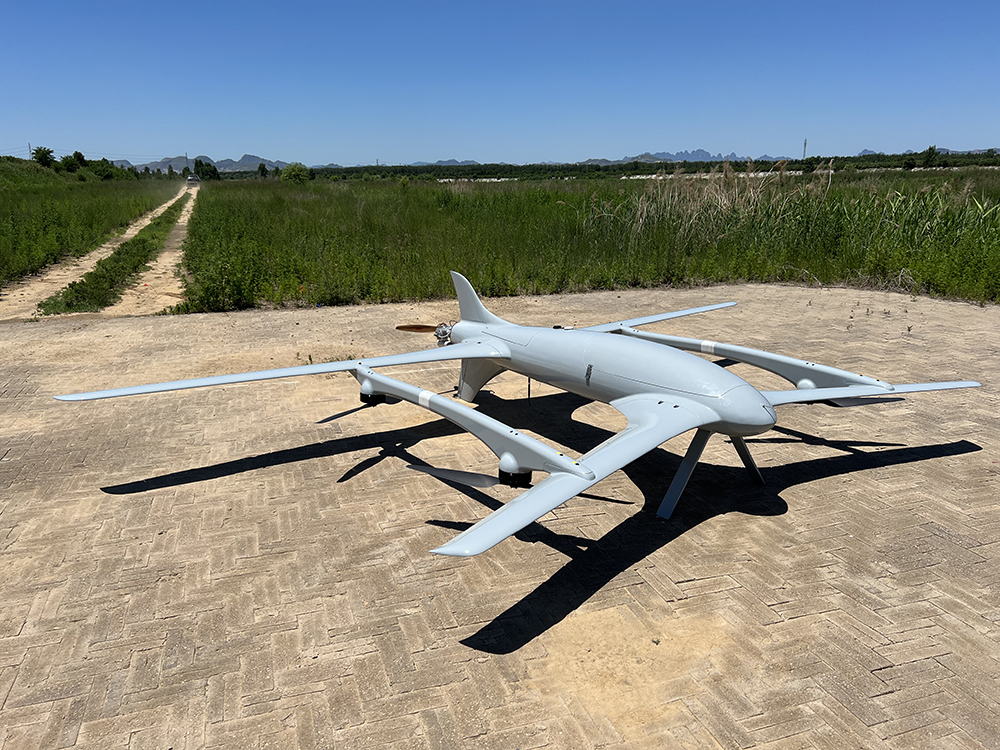

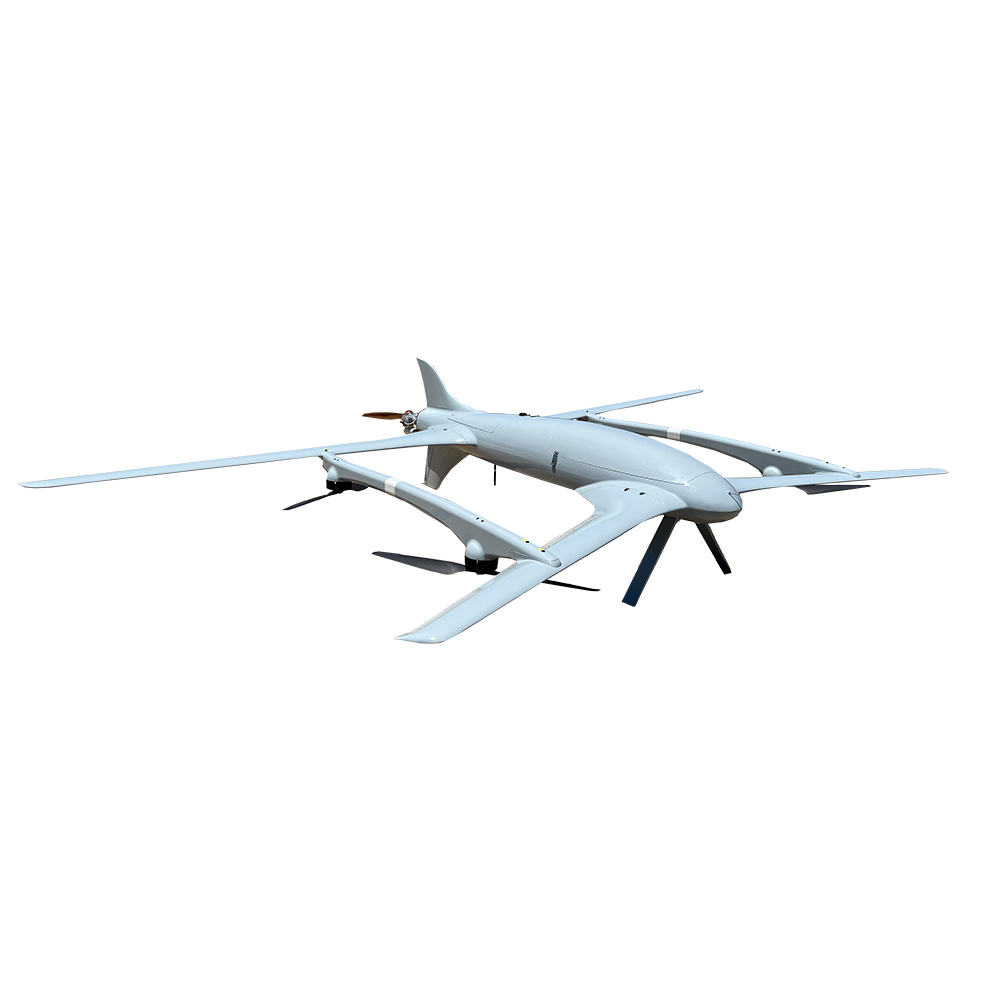

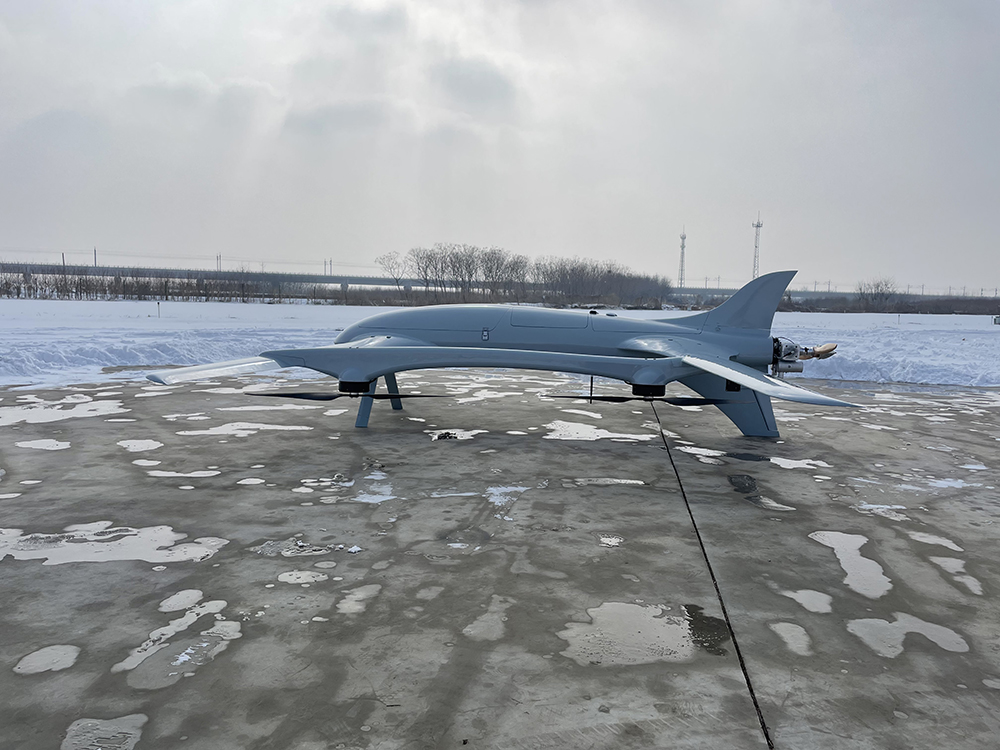

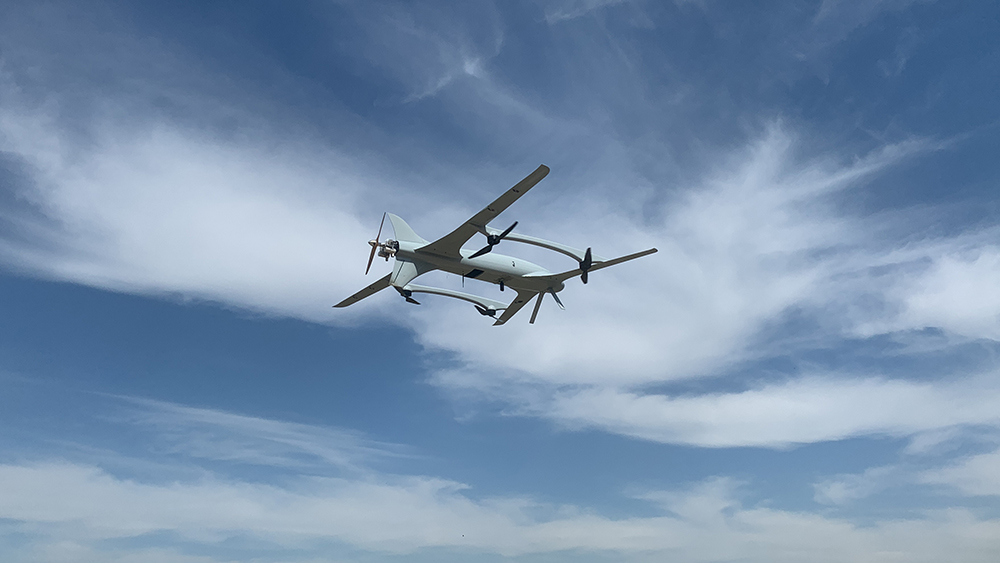

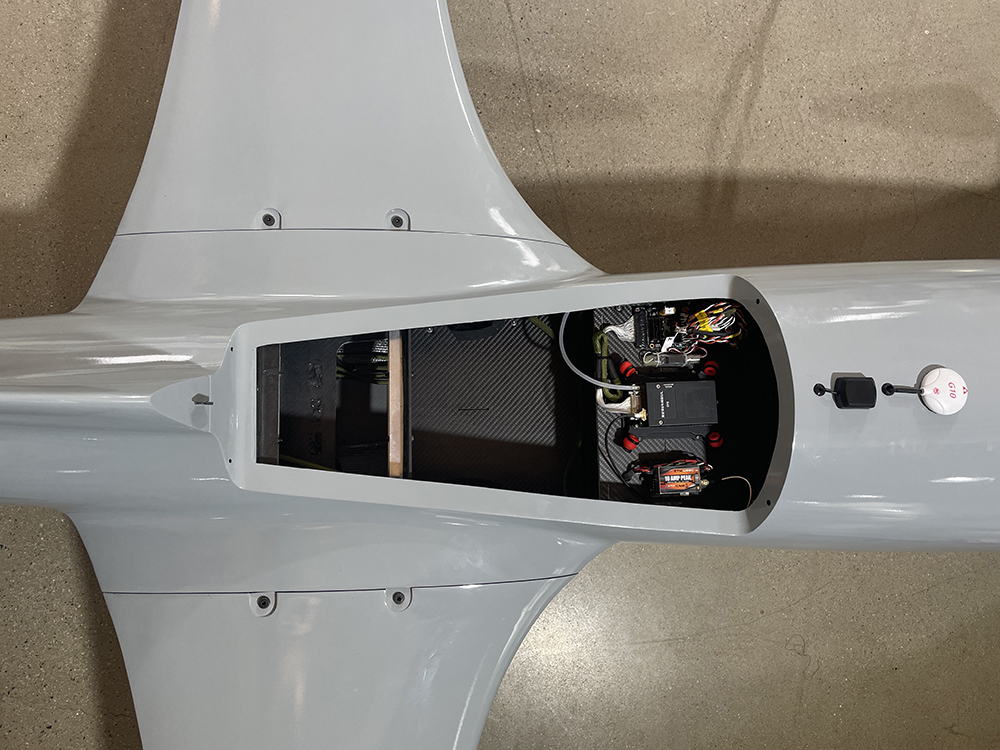

Heavy load VTOL FDG51 is a kind of tail thrust tandem wing VTOL drone. The fuselage is made of carbon fiber composite material, which is of high strength and light weight. FDG51 has the advantages in large scale surveying and mapping tasks with heavy and precise instruments; Design method: Combine aerodynamics and aesthetics with the structure of sweep forward & positive-dihedral front wings and arc dihedral rear wings. FDG51adopts a high aspect ratio structure. There is no surplus piece to generate unnecessary aerodynamic resistance; Advantages: There is a large cabin for varieties of payload. The maximum load weight can reach 55kg. There are brackets in the fuselage, which is convenient for equipment installation. The modular propulsion system design making the tail power cabin can be equipped with engine or motor. FDG51’s taking off mass is 100kg, however, it takes less than 10 minutes to assemble the UAV because of the plug-in structure between the fuselage and the wings.

Technical Parameter

Length: 2566 mm （not include engine） 2905 mm(include engine）
Height: 930 mm
Wingspan: 5100 mm
Airframe material: carbon fiber composite
Engine petrol： (gasoline) piston / heavy oil engine
Load： 55 kg  (pilot & BAT. & fuel & payload)
Take-off weight：100 kg
Battery: 8*6S 8000mah
Battery weight: 1170g/pcs
Level speed: 28~50 m/s
Cruising speed :30 m/s

Endurance:6 h （20 kg payload）
Fuel consumption （petrol）：4~5.5 l/h; （heavy oil)：1.8~2.5 l/h
Stall speed: 25 m/s
Climb rate: 4~6 m/s（fixed wing）
Altitude: 5000 m
Temperatur:e -30℃-50℃
Wind resistance takeoff and landing level 5; cruising level 6
Box dimention & weight： 3050*800*950 mm / 107kg
Protection degree： IPX4
