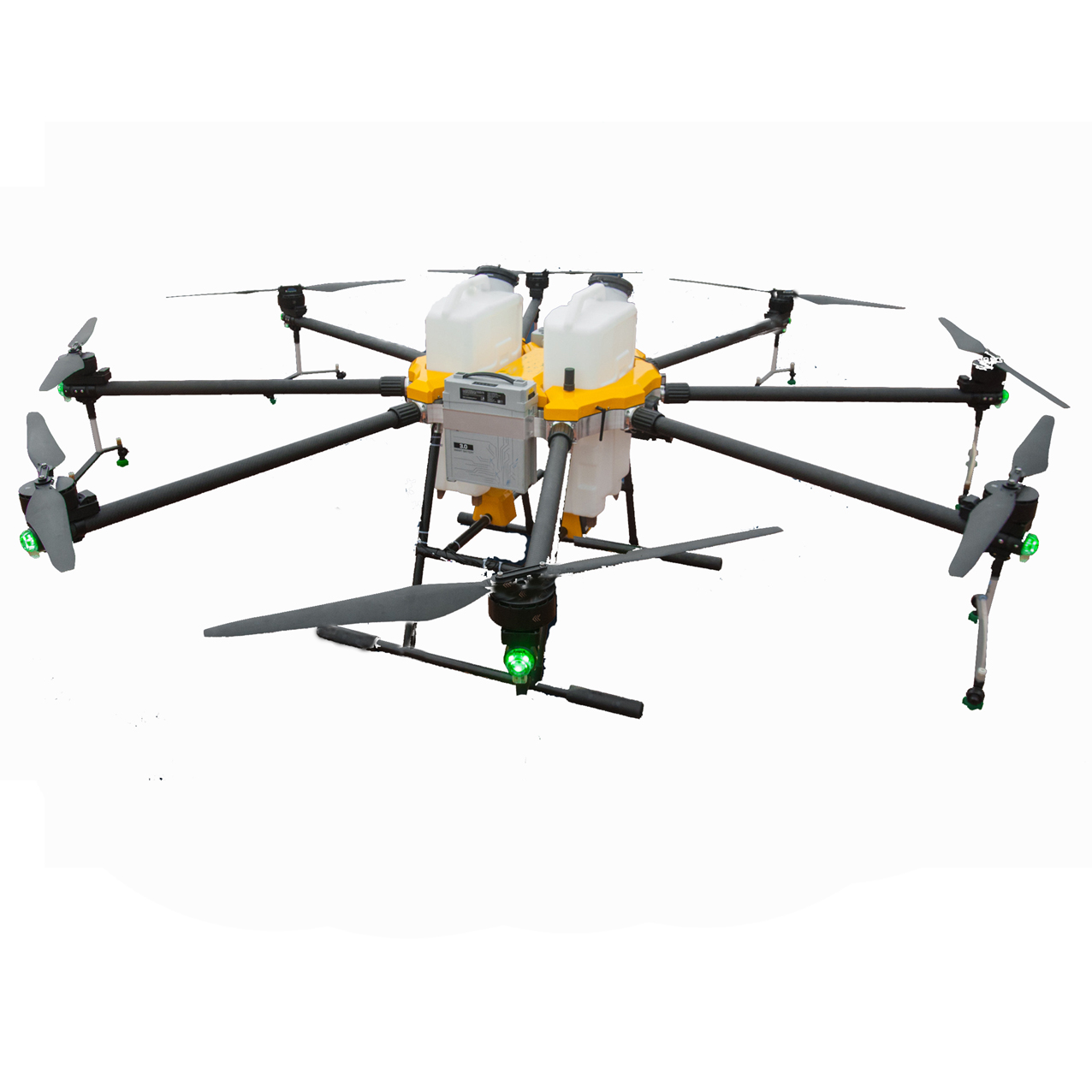

FD-8R-60L Drone Sprayer
FD-8R-60L drone sprayer is Flydragon UAV company's new agriculture drone for 2021, foldable design easy to delivery FD-8R-60L drone sprayer max takeoff weight is 90KG, payload 60L, flight time is 20 minutes, effective working area is 6 acres each flight with 2 pieces 14S 30000mah
Specifications
---------------------------------------------------------------------
---------------------------------------------------------------------
Size: 2000*2000*730（Unfold State）
1000*850*750（Fold State）
Tank: 30L×2
NOZZLE
Model: KZ80-06 nozzle（Max 4L/min adjustable）
Quantity: 8
FLIGHT PARAMETERS
Total Weight: 22 kg (without battery)
Standard Takeoff Weight :85kg
Max Takeoff Weight: 90 kg (at sea level)
Power Battery Battery :(14S 30000mAh )
Hovering Time* : 25 min（@30000 mAh & 85kg takeoff weight）
10-15 min（@30000 mAh & 90 kg takeoff weight）
*Hovering time acquired at sea level, with wind speeds lower than 3m/s.
Max Operating Speed: 8 m/s
Max Flying Speed: 12 m/s
Max Service Ceiling Above Sea Level: 2000 m
Recommended Operating Temperature: 0 ℃ to 40 ℃
REMOTE CONTROLLER
Model SIYIMK15
Operating Frequency: 2.400 GHz to 2.483 GHz
Max Transmission Range :3 km (unobstructed, free of interference)
EIRP: ≤20 dBm
Built-in Battery: 30000 mAh，3.7V
Operating Temperature Range: -10 ℃ to 40 ℃
Storage Temperature Range Less than 3 months: -20 to 45℃
More than 3 months: 22 to 28℃
Charge Temperature Range: 5 ℃ to 40 ℃
RADAR MODULE
Detection Range: 1- 5 m
Working Range: 1.5 - 3.5 m
Precision: < 5 cm
PROPULSION SYSTEM
MOTOR
Stator Size: X9
KV: 115 rpm/V
Max Thrust: 17 kg/Axis (48V, Sea Level)
Weight :654g
PUMP
Max pressure 1.2mpa
RTK
Work efficience: 6 acres/flight
Features:
1. make plan on softwar&ground station full automatic fly
2. Low power or lost single Auto return
3.Terrain following radar suit for any topography
4. Break point continue to spray
