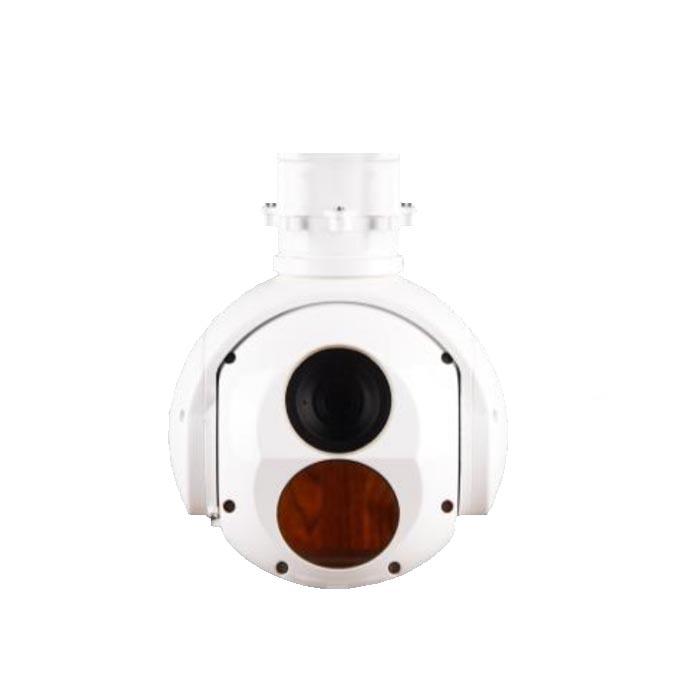

FlyDragon FD-01C is a 30x zoom thermal imaging drone camera. It adopts a two-axis gyro stable platform and is equipped with a conductive slip ring to achieve 360° continuous rotation. It has a built-in 30X high-definition visible light camera and a long-wave uncooled infrared imaging component. It is mainly used for airborne ground imaging detection, identification, tracking, etc. The video output supports HD-SDI. , mainly used for mapping, surveying and surveillance.

Specifications:

visible light
Working wavelength 0.4um~0.9um
Focal length: 4.3mm~129mm, 30x continuous zoom
Resolution: 1920(H)×1080(V)
Horizontal field viewing angle: 63.7°~2.3°
Observation distance:
People: detect 6km, identify 2km;
Car: detect 15km, identify 8km

Thermal Imaging
Working wavelength: 8~14um
Thermal imaging resolution: 12um; 640×512
Thermal imaging focal length：25mm
Horizontal field viewing angle: 17.4°×14°
Observation distance:
People: detect 0.7km, identify 0.2km;
Car: detect 4.2km, identify 1km

Gimbal
Angle working range: 360°; -110°~10° (pitch)
Accuracy: Angle measurement accuracy ≤2mrad; Stable accuracy ≤100urad

Interface
Communication: 1x RS422 (option: TTL/ network port)
Video: 1x HD-SDI(network/HDMI)

Weight: 970g
Size: Φ120mm x 171mm
Working voltage: DC12V
Power consumption: average power consumption 15W, peak power consumption 30W
Working temperature: -20°C~60°C
