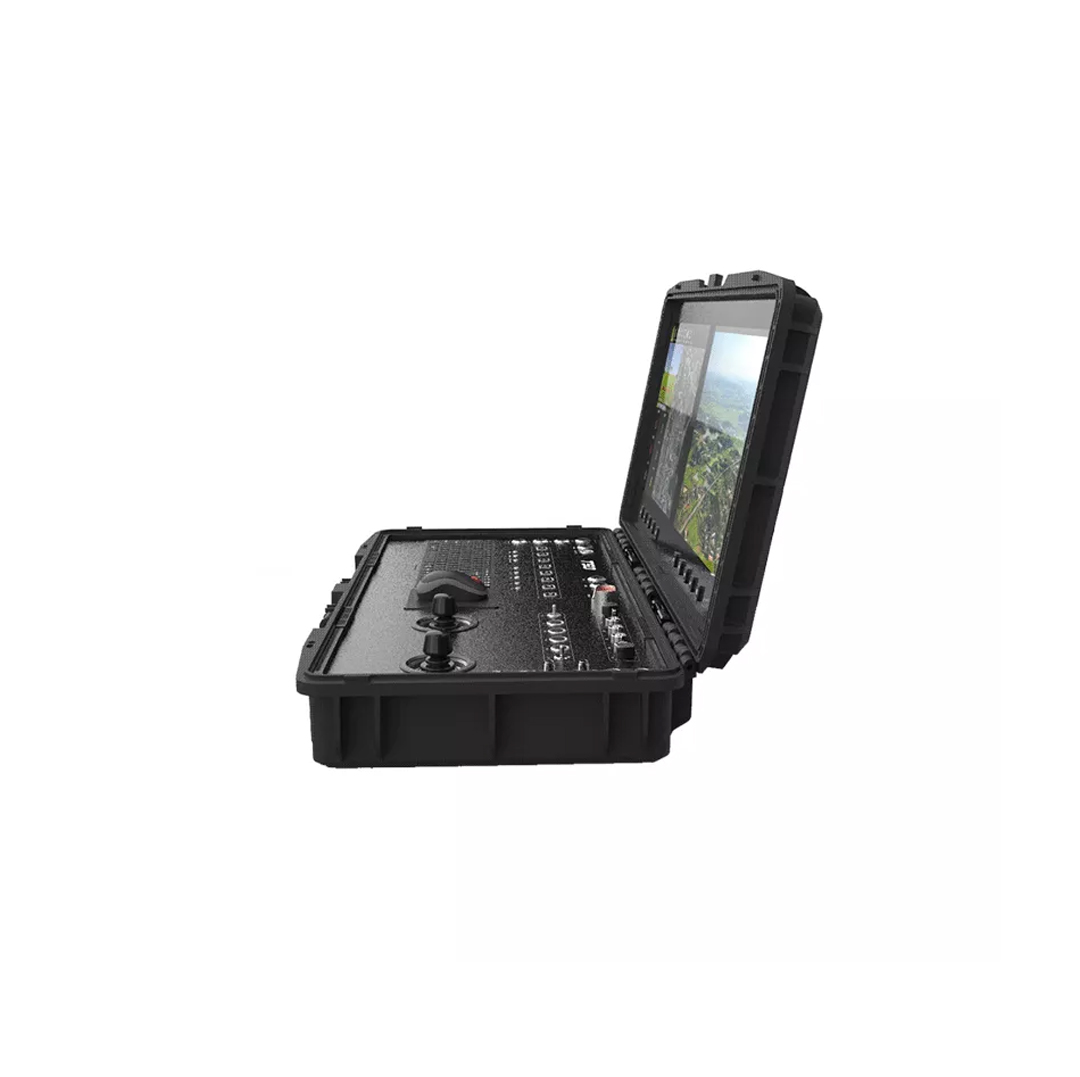

FlyDragon drone company launched FDT50 dual-screen drone ground station uses dual 17-inch high-definition displays, 1,000 brightness and touch capacitive screens. Equipped with an i7 12-core CPU, 32GB memory and 1TB storage, it provides 27 physical channels and two retractable main joysticks, which can freely edit channel settings and support the integration of third-party links.
Functions
Dual 17" HD touch screen
Built-in I712 core CPU
Telescopic Master Remote Pole
Provides 26 editing channels
Up to 150KM link
Sufficient space for built-in friendly links
Highly integrated integration
Flat design, low delay, long distance, strong anti-interference ability
Specifications:
Weight: 15000g
Size: 850mm(L)x425mm(W)x160mm(H)
Display: 17 inches 1280*10241000 brightness x2
CPU: Intel i712650U
Touchpad: 10-finger capacitive touch screen
Operating system: Windows 10/Linux
Memory: 32G
Mobile hard disk: 1T
Network: WIFI 6/A X 211 network card, Bluetooth 5.2
Interface: HDMI in\USB 3.0\LAN\Type-c
Remote control system: industrial-grade telescopic Hall rocker*2
Physical channel:
Buttons*12
Emergency stop*1
Knob*2
Three-position switch*6
Human-machine interface: USB HID
Remote control function: Dual SBUS independent outputs can control the drone and its payload simultaneously
Single-wire bus port: USB IN*1SBUSOUT* 2
Remote control delay: 40ms
Battery capacity: DC 25.2V/30000mAh, can be powered by external power supply
Working time: 3 hours of battery life when fully charged
Charging interface: aviation plug adapter, DC-25.2V
Communication link: Customized 5-150KM available
Third-party communication link: support
