FD-ZR30 30x optical zoom lens; uses 1/2.8 CMOS sensor, effective pixels 2.13 million, supports 1080P high-definition photography and video recording. Equipped with 50mm lens, 640*480 resolution thermal imaging. Supports human and vehicle recognition, target tracking functions, and the maximum number of detected targets is ≥10.

FD-ZR30 supports SBUS, serial port, CAN, TCP control, and opens the control protocol to facilitate integration and use by developers and users.

Specifications

"Weight: pod 780g, shock absorbing plate 130g

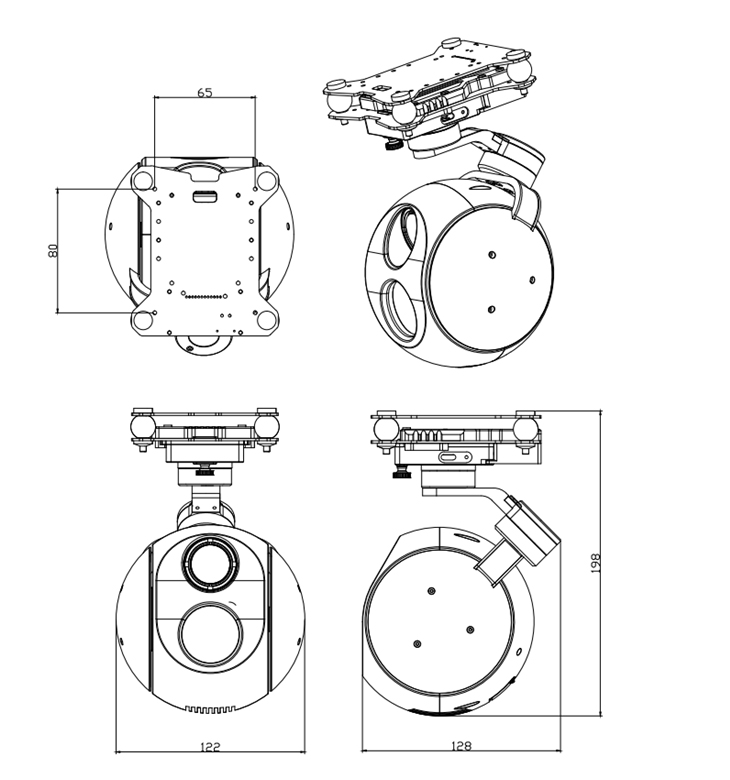

Size: 128*122*198 (length, width and height unit: mm)
Input voltage: 4S～12S 15V-60V
Working environment temperature: -20℃～+60℃
Output: IP (1080p/720p 30/60fps)
Local storage: TF card (up to 128G, class 10, FAT32 or ex-FAT format)
Photo storage format: JPG (1920*1080)
Video storage format: MP4 (1080P 30 frames per second)
Control method: UART/S.BUS/TCP/CAN
Mechanical range: pitch: -60°～150°, roll: ±70°, yaw: ±360°*N
Image sensor: Sony 1/2.8-inch ""Exmor R"" CMOS
Picture quality: Full HD 1080 (1920*1080)
Effective pixels: 2.13 million
Lens optical zoom: 30 times, F=4.3～129mm
Horizontal viewing angle: 1080p mode: 63.7° (wide end) ~ 2.3° (far end)
Signal-to-noise ratio: greater than 50dB
Minimum illumination: color 0.01lux@F1.6
Exposure control: automatic, manual, priority mode (shutter priority and aperture priority), brightness, EV compensation, slow AE
Shutter speed: 1/1s to 1/10000s, 22 steps
Backlight compensation: support
Aperture control: 16 steps
Defogging: Support
Thermal imaging camera
Focal length: 50mm
Horizontal field of view: 24.6°
Vertical field of view: 18.5°
Diagonal FOV: 30.4°
Working mode: Uncooled VOx long wave (8μm～14μm) thermal imager
Detector pixels: 640*512
Pixel size: 12μm
False color type: white hot, rainbow, lava, iron red
Simultaneous detection quantity ≥10 targets
Minimum target size 5×5 pixels
Vehicle detection rate ≥85%
False alarm rate ≤10%"

Human (1.8×0.5) detection distance: 2000m

Human (1.8×0.5) recognition distance: 520m

Human (1.8×0.5) Verified  distance: 260m

Car (4.2×1.8) detection distance: 6300m

Car (4.2×1.8) recognition distance: 1500m

Car (4.2×1.8) Verified  distance: 780m
