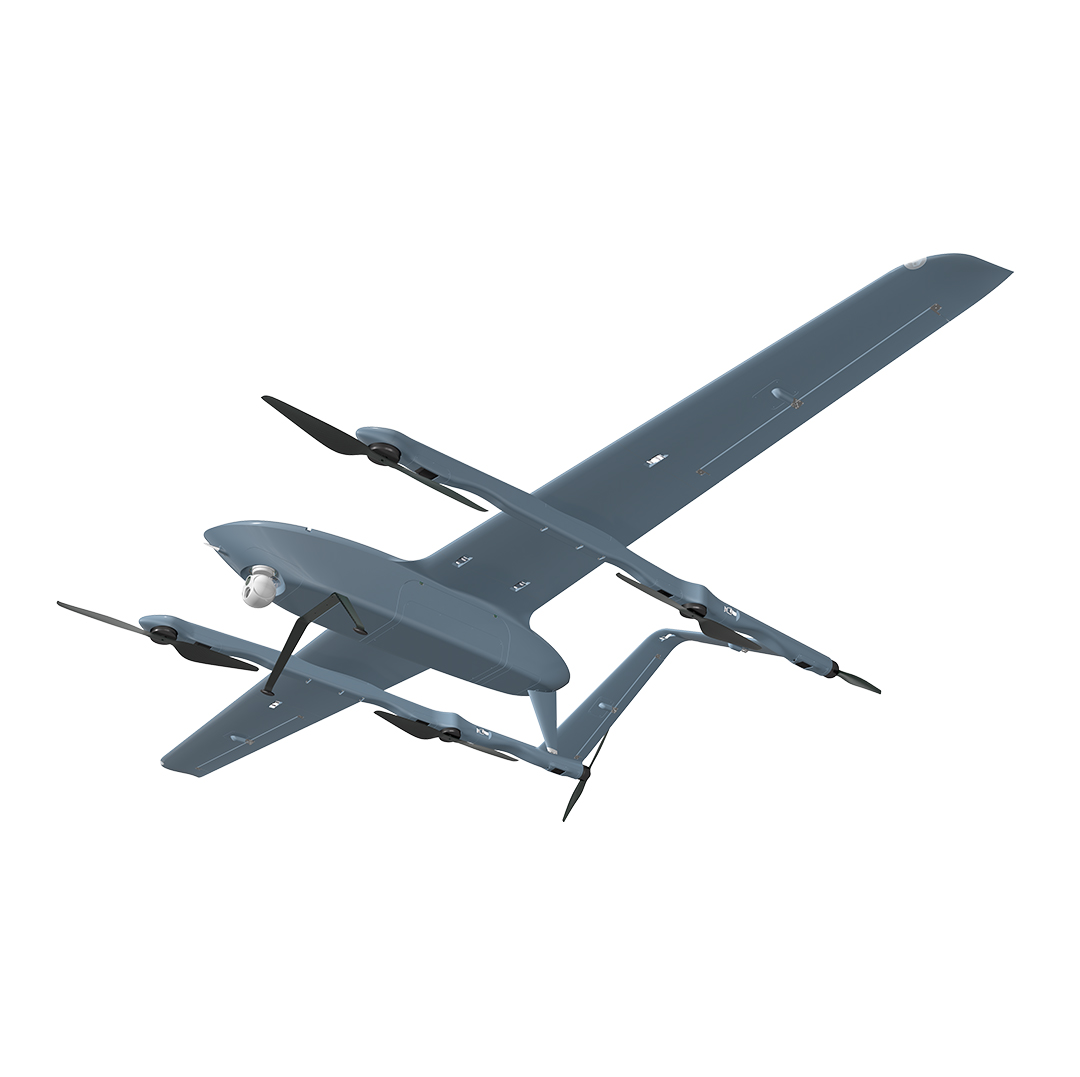

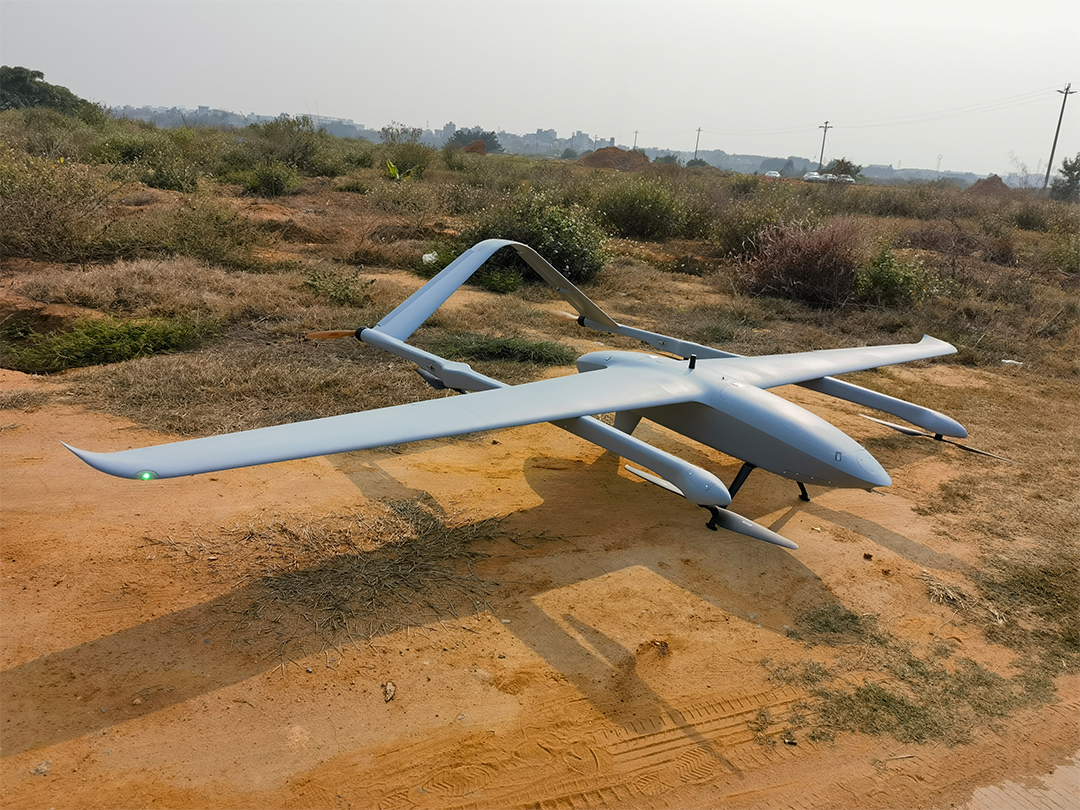

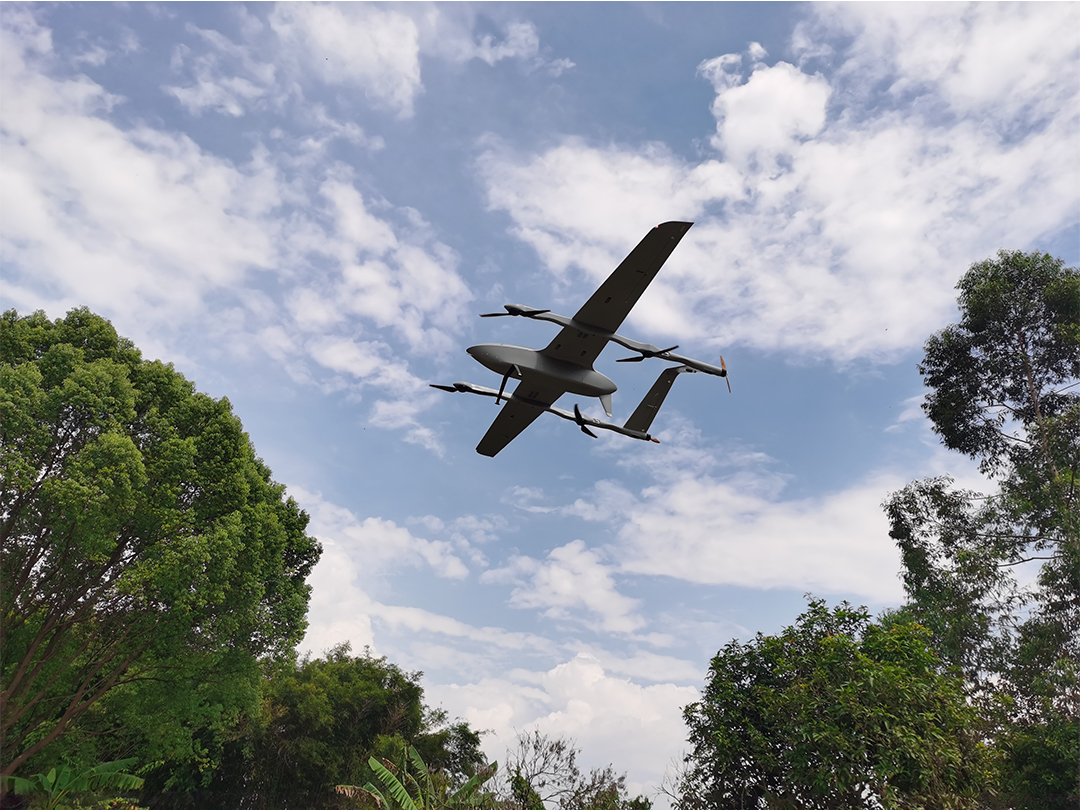

FDG50E electric VTOL drones is a pure electric vertical take-off and landing fixed-wing UAV which adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long rang of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions. FDG50E KGS takeoff weight pure electric vertical take-off and landing (VTOL) fixed-wing UAV is newly launched in 2023, which carries a standard takeoff weight of 50kgs.

It adopts a composite aerodynamic layout of quadrotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long range of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions.

Designed with dual tail propulsion, main and auxiliary dual payload cabin, easy to use, quit and pollution-free, and meets the flight condition at high altitude.

FDG50E parameter
Standard Take-off Weight: 50kg

Max. Payload Weight: 20kg

Cruise Speed: 82km/h

Max. Flight Speed: 120km/h

Control Radius: 50km

Max. Climb Speed: 6m/s

Max. Descend Speed: 5m/s

Max. Altitude AMSL: 4200 meters

Max. Wind Resistance: Level 7

Operating Temperature: -10~60℃

Endurance Time: 3.5h/5kg, 3h/10kg, 2.5h/15kg, 1.5h/20kg

UAV Dimensions Mount: 4800*2580*850mm
