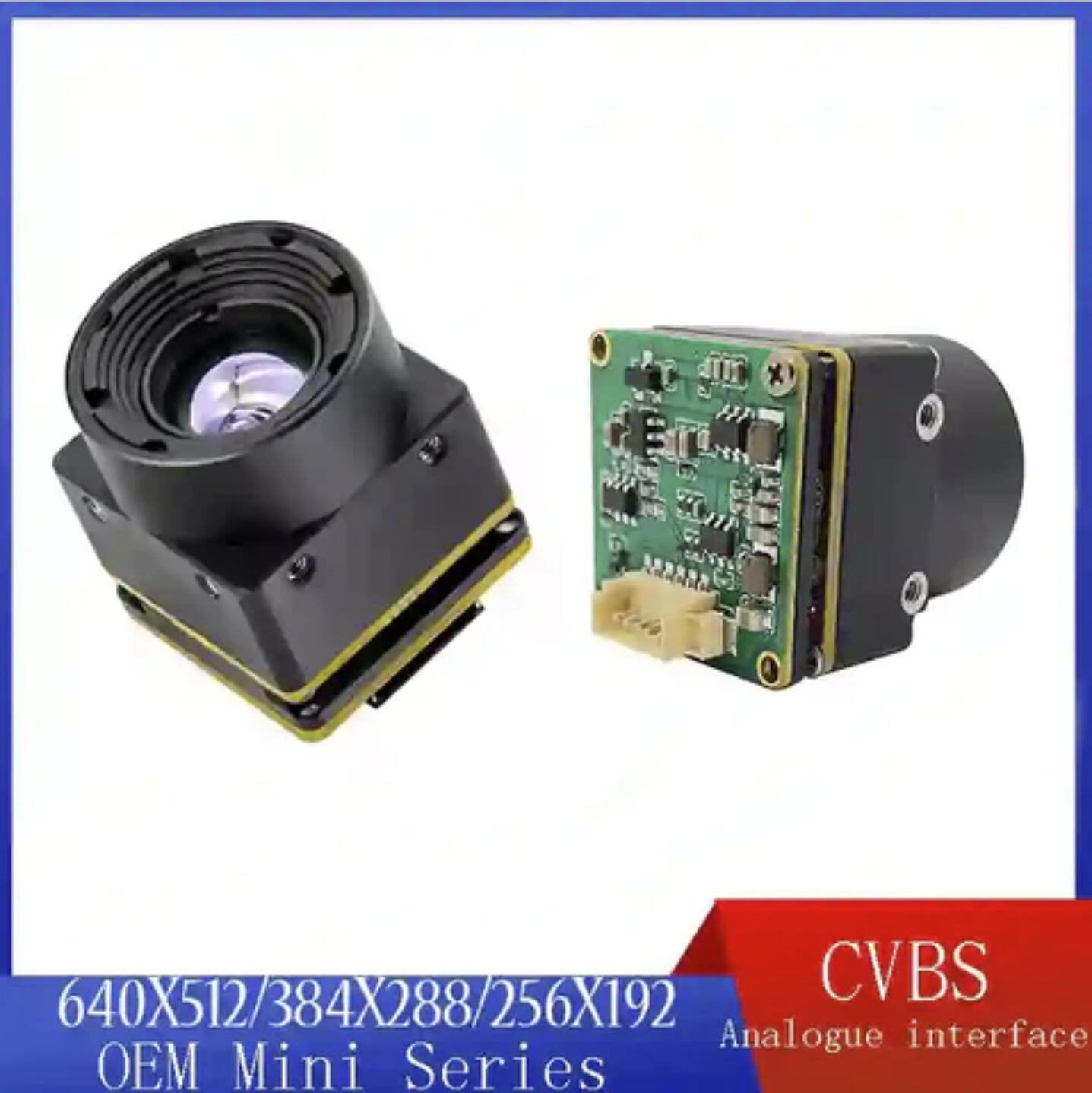

mini analog thermal camera high resolution for FPV drone 256*192/384*288/640*512 12um CVBS

mini analog thermal camera high resolution for FPV drone 256*192/384*288/640*512 12um CVBS

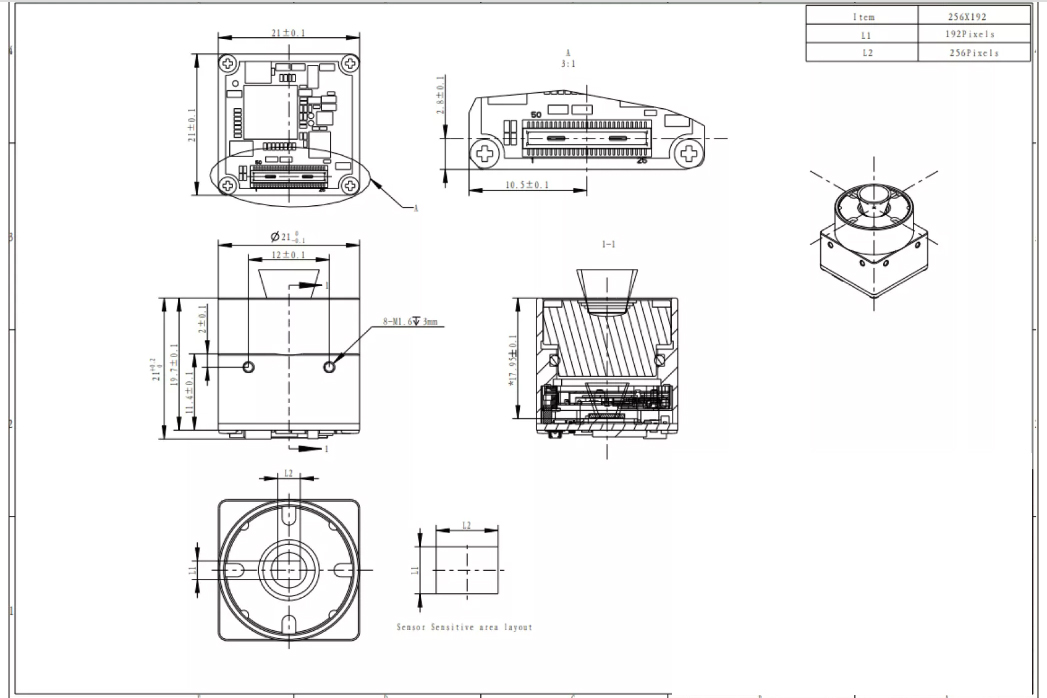

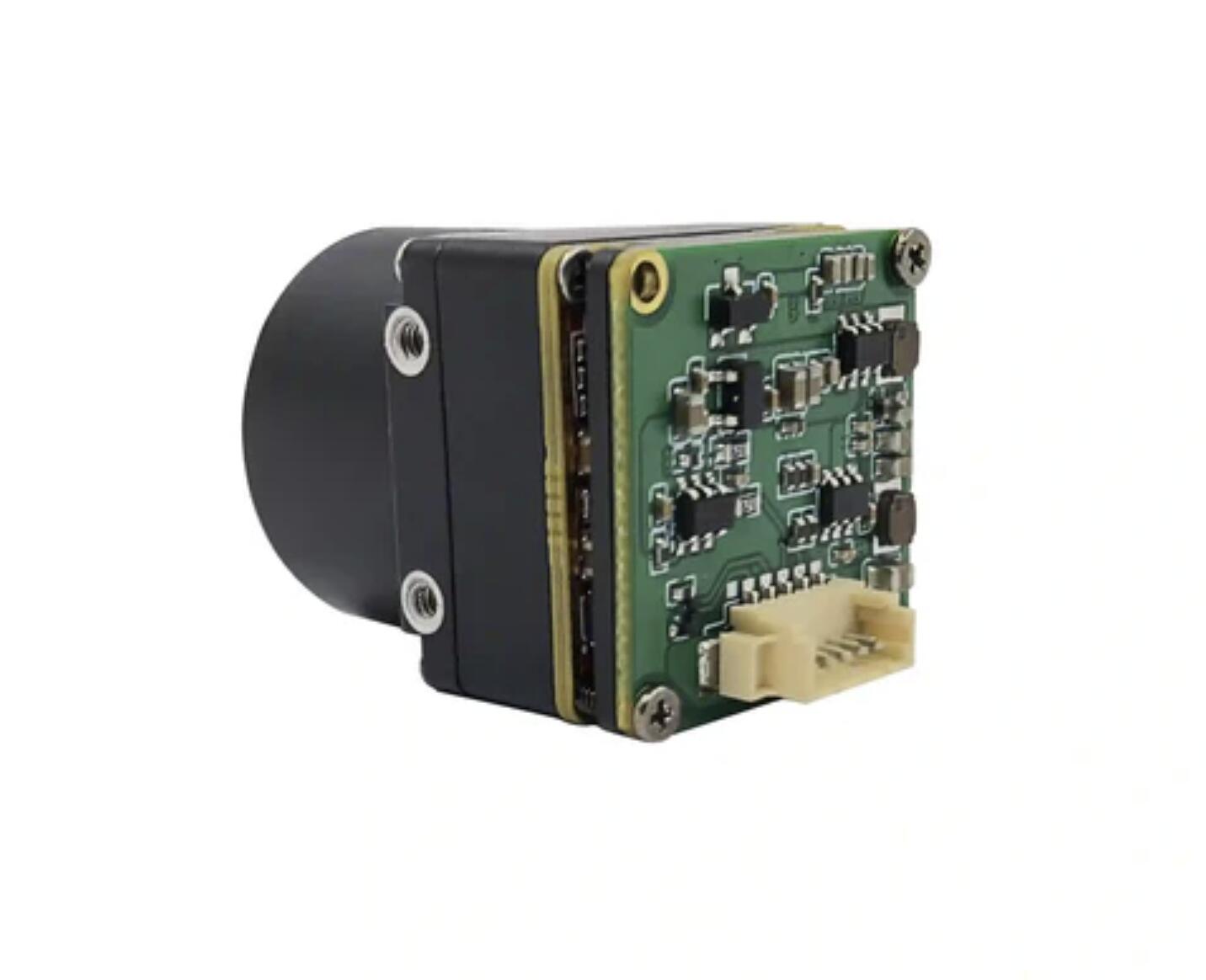

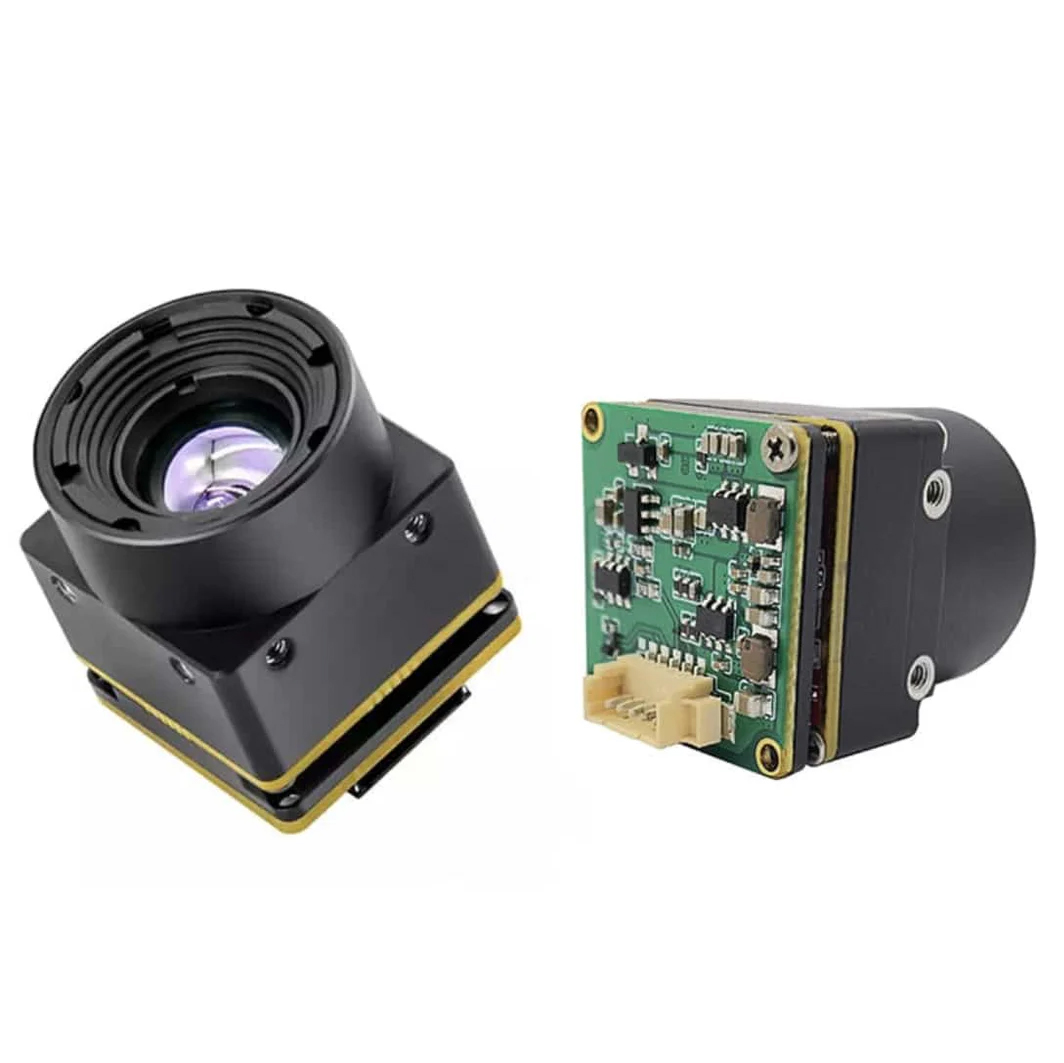

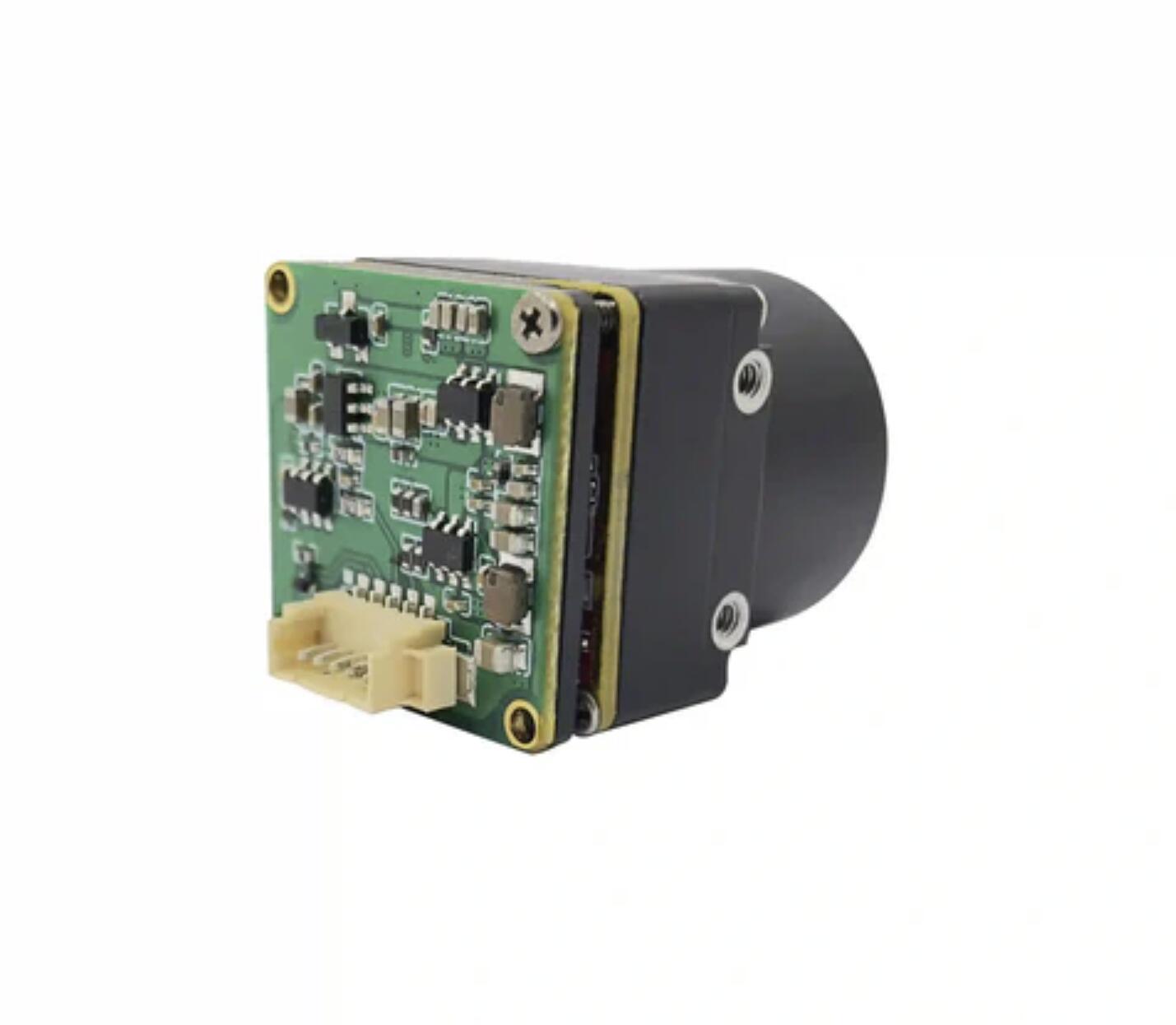

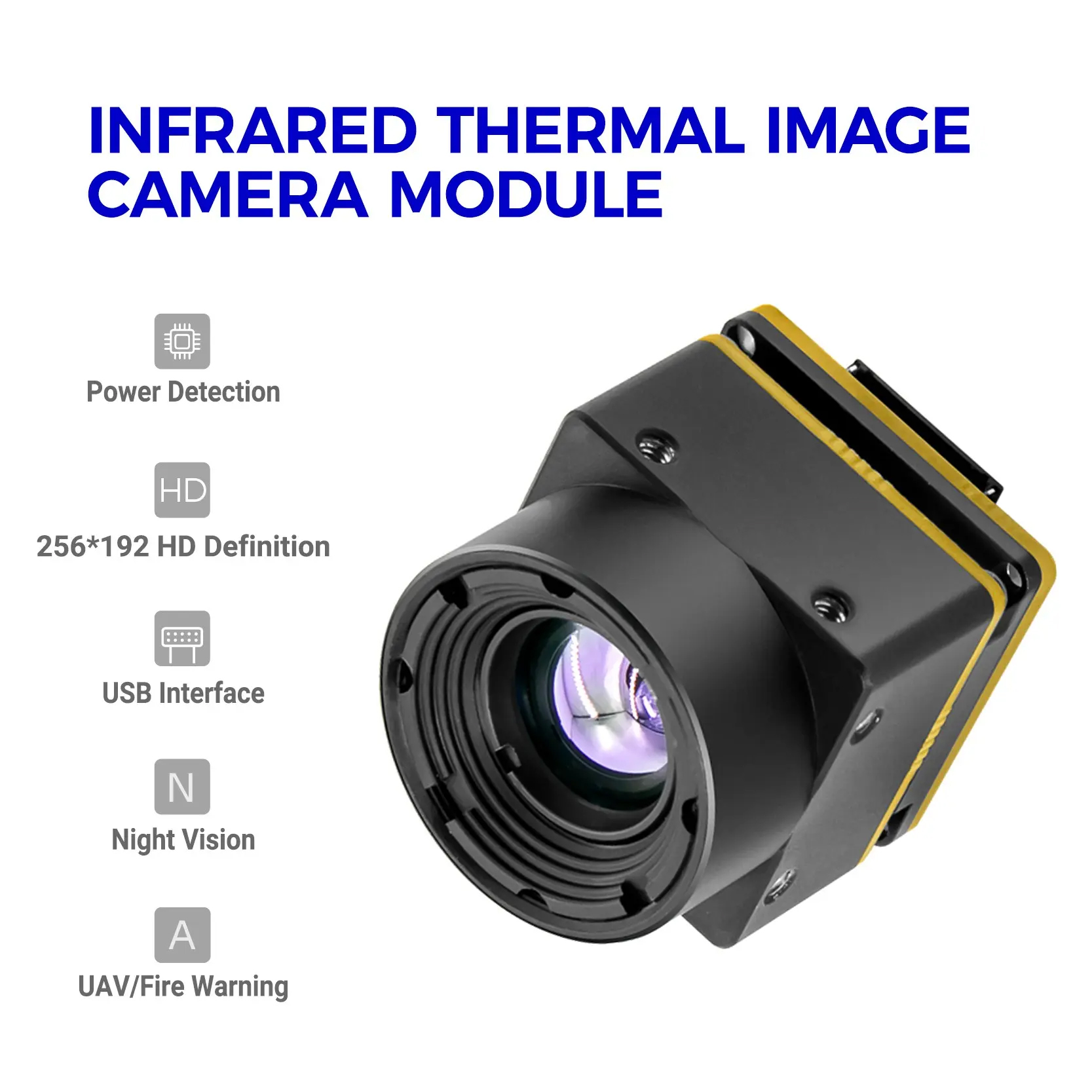

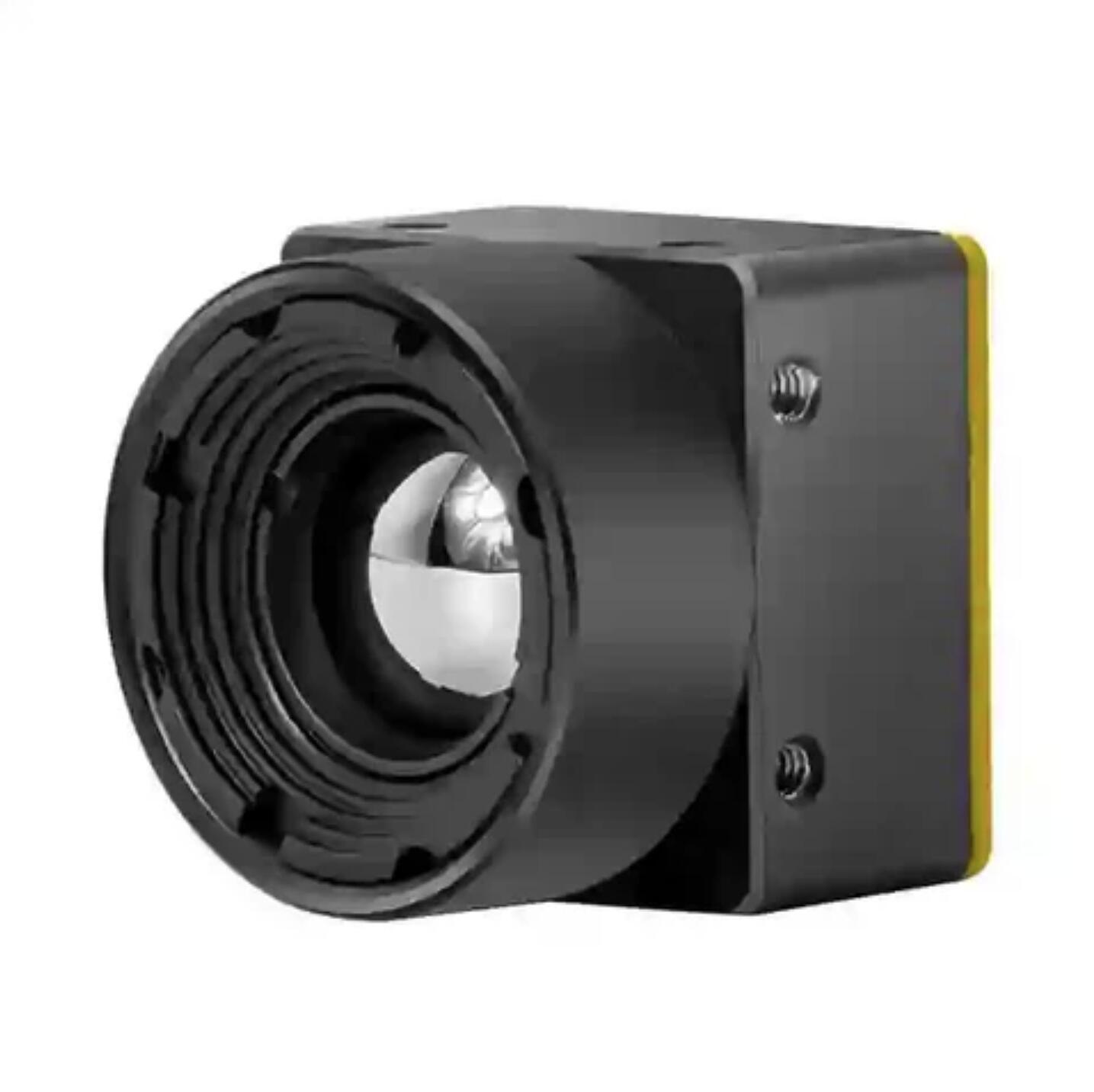

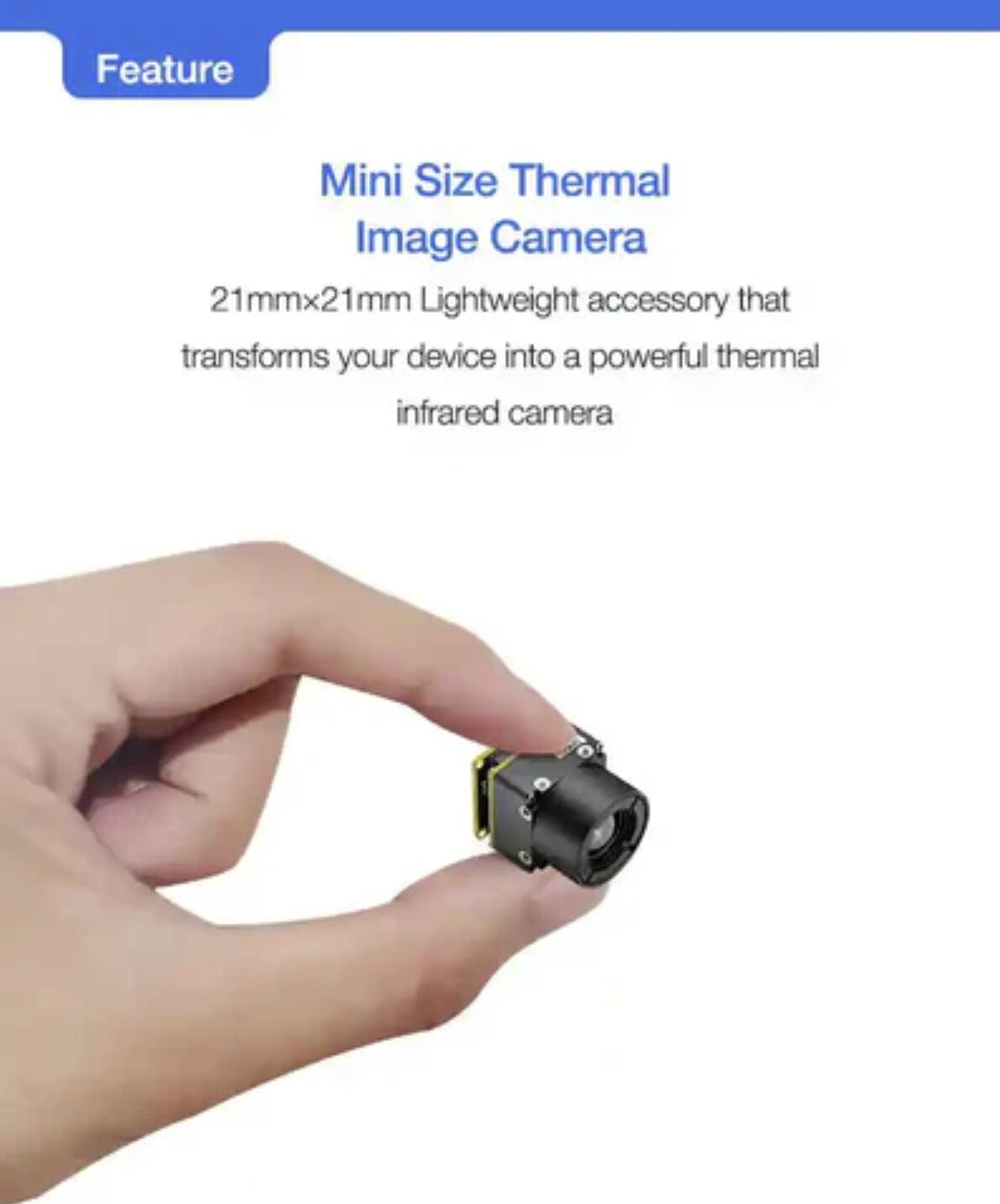

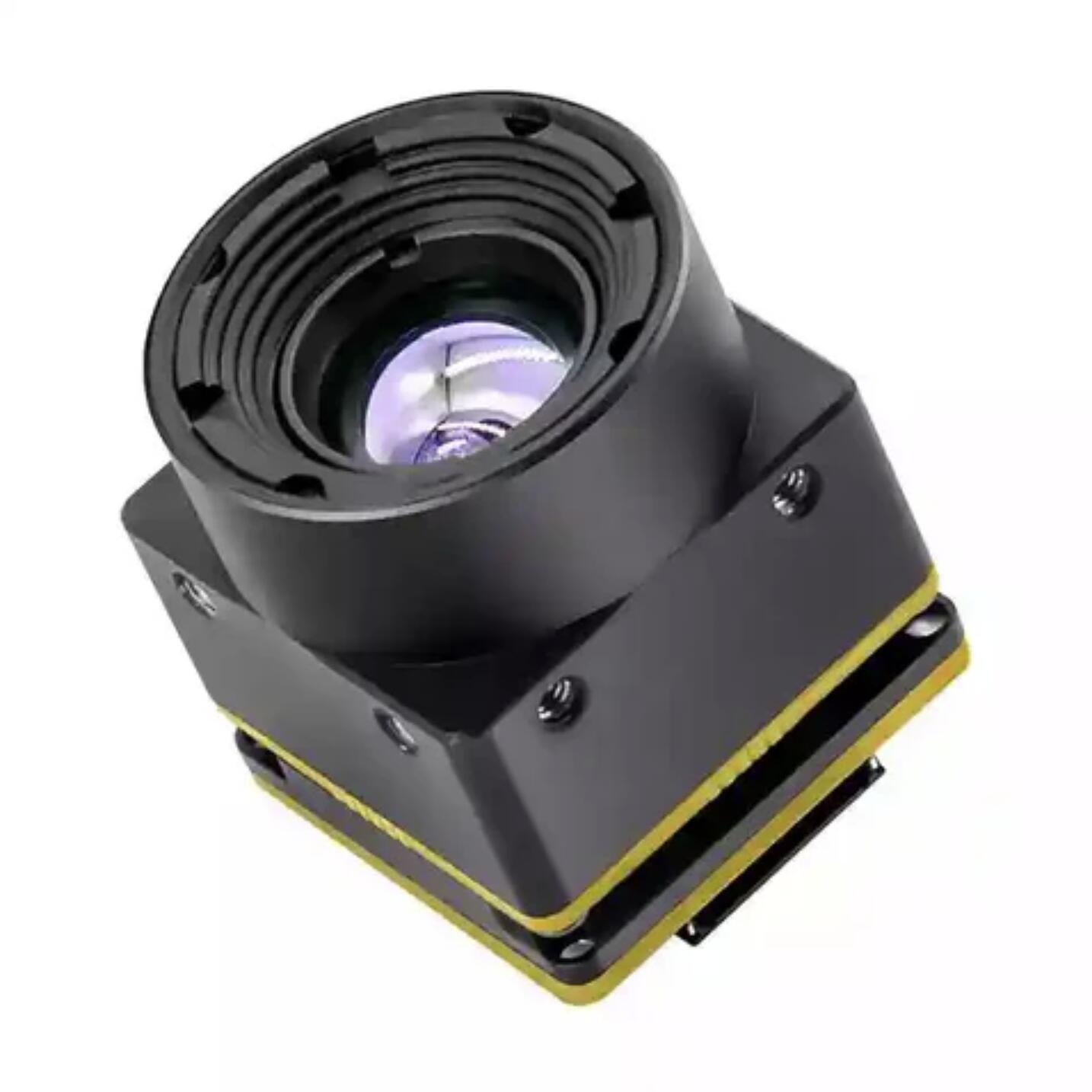

mini analog thermal camera adopts new self-developed 12μm VOx WLP detector and is equipped with an ASIC processing chip, featuring extremely small size, lighter weight, and lower power consumption. Its 640-resolution thermal iamging module has a size of 21mm×21mm, which is very suitable for applications with extremely high requirements such as various miniaturized handheld devices, wearable devices, and light UAVs.

Features:

Extremely small size, extremely low power consumption, and extremely light weight

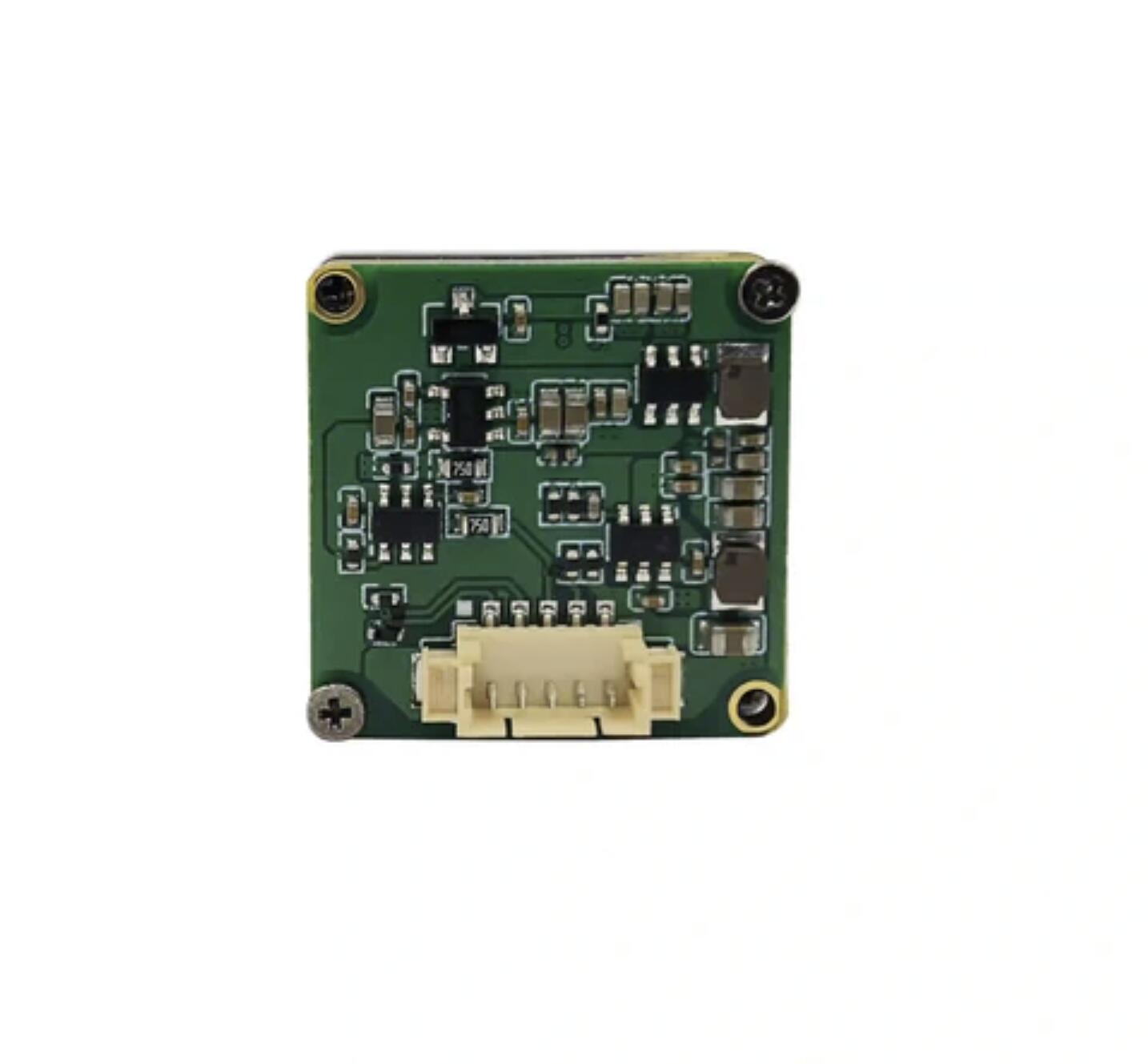

Benefit from the size advantages of ASIC and WLP;Benefit from the low power consumption of ASIC;Mini series thermal imaging module has only one circuit board, which is extremely light.

Self-developed Core

With advanced image detection algorithm, it can realize automatic monitoring alarm, warning area customizing, and automatic target recognizing or tracking;The interface software has complete functions and friendly interaction. It provides a variety of monitoring methods such as 360° panoramic image, radar image, and single frame image, and various parameters of the device can be set;When the monitored target appears, it can alarm via image slice, log, sound, and other methods;

Advanced image detection algorithm

The alarm position can be accurately displayed in real time on the infrared panoramic image and 2D/3D electronic map of GIS system, and link with other external devices. For example, combined with the ARD high-accuracy remote dual-spectrum early-warning imaging tracker, it can quickly locate and recognize the target, complete the alarm situation review process, and record the linkage process information;

Advanced image stabilization algorithm

Small size, customized color, easy to install and deploy in various environments;30V DC power supply, average power of less than 30w. The ordinary portable power source is enough for it;A single person can complete its handling, installing, and debugging in half an hour. Main components: 1 tripod + 1 portable power supply + 1 laptop;One 640 infrared radar can cover the shooting range of 45 units 640×512 infrared monitoring cameras, and the pitch range is adjusted from -20° to +40°, which further improves the monitoring range of the infrared radar;
