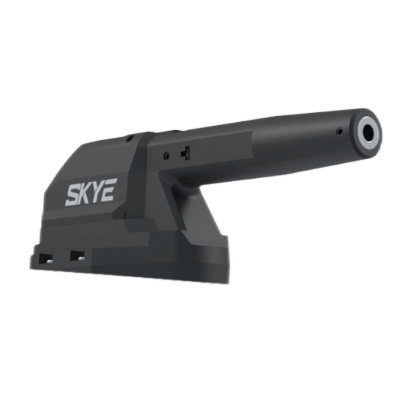

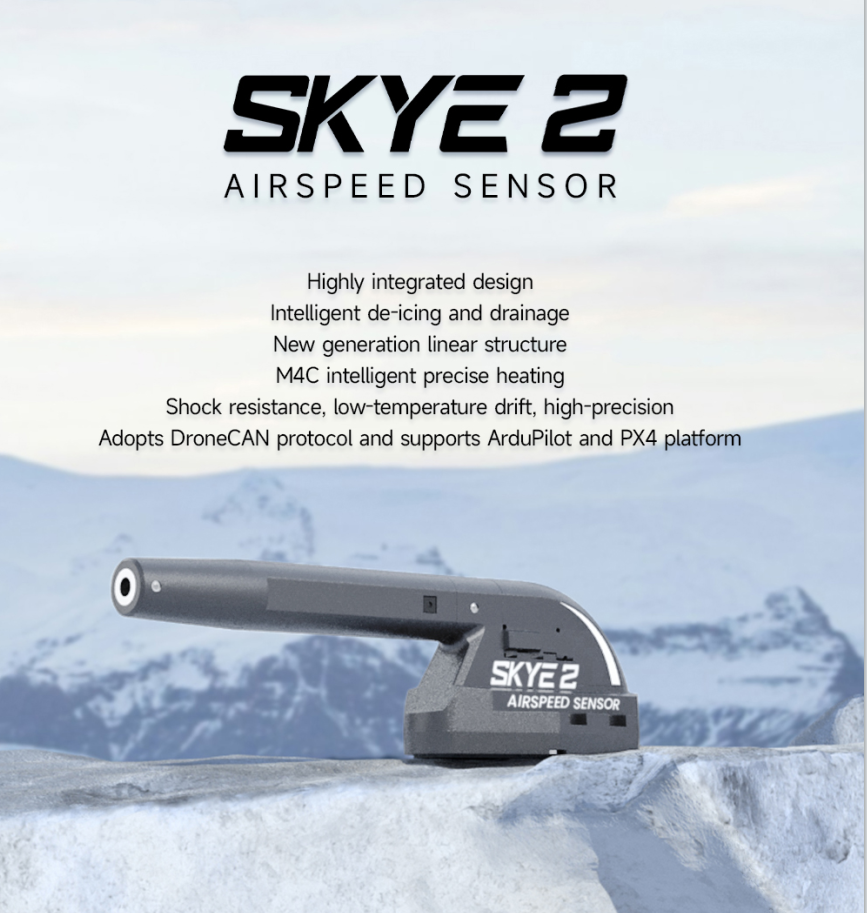

SKYE2 Airspeed Sensor

Product description: The first in the industry to integrate pitot tube, airspeed sensor, temperature and humidity sensor, ARM M4 processor, and dual temperature control system into one structure, and has rainproof perform
INQUIRY

SKYE2 Airspeed Sensor

The first in the industry to integrate pitot tube, airspeed sensor, temperature and humidity sensor, ARM M4 processor, and dual temperature control system into one structure, and has rainproof performance

The pitot tube integrates a high-power 32W heating system, which automatically heats according to the ambient temperature and humidity, avoiding data errors caused by pitot tubes freezing or rain blocking, and greatly improving the reliability of UAV operations.

Specifications

Main Parameter	Processor	STM32F4
Main Parameter	Protocol	DroneCAN
Pitot Tube	Temperature Control Type	Resistance Heating
	Airspeed Sensor	MS5525
	Heating Power	35W
Sensor Performance	Airspeed Measurement Range	+500km/h
	Airspeed Accuracy	+0.69Pa
	Total Error Band	+2.5%FS
	Temperature Measurement Range	-20°C-125°C
	Humidity Measurement Range	0-100%
	Power	DC IN Default 12-36V
Physical Characteristics	Operating Temperature	-20°C±75°C (Note: This should likely be -20°C to 75°C)
	Size	82.530.428.2mm
	Weight	22g
	Protection Level	IP44 (To be installed on request)
	Note	Operating Temperature range corrected to -20°C to 75°C
