  • G90 big thrust drone motor set for heavy drone build
G90 big thrust drone motor set for heavy drone build

G90 big thrust drone motor set for heavy drone build

  • Product description: G90 big thrust drone motor set, is specially design for heavey payload drone, rated thrust is 90kg, max thrust is 189kg, this system use 8.5rmp/v motor, rate power 20kw, use 160A ESC. and CF and epoxy
  • INQUIRY

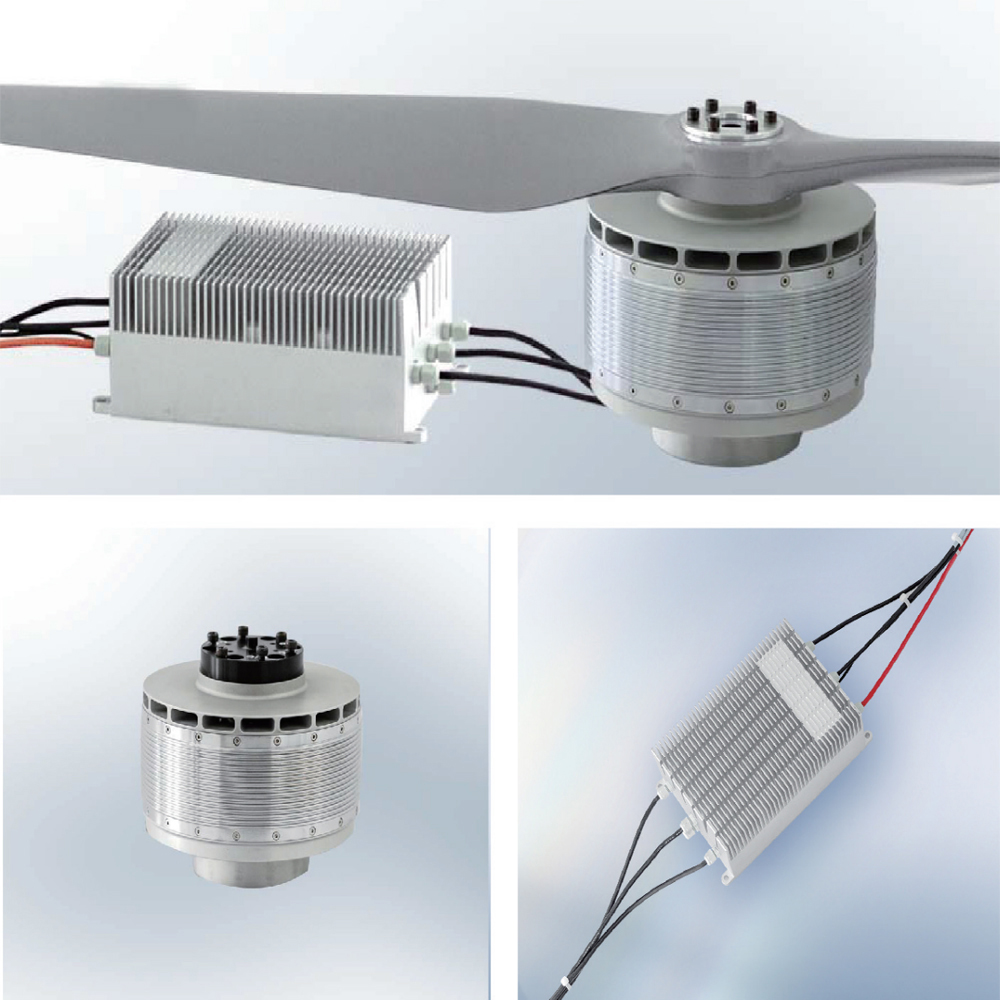

G90 big thrust drone motor set, is specially design for heavey payload drone, rated thrust is 90kg, max thrust is 189kg, this system use 8.5rmp/v motor, rate power 20kw, use 160A ESC. and CF and epoxy material  72" propeller.

Main parameter

Voltage Range：80~510Vdc
Rated Pull Force：90kg
System Force Effect：6.3g/W
MAX Pull Force：189kg

ESC

Weight：2.8kg
Dimension：257mm*155mm*90.5mm
Voltage Range：80~440Vdc
Rated Power：22.5kW
Peak Current：160A
Throttle calibration stroke：Support
Power Cable：10AWG-25cm*2
Output Cable：10AWG-33CM*3
Signal Cable：28AWG
Communication mode：PWM/CAN/UART


Motor

KV Value：8.5rpm/V
Rated Power：20kW
Weight：8.65kg
Internal Resistance：312mohm
Pole pairs of magnetic steel ： 21

Propeller

Weight：1720±30g
Size：72"*25"
Material：CF+Epoxy
Operating ambient temperature ：-40℃~ 65℃
Storage Temperature：-10℃~35℃
Preservation Humidity：60%~90%
