  • G75 big thrust drone motor set for heavy drone build
G75 big thrust drone motor set for heavy drone build

G75 big thrust drone motor set for heavy drone build

  • Product description: G75 big thrust drone motor set, is specially design for heavey payload drone, rated thrust is 75kg, max thrust is 165kg, this system use 9.5rmp/v motor, rate power 20kw, use 90A ESC. and CF and epoxy
  • INQUIRY

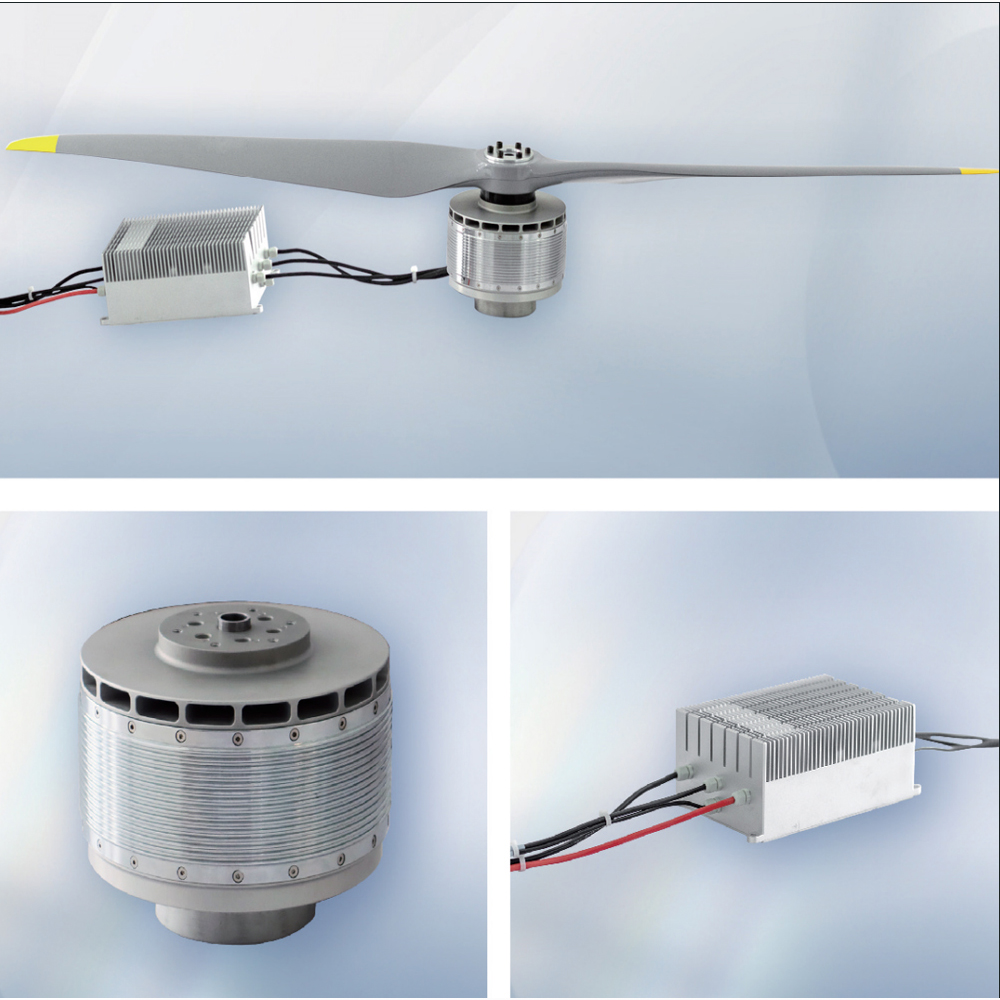

G75 big thrust drone motor set, is specially design for heavey payload drone, rated thrust is 75kg, max thrust is 165kg, this system use 9.5rmp/v motor, rate power 20kw, use 90A ESC. and CF and epoxy material  63" propeller.

Main parameter

Voltage Range：80~440Vdc
Rated Pull Force：75kg
System Force Effect：6.2g/W
MAX Pull Force：156kg


ESC

Weight：1.7kg
Dimension：244mm*110mm*75mm
Voltage Range：80~440Vdc
Rated Power：13.5kW
Peak Current：90A
Throttle calibration stroke：Support
Power Cable：10AWG-25cm*2
Output Cable：10AWG-33CM*3
Signal Cable：28AWG
Communication mode：PWM/CAN/UART



Motor

KVValue：9.5rpm/V
Rated Power：20kW
Weight：8.36kg
Internal Resistance：312mohm
Pole pairs of magnetic steel ： 21



Propeller

Weight：1145±30
Size：63"*22"
Material：CF+Epoxy
Operating ambient temperature ：-40℃~ 65℃
Storage Temperature：-10℃~35℃
Preservation Humidity：
60%~90%
