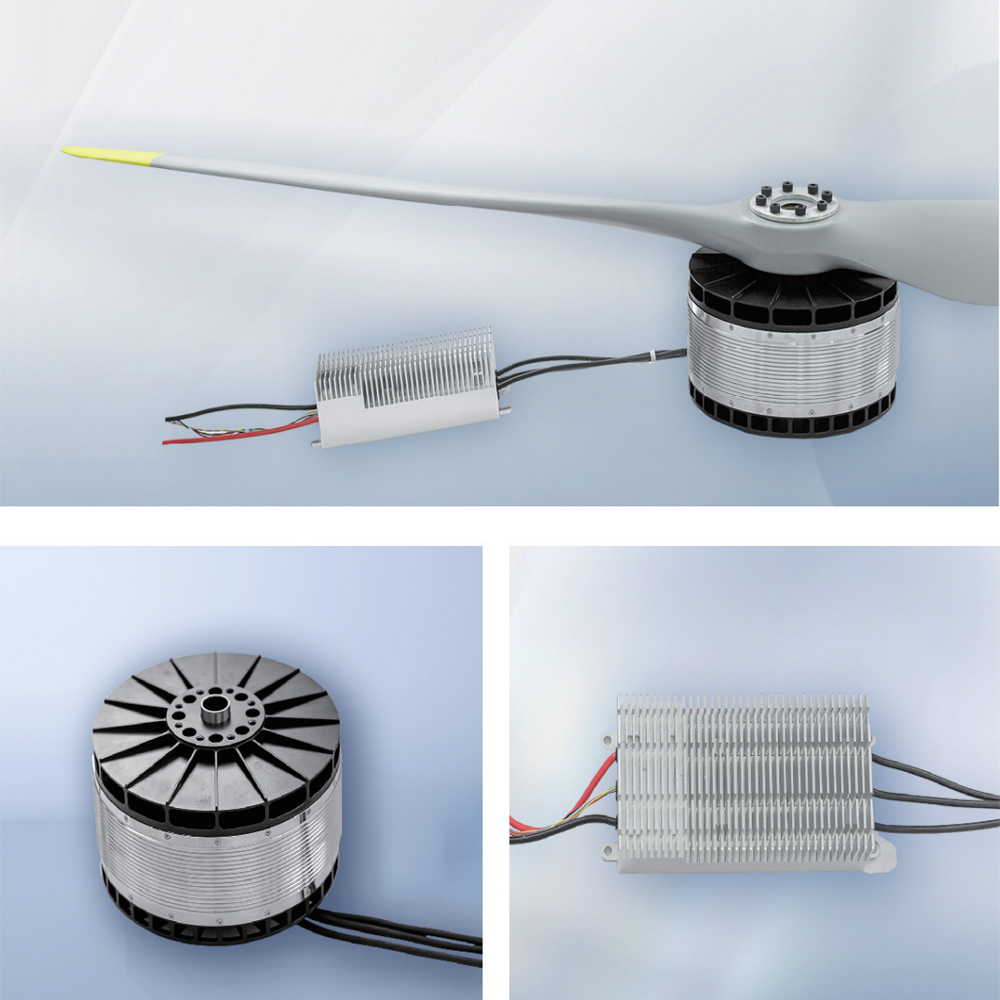

G110 big thrust drone motor set, is specially design for heavey payload drone, rated thrust is 110kg, max thrust is 224kg, this system use 8.5rmp/v motor, rate power 30kw, use 160A ESC. and CF and epoxy material 72" propeller.
Voltage Range：350 to 650Vdc
Rated Pull Force：110kg
System Force Effect：5.6g/W
MAX Pull Force：224.5kg
Weight：2.8kg
Surface Dimension：278mm*156mm*70mm
Voltage Range：80~510Vdc
Rated Power：22.5kW
Peak Current：160A
Throttle calibration stroke：Support
Power Cable：red/black-14awg-37cm*2
Output Cable：black-14awg-35cm*3
Signal Cable：28AWG
Communication mode：PWM/CAN/UART
Weight：600g±10g
Size：72*25inch
Material：CF+Epoxy
Operating ambient temperature ：-40℃~ 65℃
Storage Temperature：-10℃~35℃
Preservation Humidity：60%~90%
Contact: Fly Dragon Drone Tech.
Email: frank at dronefromchina.com
Add: NO. 9 Dayu Road PiDu distric, ChengDu 611730, China
