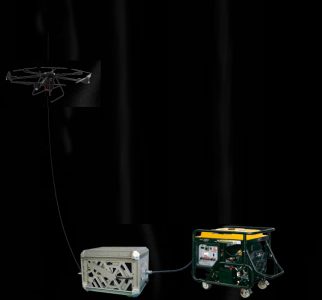

FDXL-400 12kw Tethered power for UAV
FDXL-400 12KW tethered power supply airborne power supply provides stable voltage output, the drone battery has no power loss and being charged, simple operation, the whole process of drone take-off and landing does not need to operate the tethered box adaptive pull automatic take-up and pay-off, support flight altitude: 100/200/300m (mooring 110/220/330m, reserved safety length) support take-off weight: 40~60kg, flight duration: ≥48h
Specification

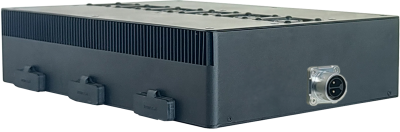

Airborne power supply for the air unit
Input voltage: 580~810Vdc wide range input
Output voltage: 50Vdc±1% or 58Vdc±1%, constant regulated output, support voltage customization
Output power: rated long-term output ≥ 12000W, short-time peak output ≥ 15000W
Communication function: CAN communication is optional, reporting voltage, current, temperature data and working status information
Installation: Reserved internal thread mounting hole, screwed fixed
Heat dissipation mode: The external fan actively dissipates heat, and the air duct is reserved for forced air cooling
Size: 302×200×68±0.5mm, without connectors
Weight: 4.2±0.1kg, without external connectors and cables
Degree of protection: IP54
Tethered cables
Material: alloy lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high-modulus tensile tensile aircraft-grade fiber braid
Tensile strength: ≥200kg, resistant to repeated retraction and release times≥ 1000
Dielectric strength: ≥3500Vdc, 1min, no breakdown
Cable length: standard length 100m, support up to 365m, optional customization
Outer diameter: 5.0±0.1mm
Weight: 29±1g/m

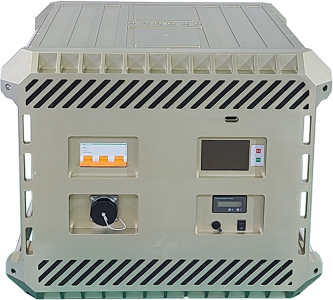

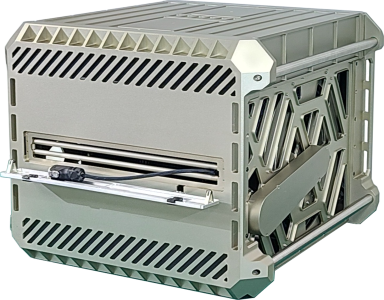

Ground tethered box
Input voltage: 190~240Vac wide range input, single phase 220Vac, frequency 50/60Hz
Output voltage: 600~800Vdc adjustable, factory default 800Vdc
Output power: rated long-time output≥ 15000W, short-time peak output≥ 20000W
Take-up speed: 0~3m/s, adjustable gear
Take-up pull: 0~20N, adjustable gear
Optical fiber communication: Optional photoelectric composite tethered cable to provide optical fiber communication link
Data communication: wired communication function, support remote display and control, support client data viewing and download
Data display: output voltage, output current, output power, pay-off length, running time, equipment temperature, total power consumption, fault record data and status
Setting and adjustment: setting and adjusting parameters such as take-up and pay-off force and speed, date and time, voltage, safety meters, alarm temperature, etc., support Chinese and English switching
Alarm and reminder: When the fault occurs, the screen displays the fault content, and the buzzer reminds you loudly
Automatic take-up and pay-off: synchronous retraction and release with the take-off and landing of the drone, adaptive adjustment of tension, and backup of power take-up and pay-off, display and control when there is no external power supply

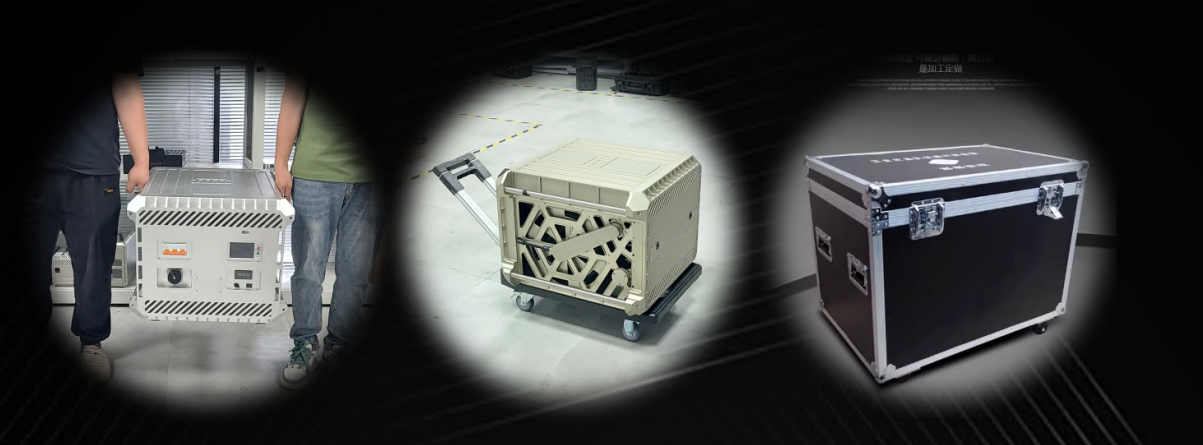

Portable transportation: mobile wheeled pallet truck is optional, and the split buckle is fixed, which is convenient for short-distance carrying and transportation
Dimensions: Depth 600× width 570× height 460±0.5mm, without feet and external accessories
Weight: 54±0.5kg, dual power redundant backup; 42±0.5kg, single power supply
Degree of protection: IPx4
Language: Chinese, English, Korean, Russian
Support drone take off weight: 40~60kg
