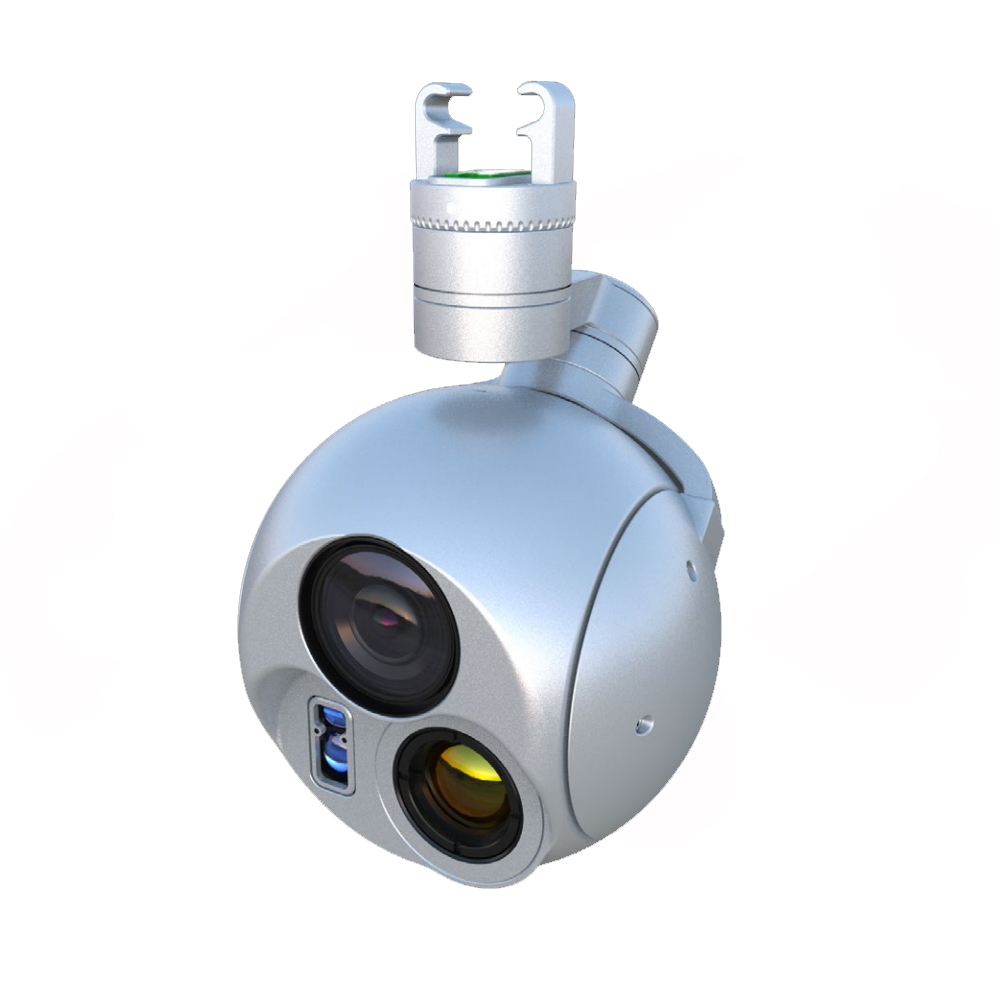

FDQ303 33X Zoom 360°degree& GPS location thermal camera is a cost-effective triaxial image stabilization triple vision photoelectric pod, with AI target detection / recognition / tracking function. It integrates Sony 33x high-quality starlight optical module, 25mm focal length 12 μm high sensitivity thermography module with 2km laser range finder,  Lightweight and dip angle low wind resistance design, especially suitable for all kinds of UAVs with a airspeed of no more than 120km/h.

FDQ303 33X Optical zoom starlight camera has follow functions

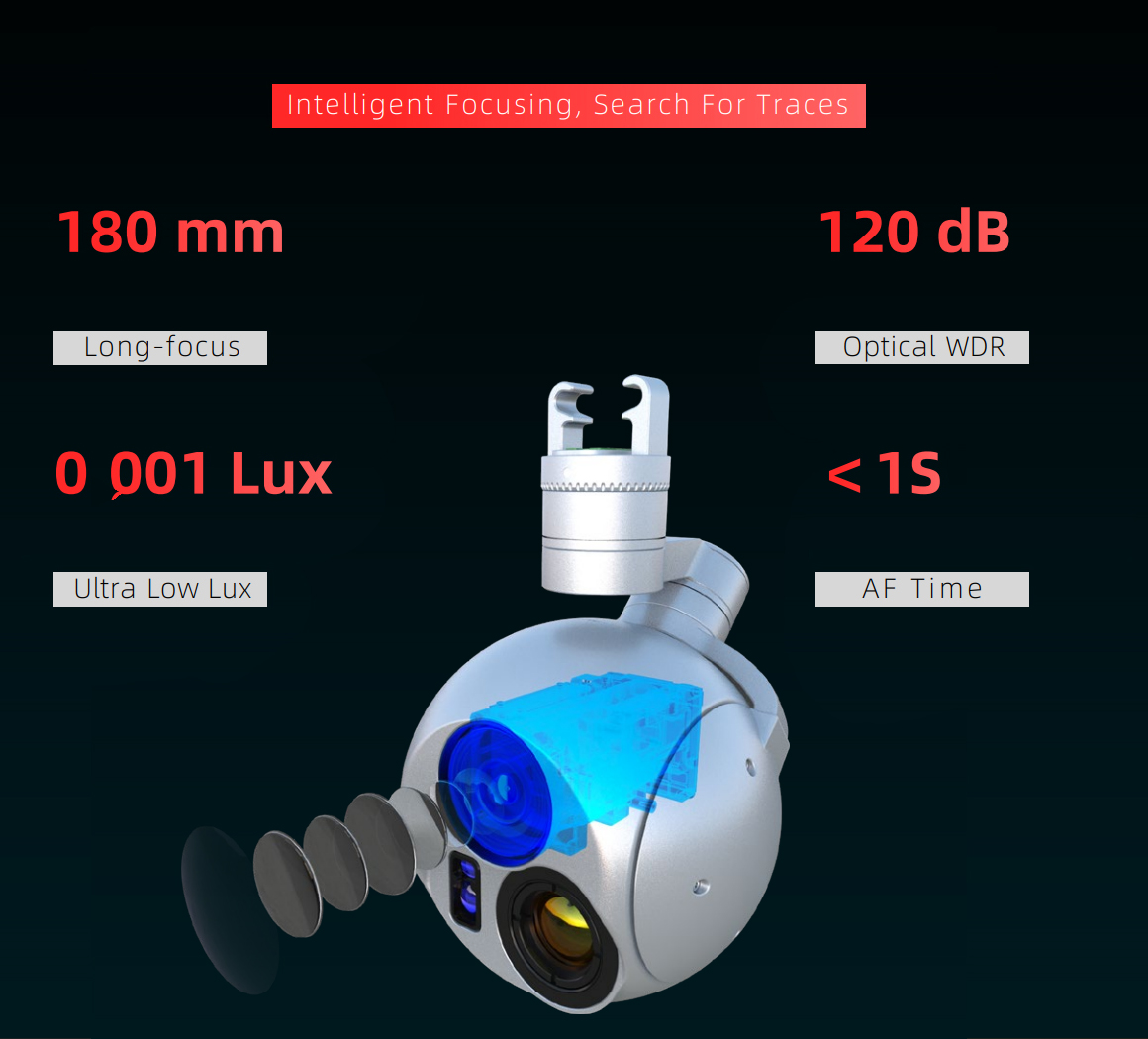

● 180mm long-focus lens
● iRay 25mm focal length ceramic packaging temperature
measurement thermal imager
● High precision dip angle
triaxial PTZ

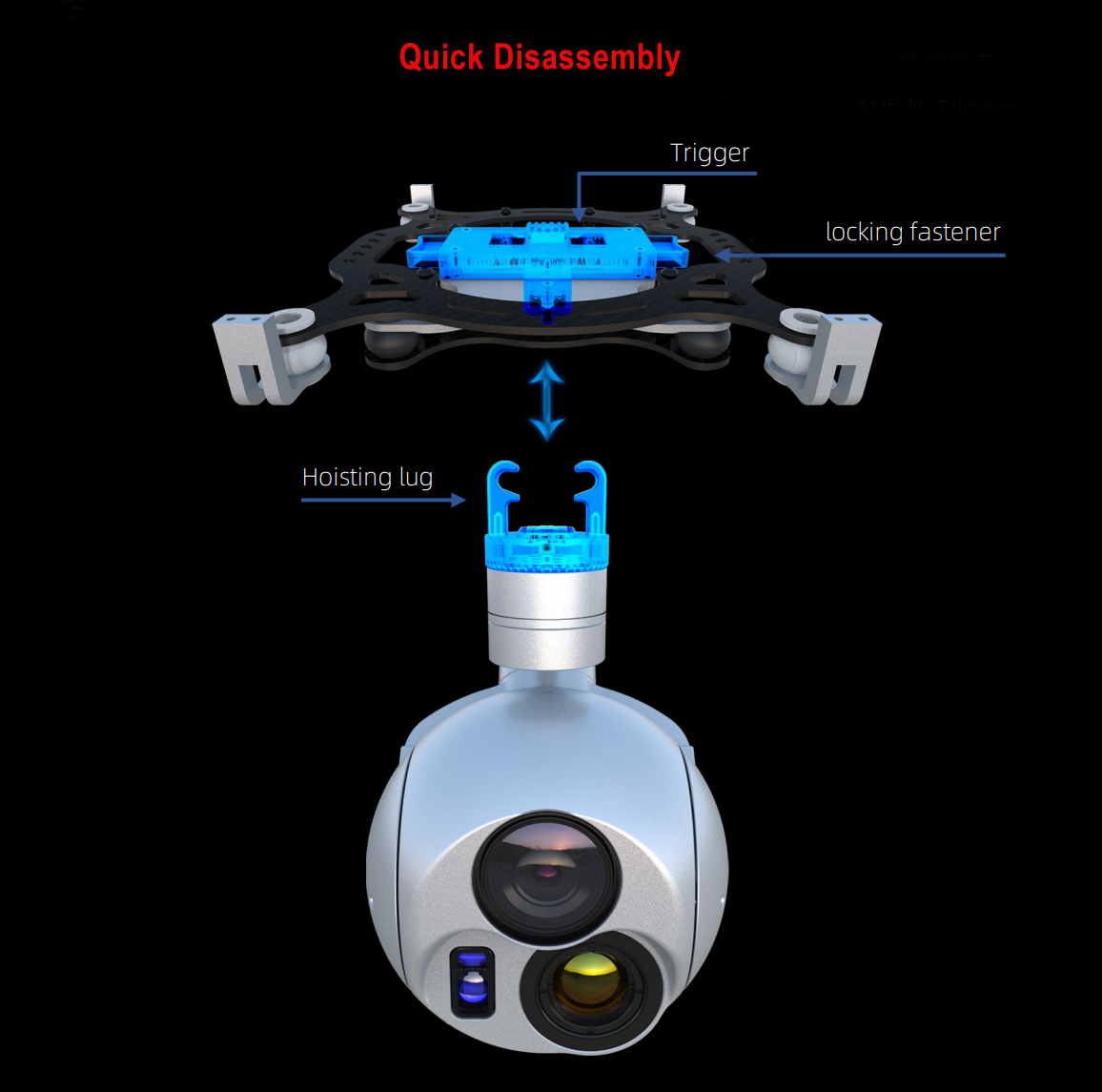

● Quick-release structure
● Double layer physical
shock absorption
● 360° Rotation
● Target positioning

● 2km laser range finder

Specifications:

Physical parameters

Dimensions: 161.4 (length) × 130 (width) × 208 (height) mm

Weight: 1189±10g (excluding control module)

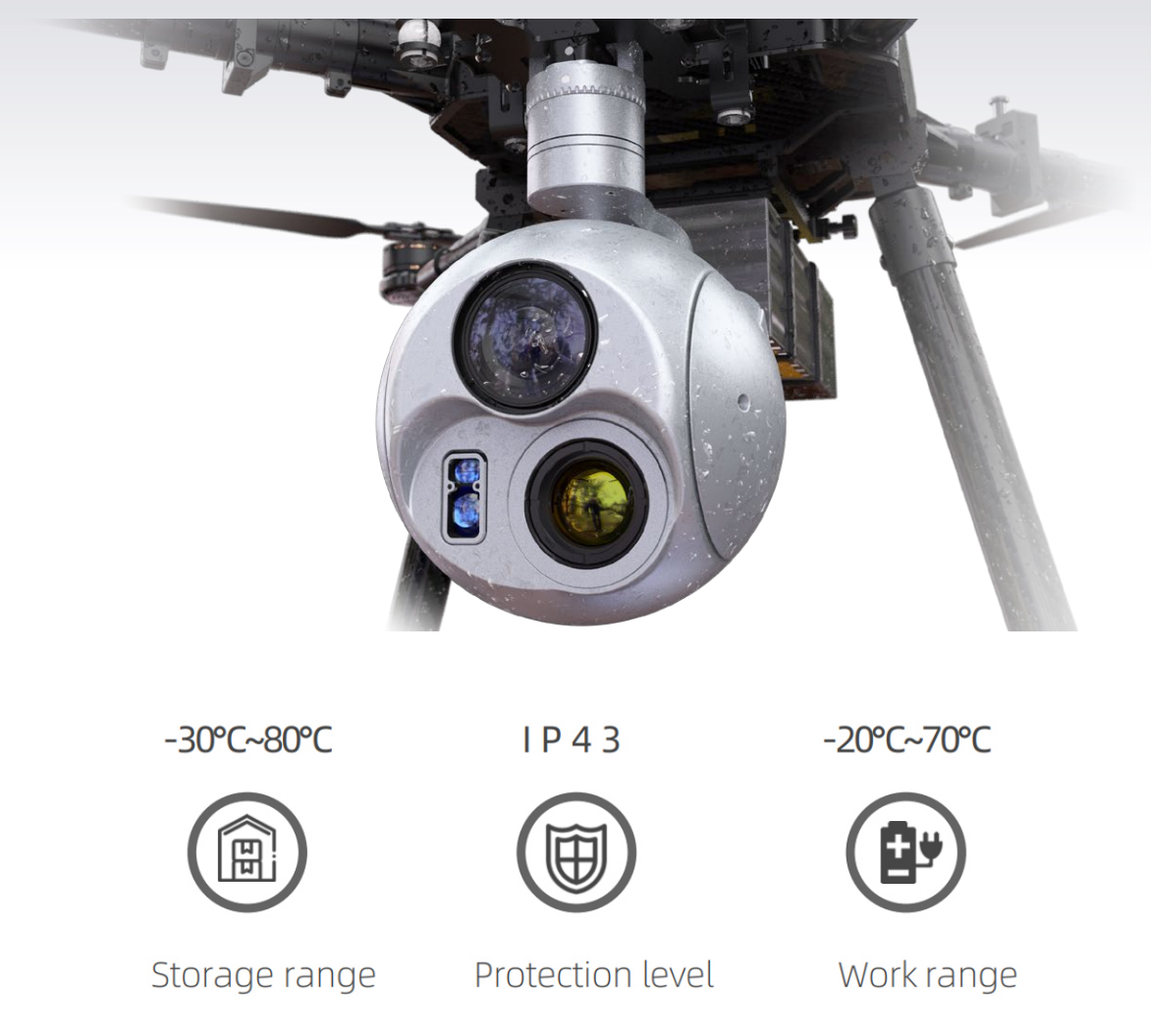

Working temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Protection level: IP43

Number of image stabilization axes: three axes (yaw/pitch/roll)

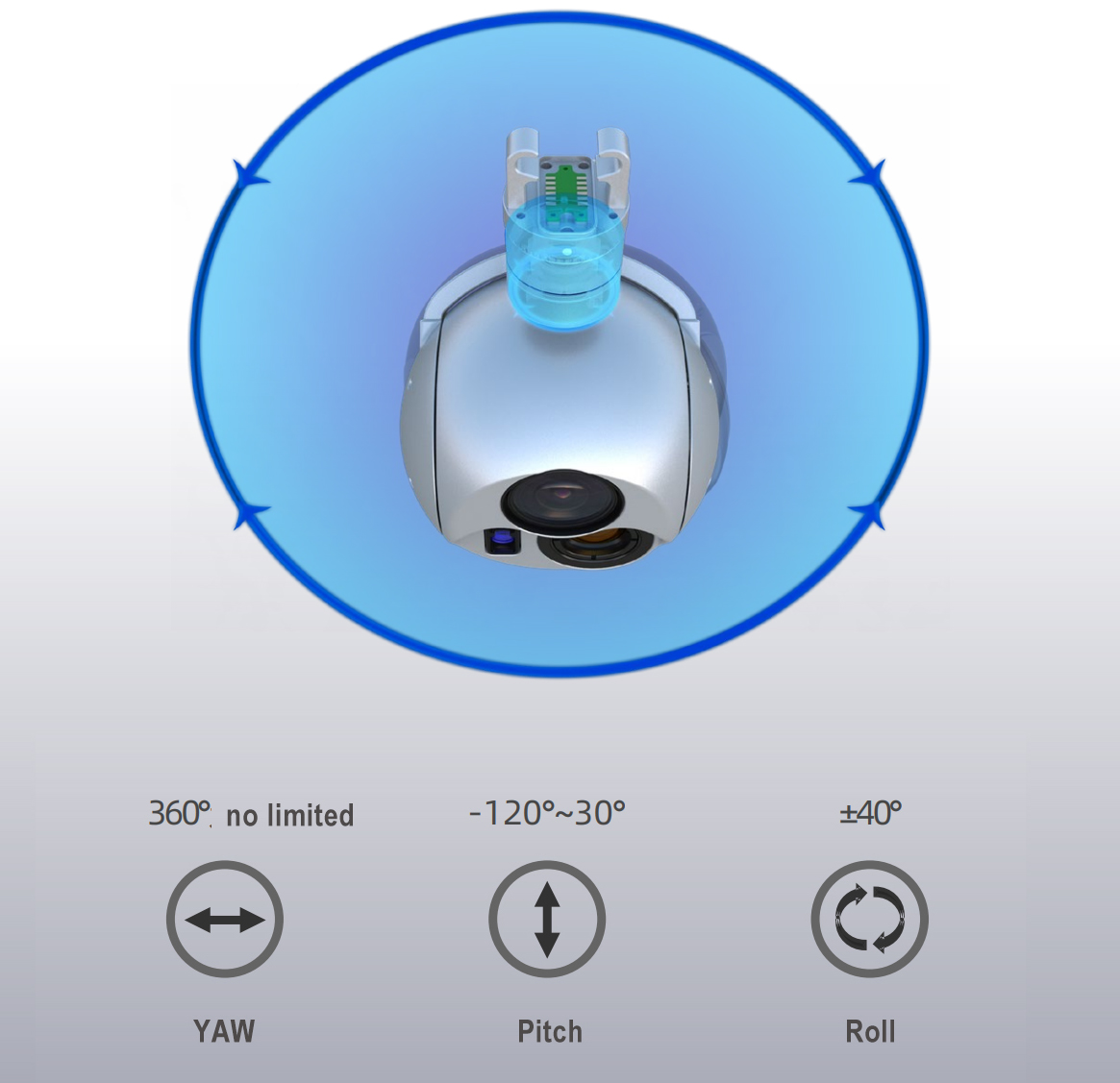

Angle working range: 360°×N (heading); -120°~30° (pitch); ±40° (roll)

Gimbal steady state accuracy: 0.52 Mrad

Gimbal steady state frequency: 1250 Hz

Gimbal control accuracy: 2.09 Mrad

Gimbal posture compensation: automatic

Gimbal working mode: Course following (default); Course lock; Vertical view

Gimbal control mode: speed control; angle control; pointing movement; target tracking

Gimbal controllable speed (default): minimum value: 0.18°/s, maximum value: 45°/s

Image storage format: JPG: 1920*1080

Video storage format: MP4

Video encoding type: H.264/H.265

Video output format: 1920*1080@30fps/ 1920*1080@25fps

Storage function: Mirco SD: 32/64/128/256GB

Visible light module

Sensor: 1/2.8 inch SONY CMOS

Focal length: 5.5～180.0mm(33×)

Optical zoom factor: 33x optical zoom

Optical zoom coaxiality: ≥95%

Optical zoom control mode: speed control, magnification control

Focus speed: <1S real-time focus

Focus mode: auto/manual

Optical zoom speed: ≈3.5S (wide-angle-telephoto)

Field of view: H: 58.9-2.4°, V: 33.6-1.4°

Aperture: F=1.5~4.0

Minimum object distance: 100mm(W)-1500mm(T)

Effective pixels: 2.07 million

Signal to noise ratio: 120dB

Exposure mode: automatic

Electronic image stabilization: Support

Optical image stabilization: automatic

Digital zoom: 16x (528x hybrid zoom)

3D noise reduction: support

Fog penetration: support

Backlight compensation: support

Night vision level Starlight level:

Color 0.001 Lux @F1.5,AGC ON;

Black and white:0.0005Lux @F1.5,AGC ON

Day and night conversion mode: ICR infrared filter automatically switches

Image settings: Saturation, brightness, contrast, and sharpness are adjustable through the client or browser

Thermal

Thermal Imaging Sensor: Vanadium Oxide Uncooled Infrared Focal Plane

Detector packaging method: High-density ceramic packaging

Thermal imaging focal length: 25mm

Thermal imaging resolution: 640*512

Pixel spacing: 12μm

Wavelength range: 8~14μm

Field of view: 10°X 7.9°

Thermal sensitivity: ≤50mK@25℃, F#1.0 (≤40mK optional)

Digital zoom: 1.0～8.0X

Frame rate: 50Hz

Palette: Black Hot/White Hot, Lava/Rainbow

Temperature measurement range: -20℃~150℃(default), 0℃~550℃(switchable)

Temperature measurement accuracy: ±2℃ (under constant conditions)

Human (1.8×0.5) detection distance: 2500m

Human (1.8×0.5) recognition distance: 620m

Human (1.8×0.5) recognition distance: 310m

Car (4.2×1.8) detection distance: 5800m

Car (4.2×1.8) recognition distance: 1450m

Car (4.2×1.8) recognition distance: 720m

Laser range finder

Ranging range: 5~2000m
Distance measurement accuracy: ±1m
Ranging frequency: 1~4Hz
Ranging mode: continuous ranging; single ranging
Laser wavelength: 905nm
Laser divergence angle:~6mrad
Launch diameter: Φ10×7.5mm
Receiving diameter: Φ15×10mm

AI tracking

Automatically detect target types: typical targets such as vehicles and people

Number of multi-target detections: ≥20

Minimum target size: 36×36 pixels

Target detection rate: ≥85%

Target recognition rate: ≥80%

Target acquisition time: ≤5 frames

False alarm rate: ≤15%

Image tracking accuracy: ≤1 pixel

Anti-occlusion time: 3 seconds

Maximum target tracking field of view: no more than 1/3 of the field of view

Processing speed: ≥30fps (@1080P)

Anti-Target Deformation/Occlusion: Automatic

Target switching tracking: supported

Target tracking mode: recognition tracking, feature tracking

Tracking target selection method: Pointing tracking

Tracking auto zoom: Support

Neural network computing power: ≈1.0 TOPS

Target Position

Target positioning method: Center point positioning of the screen (needs to receive GPS information)

Target solution accuracy: ≤20m (@measurement slope distance 500m)

Coordinate output type: latitude and longitude

PTZ physical shock-absorbing structure

Longitudinal shock absorption distribution: down-pressure 8 shock-absorbing balls double-layer physical shock absorption

Effective image stabilization amplitude: Lower gimbal: 1.5mm@30~500Hz;

Upper gimbal: 0.5mm@30~500Hz

Effective working amplitude: Lower pan/tilt: 3mm@25Hz, 6mm@5Hz;

Upper pan/tilt: 1.2mm@25Hz, 3mm@5Hz
