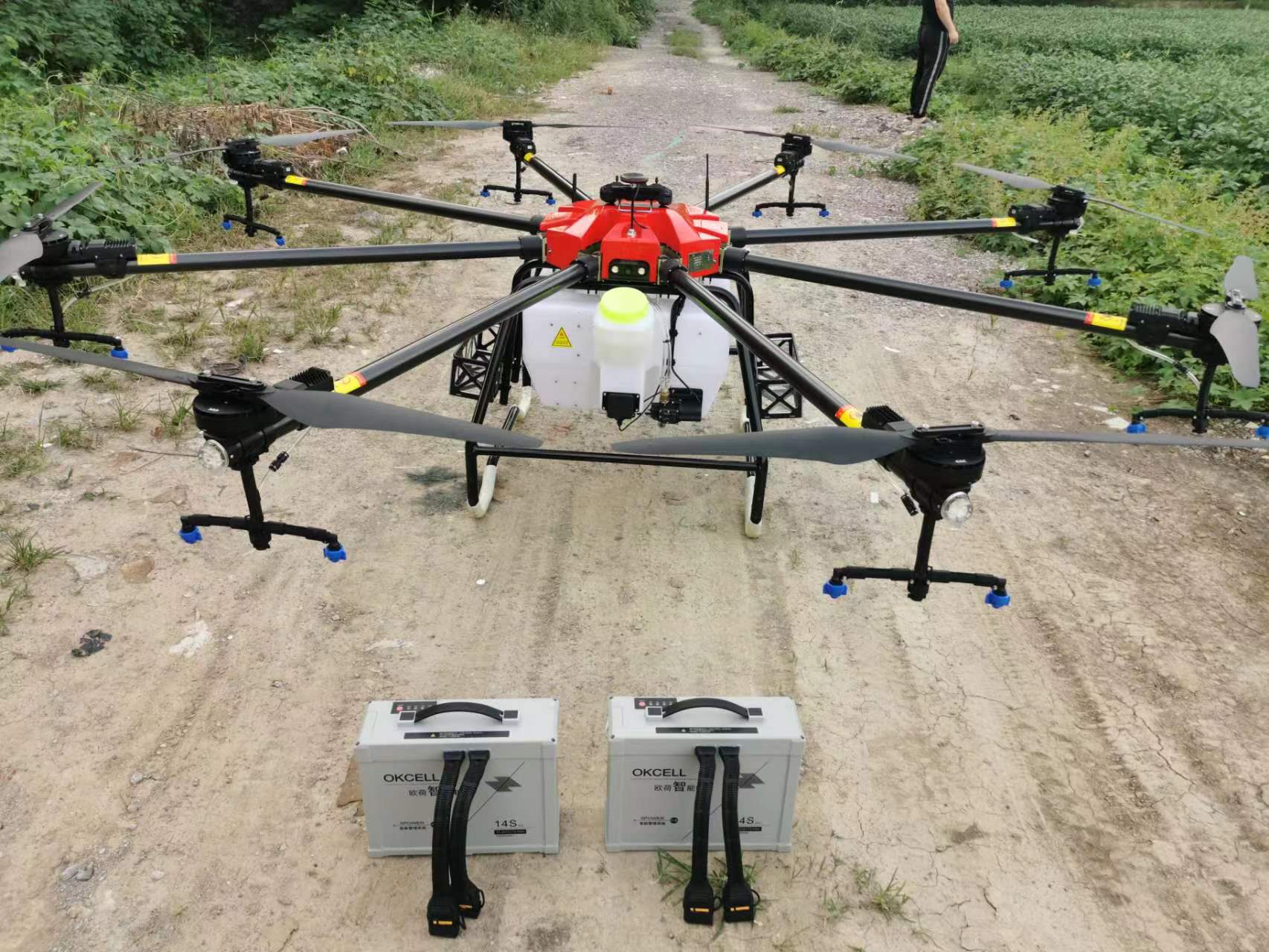

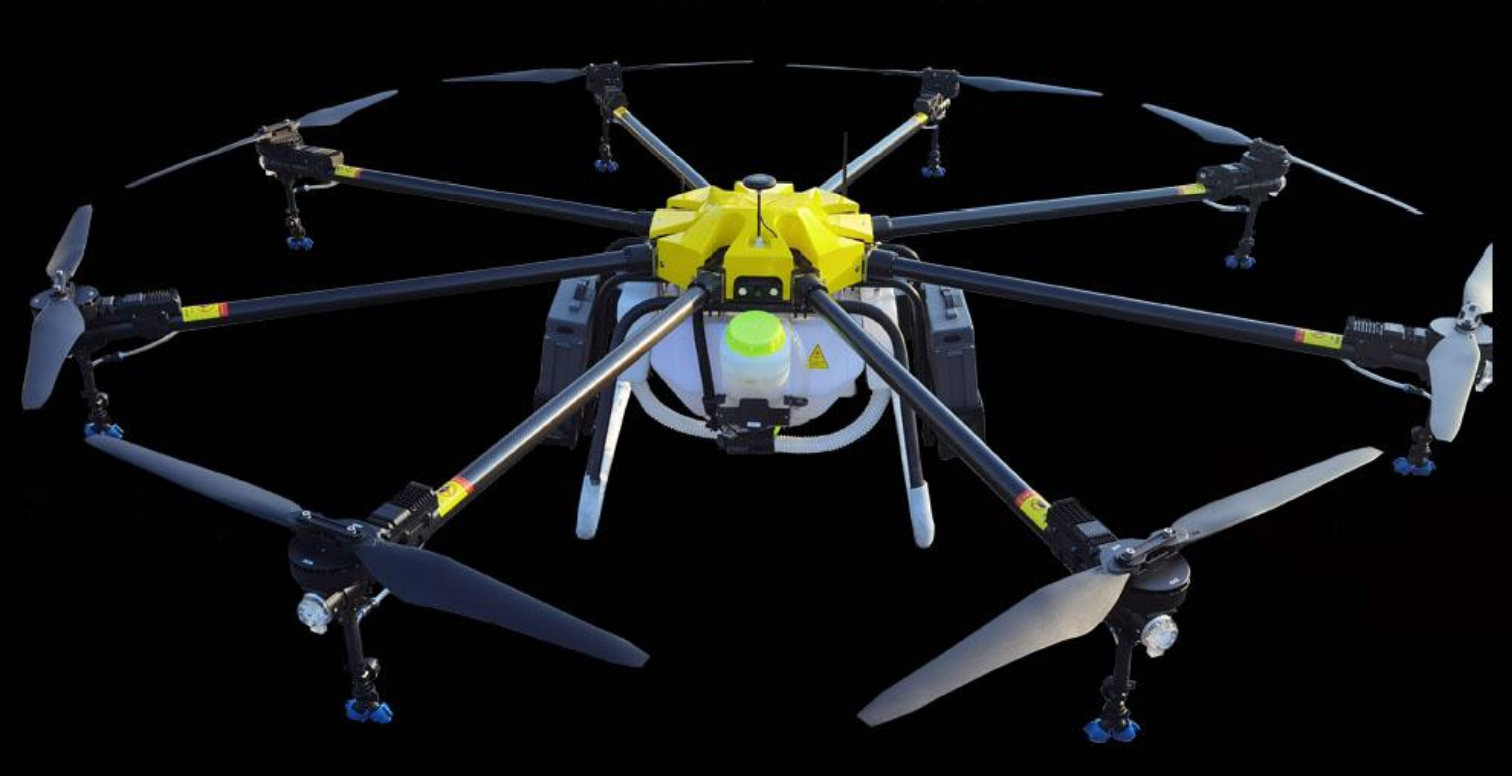

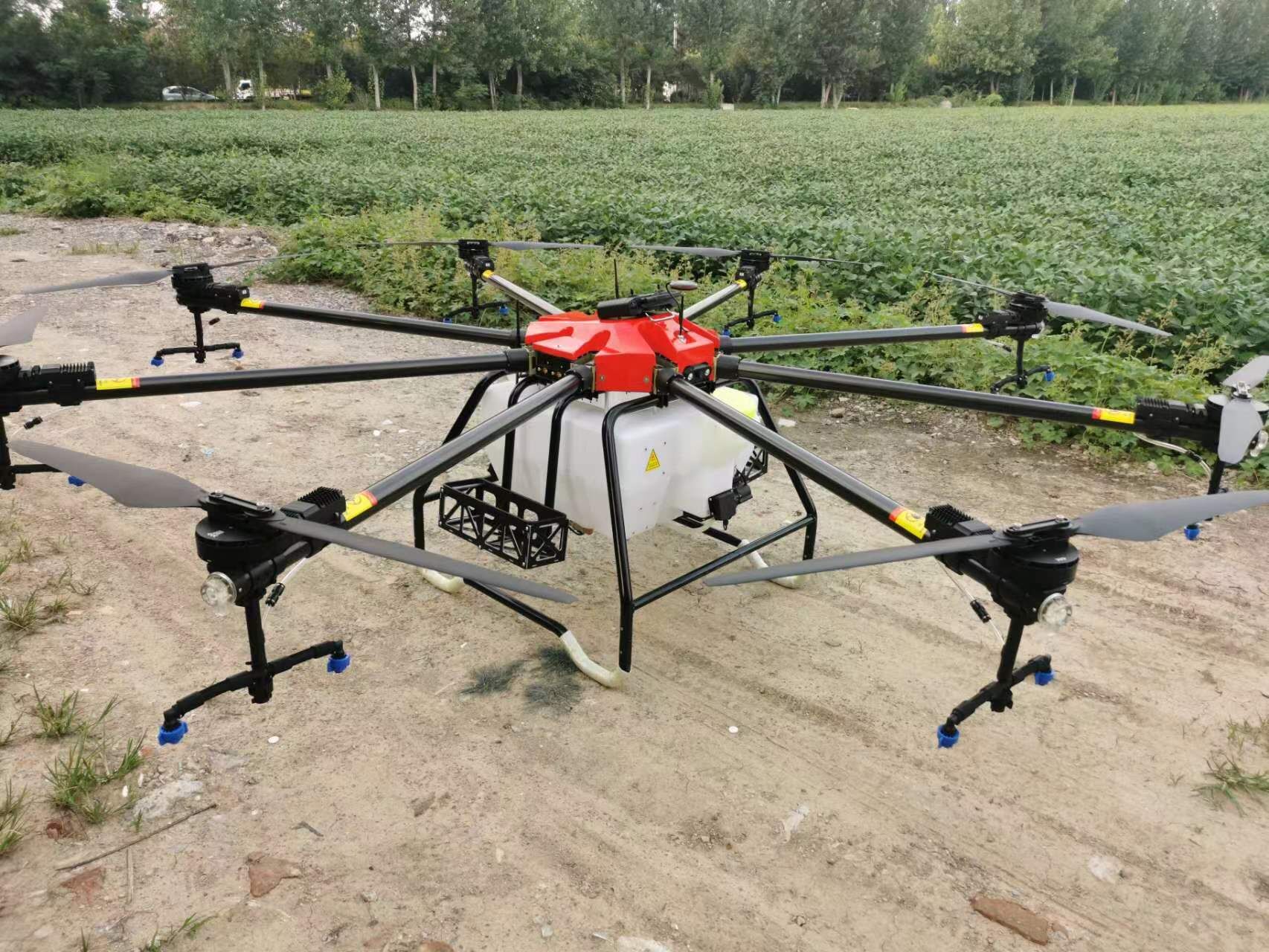

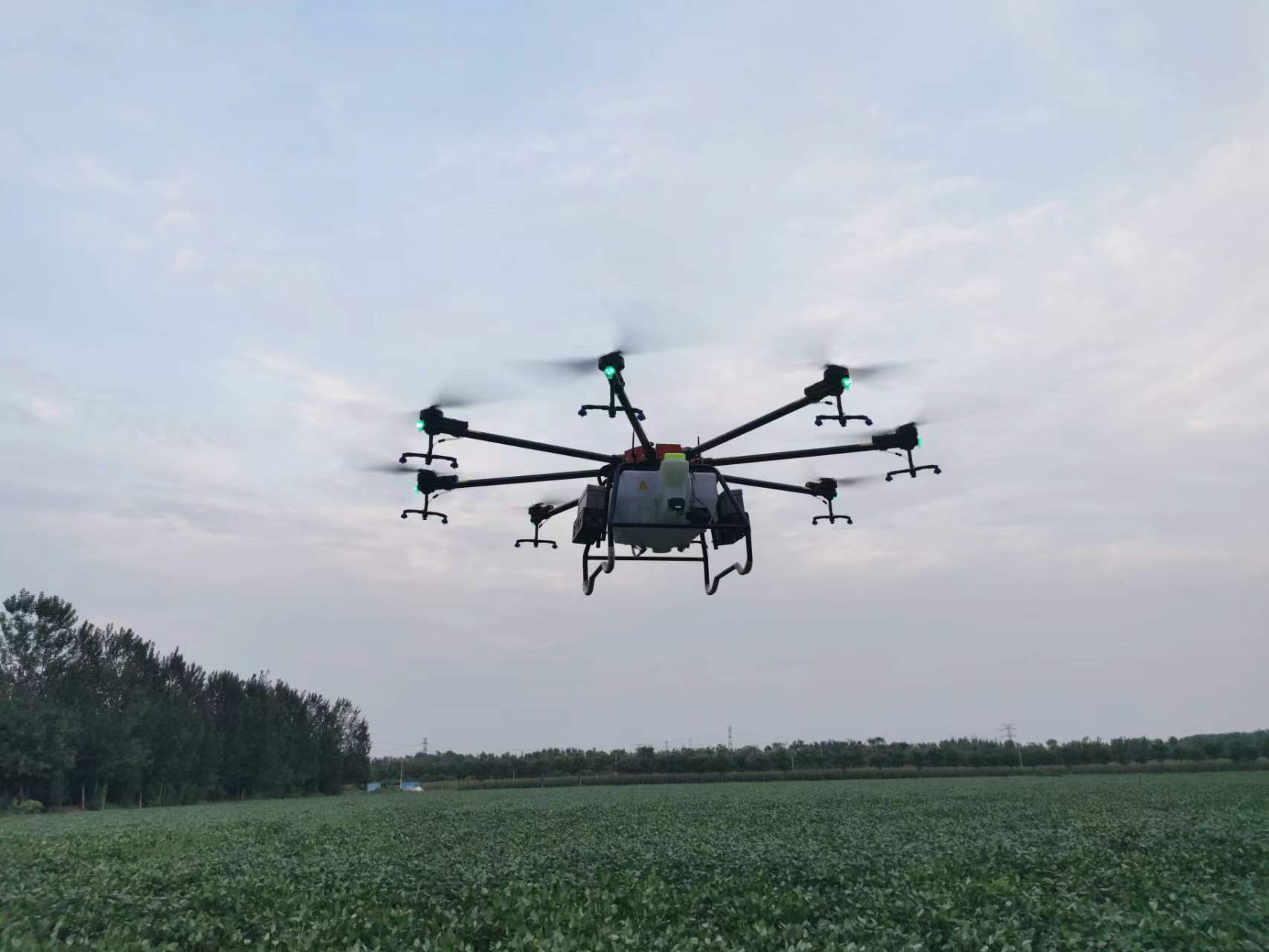

FDH160 drone sprayer crop spraying drone. The 72L crop spraying drone has been the most popular. The FDH160 72L agricultural drone adopts a quick-release water tank and battery, with a compact body, light weight and easy folding. With obstacle avoidance radar and FPV camera, dual RTK system can achieve centimeter-level positioning, dual spray system, the maximum spray volume can reach 16L/min.
Specifications:
Size: 3920*3920*850（Unfold State）
1000*850*750（Fold State）
Tank: 72L
Drone weight:51kg(not include battery)
Max. takeoff weight: 130kg
Spraying wide: 8-20m
Max take off weight:90kg
Flight time: 5-7 minutes(full payload), 20mins(no payload)
Flight speed:1-15m/s
Droplet size：80-250um(can adjustment)
Max flight altitude:20m
Battery: 2*14S 42000mah
Control distance: 5KM
Function
1. Automatic line wrapping spraying (circulating spraying)
2. Automatic flight spraying at AB point (plant protection aircraft can fly autonomously once and record and then automatically operate spraying operation)
3. The plot planning is fully self-spraying (the area and terrain of the plot selected by the ground station are determined, and the aircraft can fly and spray autonomously)
4. One-key recording of the break point (after the pesticide is sprayed during the spraying process, the break point is automatically recorded and then returned to the take-off point to replace the medicine)
5. Return to the break point with one key (automatically record the break point after the pesticide is sprayed during the spraying process, and then return to the take-off point to replace the spray paint
, after changing the medicine, it will take off and return to the breaking point automatically. The plane will not spray the medicine before it arrives at the place, which can avoid repeated spraying)
6. Low-voltage automatic return (automatically record the power-off point during the spraying process, and then return to the take-off point to replace the battery. After the battery is replaced, the take-off will automatically return to the break-off point. The aircraft will not spray the drug before it arrives, which can avoid repeated spraying)
7. Attitude operation mode, GPS operation mode (if the operation is improper, the aircraft can automatically return to take off and the fixed point in the sky will not cause crashes and accidents)
8. Radar wave anti-terrain height setting operation (according to different plots, after the crop distance and spraying height are determined, the spraying process can automatically adjust the height of the aircraft and crops according to the different terrain changes)
9. Automatic obstacle avoidance function (the aircraft can automatically avoid obstacles when it encounters obstacles during automatic operation).
