RPP-MW-T1 Tank Derusting Robot

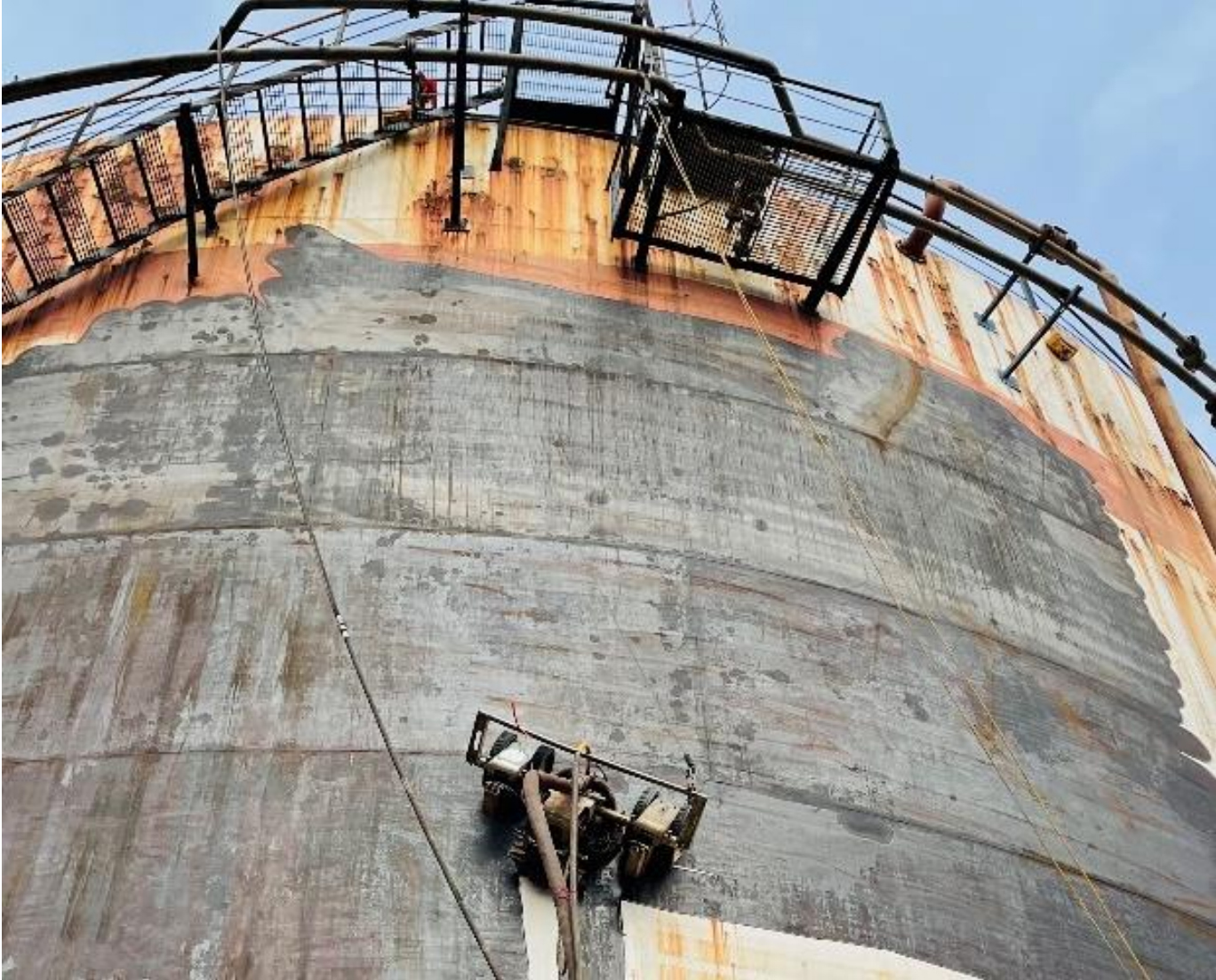

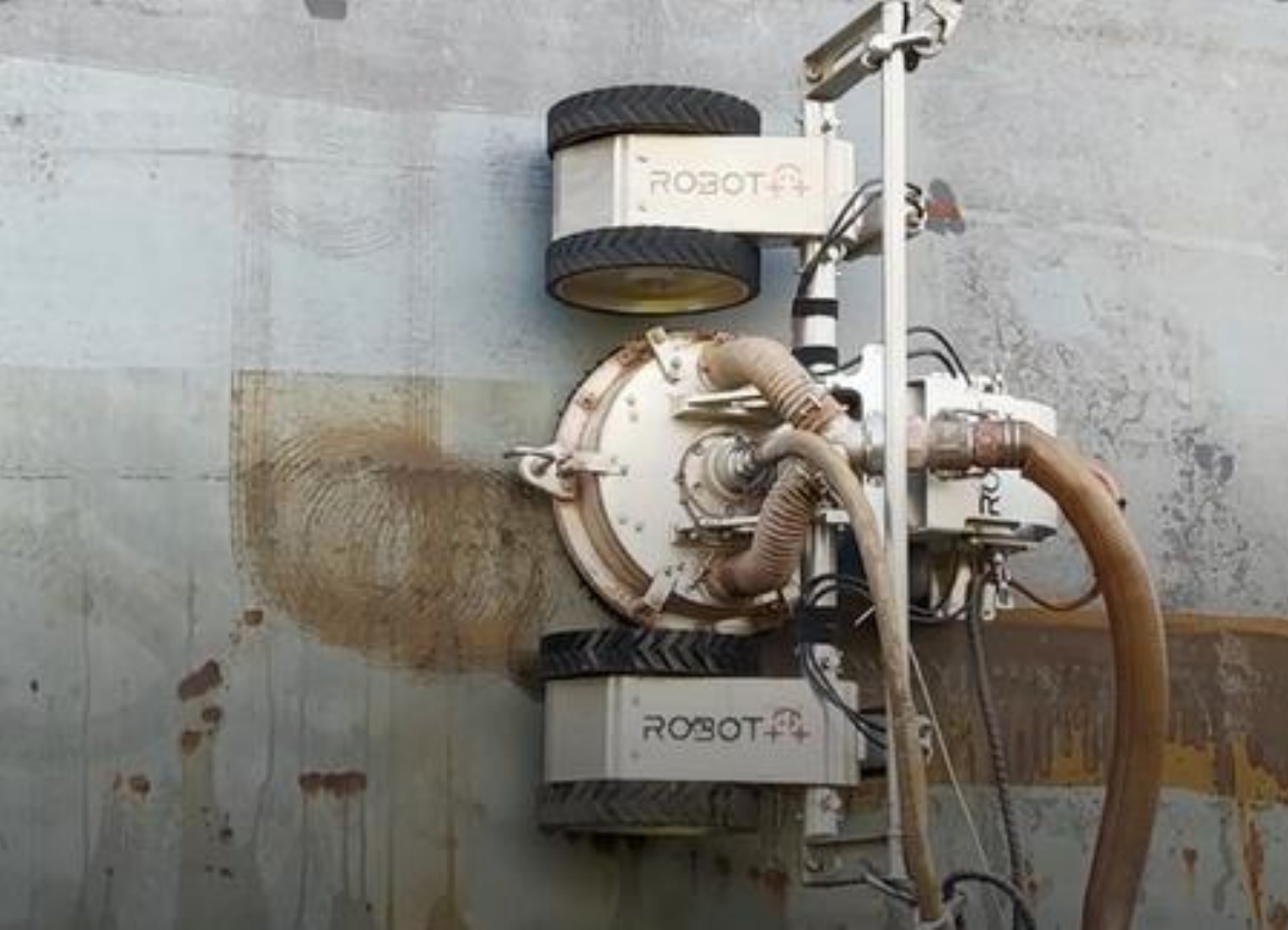

RPP-MW-T1 permanent magnet wall-climbing robot is use for the storage tank industry can clean, strip paint and derust the interior and exterior of the tank using hydroblasting technique. Both spot and continuous blasting are available with the same robot. The robot is certified to work in explosive atmosphere.

Quick disassembly & assembly allows to setup the robot in the tank.

Specification

Size: 740 ×1018 × 510 mm

Weight: 100 kg

Power : 1.2 Kw

Cleaning width: 300 mm

Obstacle crossing: < 20 mm

Min curvature radius: 8 m

Max speed: 8 m/min

Derust efficiency: 20 - 50 m²/h

(Efficiency varies with parameters such as operators 'proficiency, coating type, and water pressure）

Control mode: Remote control

Surface quality: WA1/2

Vacuum Pump Spec: 0.46 Bar

Pump requirement Pressure: 2,500 – 2,800 Bars

Flow: 30 - 45 l/min

Product features

1

High performance with 100% wastewater recycling

Wastewater recovery vacuum pressure: 0.04 MPa.

2

Strong adhesion and large payload

Payload capacity is 135 Kg and load weight ratio is up to 1.5:1, satisfying demands for most scenarios.

3

Strong curvature and obstacle crossing adaptability

Workable on surfaces with a radius of curvature of 1 m; height  of obstacles the robot can cross is up to 15 mm.

4

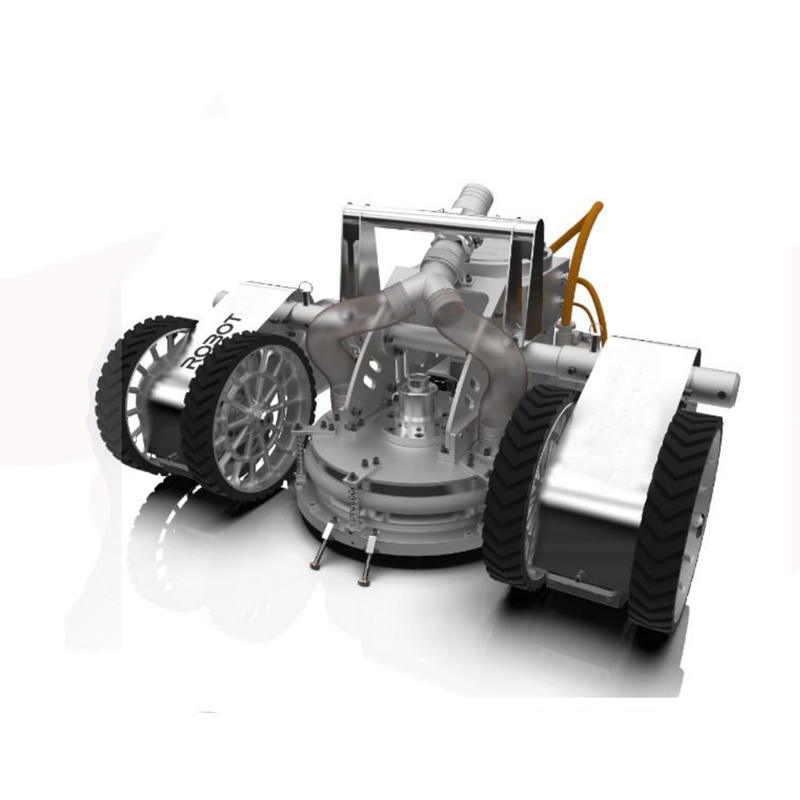

Detachable modular design

Units of the robot are modularized and can be assembled in half an hour.

5

Incredible performance and maneuverability

Differential drive, 360° rotation, movement in any direction and remote control.

6

Safety and reliability

Permanent magnets, a double fall arrest system, IP 65 for safety and reliability.
