VTOL and Fixed-wing

FDG150 hybrid VTOL UAV 40kg payload endurance 10hours

Product description: FDG50F Hybrid VTOL drones is a pure fuel power vertical take-off and landing fixed-wing UAV which adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL
INQUIRY

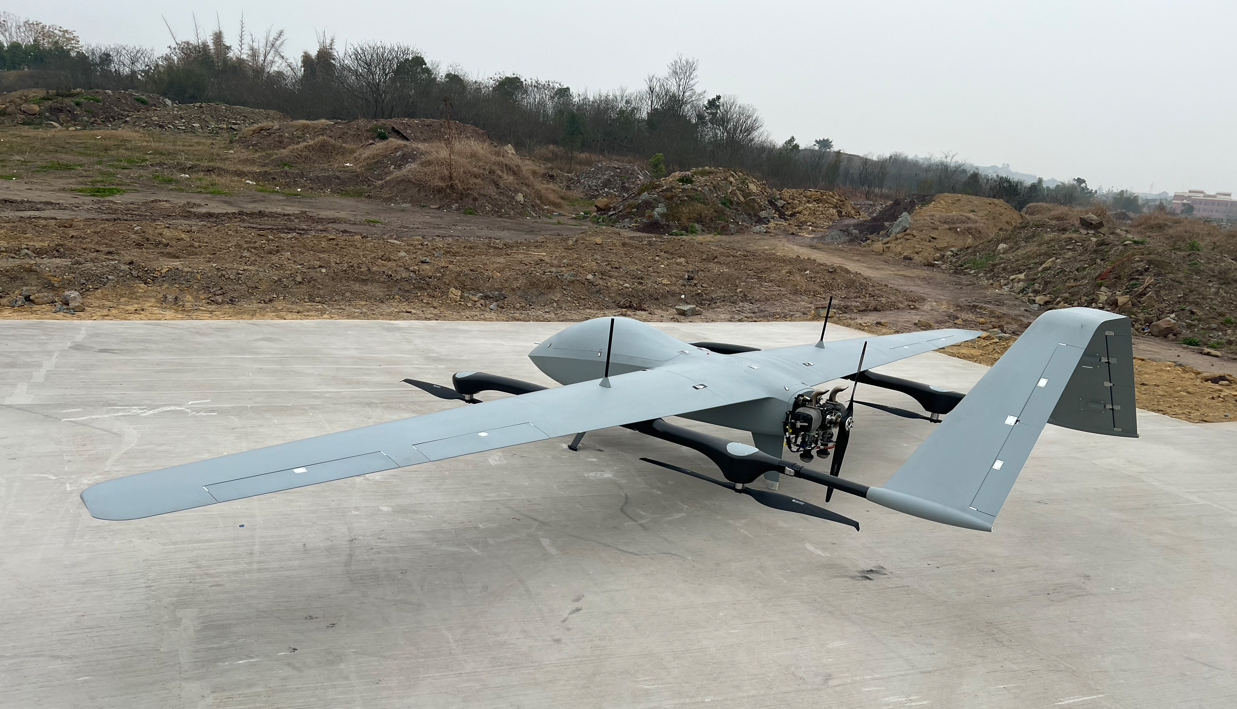

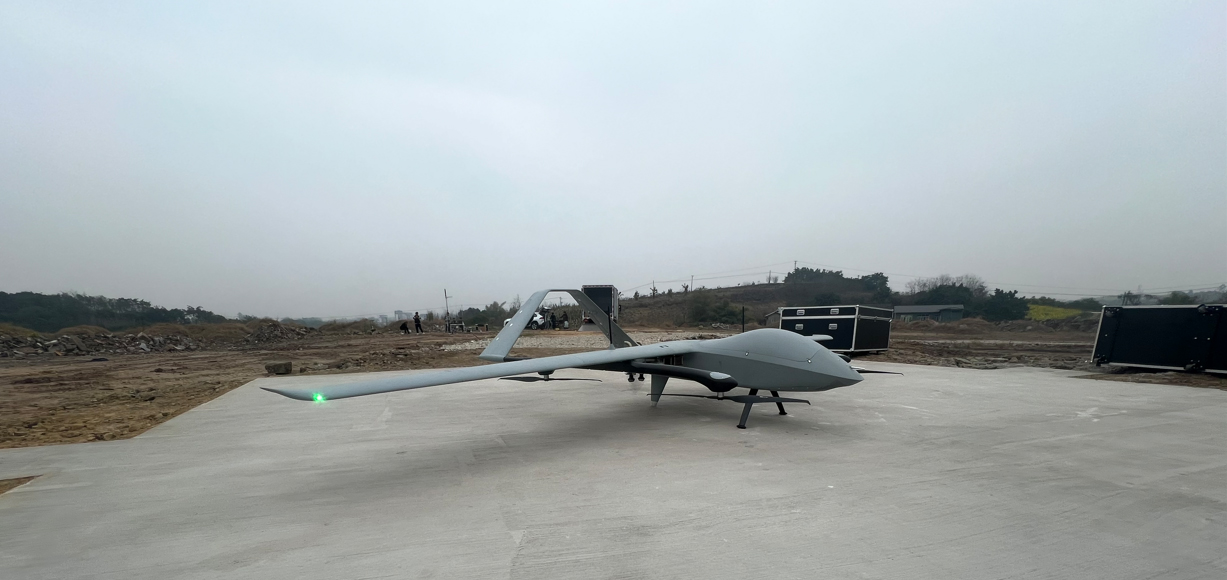

FDG150 hybrid VTOL UAV 40kg payload endurance 10hours

FDG150 Hybrid VTOL drones is a pure fuel power vertical take-off and landing fixed-wing UAV which adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long rang of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions. FDG50F 150 KGS takeoff weight vertical take-off and landing (VTOL) fixed-wing UAV is newly launched in 2024.

FDG150 Specifications

Drone type: Hybrid VTOL drone
Engine: 275CC heavy fuel/gas
Size（wingspan*length*heigh）: 6500*3264*1170mm
Max. takeoff weight: 150kg
Mmax. payload: 40kg
Max. rising speed(vtol): 2 m/s
Max. descent speed(vtol): 1.5 m/s
Max. climb speed(fixed-wing): 4 m/s
Max. descent speed(fixed-wing): 5 m/s
Suggest cruise speed: 90 km/h
Max cruise speed: 150 kkm/h
Max. flight altitude: 4000 m
ceiling limited: 5000 m
Wind resistance level: Fixed-wing 7 /VTOL 6
Operation Temp.: -10～60℃
Max flight time: 10h/20kg
fuelk tank: 40L
IP: 45
VTOL battery: 12S 16000MAH*4
engine: Limbach 275 CC

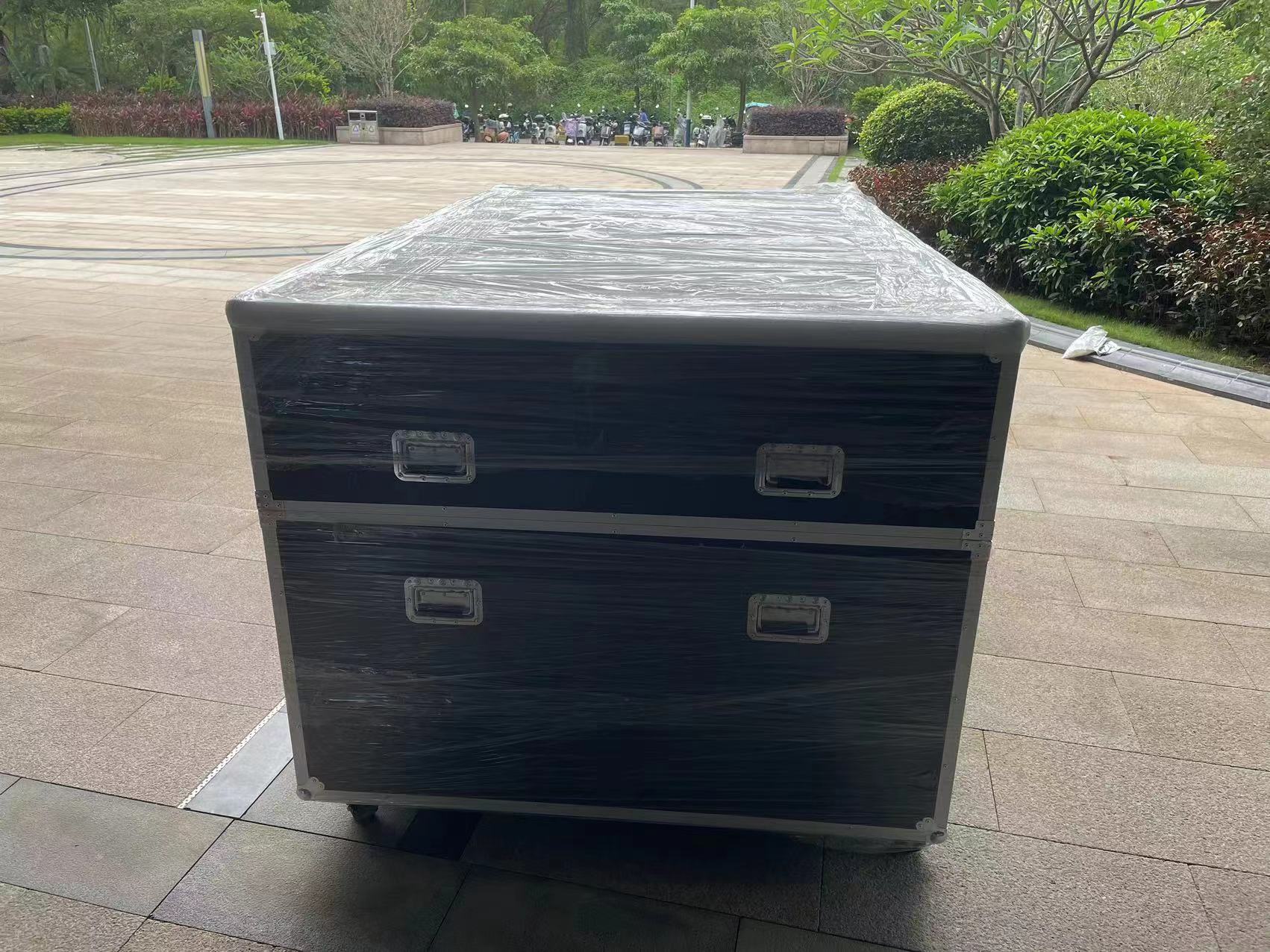

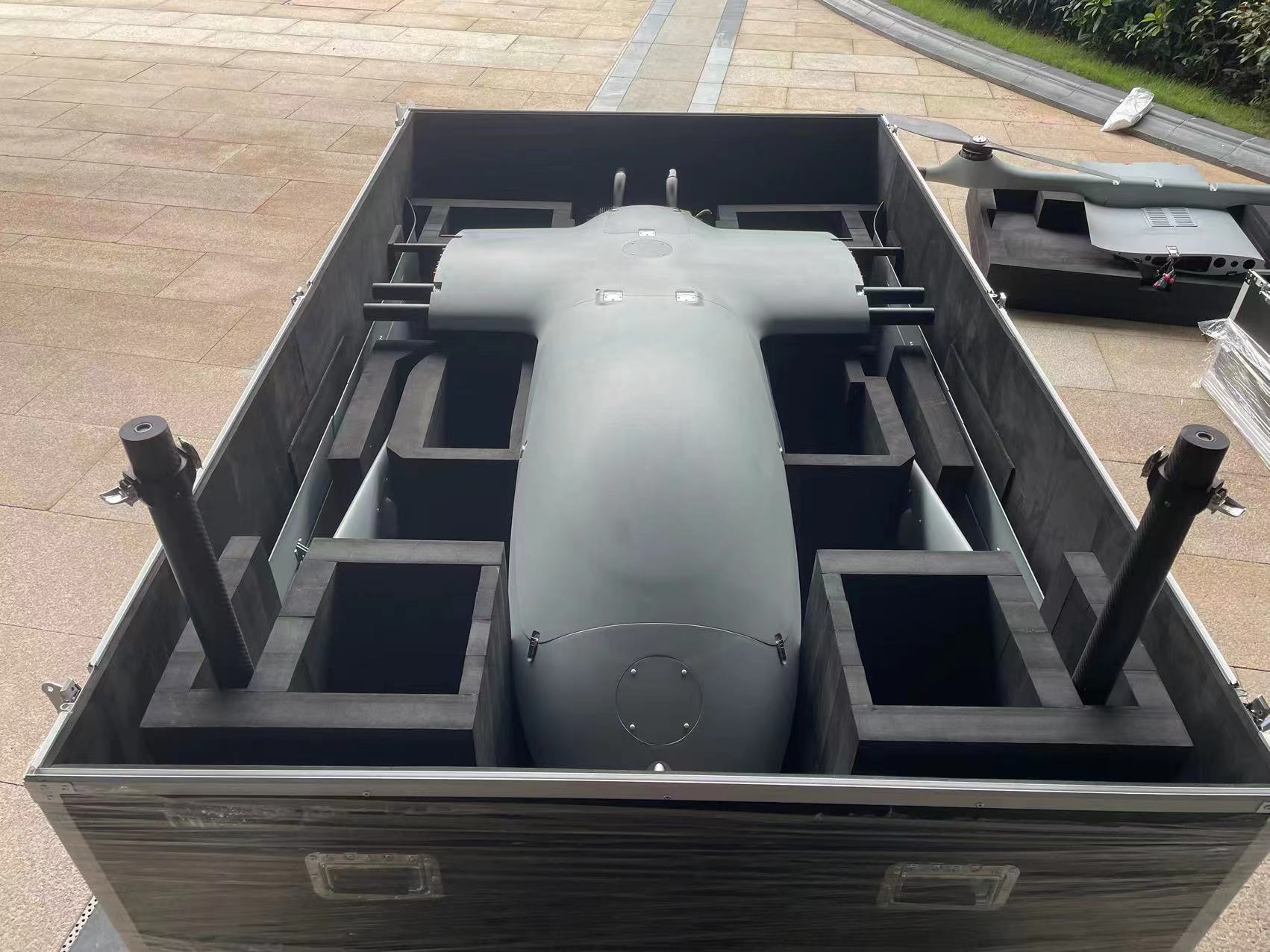

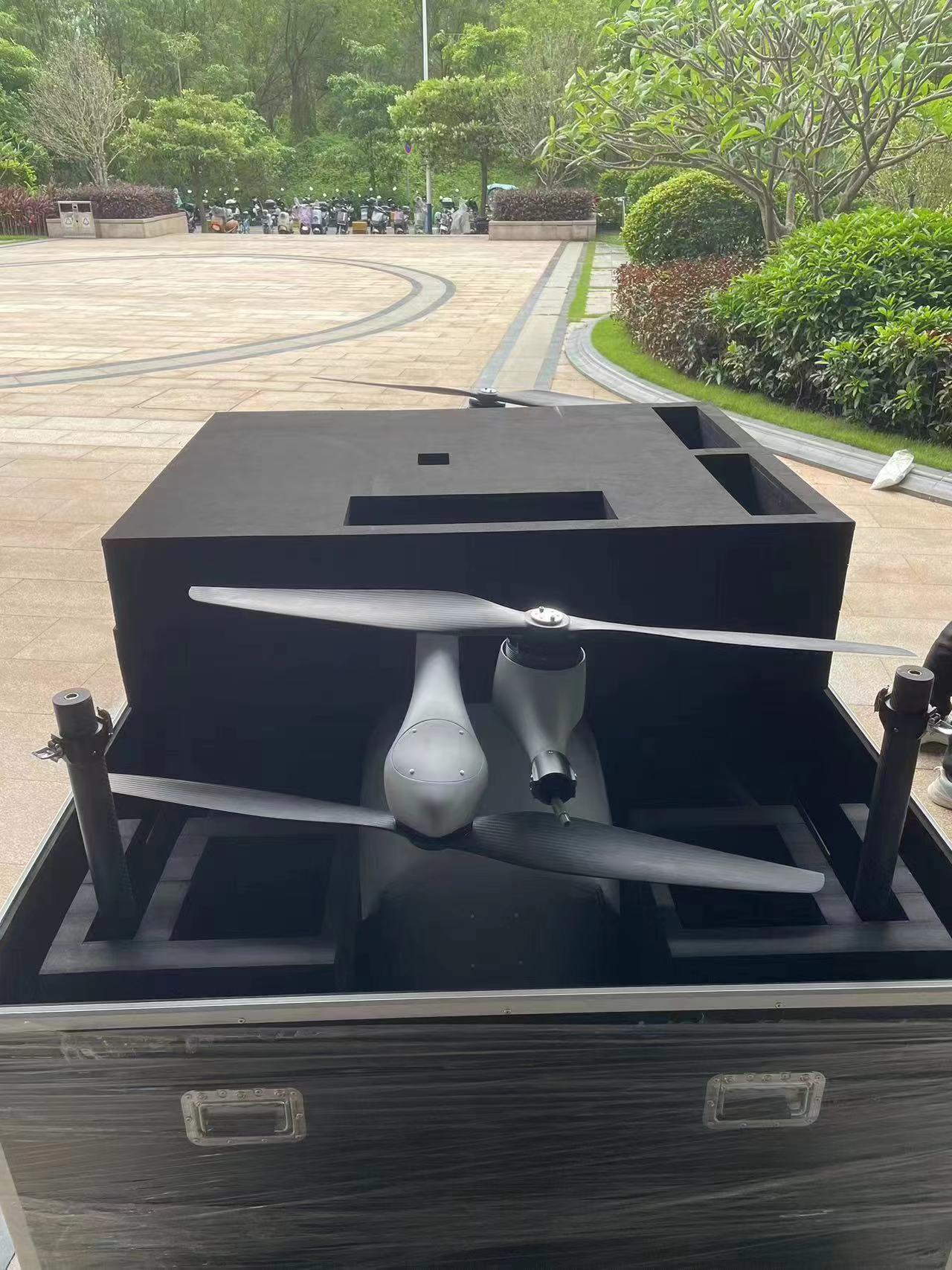

Packing Size: L 235 *W145 *H126cm

FDG150 hybrid VTOL UAV
