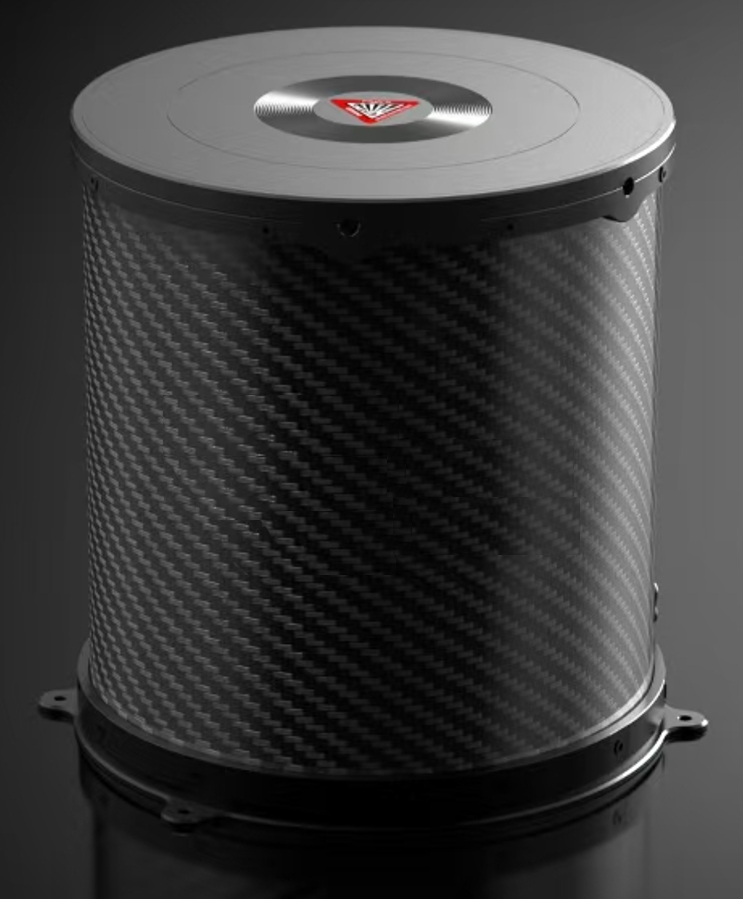

150kg UAV parachute for drone safety flight

Product description: The UPF150 drone parachute is suitable for most industry-level drones, with an overall weight of about 3kg and a load capacity of 150kg. Using military-grade materials, it is easy to install, and it c
INQUIRY

The UPF150 drone parachute is suitable for most industry-level drones, with an overall weight of about 3kg and a load capacity of 150kg. Using military-grade materials, it is easy to install, and it can be quickly rescued in 5 seconds

Specifications

Suitable drone weight: 150kg
Size（L×W×H mm）: φ235×265mm（±5mm）
Weight（g:） 3000±20g
color: black
material: Carbon-fiber
Install way: The external mounting flange is reserved, and the mounting hole is φ4.2mm
Number of safety rope nodes: 4
Ejection stroke（mm）: 6000mm
Save drone time（s）: about 5.0s
Suggest Min. flight altitude: ≥98m
IP: IP55
Designed to slow down the speed: 150kg-5.5m/s
Operation temp.（℃）: -10℃~50℃
Humidity of the working environment（%）: 30%-70%
operation altitude（m）: ≤3500m
parachute cloth model: L600
material: Military-grade high-strength umbrella clothing
Line material: Polymer polyethylene
area（m²）: 37
The edge of the umbrella cloth is long（mm）: 6100
Paracords: length 6000mm
No. 33
Parachute umbrella cloth weight: 2200g
color: orange
Controller (built-in.)
Power: 5V
Open way: PWM protocol parachute
Communication protocols: PWM
