VTOL and Fixed-wing

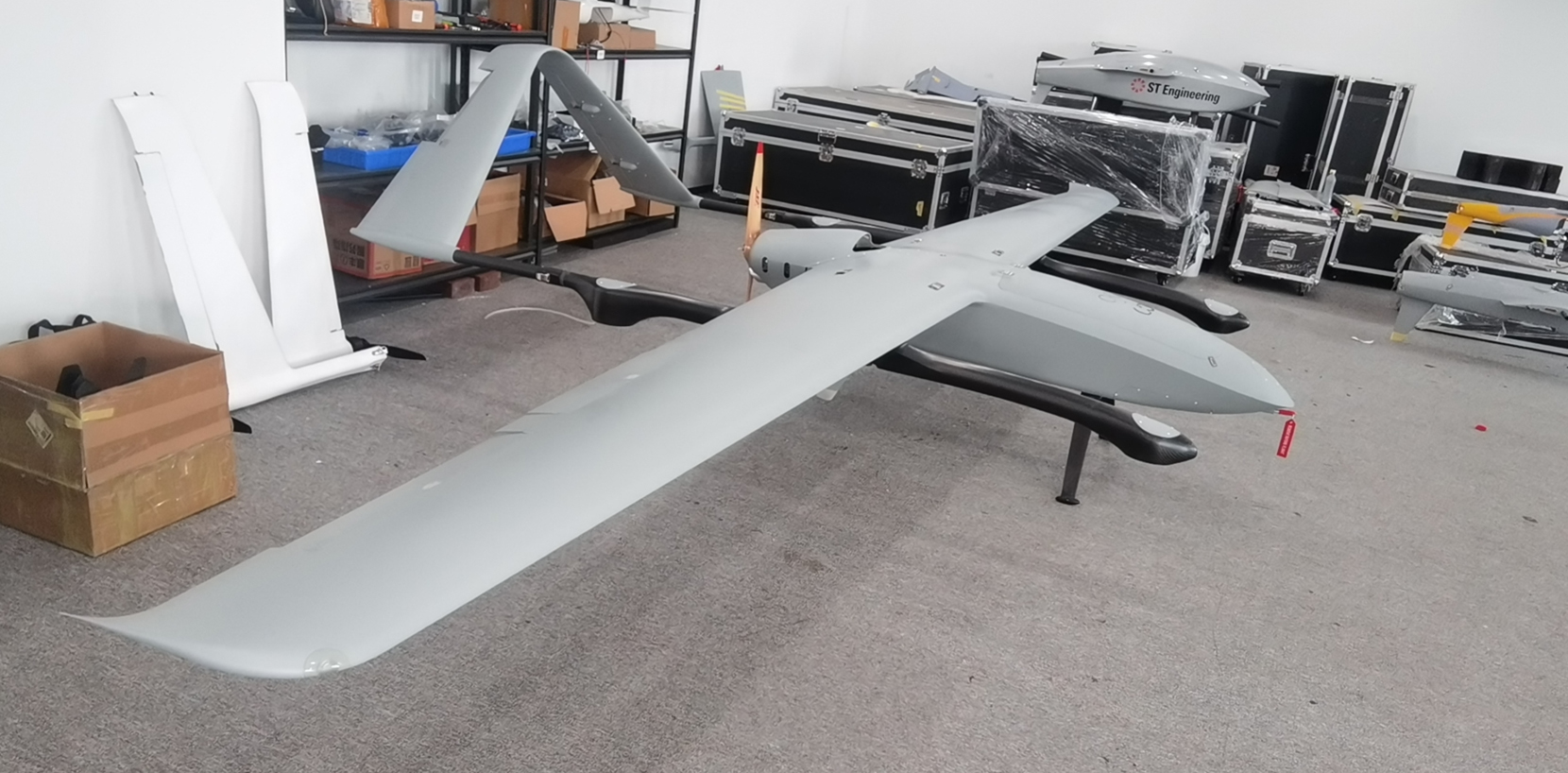

FDG100 hybrid VTOL UAV 20kg payload endurance 10hours

Product description: FDG100 Hybrid VTOL drones is a pure fuel power vertical take-off and landing fixed-wing UAV which adopts a composite aerodynamic layout of quad-rotors and fixed wings,
INQUIRY

FDG100 hybrid VTOL UAV 20kg payload endurance 10hours

FDG100 Hybrid VTOL drones is a pure fuel power vertical take-off and landing fixed-wing UAV which adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long rang of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions. FDG100 120 KGS takeoff weight vertical take-off and landing (VTOL) fixed-wing UAV is newly launched in 2022.

G100 Specifications

Wing span: 6.2m
Max. takeoff weight: 120kg
Max payload: 20kg
Max climb speed(takeoff): 2 m/s
max. descending speed (landing): 1.5 m/s
Max climb speed(fixed-wing) :4 m/s
max. descending speed (fixed-wing): 5 m/s
Suggest cruise speed: 85 km/h
Max. cruise speed: 150 km/h
Max. take off ASL. : 4000 m
ceiling: 5500 m
Wind resistance: cruise 7 / T&L 6
Ooperation temp.: -10℃～60℃
Eendurance time: 6hours/ 20kg payload
IP: 45
battery 6*12S 10000MA

engine DLA232 gas
