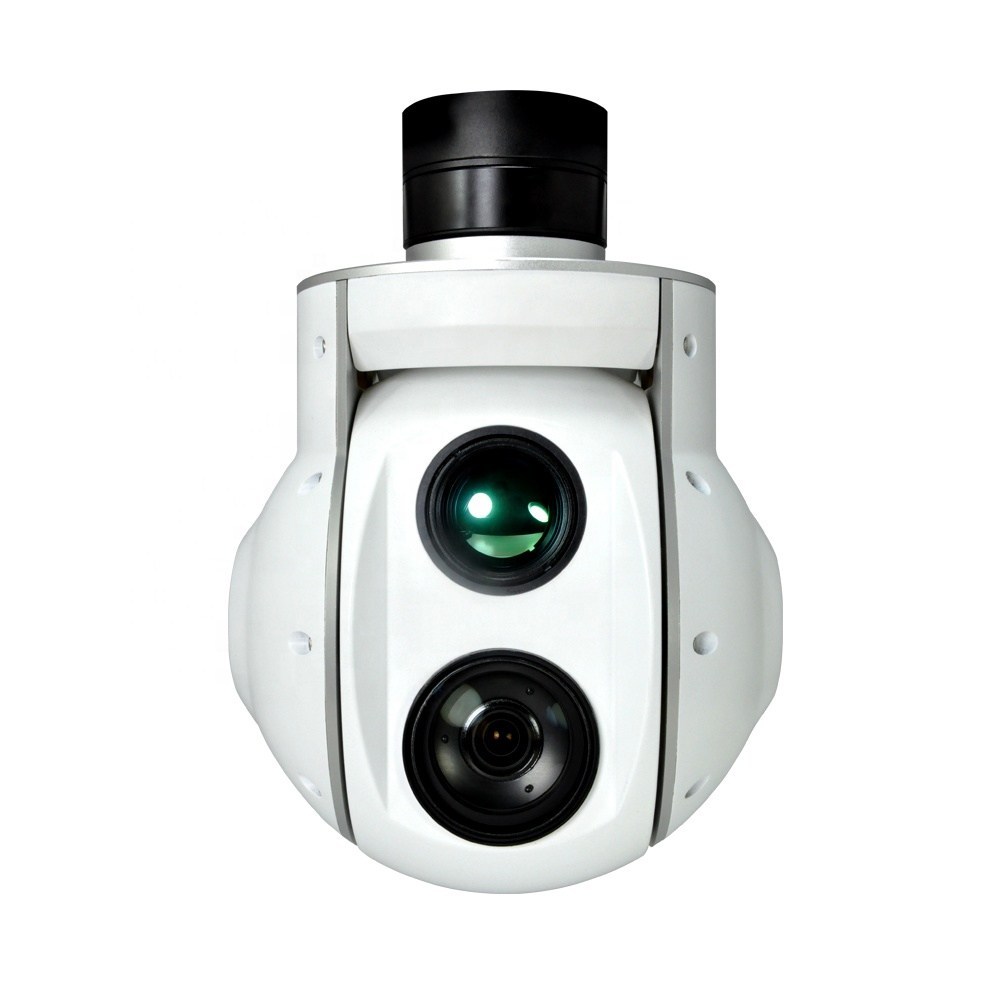

FDC6 30X Thermal Image Drone Camera features an 30x optical zoom lens. It’s powered by SONY 1/2.8″ “Exmor R”, 2.13 mega effective pixels, fast auto-focus speed, 1080p HD image quality, as well as visible light, thermal imaging tracking. It is compact size, support PWM, S. BUS and TTL. All parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.
Advantage
* Highly competitive cost
* DJI’s strategic partner
* Leading in the field for UAV payload of advanced technology.
* Certified by CE/ROHS authoritative institution.
|
Product Name:
|
UAV gimbals camera
|
|
Model
|
U30TIR
|
|
Image sensor:
|
SONY 1/2.8″ “Exmor R” CMOS
|
|
Lens:
|
30x, F=4.3~129mm
|
|
Thermal imager:
|
640×480
|
|
640×480, 25mm lens:
|
16×16″pixel~160×160″pixel
|
|
Working voltage:
|
12V(4s~6s)
|
|
Output:
|
Micro HDMI 1080P/ Network interface/ SDI
|
|
Local storage:
|
SD card up to 128G
|
|
Pitch/Tilt:
|
±90°
|
|
Roll:
|
No support
|
|
Yaw/Pan:
|
±170° / ±360°*N (IP / SDI output)
|
|
Vibration angle:
|
Pitch/Roll: ±0.01°, Yaw:±0.01°
|
