wheelbase: 2028MM
Unfolded size: 2692*2619*885MM
Folded size: 1192*623*885MM
Tank capacity: 40L Spreading tank , 30KGS loading capacity
Frame weight: 11.5KGS
No-load takeoff weight: 32.2KGS(including 14S 1*28000mAh battery 7KGS)
Full load Take-off weight: 62.2KGS
Flight Speed： 3-8 Meter /Sec
Max spray width: 1-6m

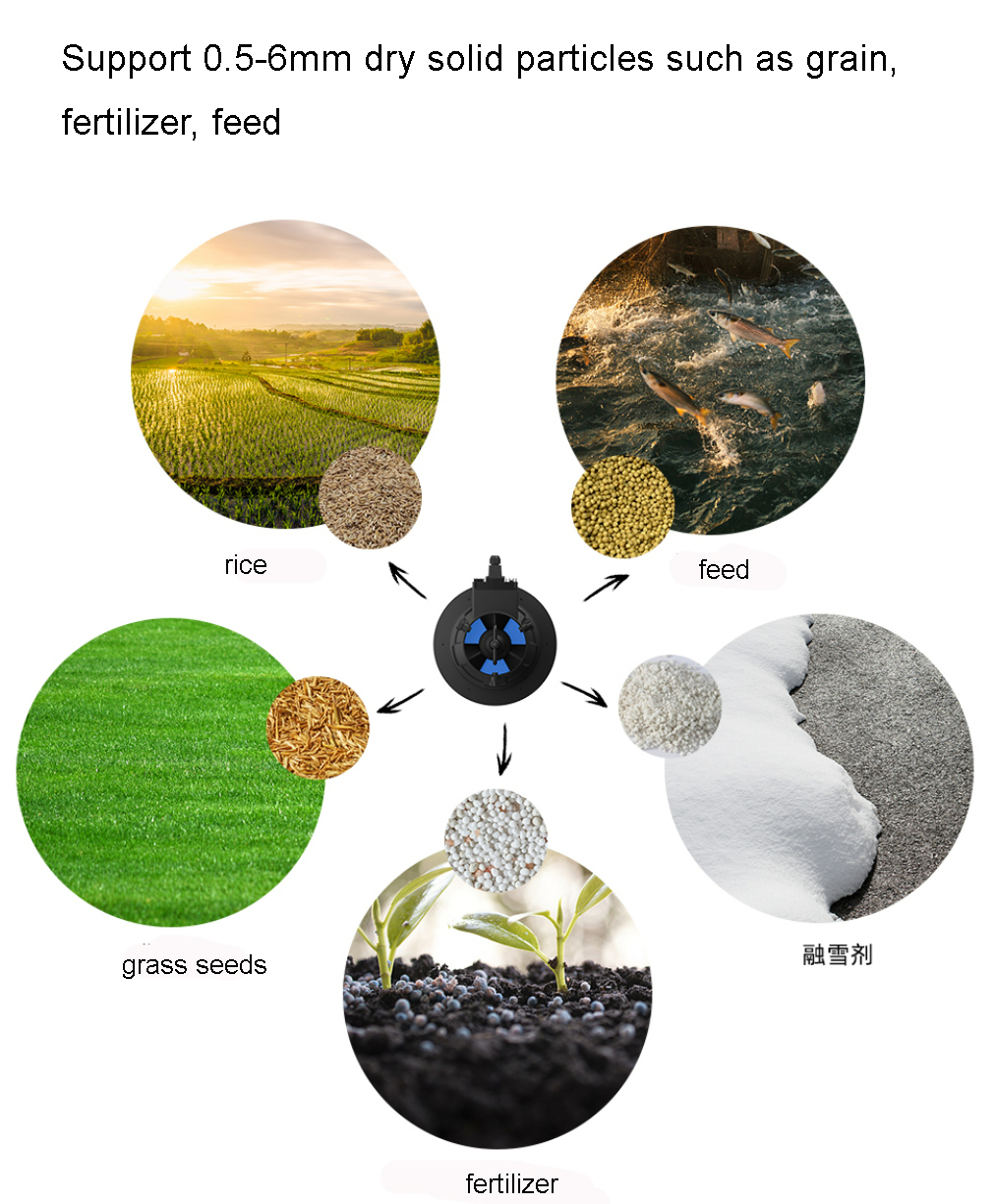

Spray diamition: 0.5-6mm dry solid particles
Delivery package size : Aluminum Box 1100*600*850mm 45kg
Max flight time (no load): 20min
Max flight time (full load): 8min
The tank volume: 40L
Working temperature work: -15°C~45°C
Signal effective range: 5km
Flight Control systems: Boying
The battery specification: 14S 28000mah*1PCS
work power: 51.8V(14S)
Charging Time: 0.5-1hour
Recharge Cycles: 300-500 times
Daily efficiency(6hours): 300-500acres
For more than 3 months: - 22 ° C ~ 28 ° C"
Hover time "No-load flight Time: 20.3minutes (48V)
Full-Load flight time: 6.35 minutes (48V)"
Standby time of remote control: 8hrs
