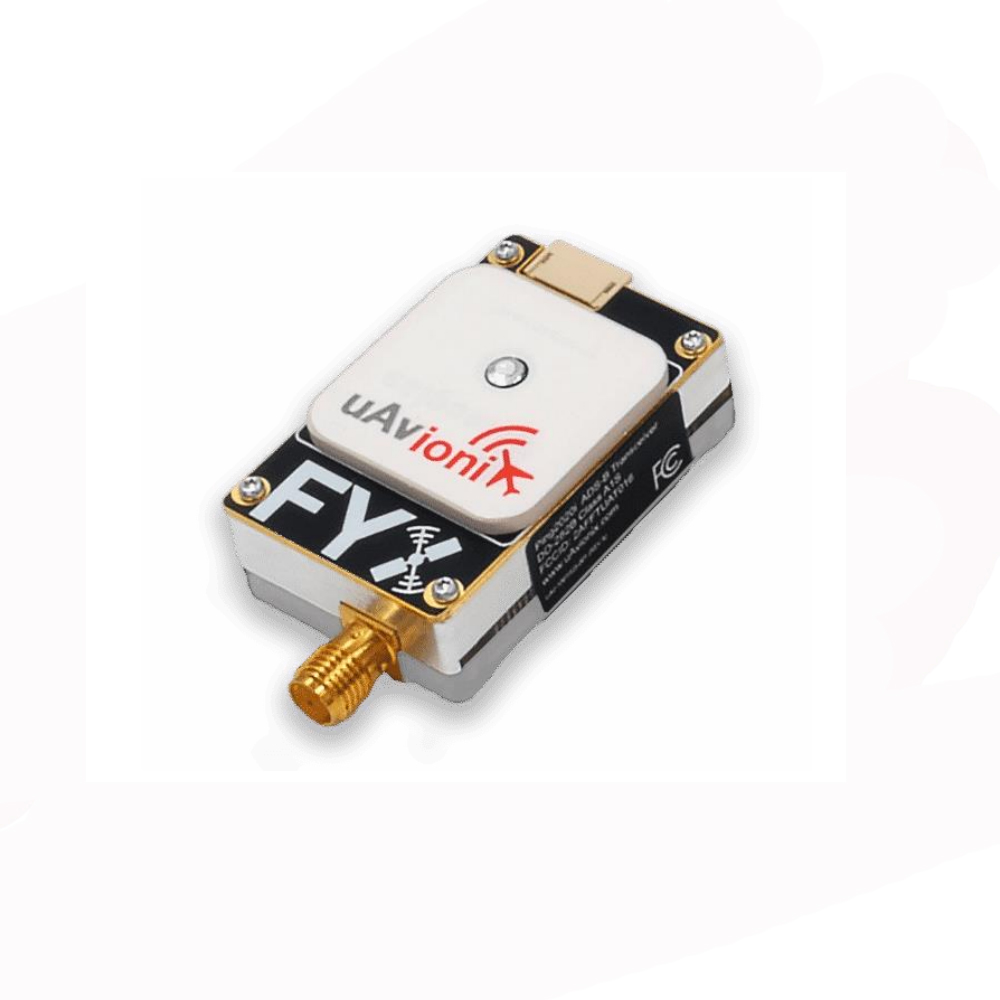

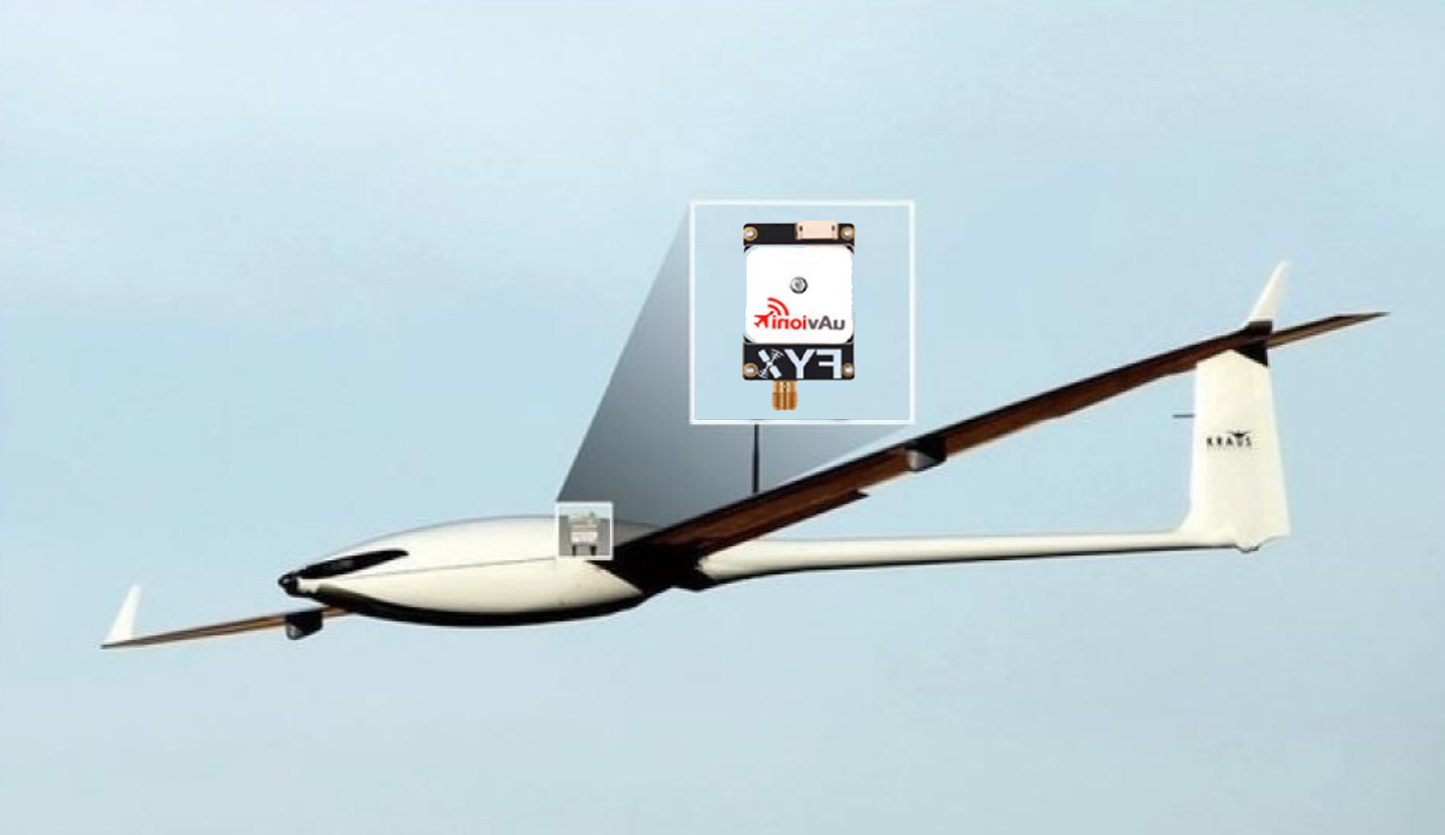

The FD20SI is a Mode S UAV transponder with a weight of only 20g and a transmit power of 20W, which supports ADS-B output. The FD20SI is a complete system designed to meet regulatory requirements for the operation of UAS in controlled airspace. The system includes an integrated high-integrity WAAS GPS sensor derived from uAvionix TSO'd FYX technology, and a high-precision barometric pressure sensor with an accuracy of over 60,000 feet. The all-in-one design is ideal for rapid deployment on virtually any UAS and can detect aircraft information within 160 kilometers.
Features
Support A/C, S mode response of ATC secondary radar.
ADS-B 1090ES DF17 transmitter.
Integrated as WAAS GPS.
Integrated static pressure sensor.
Meets the minimum performance requirements of the following RTCA specifications:
DO-181E Class 1, Class 2@20W
DO-260B Class B1S @20W
GPS/SBAS augmentation system. RAIM is used for troubleshooting.
Static pressure sensor, accurate to 60,000 feet.
DO-160G environmental Cat B2.
Direct connection to PixHawk TELEM interface
Compatible with GDL90 control serial input.
MavLink compatible control serial input.
Compatible with mainstream autonomous driving.
SMA 1030/1090MHz antenna connector.
Integrated GPS antenna.
Specifications
Power: 11-28V
Power consumption: 1W

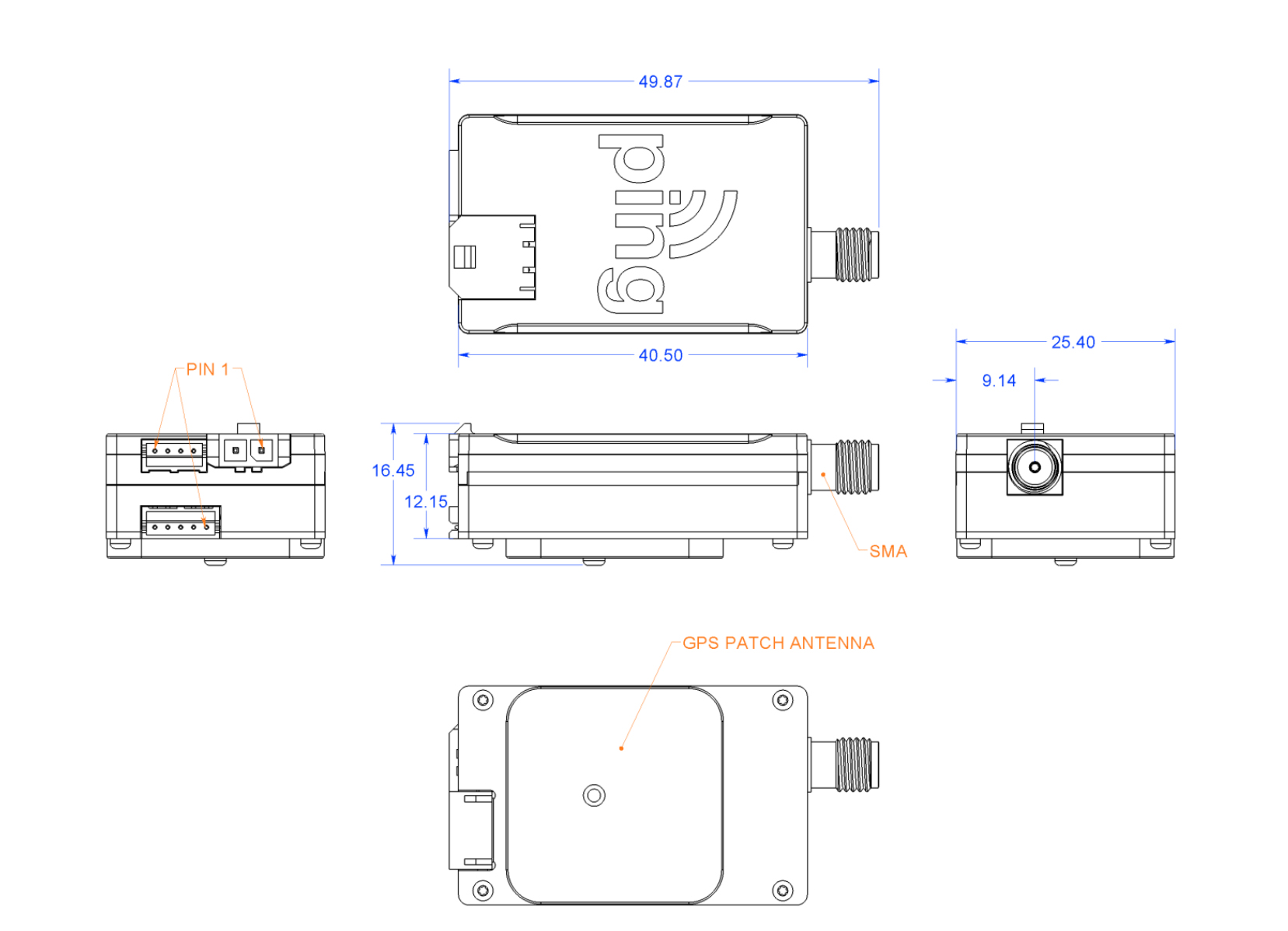

Dimensions: 50x25x17mm
Weight: 20g
Operating temperature: -45 to 80°C
Transmitter
1030MHZ sensitivity: -61dBm
Dynamic Range: -59 to 0dBm
1090MHz transmit power: 20W
WAAS GPS Sensitivity: -167dBm
Barometric Altimeter Altitude Range: -1000 to 60,000ft
Protocol: GDL90/Mavlink

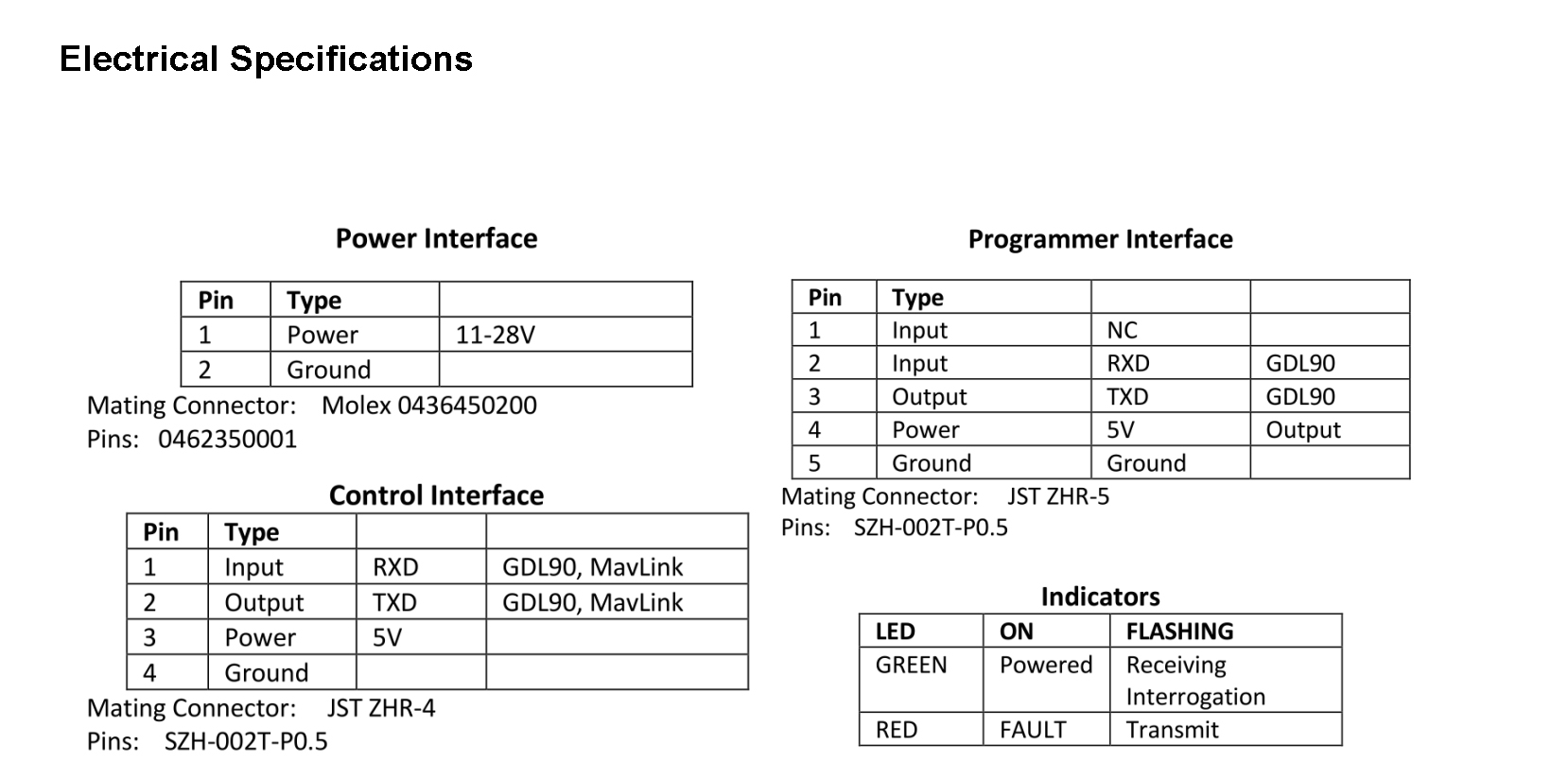

Interface
COM1 57600bps
COM2 115200bps
WIFI
