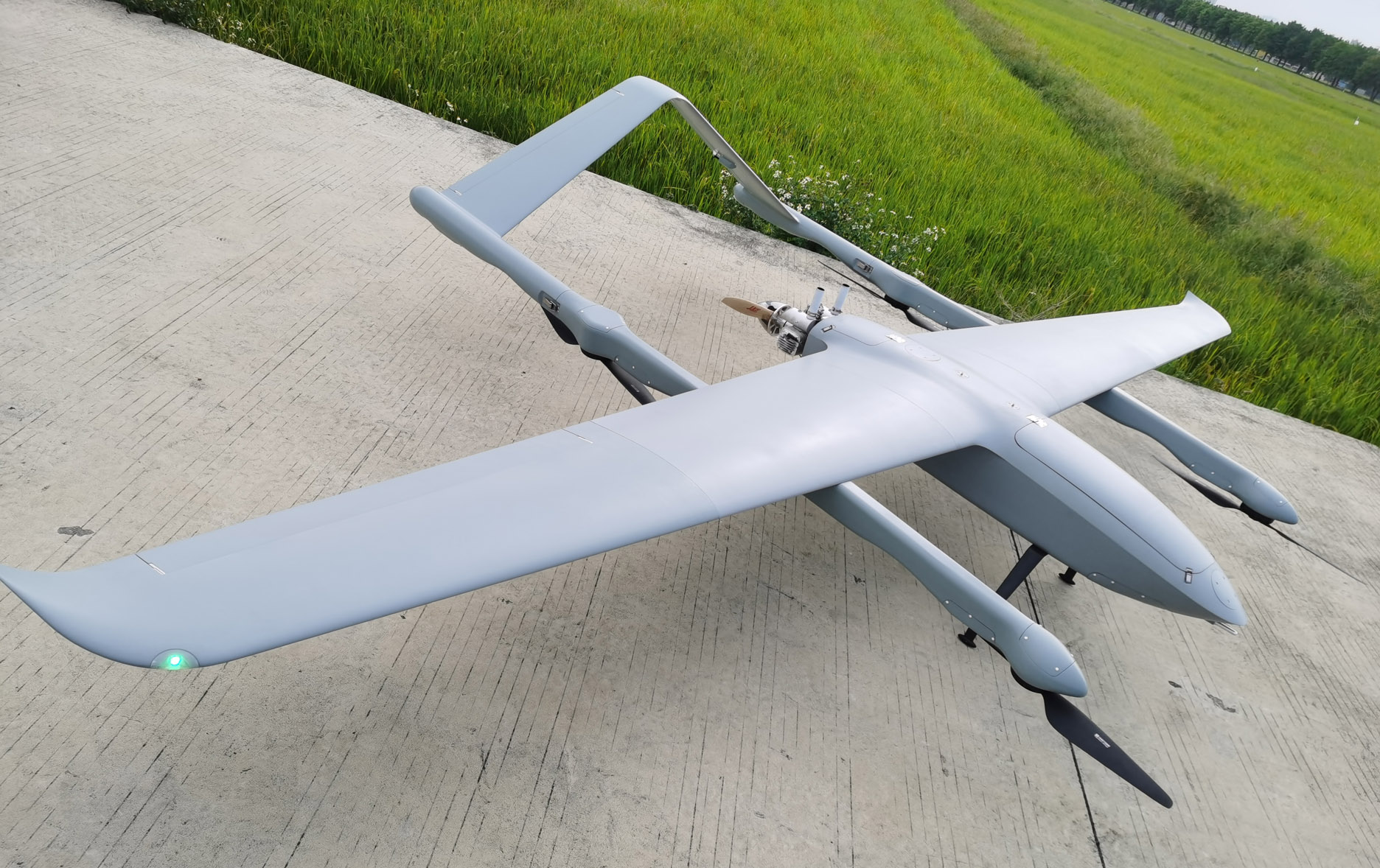

FDG50F Hybrid VTOL drones is a pure fuel power vertical take-off and landing fixed-wing UAV which adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long rang of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions. FDG50F 50 KGS takeoff weight vertical take-off and landing (VTOL) fixed-wing UAV is newly launched in 2022.

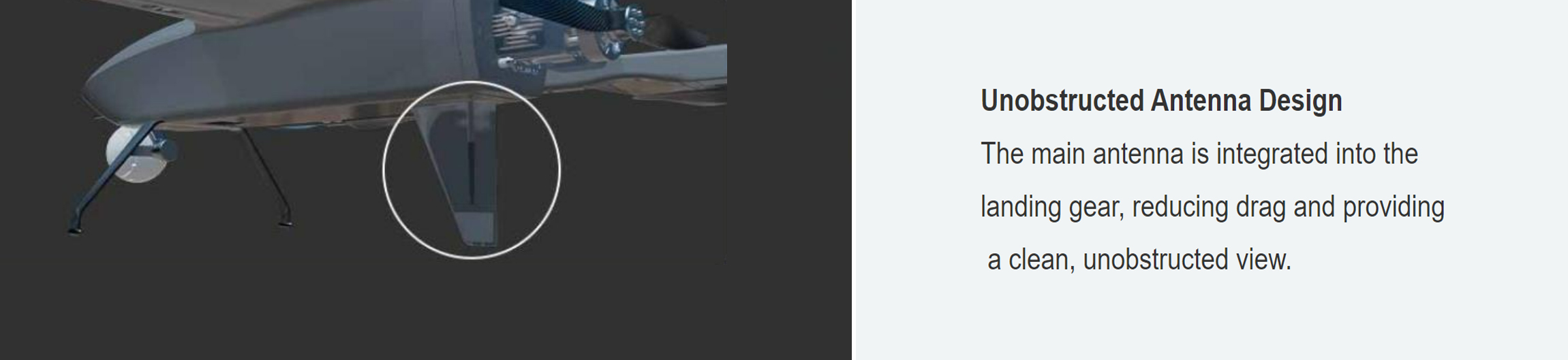

The waterproof design of the whole machine can meet the flight conditions of complex weather conditions. Inspiration integrated engine, the battery life is more than 10 hours. The main antenna is integrated with the landing gear, reducing drag and making it clean and unobstructed.

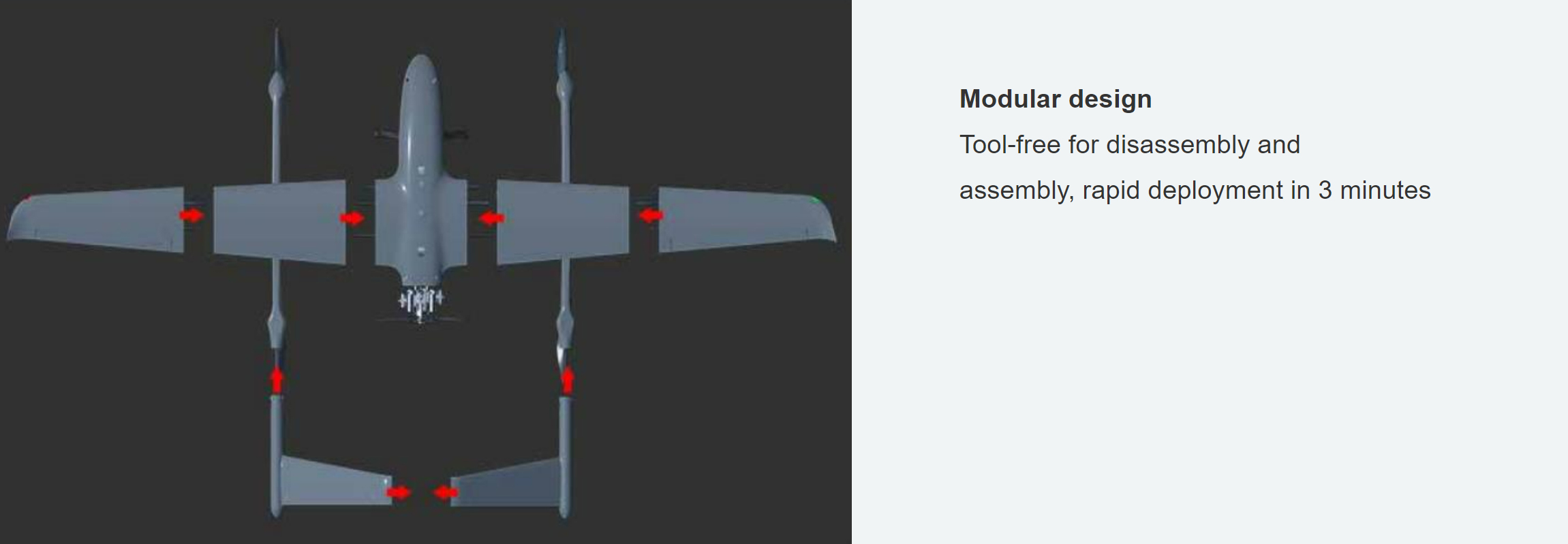

It adopts a composite aerodynamic layout of quadrotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long range of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions. Modular design, the whole machine can be disassembled without tools, and can be installed quickly in 3 minutes.

FDG50F parameter
Standard take-off weight:65kg

Max. Payload Weight:15kg

Cruise Speed:80km/h

Max. Flight Speed:130km/h

Control radius:50-100km

Max. climb speed:4m/s

Max. Descend speed:5m/s

Max. Altitude AMSL:4000m

Max. Wind Resistance:Level 7

Operating temperature:-10℃~60℃

Flight Time: ≥600min (with out paylaod), 7hours (10KGS paylaod)                                                                                                                Fuel tank capacity: 15L

Average consumption：2.5L

Flight Distance≥850km

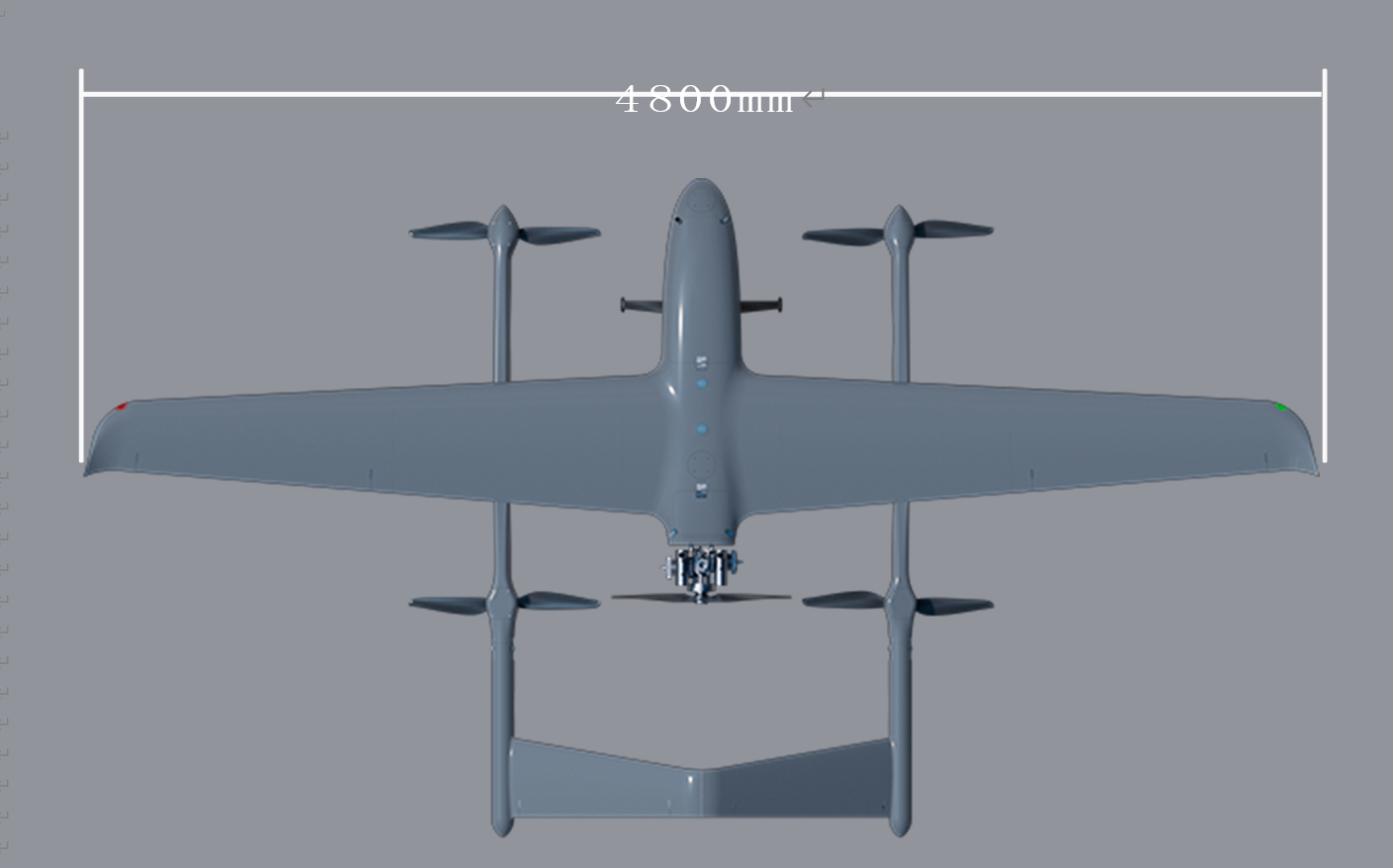

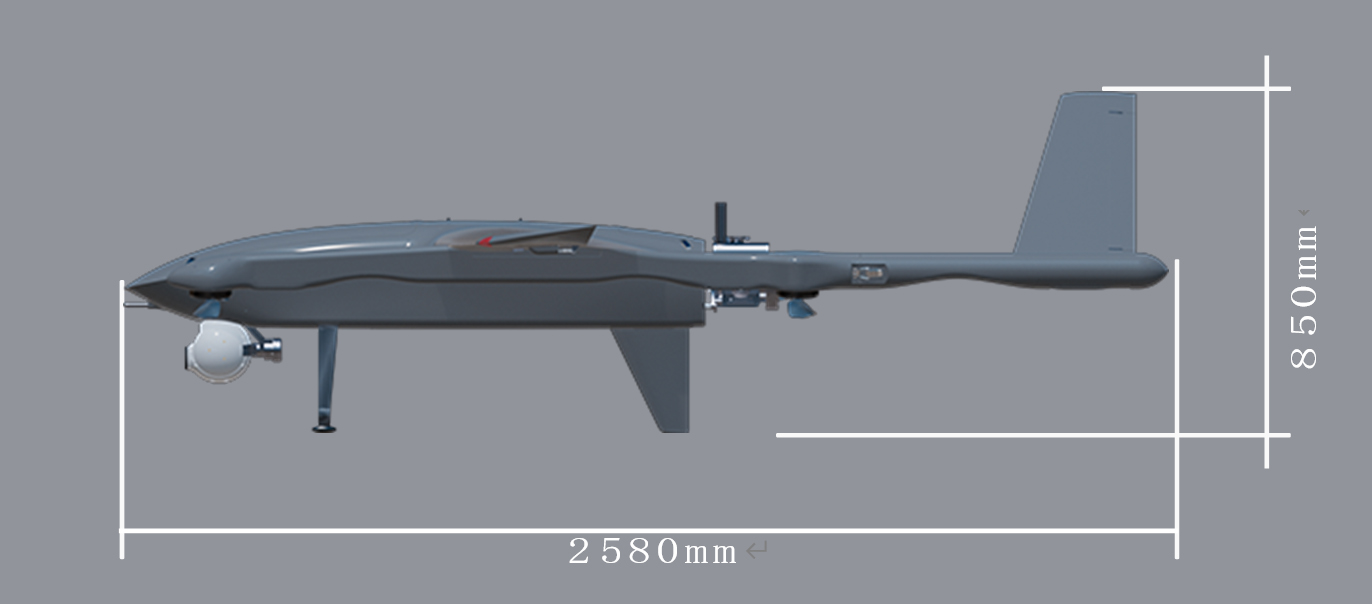

Aircraft dimensions: 4800*2580*850MM

Package dimensions:

1:1810*980*720mm，

2:1800×460×1100mm

We supply FDG50F production line transfer

interesting email me frank@dronefromchina.com
