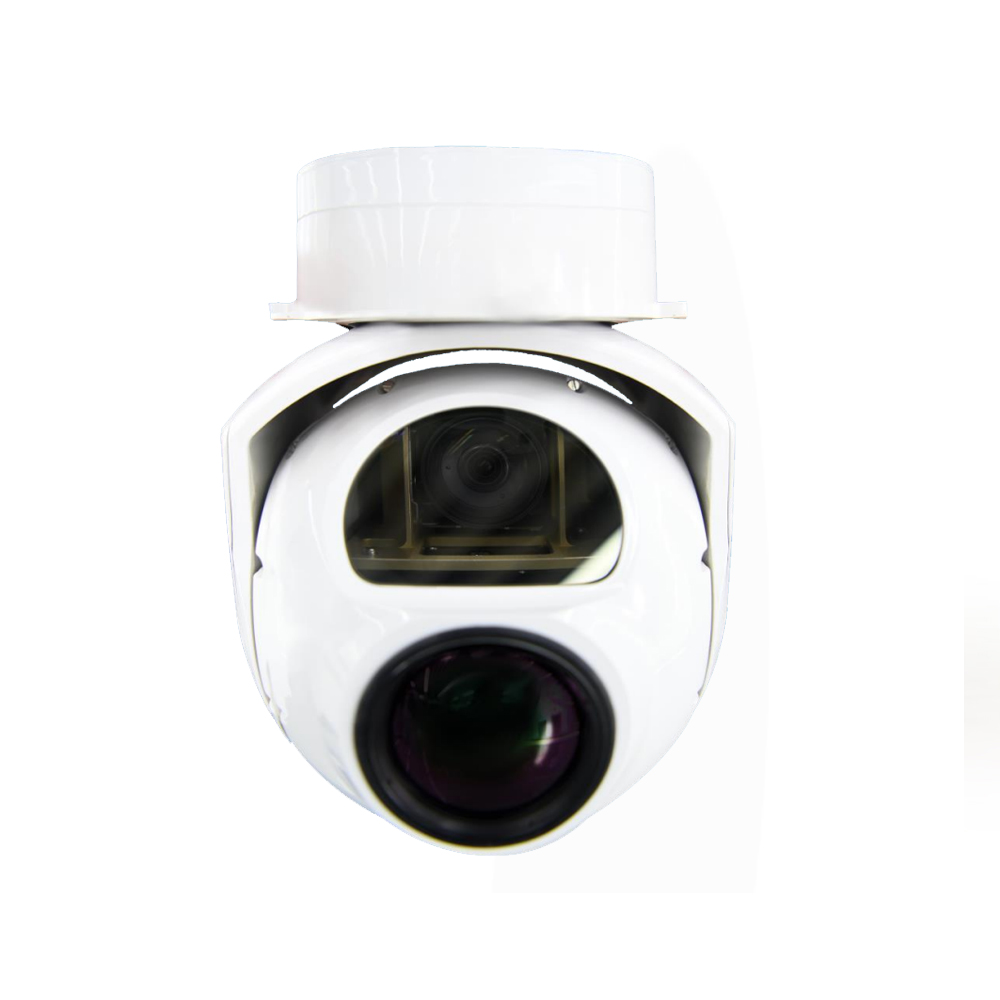

FlyDragon FD05 30X UAV gimbal camera adopts medium-wave cooling infrared thermal imaging, the farthest detection distance is 15km, recognition distance is 6km, conductive slip ring is installed to achieve 360° continuous rotation, built-in 30X continuous zoom HD Visible light camera, which can identify a vehicle 3m*6m away from 15KM and a person 0.5m*1.8m away from 6KM. The FD05 camera weighs only 5kg and can be installed on most drones for intelligence reconnaissance and border surveillance.
Specifications:
EO
Working wavelength: 0.4um~0.9um
focal length：4.3mm~129mm, optical 30 times continuous zoom
resolution：1920(H)×1080(V)
Horizontal field of view：63.7°~2.3°
Distance：Human: detection distance 6km, recognition distance 2km; vehicle: detection distance 15km, recognition distance 8km
Medium wave cooling IR
Working wavelength：3~5um
focal length：20-275mm/F5.5, continuous zoom
detector：15um
resolution：640(H)×512(V)
NETD：25mk@25℃
Horizontal field of view：28°×22.4°~2.0°×1.6°
Distance：Human: detection distance 4km, recognition distance 1km; vehicle: detection distance 15km, recognition distance 6km
Gimbal
Rotation range：Azimuth: 360° continuous; Pitch: +90°~-120°
Angle measurement accuracy (1o)：≤2mrad
Line of sight stabilization accuracy (1o)：≤100urad (2°/1Hz, 1°/2Hz swing)
Speed：Maximum angular velocity: ≥60°/s; Maximum angular acceleration: ≥90°/s
System
Weight：≤5.5Kg
Size：≤200mm×271.5mm
powered by ：DC28V, the voltage range is 18V~30V
power consumption ：Average power consumption≤50W, peak power consumption：≤150W
Operating temperature：-40℃~60℃
Interface
Communication Interface：2-way RS 422 (TTL optional)
Video interface：1 channel HD-SDI (optional network port, HDMI)
