Drone Gimbal Camera

3 axis 30X drone gimbal 704x576 IR camera for drone inspection and drone surveillance

  • Product description: FDC704 30X Dual Drone Gimbal day&night IR Camera is an optical pod with high performance and three-axis image stabilization of FlyDragon Aviation Technology Co., LTD For industrial customers. FDC704 i
  • INQUIRY

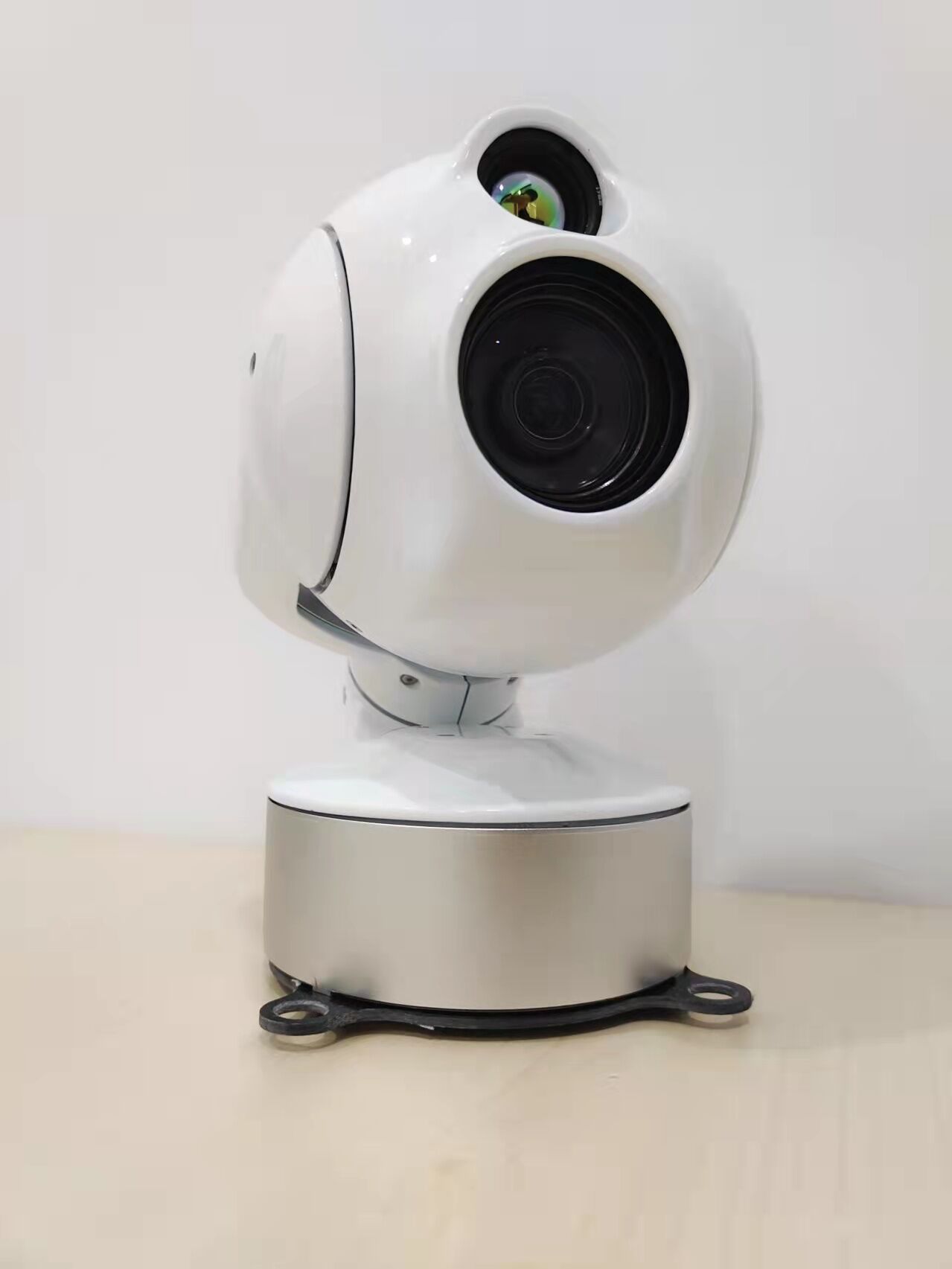

3 axis 30X drone gimbal IR camera

FDC704 30X Dual Drone Gimbal day&night IR Camera is an optical pod with high performance and three-axis image stabilization of FlyDragon Aviation Technology Co., LTD For industrial customers. FDC704 integrated SONY 2.16 megapixel high quality Starlight optical module and Iray's new 12 m thermal imaging module, 30mm lens; whole camera is very light, the weight is 840g only, it's good to mount one fiexd wing drone and multirotor drone for drone inspection, drone rescue, drone surveillance and drone forest monitor etc.

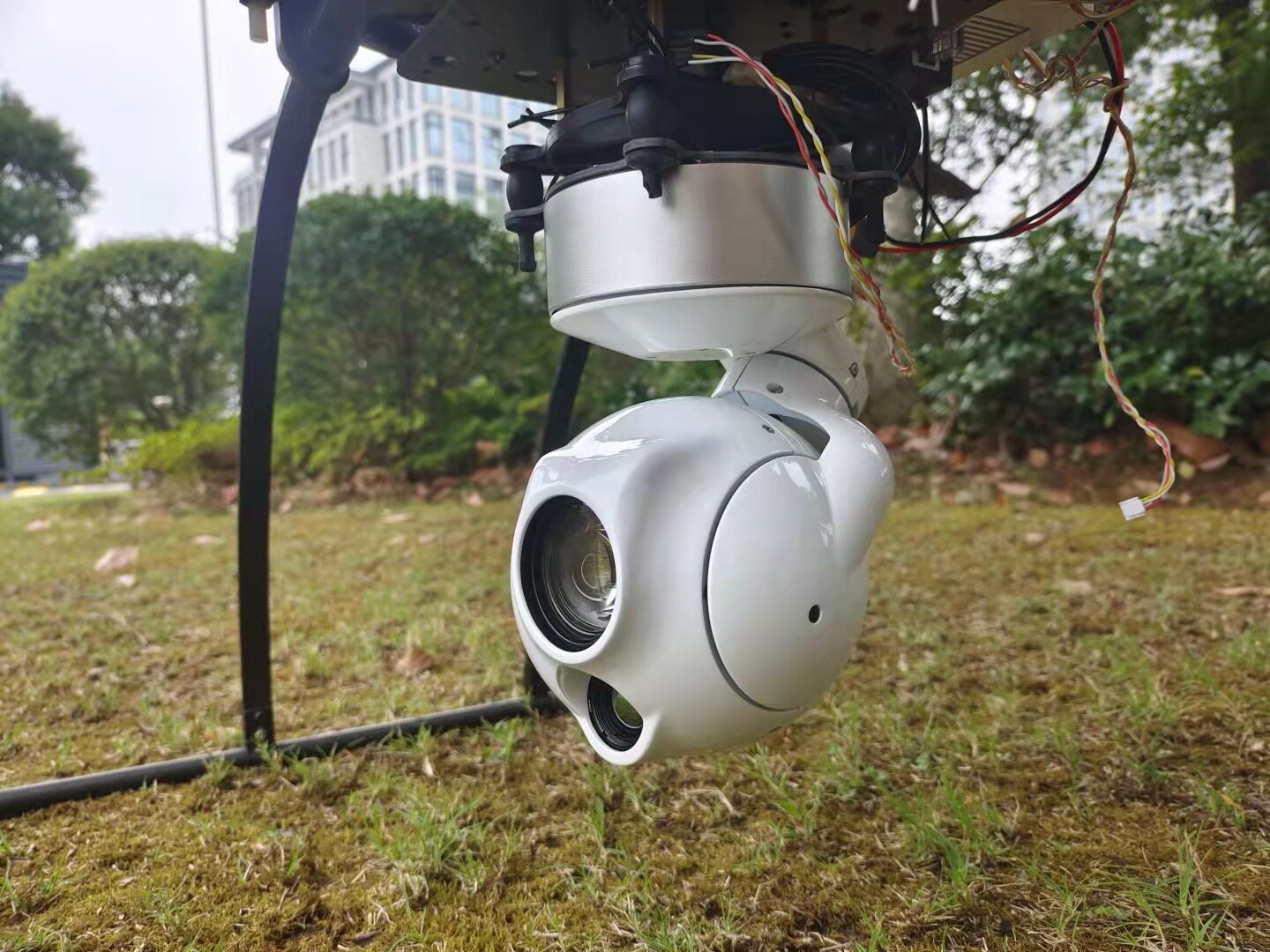

3 axis 30X drone gimbal IR camera

Function

 30x 2 million optical zoom visible light cameras

 Non-cooled infrared camera with optional global temperature   measurement function

 Three-axis stabilization cloud head, ±0.008degrees control stability accuracy, industry-leading.

 Ground station support point zoom, one-click back, mouse or touch screen operation pod, easy to operate

 Modular design, scalability, open SDK

 With target intelligence tracking

 Real-time data transfer at the gateway



The population parameters

Operating voltage: 12V-25V

power: 8.4W

weight: 840g

The type of memory card: Built-in 128G Micro SD card

Size (length, width, height): 136mm*110mm*170mm

The type of interface: The net port

Environment parameters

Operating temperature: -20°~60°

Store the temperature: -40°~80°

Angle jitter ±0.008°

How it is installed: The fixed-wing non-fast-removal interface is optional with the multi-rotor fast-removal interface

The rotation range can be controlled: Pitch: 70 to -90 degrees;

The scope of the structural design: Pitch: 75 degrees to -100 degrees direction: 360 degrees continuous

Smart target tracking: backing

Camera parameters

visible light

sensor: CMOS:1/2.8; Total pixels 2.16 million

lens: 30x optical zoom lens F: 4.7 to 141mm

Minimum shooting distance: 1m to 1.5m (near-focus-far-focus) field-of-view angle (horizontal): 60 to 2.3 degrees

The numbers are multiplied: 4X

The image storage format: JPEG

Video storage format: MP4

The working mode: Video; Taking pictures;

Through the fogElectronic fogging

Exposure modeAuto exposure



The encoding resolution: Main stream: 25fps (1920×1080, 1280×720)

Secondary streams: 25fps (1920×1080, 1280×720, 704×576, 352

×288

2D noise reduction: Support (auto-on)

3D noise reduction: Support (auto-on)

Electronic shutter :1/3 to 1/30000 seconds

Exposure: Automatic mode;

Info Video Overlay (OSD): backing

Point to zoom: backing

Point to the zoom range: 1 to 30 times optical

Zoom to a single image with one click: backing

Thermal imaging

Detector performance

The type of probe Uncooled infrared focal plane detector for radon oxide

Cell spacing: 12 microns

Respond to the band: 8 to 14 microns



sensitivity: 50mk@25℃,F#1.0

The range of temperature measurements: Two-speed: -20 degrees C to 150 degrees C, 0 degrees C to 550 degrees C default -20 degrees C to 150 degrees C

Temperature measurement accuracy: ± 3 degrees C or 3% of the ± readings (take larger) and the ambient temperature is -20 degrees C to 60 degrees C

Temperature measurement tool: Point, line, area analysis

Focal length: 19mm fixed focus head

The encoding resolution:

Main stream: 25fps (704×576)

Secondary stream: 25fps (704×576640x512)
