FDQ12 is precisely processed by aviation aluminum alloy and high-strength nylon, with high strength and Good vibration-absorbing, anti-rain, dust-proof, anti-corrosion capabilities, able to adapt to harsh field work operating environment. The advanced three- axis tilt stabilized gimbal works closely with the carrying platform, 360° unlimited rotation, FDQ12 adopts SONY action camera with 7 million static pixels, 10 times optical zoom, 12 times stable and lossless port zoom, up to 40 times Komsuping Zoom effective; 5. @30fps, 4K@25fps, 1080P@60fps and 720P@120fps slow motion video recording.

FDQ12 has the function of automatic detection and recognition of typical targets such as vehicles and personnel. It can detect multiple targets at the same time. The target detection probability is better than 90%, the target recognition probability is better than 85%, the f alarm rate is less than 10%.

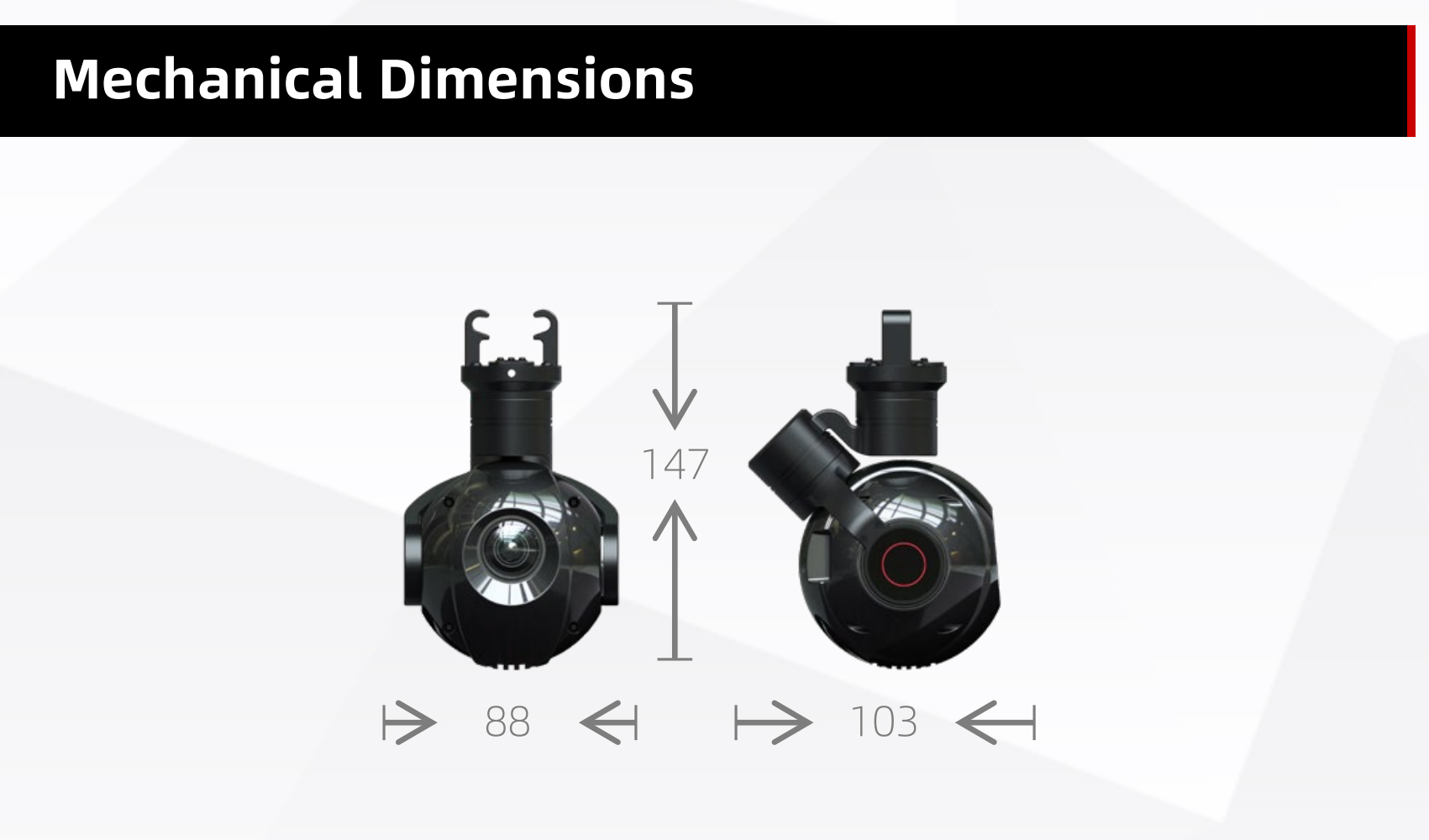

Size: 103(L)*103(W)*153.5(H)mm

Weight: 490g (excluding control module)

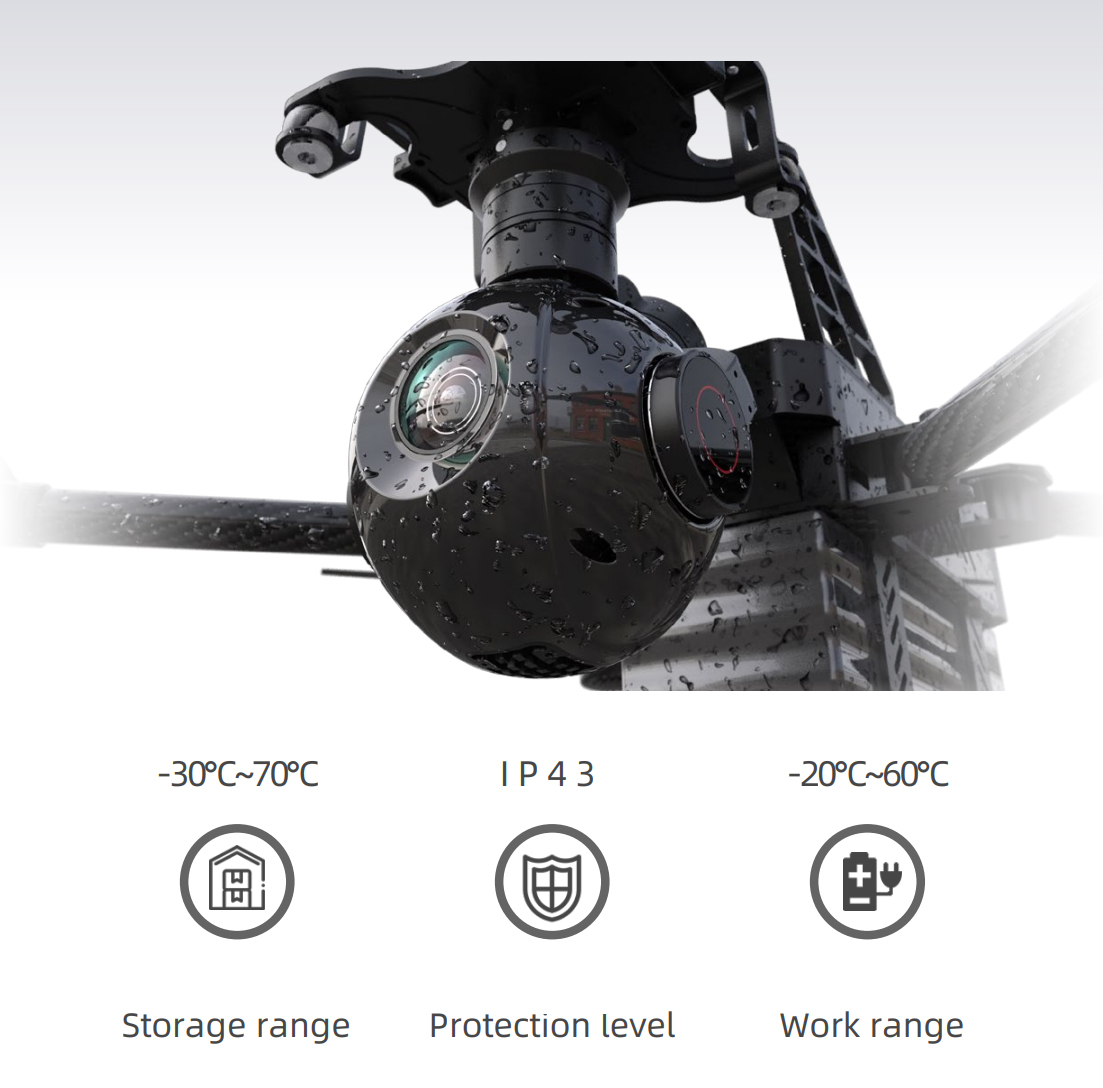

Working temperature: -20℃~60℃

Storage temperature: -30℃~70℃

Protection level: IP43

Number of image stabilization axes: Three axes (heading/pitching/rolling)

Power: 10w

Angle working range: 360°×N (heading); -120°~30° (pitch); ±40° (roll)

PTZ steady-state accuracy: 0.52 Mrad

PTZ steady frequency: 1250 Hz

PTZ control accuracy: 2.09 Mrad

Gimbal working mode: heading follow (default); heading lock; vertical looking down

PTZ control mode: speed control; angle control; pointing movement; tracking mode

Sensor: 1/2.8 inch SONY CMOS

Focal length: 4.9～49.0mm(10x), 12x equivalent focal length: 58.8mm

40x equivalent focal length: 196mm

Zoom factor: 10x optical zoom

Focusing speed: <1S

Focus mode: automatic/manual

Field of view: H: 61.1-7.65°, V: 35.2-4.12°

Aperture: F=1.6 ~ 3.8

Minimum object distance: 1m(W)-20m(T)

Signal-to-noise ratio: 64.6 dB

Optical Image Stabilization: Automatic

White balance: automatic/manual

Color Mode: Vivid/Standard/Sepia/Black & White

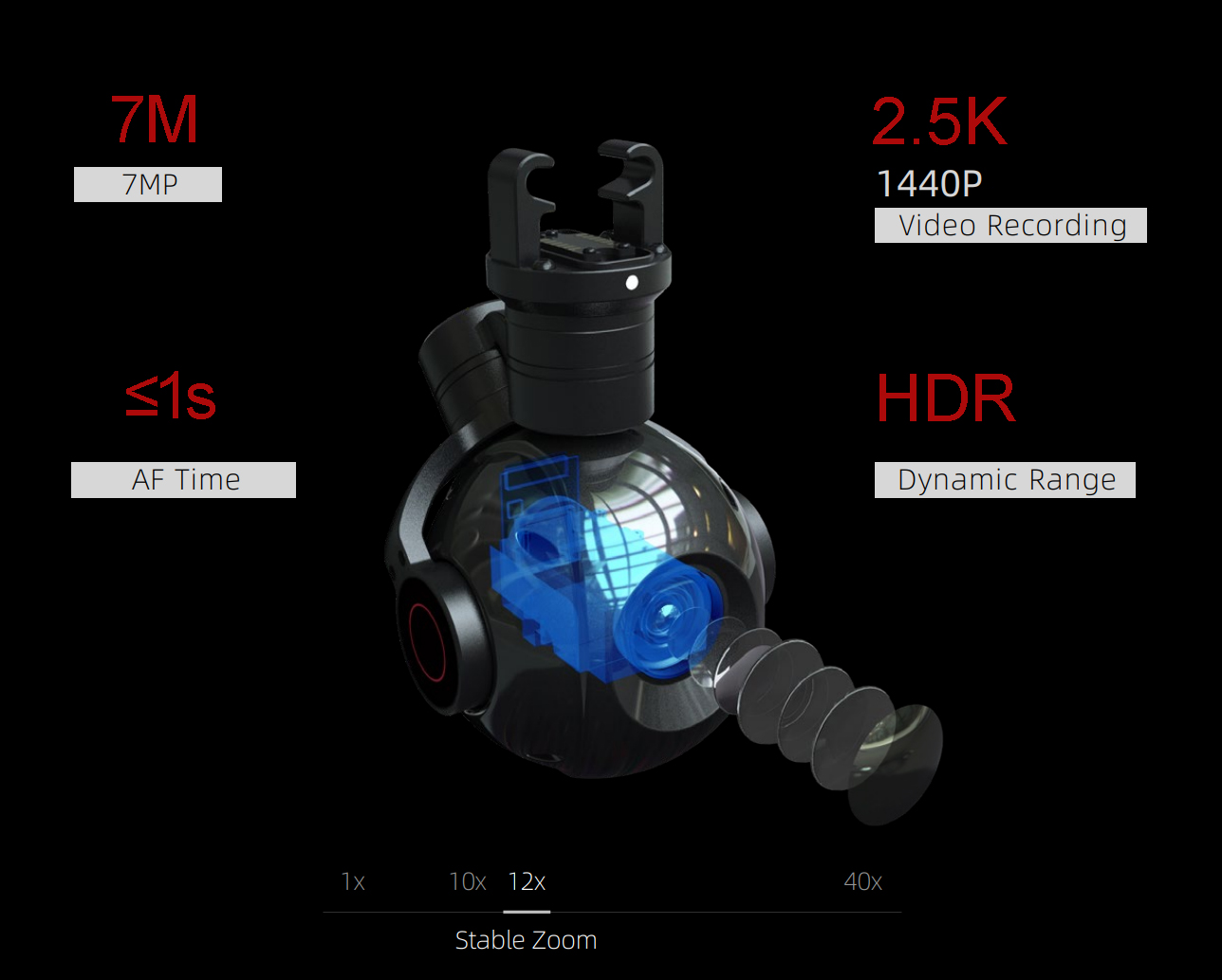

Static pixels: 7 million

Image storage format JPG: 3648*2052

Video storage format MP4: 2560×1440@30fps, 3840×2160@25fps,

1920*1080@60fps, 1280*720@120fps

Video output format 1920*1080@30fps/ 1920*1080@25fps

Storage function Mirco SD: 32/64/128/256GB

Multi-target detection number: ≥20

Minimum target size: 36×36 pixels

Target detection rate: ≥85%

Target recognition rate: ≥80%

Target capture time: ≤5 frames

False alarm rate: ≤15%

Tracking accuracy: ≤1 pixel

Anti-occlusion time: 3 seconds

Maximum target tracking field of view: no more than 1/3 field of view

Processing speed: ≥30fps (@1080P)

Anti-target deformation/occlusion: Automatic

Target switching tracking: support

Target tracking mode: identification tracking, feature tracking, automatic identification tracking

Tracking auto zoom: support

target setting

Target positioning method: Positioning at the center of the screen (need to receive GPS information)

Target resolution accuracy: 20m (under non-complicated terrain conditions)

Coordinate output type: latitude and longitude

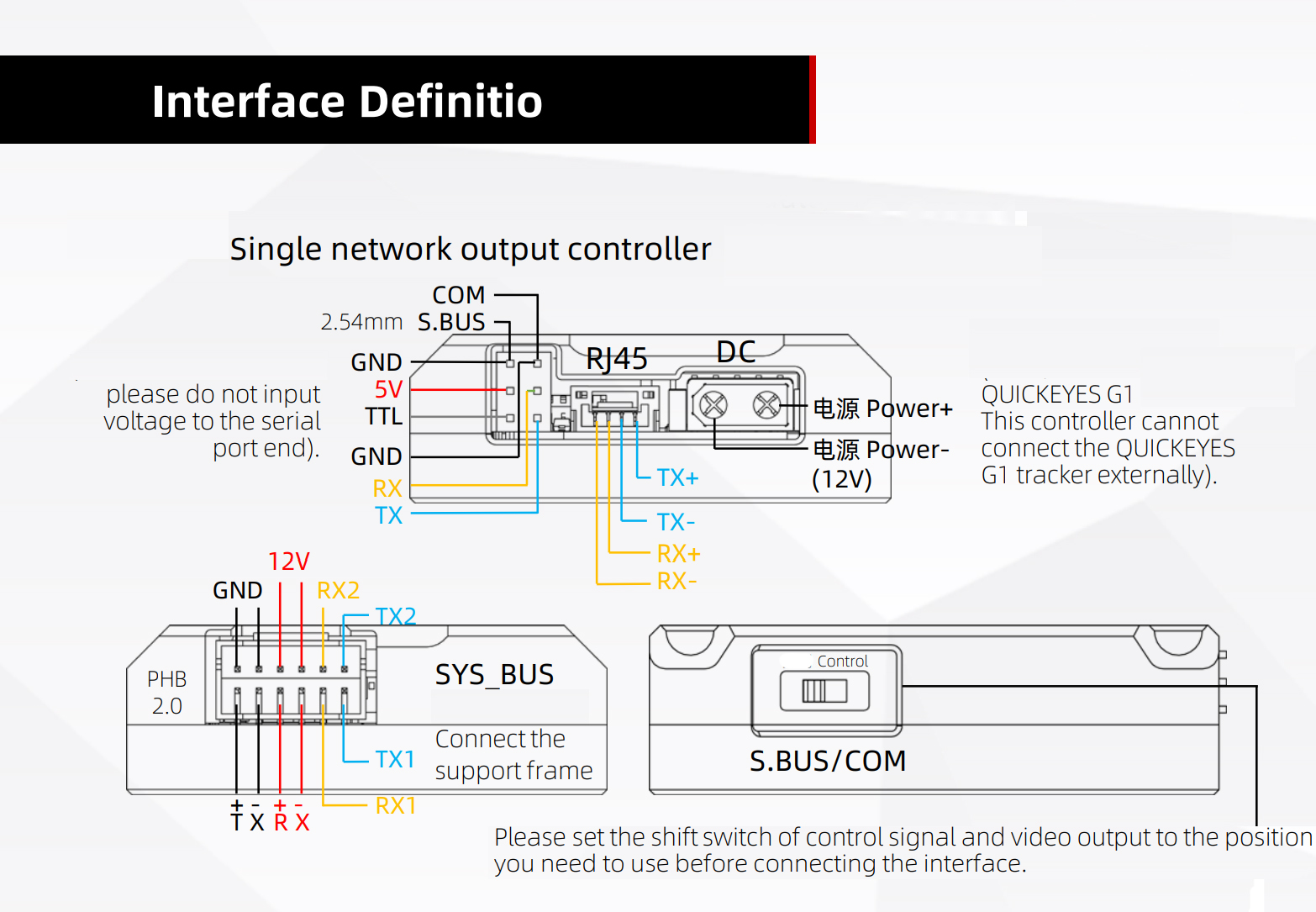

Control module parameters 12V single network port output control module (standard configuration)

Size: 96.3(L)*66(W)*21.7(H)mm

Weight 35g 130g

Input voltage 12V

Control signal S.BUS, TTL serial communication (RS232 optional), TCP

Video interface Ethernet port Ethernet port, HDMI
