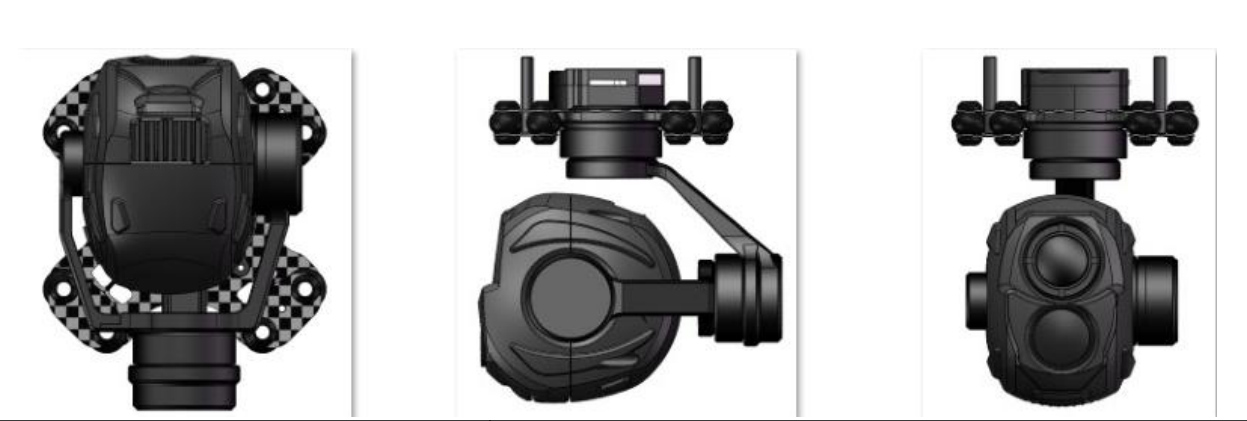

FD10S32 is a zoom dual-light integrated system integrating 10x optical zoom camera, 320*240 thermal imager, and high-precision professional three-axis stabilization pod. It adopts network IP output and IP control, and the gimbal adopts high-precision encoder FOC The control scheme has the characteristics of high stability, small size, light weight, and low power consumption; the visible light camera adopts a low-light sensor with 4 million effective pixels; the thermal imaging adopts a 320x240 resolution detector with a baffle design inside. The system supports network RTSP picture-in-picture stream output, and supports multiple picture-in-picture modes. Synchronize camera and gimbal control, support local TF storage.

Specifications:

Voltage: 3S / 6S
Power dynamic: 7.5W
Roll angle action range: -85~+85°
Pitch angle action range: -90~+90°
Action range of heading angle: -150°~+150° endless rotation
Angle jitter in pitch and roll directions: ±0.02°
Angle jitter in horizontal direction: ±0.03°
One-button return to the center function: one-button automatic and fast return to the initial position
Control mode: Support network IP control and serial port control (SBUS and PWM control are optional)
CMOS: 1/3 inch 4 megapixel low light CMOS SENSOR
Optical zoom: 10 times, f=4.9±10%~49±10%mm
Focusing time: real-time fast focusing function, focusing time <1S
Video output: network HD RTSP output 1080P, video stream local TF storage
Field of View (FOV)
D : WIDE 66.6º±5% TELE 7.2º±5%
H : WIDE 53.2º±5% TELE 5.3º±5%
V : WIDE 39.8º±5% TELE 4.2º±5%
Support mode 1080P 30fps
Thermal Imaging
Resolution: 12μm
Pixel Pitch: Uncooled Focal Plane Microbolometer
Type: 8～14μm
Wavelength range: ≤65mk@30℃
Thermal Sensitivity: (NETD) Adjustable
Field of view: 6.5mm lens, angle: 34.4 x 25.8
Measurement function: (optional) center point, maximum and minimum temperature display temperature function;
Machine size: 81mm×120mm×123mm
Weight 430±10 grams
Working environment: -10℃ to +45℃
Storage environment -20℃ to +60℃
