Application of carbon fiber composite materials for drones

Carbon fiber is a carbon material with a carbon content of more than 90%. Compared with other high-performance fibers, it has the highest specific strength and specific modulus. Therefore, it has excellent mechanical properties. In addition, carbon fiber also has excellent properties such as low density, high temperature resistance, corrosion resistance, friction resistance, electrical and thermal conductivity, electromagnetic shielding, and easy processing. Therefore, carbon fiber is widely used in various fields of military and civil industry, and its outstanding contributions in aerospace are particularly noticed.

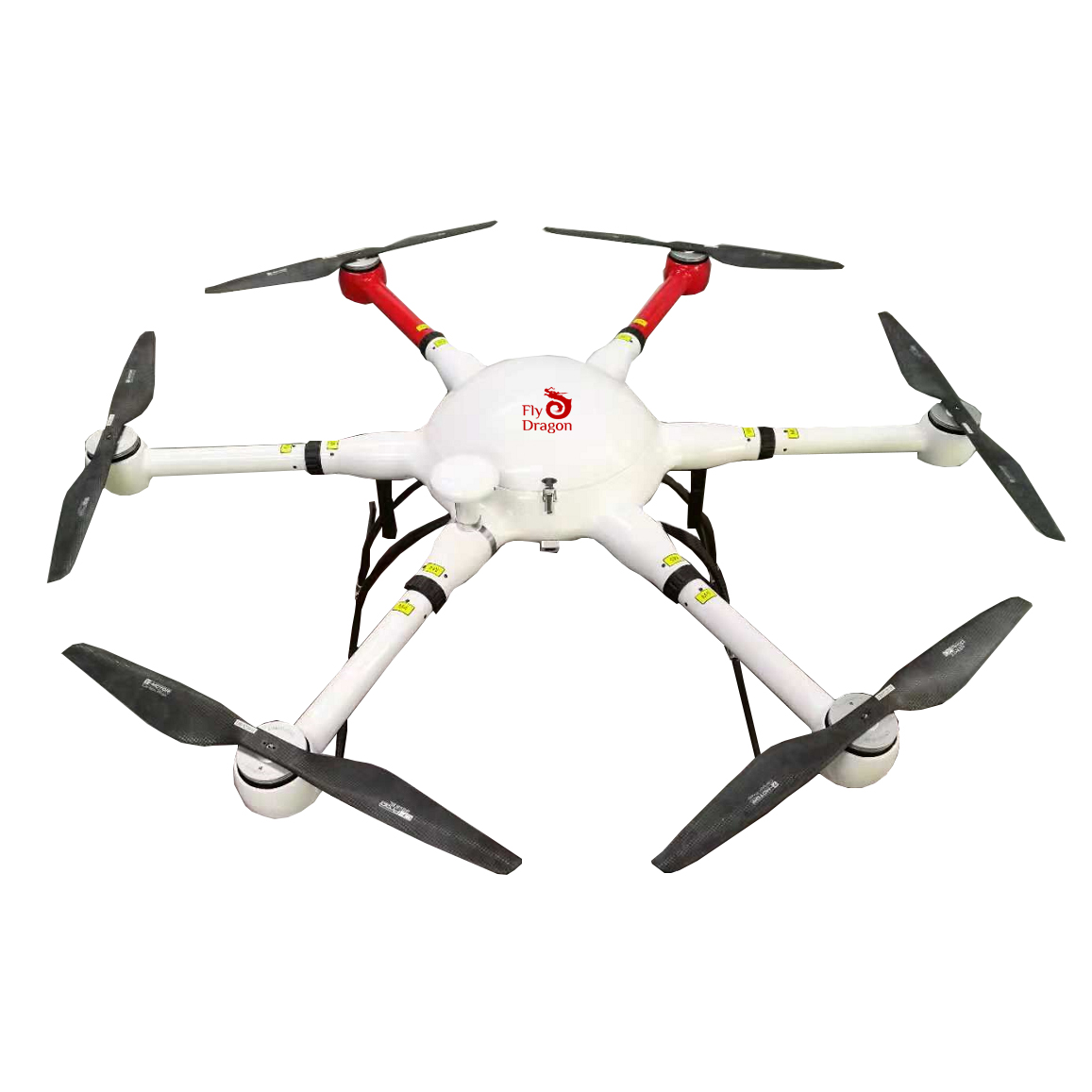

FD4100 carbon fiber drone

In military fighter jets and helicopters, carbon fiber composite materials are used in aircraft main structures, secondary structures, and special functional parts of fighter aircraft. Some foreign light aircraft and unmanned aerial vehicles have realized the structure of composite materials, mainly using T300 and T700 small tow carbon fiber reinforced composite materials.

The application of carbon fiber composite materials to fighter fuselage, main wing, vertical tail, flat tail, skin and other parts can play a very obvious lightening effect.

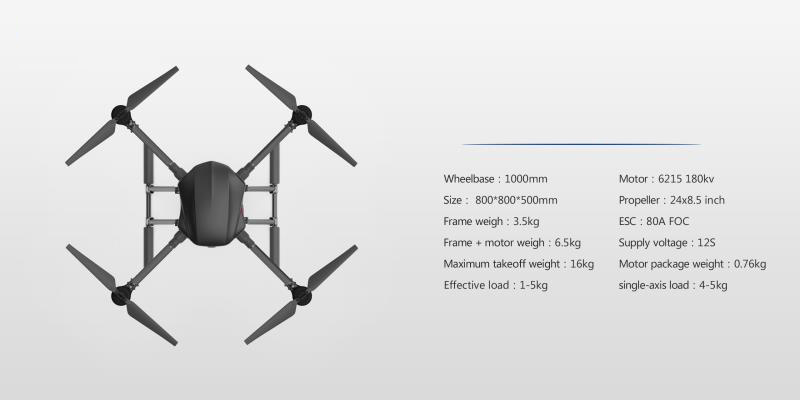

FDHI412 carbon fiber drone frame

When customizing carbon fiber fuselage parts, according to the final data, the front fuselage section using carbon fiber composite material structure is 31.5% lighter than the metal structure, the parts are reduced by 61.5%, the fasteners are reduced by 61.3%, and the fatigue resistance is reduced. The corrosion resistance is greatly improved.

In the field of civilian products, 25% of the parts by weight of the world’s largest aircraft A380 are made of composite materials, of which 22% are made of carbon fiber reinforced composite materials, and the remaining 3% are made of GLARE fiber-metal plate (aluminum Alloy and glass fiber super-hybrid composite material layer structure).

These components made of carbon fiber reinforced composite materials include: speed brakes, vertical and horizontal stabilizers (used as fuel tanks), elevators, rudders, landing gear doors, fairings, vertical tail boxes, rudders, elevators, ailerons, etc. , Due to the significant weight reduction of carbon fiber composite materials, greatly reducing fuel consumption and emissions; and will not be damaged due to fatigue or external corrosion during use.

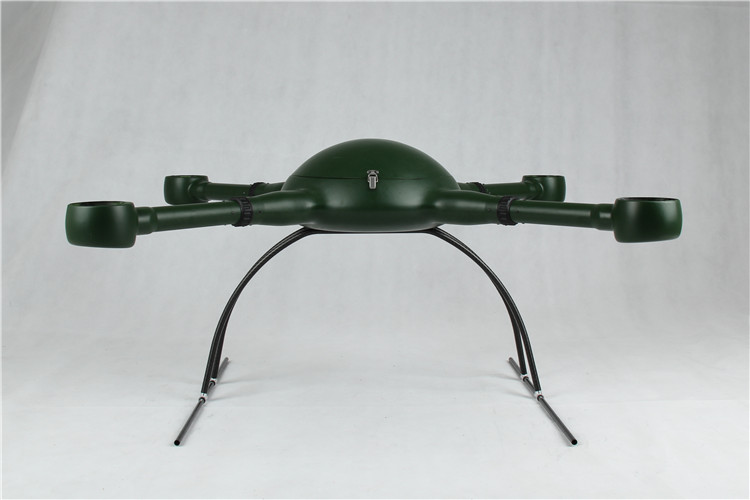

FLYD-100 carbon fiber drone

Carbon fiber composite materials have long been applied to artificial satellite structures, solar panels and antennas because of their advantages of light weight, high rigidity, high strength, dimensional stability, and good thermal conductivity. Nowadays, most of the unfolding solar cells on artificial satellites are made of carbon fiber composite materials, and some of the more critical components of the space station and the space shuttle system are also made of carbon fiber composite materials. Our country went from "Shenzhou No. 1" to "Shenzhou No. 6" ascending to heaven six times in more than eight years.

With the deepening of carbon fiber technology research, the output of carbon fiber will continue to increase, the quality will continue to improve, and the overall price will steadily drop. There will be more and more high-performance and high-quality carbon fiber composite materials that will be applied to the aviation industry and make great contributions to human aerospace industry

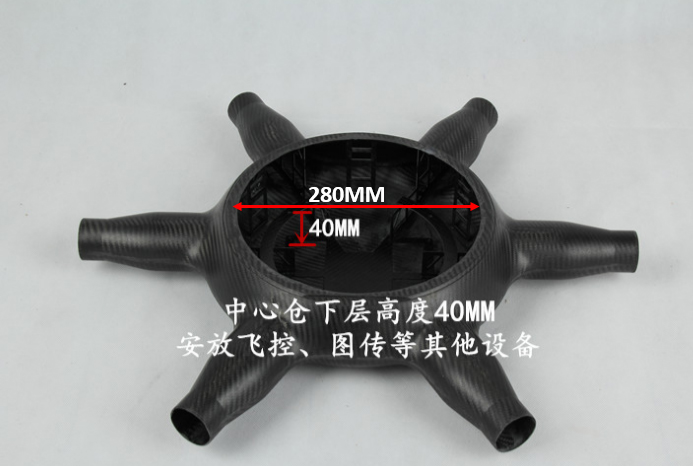

FDL-1600 carbon fiber drone for photography

FDL1600 has a very unique hexacopter featuring high pressure molding full carbon fiber body,  it is light weight and super high strength. To keep its super cool natural carbon fiber appearance, we left it unpainted. The 90 minutes no-payload super long flight time makes it a perfect platform for mapping, surveillance, logistics and a lot more applications.

FDL1600 Another advantage of a hexacopter, Compared to most quadrocopters, a hexacopter is not only quieter but also more powerful, more precisely controllable and has a higher payload.it also features wonderful quick-detach arms and landing gear, making it convenient for storage and easy to transport. Also the FDL1600  landing gear and gimbal mounting point, new wiring method, create a really vast internal space. And the new ESC mounting type, features good heat dissipation, so don’t need to worry about heat dissipation problem even working with Tethered Power System.

Specification:

Wheelbase: 1600mm
Frame Weight: 3.8kg(with landing gear)
RTF Weight: 6.8kg(no battery)
Max. Take-off Weight: 28kg (36kg by using 8120 motor or T-motor P80)
Flight Time: 90 minutes(no payload)(4x 6s 30000mAh Li-ion battery);70 minutes(4x 6s 22000mAh Lipo battery)

Max. payload: 11KG

IP:56

Voltage: 48V
Water proof & dust proof
