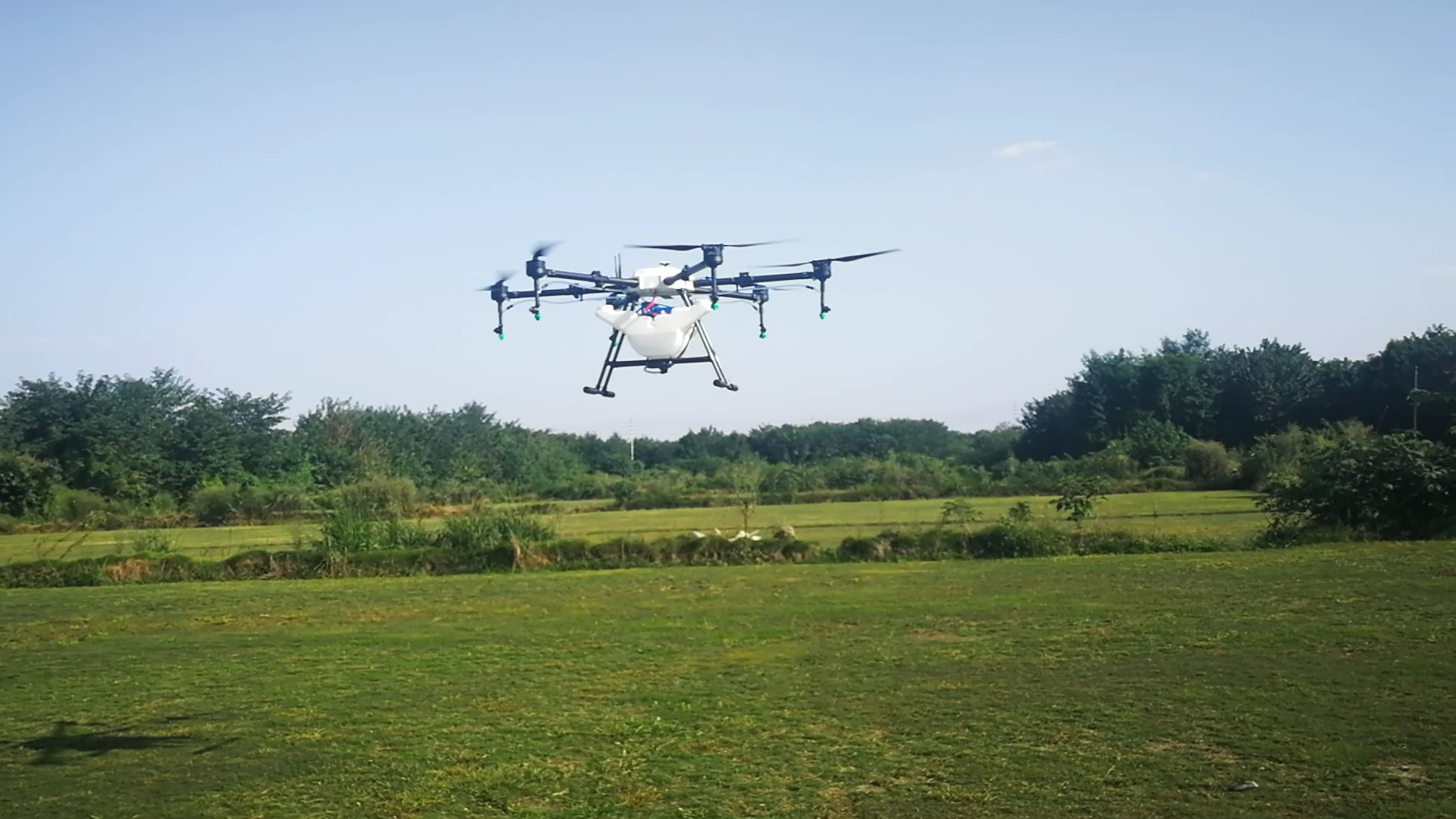

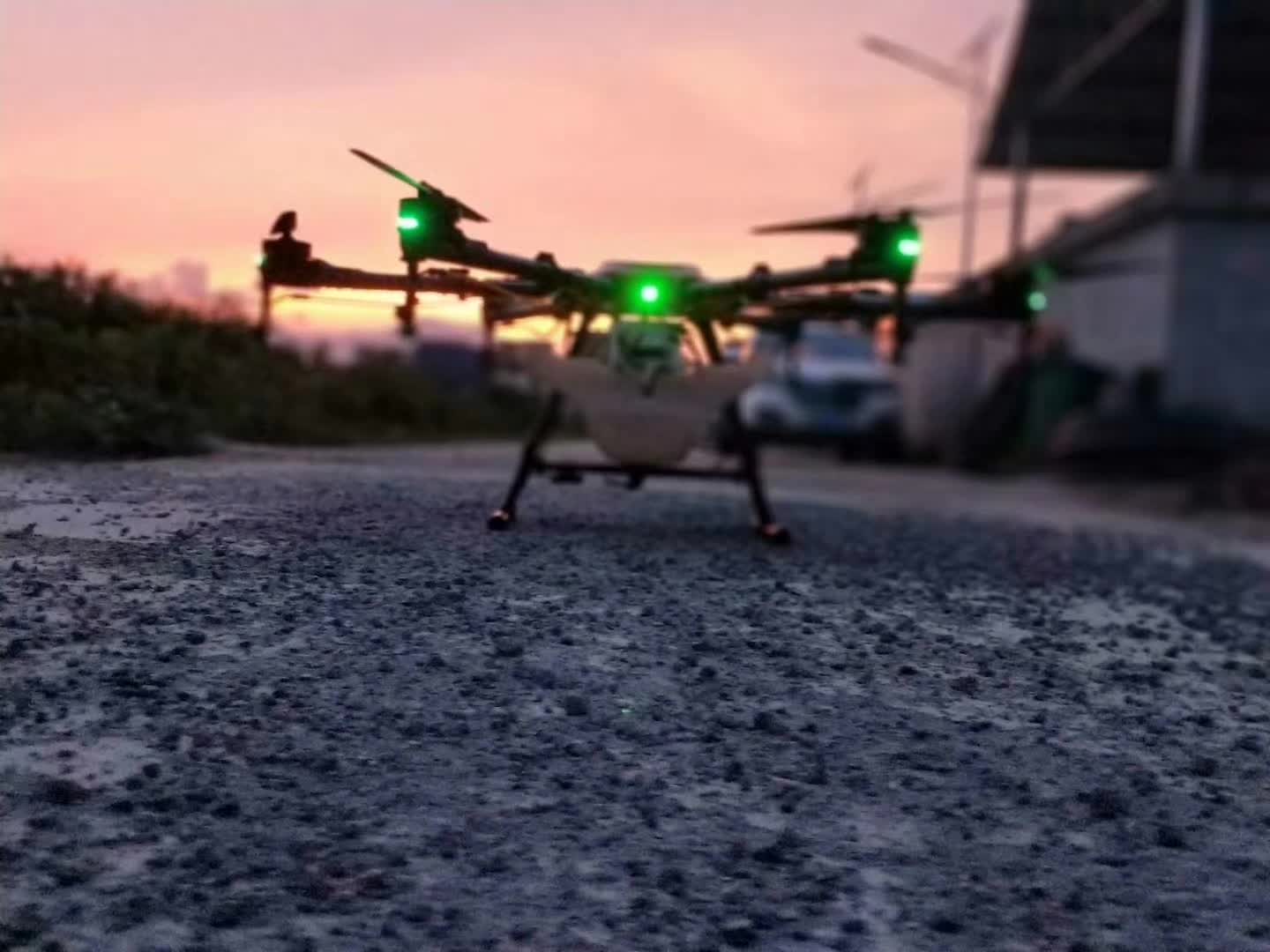

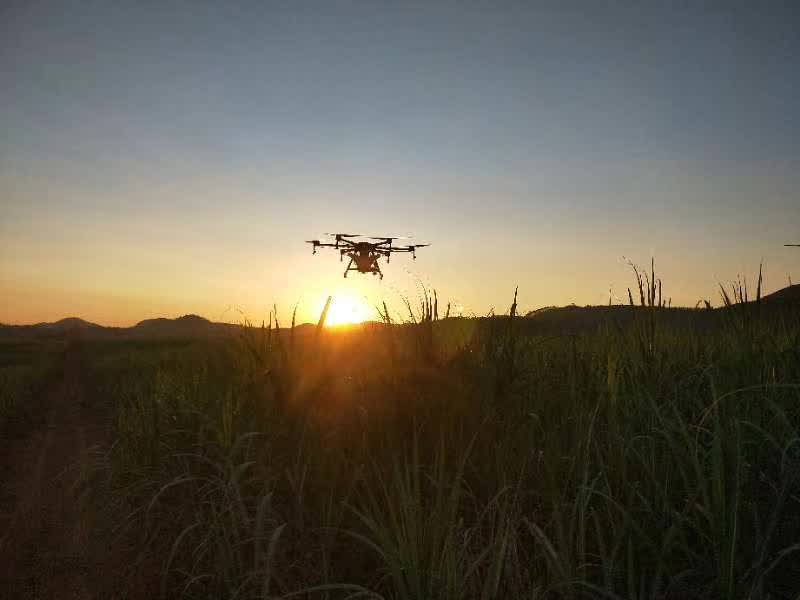

6 rotors 16L plant protection UAV White agriculture sprayer
Intelligent Agriculture is the trend of all over the world. And the intelligent drone act as a important role in this world plan.
Agriculture spraying drone can replace the traditional pesticide sprayer and it's speed is 40times of the traditional sprayer. It will save 90% water and 30%-40% pesticide. Small droplet diameter make the pesticide more well-distribute and improve the effect. At the same time, it will make the people faraway from the pesticide and reduce the pesticide remain of the crop.
Specification
AIRCRAFT FRAME
Dimensions
1720mm x1720mm x610mm(arm unfolded, without propellers)
SPRAY SYSTEM
LIQUID TANK
Volume
16 L
Standard Operating Payload
16 kg
NOZZLE
Model
Germany ceramic nozzle(Max 1L/min adjustable)
Quantity
6
FLIGHT PARAMETERS
Total Weight
15.5 kg (without battery)
Standard Takeoff Weight
37.5 kg
Max Takeoff Weight
37.5 kg (at sea level)
Max Thrust-Weight Ratio
1.41 (with 37.5 kg takeoff weight)
Power Battery
Battery (6S 22000mAh 25C 6S1P )
Max Power Consumption
15774 W
Hovering Time*
21 min(@22000 mAh & 16 kg takeoff weight)
Max Operating Speed
8 m/s
Max Flying Speed
10 m/s
Max Service Ceiling Above Sea Level
2000 m
Recommended Operating Temperature
0 ℃ to 40 ℃
REMOTE CONTROLLER
Model
XT32
Operating Frequency
2.400 GHz to 2.483 GHz
Max Transmission Range
3 km (unobstructed, free of interference)
EIRP
≤20 dBm
Built-in Battery
3000 mAh,3.7V
Operating Temperature Range
-10 ℃ to 40 ℃
Storage Temperature Range
Less than 3 months: -20 to 45℃
Charge Temperature Range
5 ℃ to 40 ℃
RADAR MODULE
Detection Range
1- 5 m
Working Range
1.5 - 3.5 m
Precision
< 10 cm
PROPULSION SYSTEM
MOTOR
Stator Size
81×20 mm
KV
100 rpm/V
Max Thrust
15.3 kg/Axis (48V, Sea Level)
Weight
180g
FDXD-6R-16l using the new T1 - A Flight Controller, with a Radar Sensing System that provides additional reliability during flight. T1 - A is a mature flight controller for agricultural UAV. It provides rich and practical function that can meet the multiple requirements of the current agricultural UAV. By the integration of high precision sensor, the application of advanced industrial precision calibration algorithm as well as reasonable intelligent operation mode, the more efficient, accurate and convenient way of plant protection work can be realized.
925mmm x925mmm x610mm(arm folded)
10 min(@22000 mAh & 37.5 kg takeoff weight)
*Hovering time acquired at sea level, with wind speeds lower than 3m/s.
More than 3 months: 22 to 28℃
